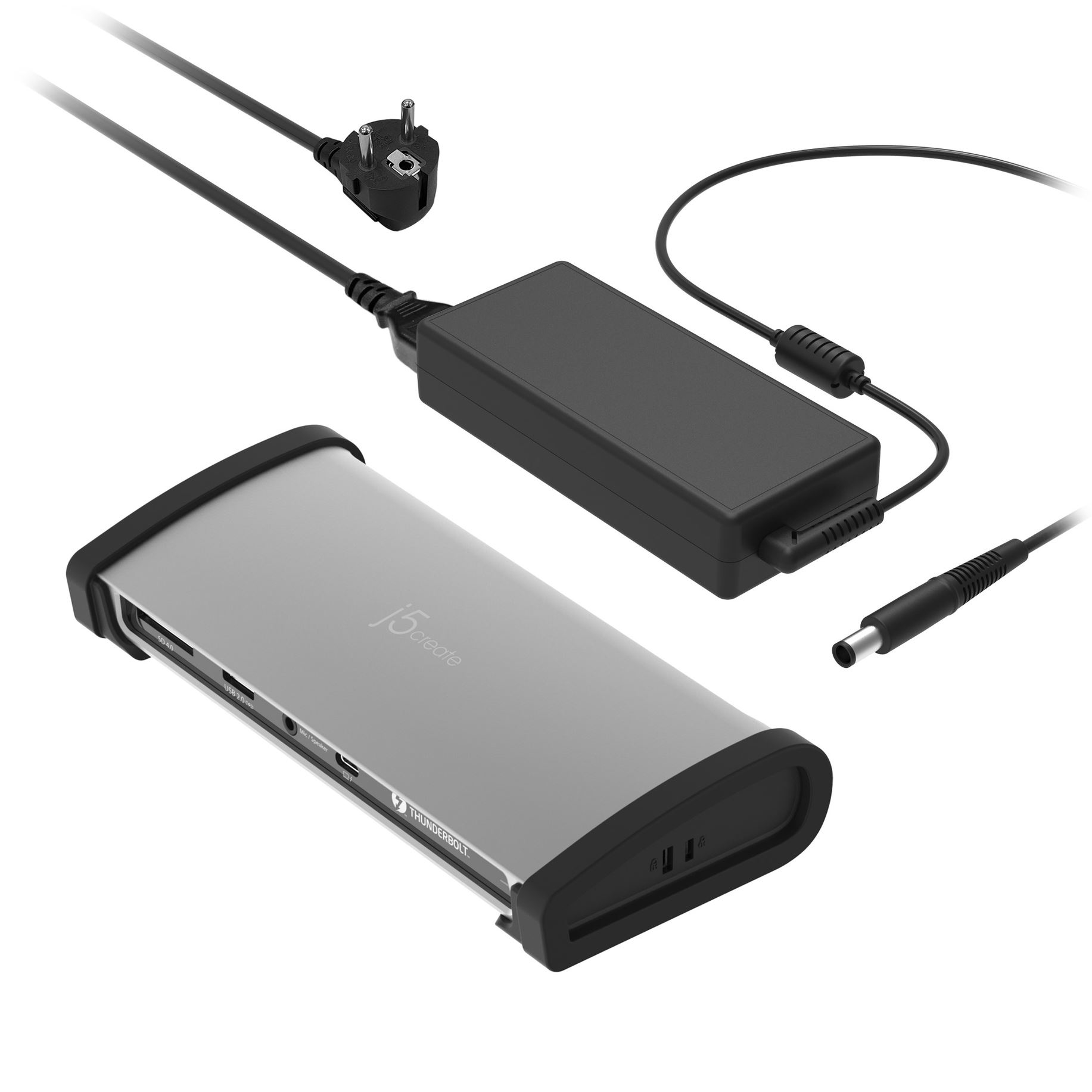

JTD562 - 8K Thunderbolt™ 4 Docking Station - EU
Model JTD562-ENEAN 4712795086911
39 specifications
- ConnectivityWired
- Weight411 g
- ColourGrey
- Ethernet LANYes
- Thunderbolt 4 cable length0.7 m
- Width84.4 mm
Overview
- Connectivity
- Wired
- Weight
- 411 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Thunderbolt 4 cable length
- 0.7 m
- Width
- 84.4 mm
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JTD562-EN
- Part number
- JTD562-EN
- EAN / UPC
- 4712795086911
- Also known as
- j5create JTD562 - 8K Thunderbolt™ 4 Docking Station - EU
Specifications
39 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 0 |
| Thunderbolt 4 ports quantity | 3 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Thunderbolt 4 cable length | 0.7 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84.4 mm |
| Depth | 30.9 mm |
| Height | 194 mm |
| Weight | 411 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 122 mm |
| Package depth | 237 mm |
| Package height | 94 mm |
| Package weight | 1.34 kg |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case gross weight | 3 kg |
| Master (outer) case height | 155 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case width | 207 mm |
| Products per master (outer) case | 2 pc(s) |
