USB-C 4K Speakerphone Dock
Model JCDS335Part no. JCDS335-NEAN 847626006760
52 specifications
- ConnectivityWired
- Weight377 g
- ColourGrey, White
- Ethernet LANYes
- Power source typeAC, DC, USB
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Connectivity
- Wired
- Weight
- 377 g
- Colour
- Grey, White
- Ethernet LAN
- Yes
- Power source type
- AC, DC, USB
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JCDS335
- Part number
- JCDS335-N
- EAN / UPC
- 847626006760, 4712795087727
- Also known as
- j5create USB-C 4K Speakerphone Dock
Specifications
52 specifications in 11 groups

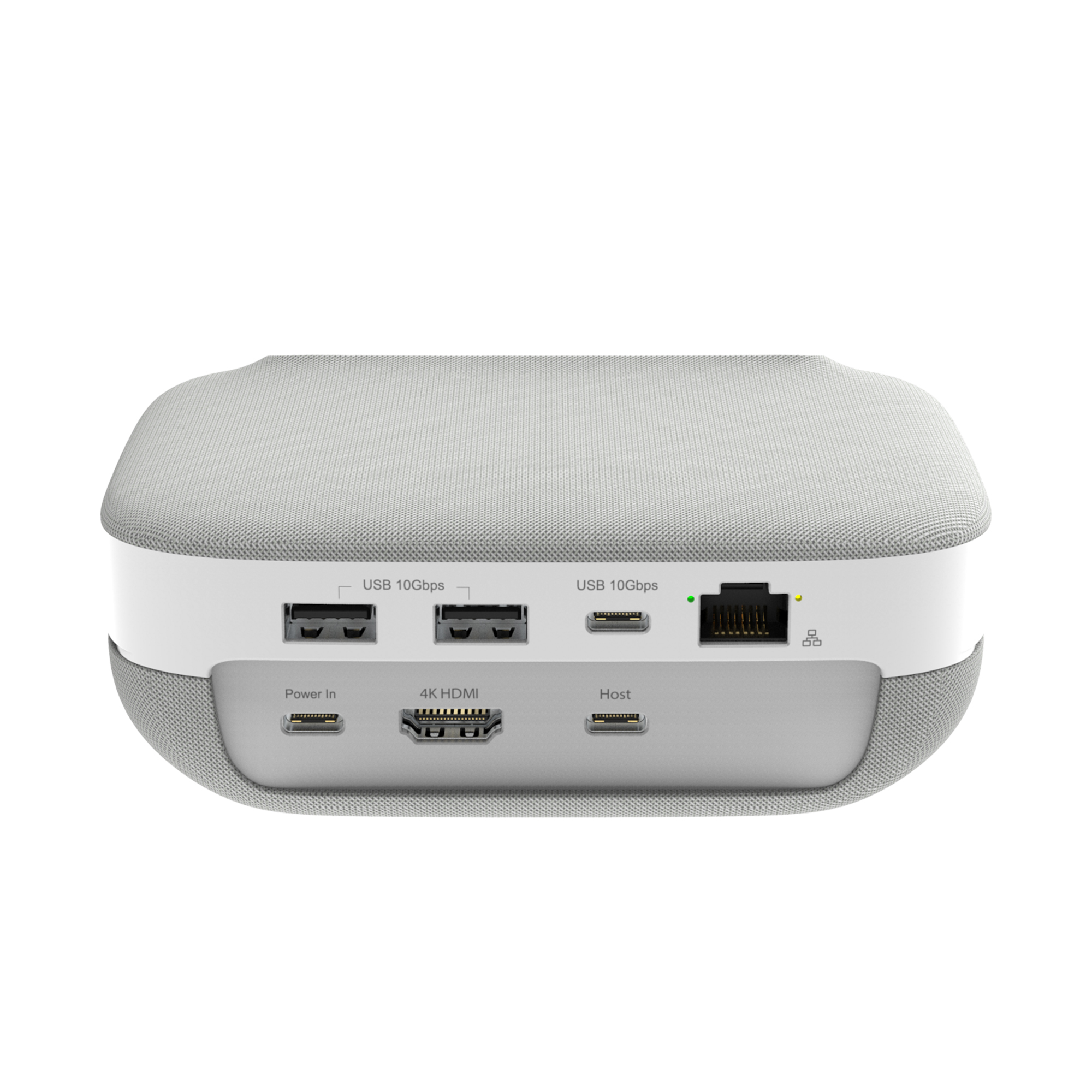

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey, White |
| Card reader integrated | No |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 1 |
| High Dynamic Range (HDR) supported | Yes |
| Display modes | Duplicate, Extended |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Plug and Play | Yes |
| Country of origin | Taiwan |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC, USB |
| Power connector | USB Type-C |
| Input current | 5 A |
| Power supply | 100 W |
| Output current | 4.25 A |
| Output voltage | 20 V |
| Power plug type | Type C |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 48 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 130 mm |
| Height | 47.8 mm |
| Weight | 377 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 170.5 mm |
| Package depth | 154 mm |
| Package height | 56 mm |
| Package weight | 676.8 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
