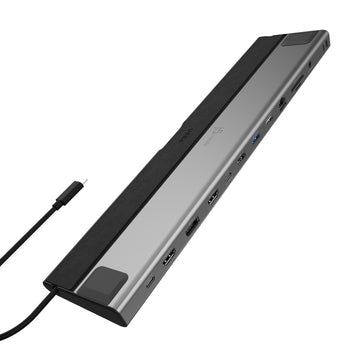

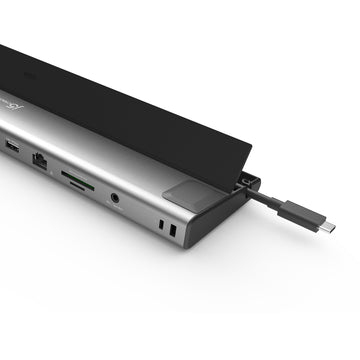

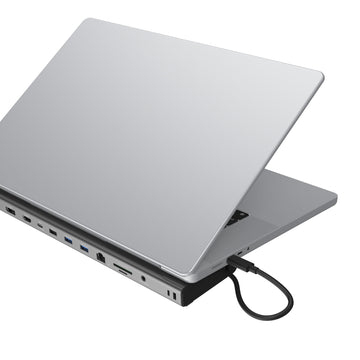

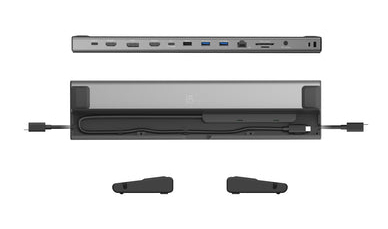

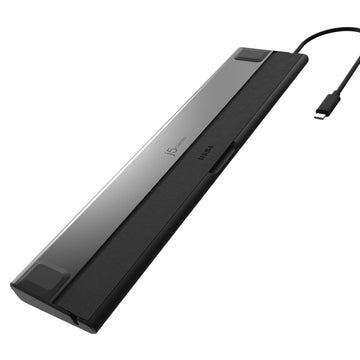

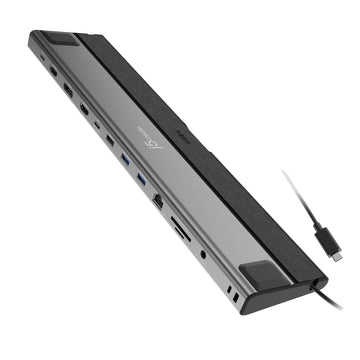

JCD554 laptop dock/port replicator Wired USB4 Black, Grey
Model JCD554
46 specifications
- ConnectivityWired
- Weight463 g
- ColourBlack, Grey
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)-1 - 41 °C
Overview
- Connectivity
- Wired
- Weight
- 463 g
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- -1 - 41 °C
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JCD554
- Part number
- JCD554
- Also known as
- j5create JCD554 laptop dock/port replicator Wired USB4 Black, Grey
Specifications
46 specifications in 11 groups

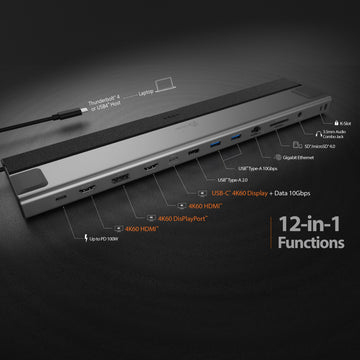

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 10 Gbit/s |

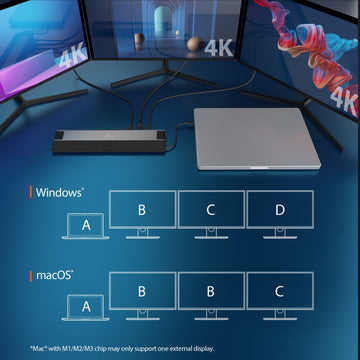

| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 144 Hz |
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Housing material | Aluminium |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Input current | 3 A |
| Output current | 4.25 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -1 - 41 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 344 mm |
| Depth | 23.6 mm |
| Height | 81.4 mm |
| Weight | 463 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Warranty period | 2 year(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.5 m |
