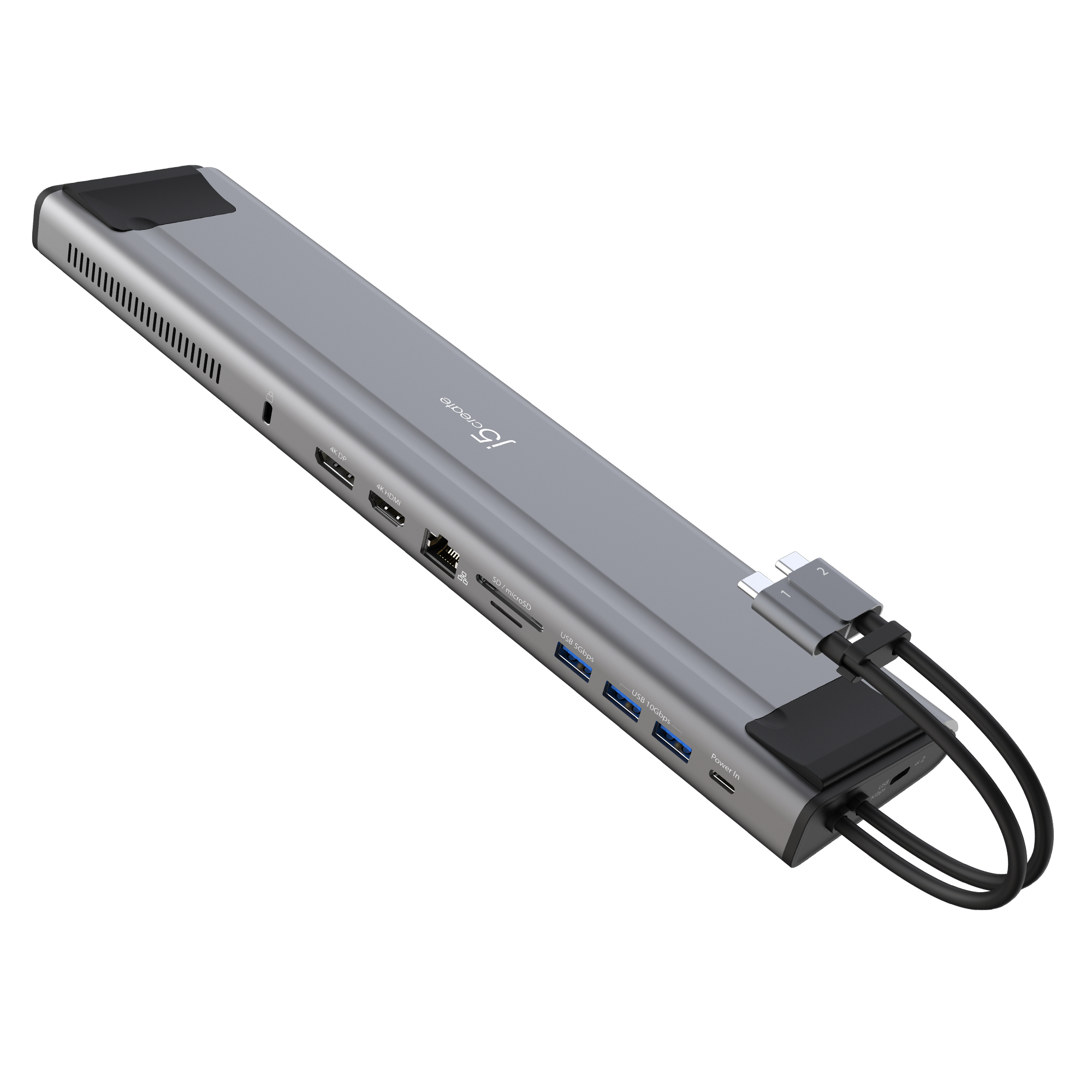

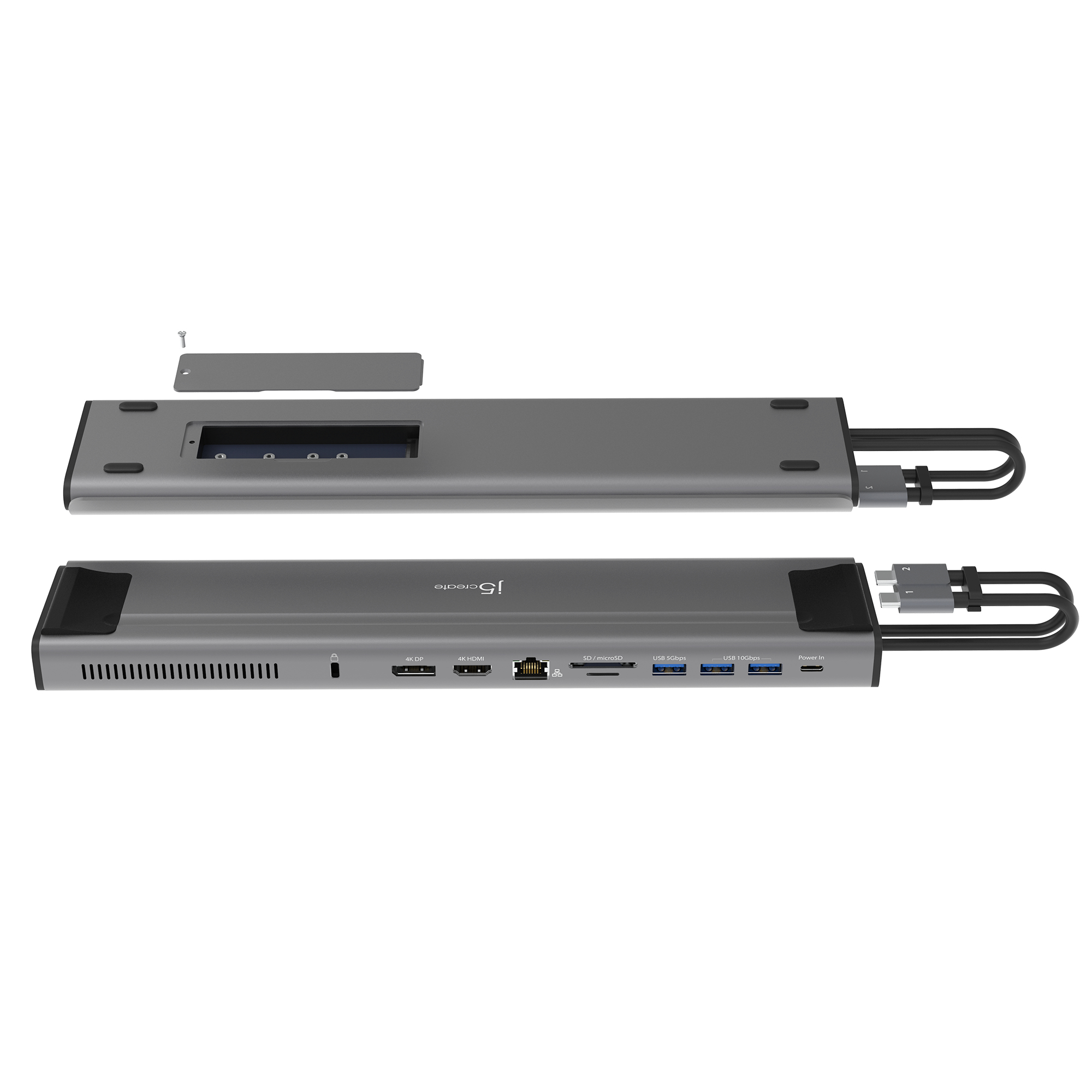

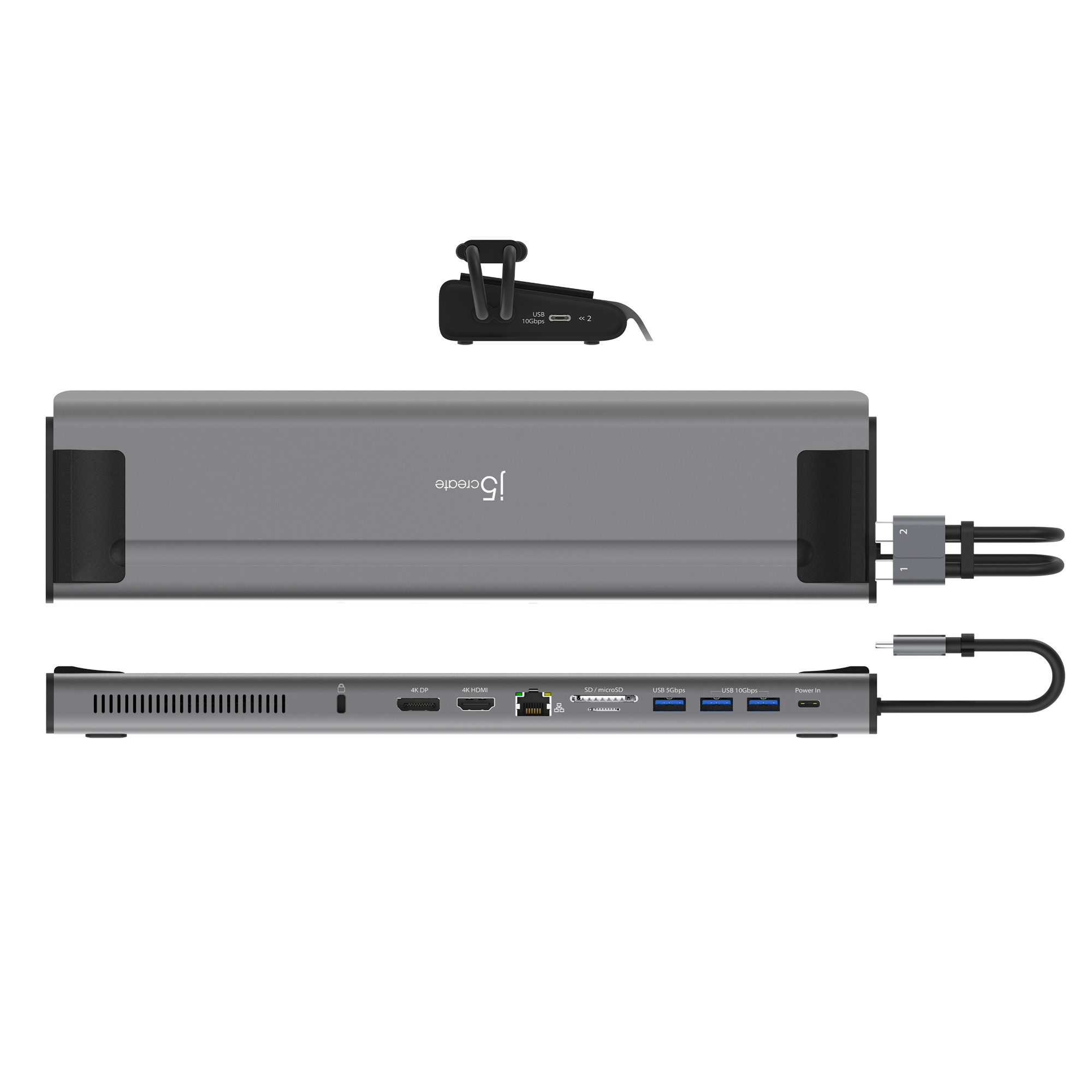

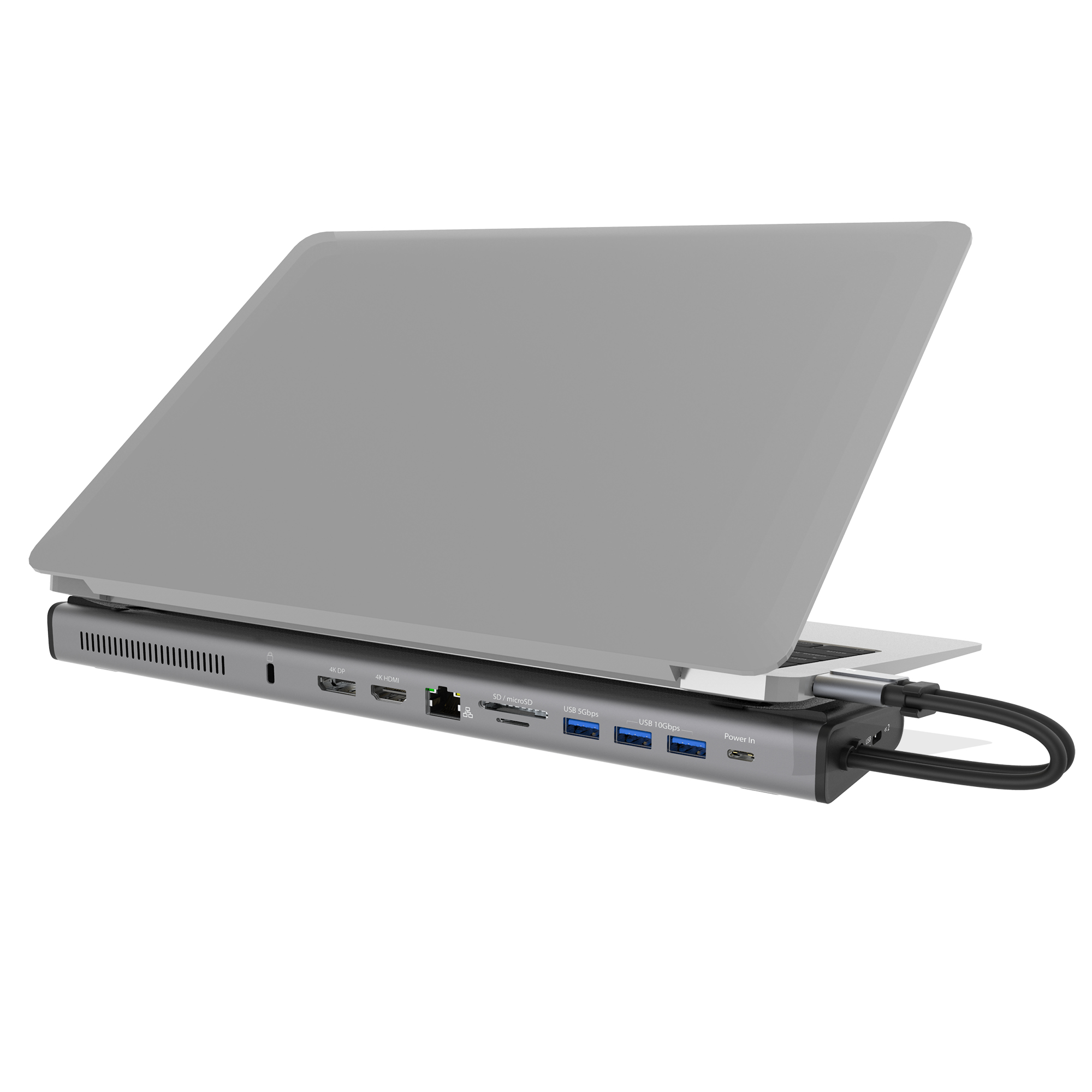

j5create JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station, Silver and Black
j5create

JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station, Silver and Black

Model JCD552Part no. JCD552-NEAN 847626005671

67 specifications
  • ConnectivityWired
  • Weight480.5 g
  • ColourBlack, Silver
  • Ethernet LANYes
  • Power source typeUSB
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
480.5 g
Colour
Black, Silver
Ethernet LAN
Yes
Power source type
USB
Operating temperature (T-T)
0 - 40 °C
Brand
j5create
Model
JCD552
Part number
JCD552-N
EAN / UPC
847626005671, 4712795086133
Also known as
j5create JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station, Silver and Black

Specifications

67 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired

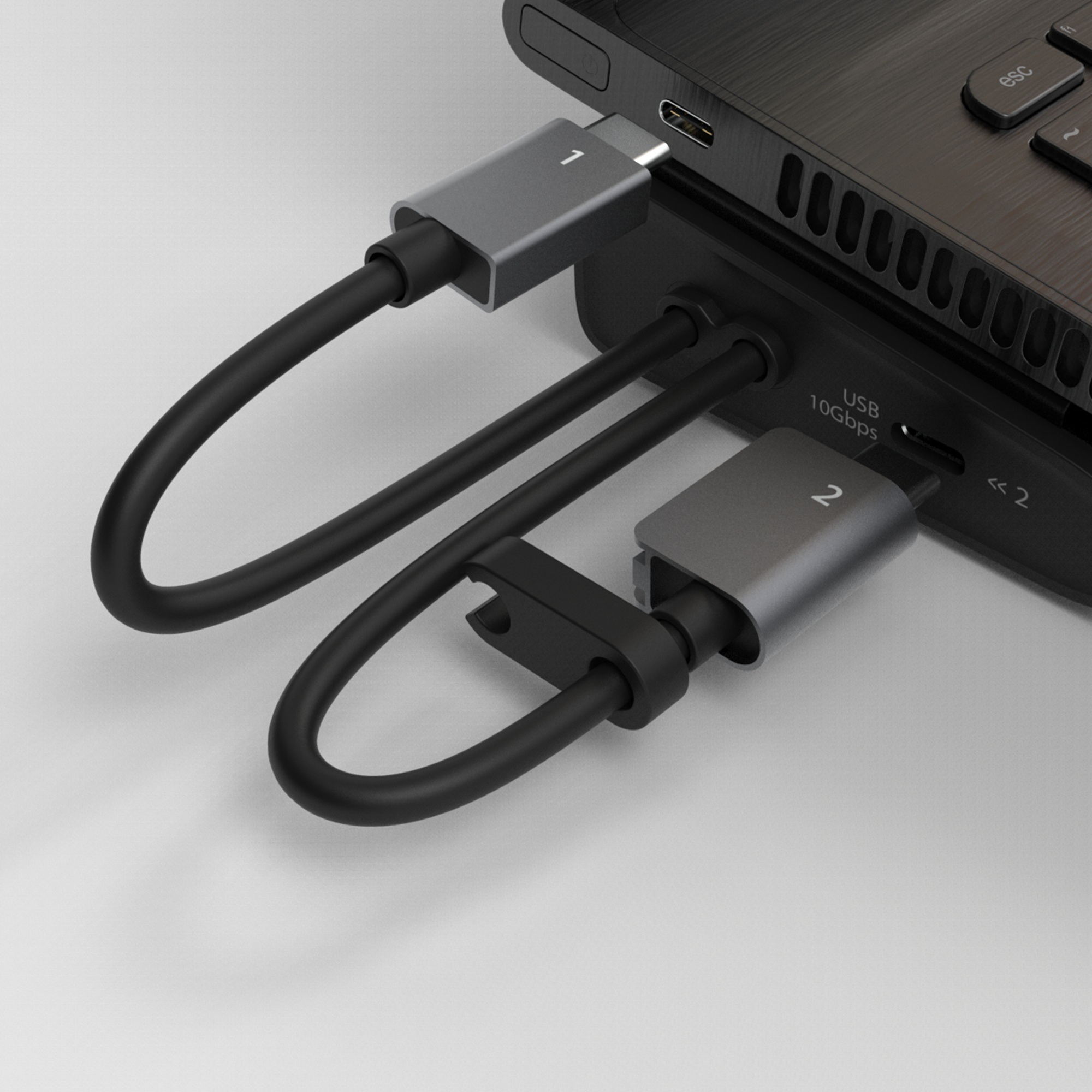

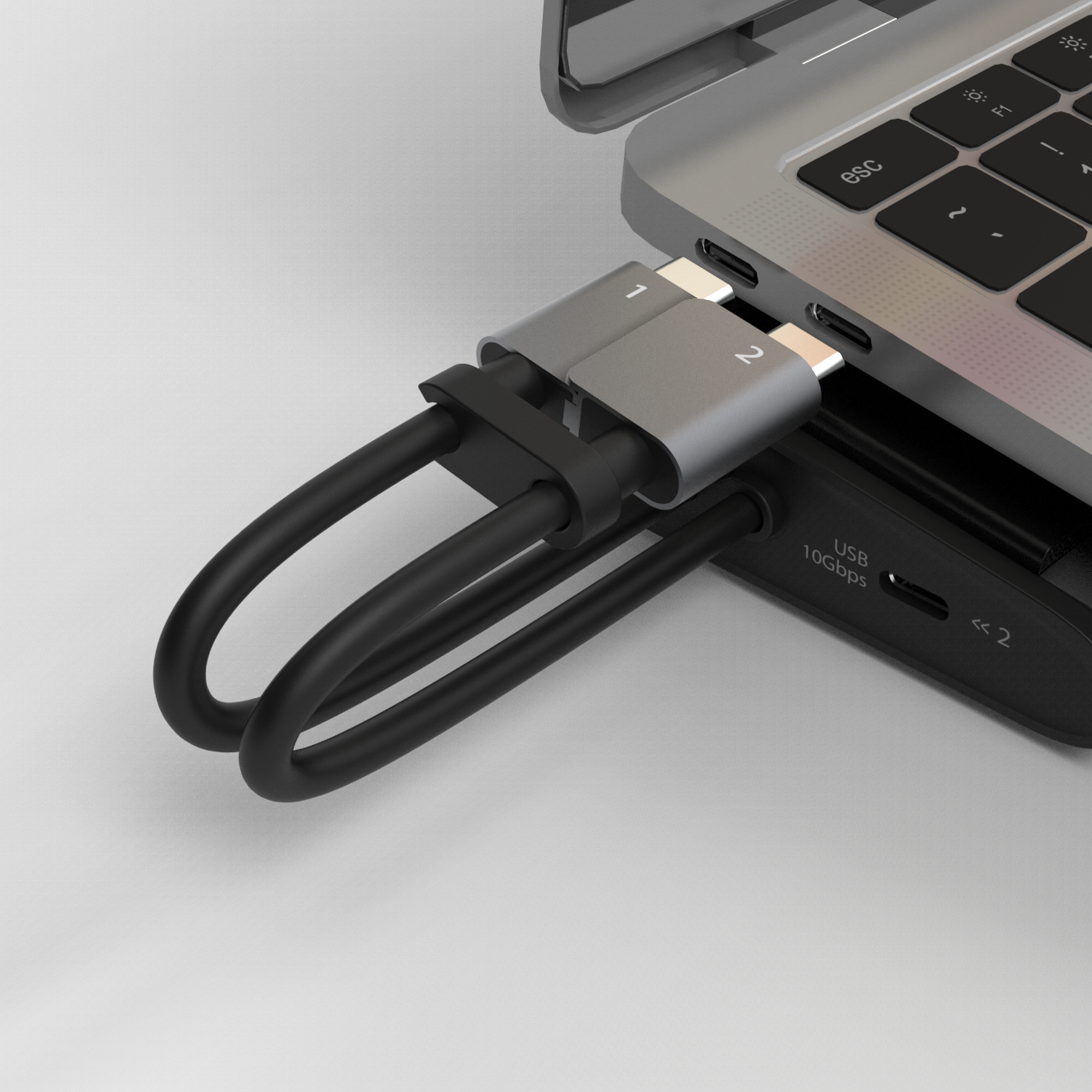

Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
Microphone inNo
Headphone outputs0

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Product colourBlack, Silver
Colour nameSilver & Black
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Number of storage drives supported1
Supported storage drive typesSSD
Built-in SSDNo
NVMeYes

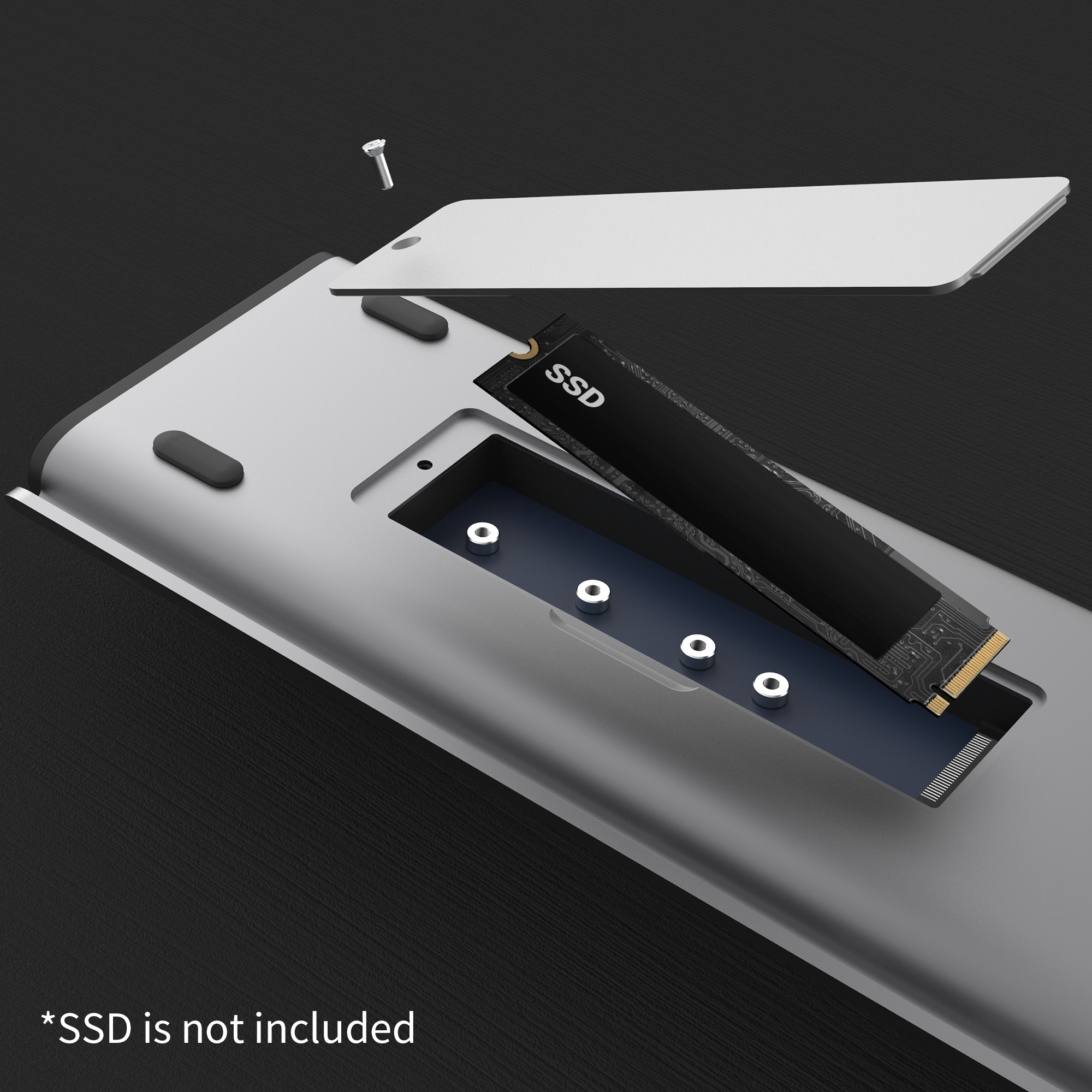

SSD enclosureYes
Supported SSD sizesM.2
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz
Number of displays supported2
Housing materialAluminium
Country of originTaiwan
CompatibilityMac / Windows laptop

Power

Power source typeUSB
Power connectorUSB Type-C
Output current0.75 A
Output voltage5 V
Power consumption (typical)3.75 W
Power cable length0.15 m
USB cable length0.15 m

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Weight & dimensions

Width80 mm
Depth318 mm
Height26 mm
Weight480.5 g

Packaging data

Quantity per pack1 pc(s)
Package width90 mm
Package depth377.5 mm
Package height33 mm
Package weight606.5 g

Packaging content

ManualYes
Quick start guideYes

Technical details

Master (outer) case GTIN (EAN/UPC)24712795086137
Warranty period2 year(s)

Logistics data

Export Control Classification Number (ECCN)EAR99
Master (outer) case gross weight2.7 kg
Master (outer) case height123 mm
Master (outer) case length398 mm
Master (outer) case width150 mm
Products per master (outer) case4 pc(s)

Other features

Special features12-in-1 functions, M.2 Expansion slot, USB 3.2, HDMI/DP 4K @ 60, 100W power delivery Passthrough
