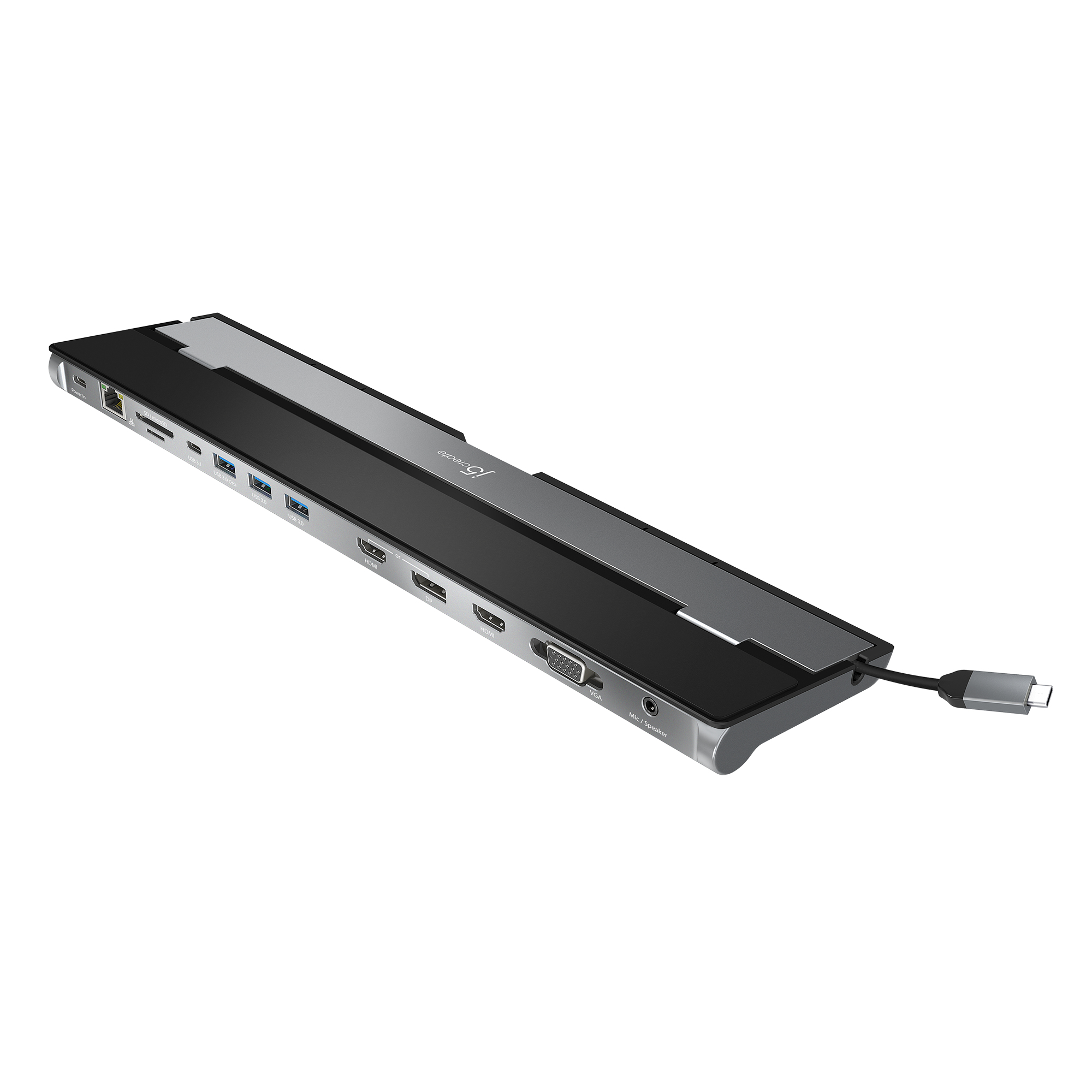

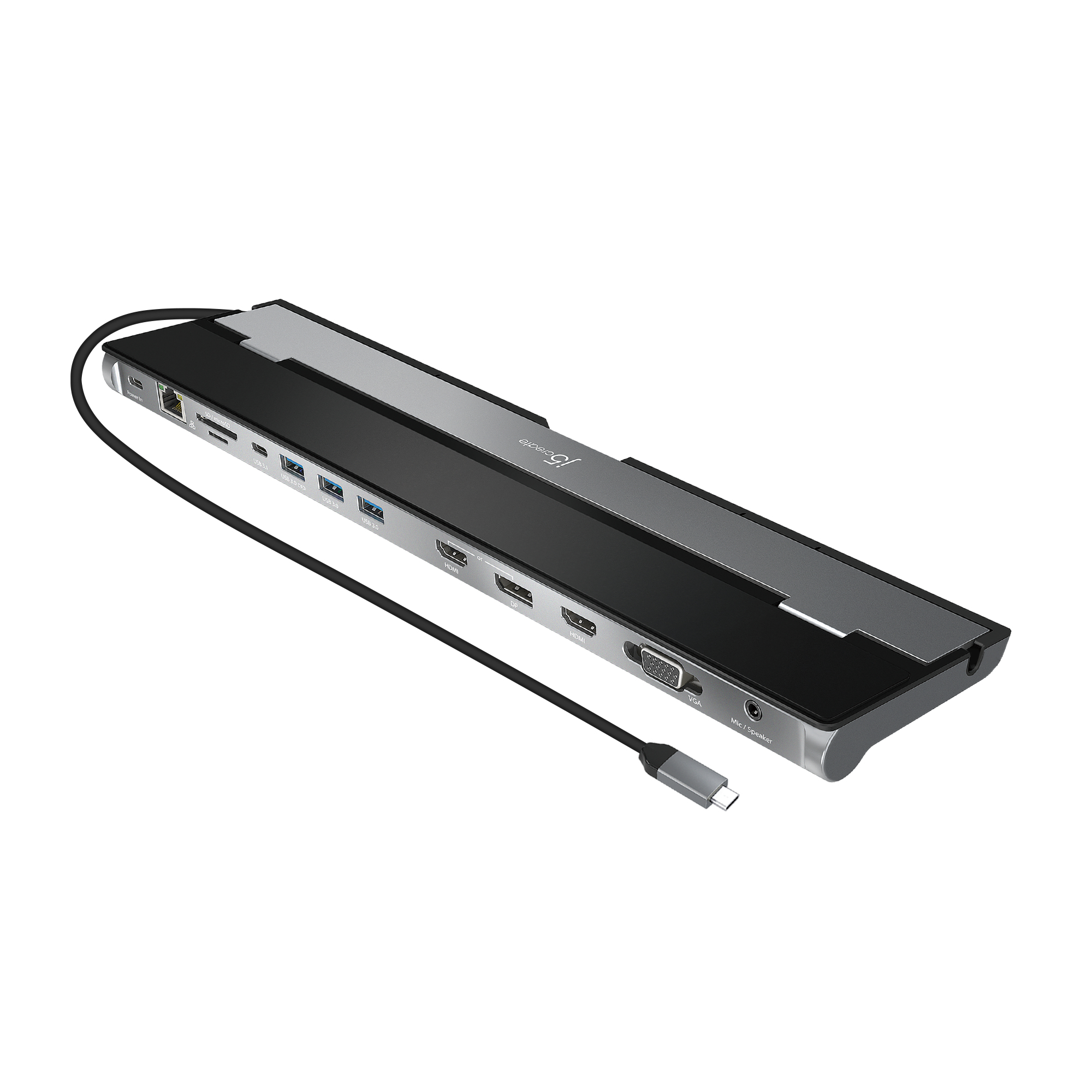

JCD543 USB-C™ Triple Display Docking Station
Model JCD543Part no. JCD543-NEAN 847626003363
54 specifications
- ConnectivityWired
- Weight355 g
- ColourBlack, Silver
- Ethernet LANYes
- Input current5 A
- Windows operating systems supportedWindows 10, Windows 11, Yes
Overview
- Connectivity
- Wired
- Weight
- 355 g
- Colour
- Black, Silver
- Ethernet LAN
- Yes
- Input current
- 5 A
- Windows operating systems supported
- Windows 10, Windows 11, Yes
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JCD543
- Part number
- JCD543-N
- EAN / UPC
- 847626003363, 4712795083613
- Also known as
- j5create JCD543 USB-C™ Triple Display Docking Station
Specifications
54 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 3 |
| Hub interfaces | DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA |
| Housing material | Aluminium |
| Country of origin | Taiwan |
Power
| Specification | Value |
|---|---|
| Input current | 5 A |
| Output current | 0.9 A |
| Output voltage | 20 V |
| Power consumption (typical) | 4.5 W |
| Power plug type | Type C |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 48 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82.5 mm |
| Depth | 350 mm |
| Height | 23.4 mm |
| Weight | 355 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 88 mm |
| Package depth | 358 mm |
| Package height | 28 mm |
| Package weight | 433 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| Cables included | USB Type-C |
| Manual | Yes |
| Packaging content | 1 x USB-C Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C Power Adapter |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.45 m |
| Maximum operating temperature | 48 °C |
