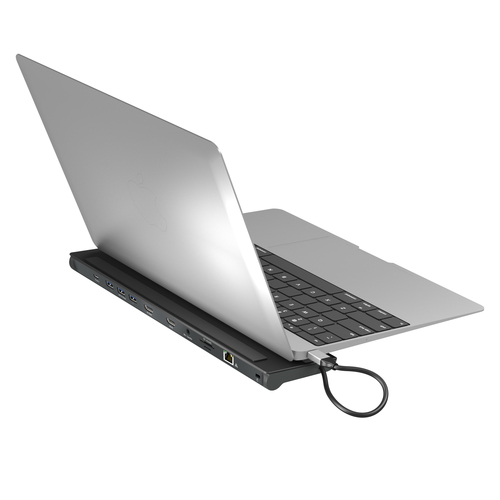

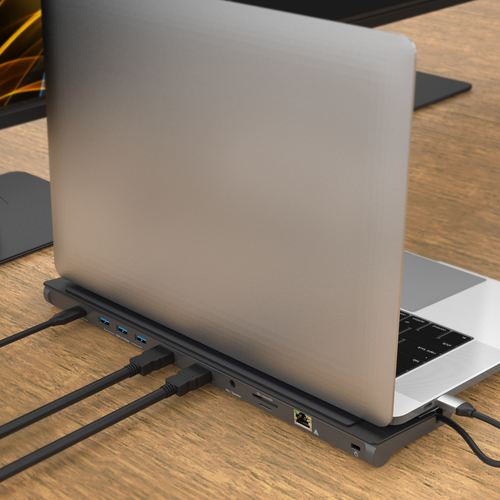

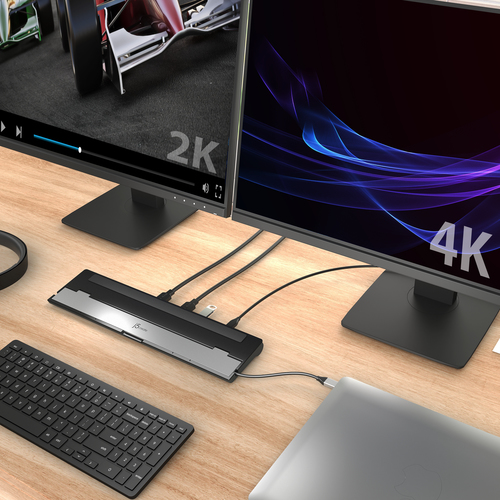

j5create JCD542-N USB-C® Dual HDMI™ Docking Station, includes 2x HDMI ports and 4x USB ports, Grey & Black
j5create

JCD542-N USB-C® Dual HDMI™ Docking Station, includes 2x HDMI ports and 4x USB ports, Grey & Black

Model JCD542Part no. JCD542-NEAN 847626005602

44 specifications
  • Weight307 g
  • ColourBlack, Grey
  • Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • Ethernet LAN (RJ-45) ports1
  • Power supply typeUSB
  • Windows operating systems supportedWindows 10
See all specifications

Overview

Weight
307 g
Colour
Black, Grey
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports
1
Power supply type
USB
Windows operating systems supported
Windows 10
Brand
j5create
Model
JCD542
Part number
JCD542-N
EAN / UPC
847626005602, 4712795086041
Also known as
j5create JCD542-N USB-C® Dual HDMI™ Docking Station, includes 2x HDMI ports and 4x USB ports, Grey & Black

Specifications

44 specifications in 11 groups

Ports & interfaces

Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI ports quantity2
Combo headphone/mic portYes
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Product colourBlack, Grey
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SD
HD type4K Ultra HD
Maximum refresh rate30 Hz
Number of displays supported2
Hub interfaces3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Housing materialAluminium
Country of originTaiwan

Power

Power supply typeUSB
Output current0.9 A
Output voltage20 V
Power consumption (typical)4.5 W

Software

Windows operating systems supportedWindows 10
Mac operating systems supportedMac OS X 10.11 El Capitan

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 65 °C

Weight & dimensions

Width82.5 mm
Depth350.2 mm
Height22 mm
Weight307 g

Packaging data

Quantity per pack1 pc(s)
Package width88.3 mm
Package depth358 mm
Package height28 mm
Package weight405 g

Packaging content

Cables includedUSB Type-C
ManualYes
Packaging content1 x JCD542 USB-C Dual HDMI Docking Station, 1 x Quick Installation Guide (QIG)
Quick start guideYes

Technical details

Warranty period2 year(s)

Other features

Cable length0.45 m
Maximum operating temperature40 °C
