j5create JCD401 USB4™ Dual 4K Multi-Port Hub, Silver
j5create

JCD401 USB4™ Dual 4K Multi-Port Hub, Silver

Model JCD401Part no. JCD401-NEAN 4712795086348

64 specifications
  • ConnectivityWired
  • Weight109 g
  • ColourSilver
  • Ethernet LANNo
  • Power source typeUSB
  • Windows operating systems supportedYes
See all specifications

Overview

Connectivity
Wired
Weight
109 g
Colour
Silver
Ethernet LAN
No
Power source type
USB
Windows operating systems supported
Yes
Brand
j5create
Model
JCD401
Part number
JCD401-N
EAN / UPC
4712795086348
Also known as
j5create JCD401 USB4™ Dual 4K Multi-Port Hub, Silver

Specifications

64 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB4 ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to85 W
HDMI ports quantity1
DisplayPorts quantity1
Microphone inNo
Headphone outputs0
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANNo

Performance

Product colourSilver
Card reader integratedNo
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Maximum refresh rate60 Hz
Number of displays supported2
Hub interfacesDisplayPort, HDMI, Mini DisplayPort, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, mini DisplayPort
Housing materialAluminium
Plug and PlayYes
Country of originTaiwan
CompatibilityThunderbolt™ 4 computers Thunderbolt™ 3 computers USB4® computers

Power

Power source typeUSB
Power connectorUSB Type-C
Output current0.25 A
Output voltage20 V
Power consumption (typical)1.25 W
USB cable length0.2 m

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-17 - 68 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Weight & dimensions

Width51 mm
Depth200 mm
Height135 mm
Weight109 g

Packaging data

Quantity per pack1 pc(s)
Package width193 mm
Package depth125 mm
Package height22.5 mm
Package weight177 g

Packaging content

Cables includedUSB Type-C
ManualYes
Quick start guideYes

Technical details

Master (outer) case GTIN (EAN/UPC)24712795086342
Warranty period2 year(s)

Logistics data

Export Control Classification Number (ECCN)EAR99
Master (outer) case gross weight4.1 kg
Master (outer) case height190 mm
Master (outer) case length445 mm
Master (outer) case width226 mm
Products per master (outer) case18 pc(s)
Products per shipping (inner) case6 pc(s)
Shipping (inner) case width16.5 cm
Shipping (inner) case length21.2 cm
Shipping (inner) case height13.7 cm
Shipping (inner) case net weight1.2 kg

Other features

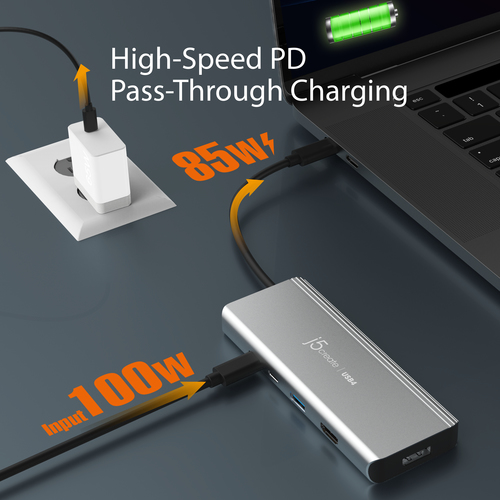

Special featuresIntel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
