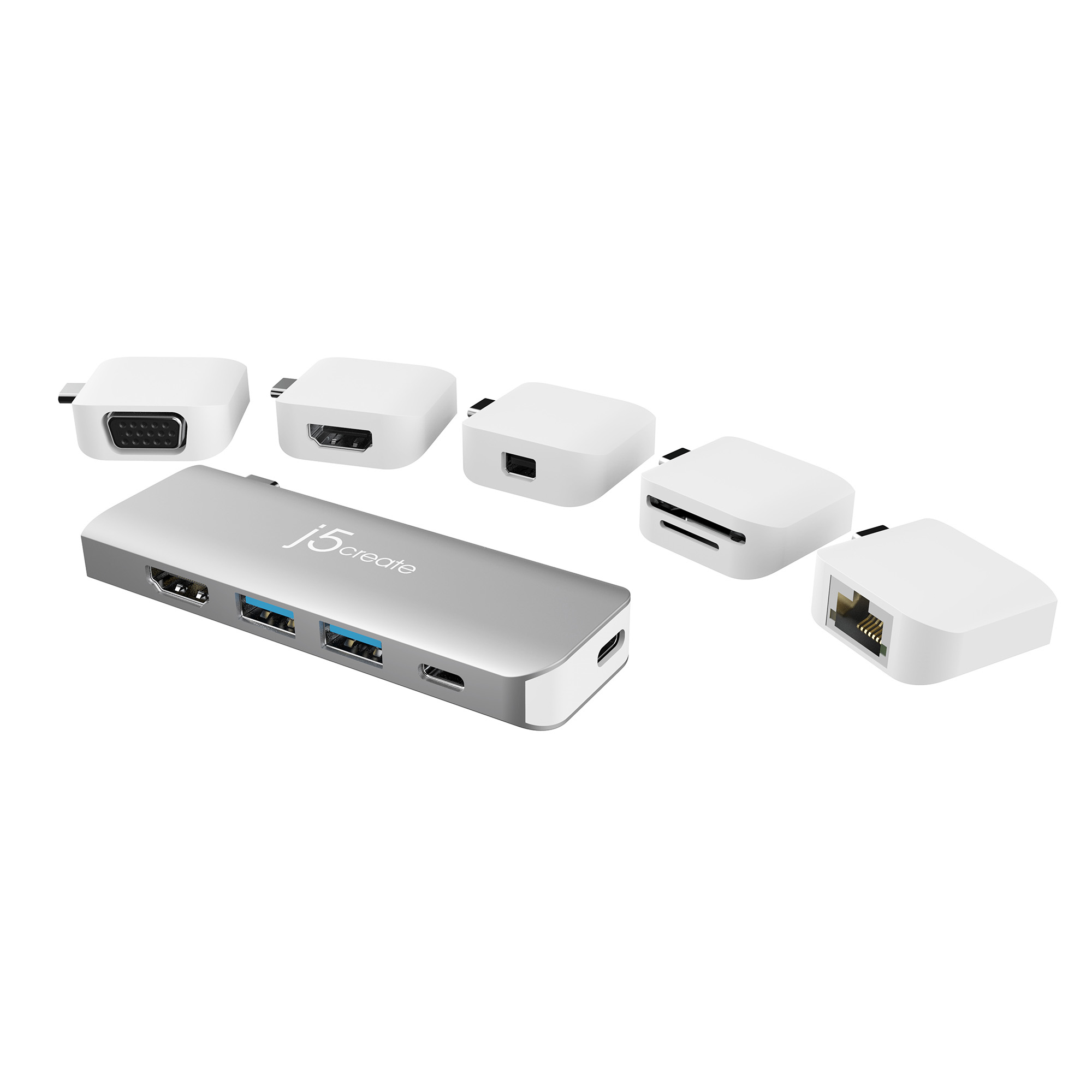

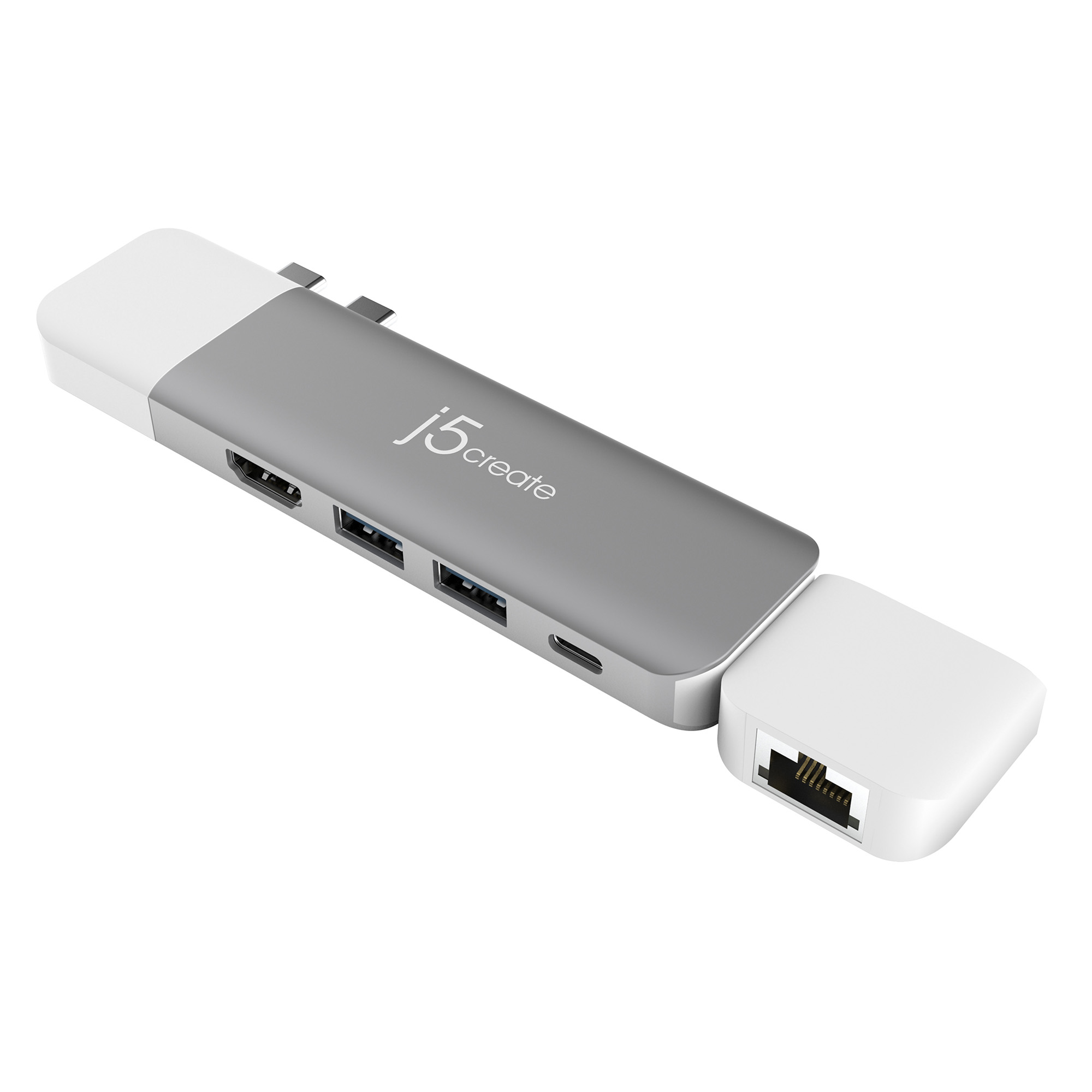

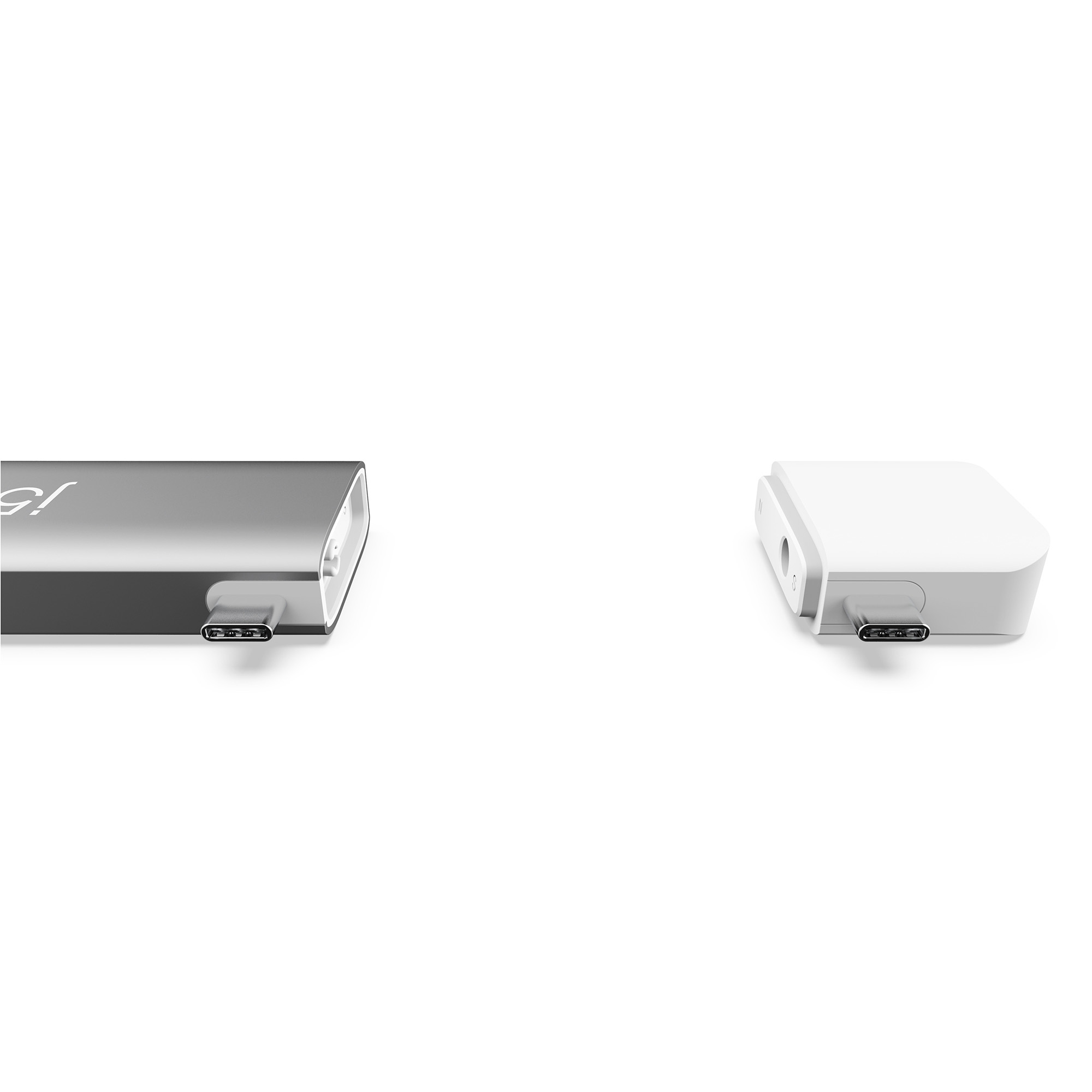

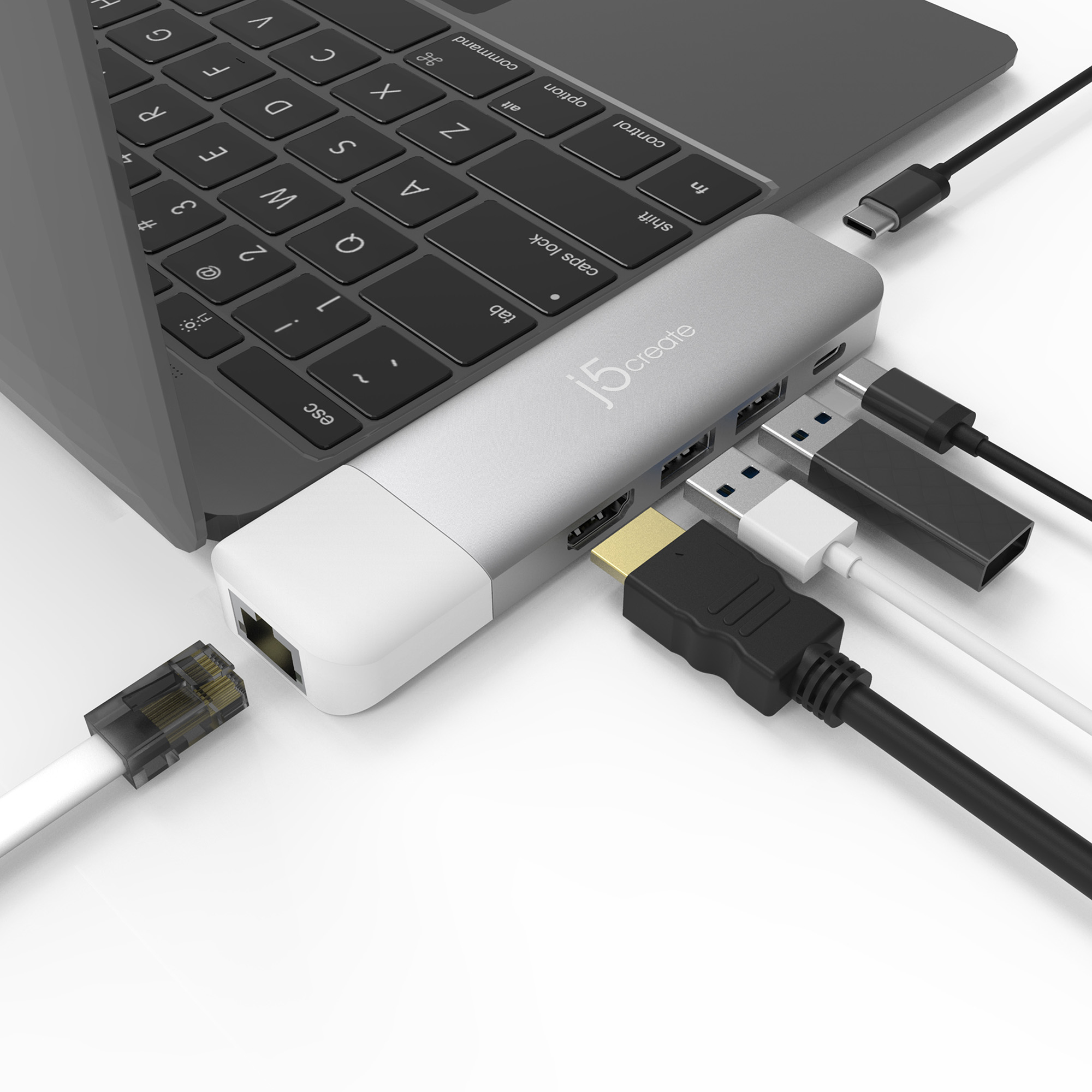

j5create JCD389 Ultradrive Kit USB-C™ Multi-Display Modular Dock, includes 2x HDMI ports and 4x USB ports, Silver and White
j5create

JCD389 Ultradrive Kit USB-C™ Multi-Display Modular Dock, includes 2x HDMI ports and 4x USB ports, Silver and White

Model JCD389Part no. JCD389-NEAN 24712795083723

57 specifications
  • Weight59 g
  • ColourSilver, White
  • Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • Ethernet LAN (RJ-45) ports1
  • Power supply4.5 W
  • Windows operating systems supportedNo
See all specifications

Overview

Weight
59 g
Colour
Silver, White
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports
1
Power supply
4.5 W
Windows operating systems supported
No
Brand
j5create
Model
JCD389
Part number
JCD389-N
EAN / UPC
24712795083723, 4712795083729
Also known as
j5create JCD389 Ultradrive Kit USB-C™ Multi-Display Modular Dock, includes 2x HDMI ports and 4x USB ports, Silver and White

Specifications

57 specifications in 12 groups

Ports & interfaces

Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI ports quantity2
VGA (D-Sub) ports quantity1
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Product colourSilver, White
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SD
HD type4K Ultra HD
Maximum refresh rate30 Hz

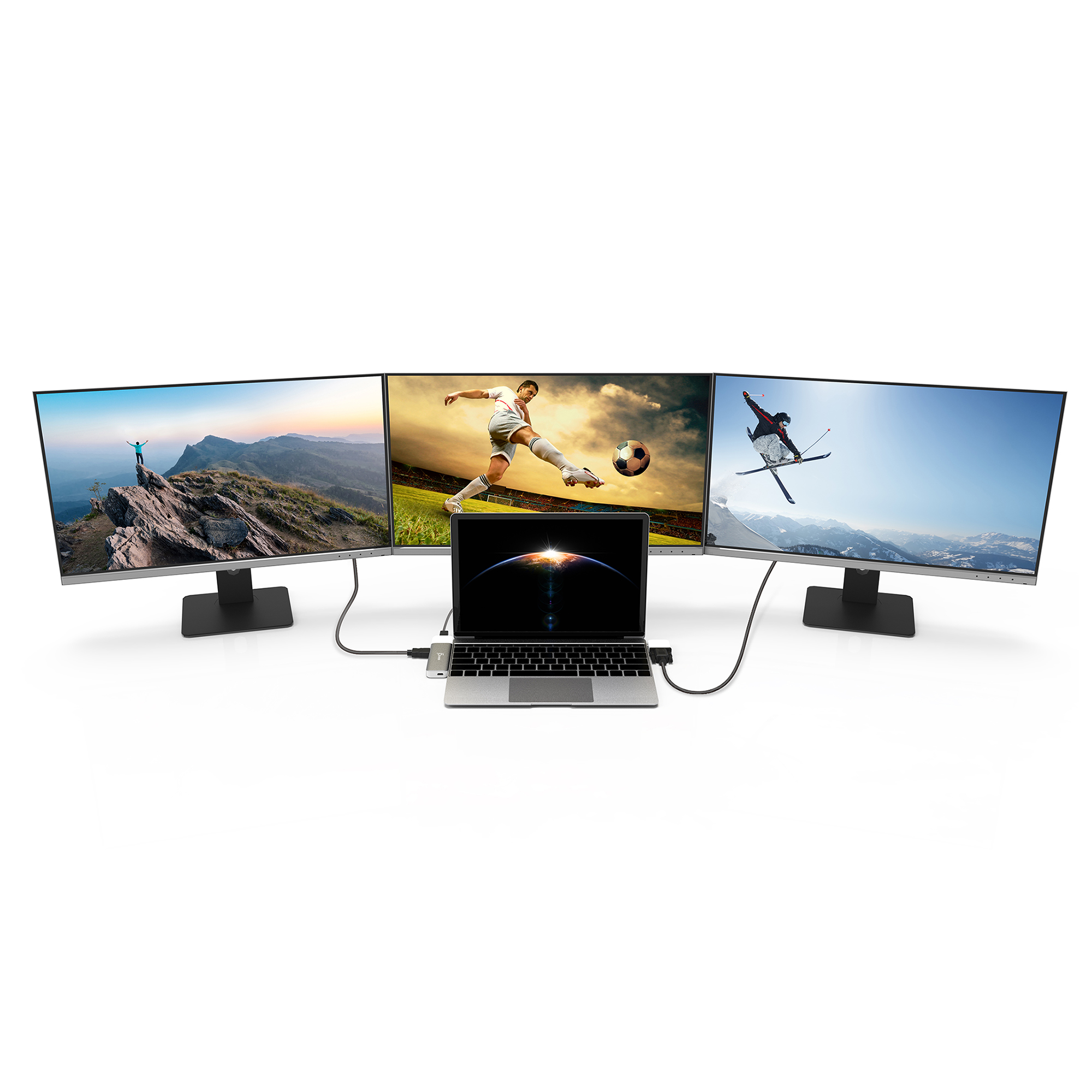

Number of displays supported3

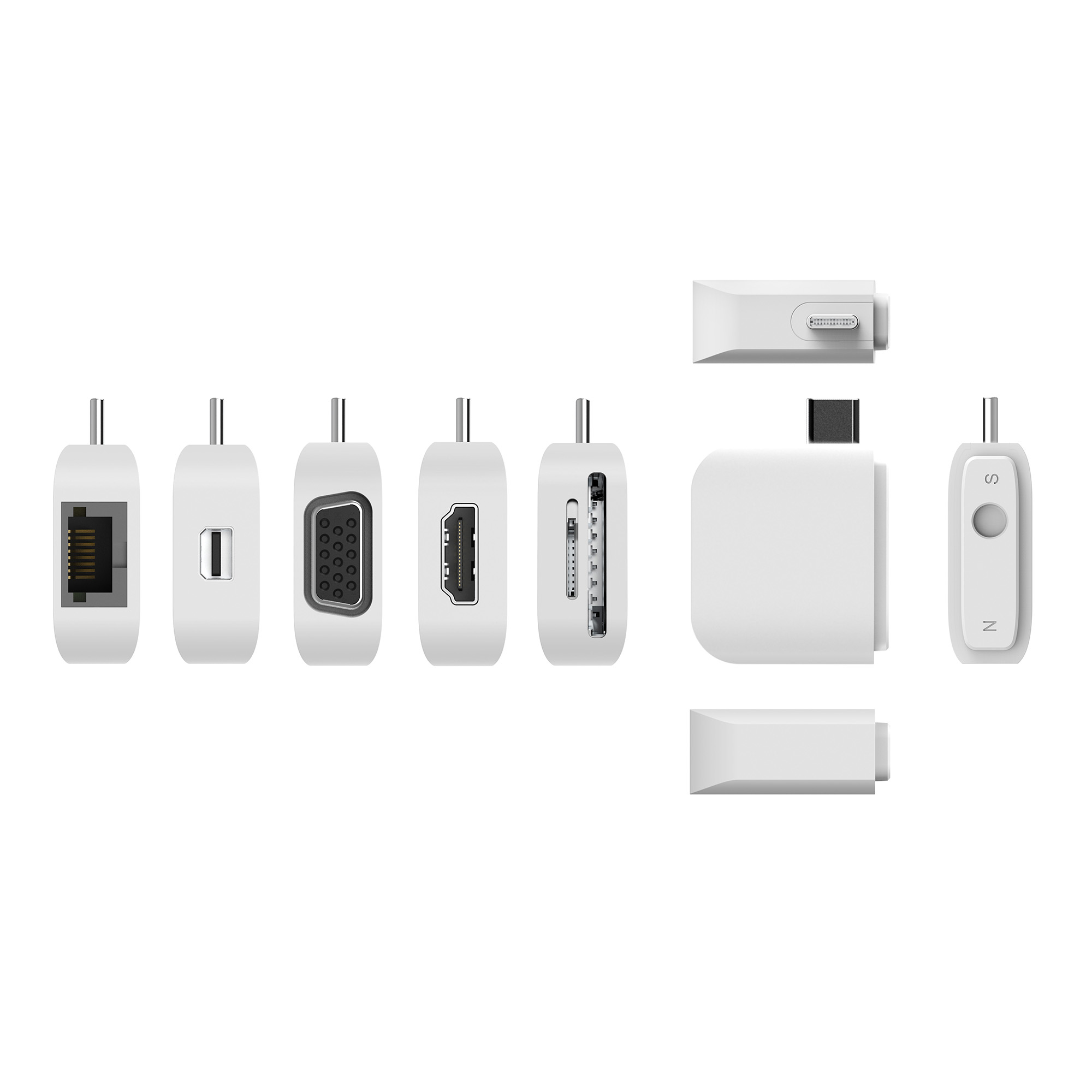

Hub interfacesHDMI, Mini DisplayPort, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA
Housing materialAcrylonitrile butadiene styrene (ABS), Aluminium
Plug and PlayYes
Country of originTaiwan

Power

Power supply4.5 W
Power supply typeUSB
Output current0.14 A
Output voltage5.05 V

Software

Windows operating systems supportedNo
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Weight & dimensions

Width34 mm
Depth98 mm
Height13 mm
Weight59 g

Packaging data

Quantity per pack1 pc(s)
Package width193 mm
Package depth125 mm
Package height35 mm
Package weight273.5 g

Packaging content

Packaging content1 x JCD389 Ultradrive Kit USB-C Multi-Display Modular Dock, 1 x Hard Carrying Case, 1 x Quick Installation Guide
Quick start guideYes

Technical details

Master (outer) case GTIN (EAN/UPC)24712795083723
Box contents1 x JCD389 Ultradrive Kit USB-C™ Multi-Display Modular Dock, 1 x Hard Carrying Case, 1 x Quick Installation Guide
Warranty period2 year(s)

Logistics data

Export Control Classification Number (ECCN)EAR99
Master (outer) case gross weight5.97 kg
Master (outer) case height235 mm
Master (outer) case length430 mm
Master (outer) case width280 mm
Products per master (outer) case18 pc(s)
Products per shipping (inner) case6 pc(s)
Shipping (inner) case width21.2 cm
Shipping (inner) case length26.9 cm
Shipping (inner) case height13 cm

Other features

Maximum operating temperature40 °C
USB ports quantity4
