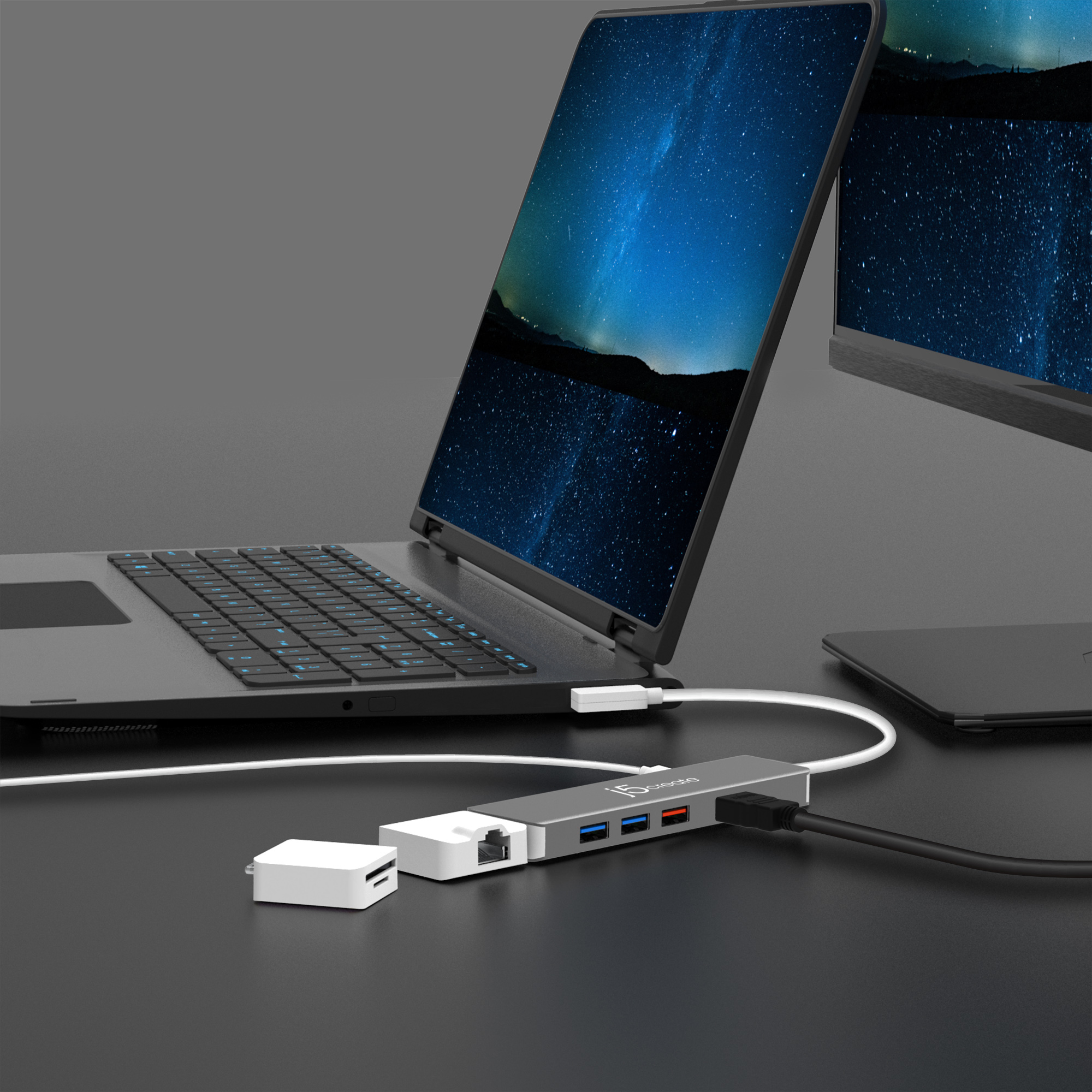

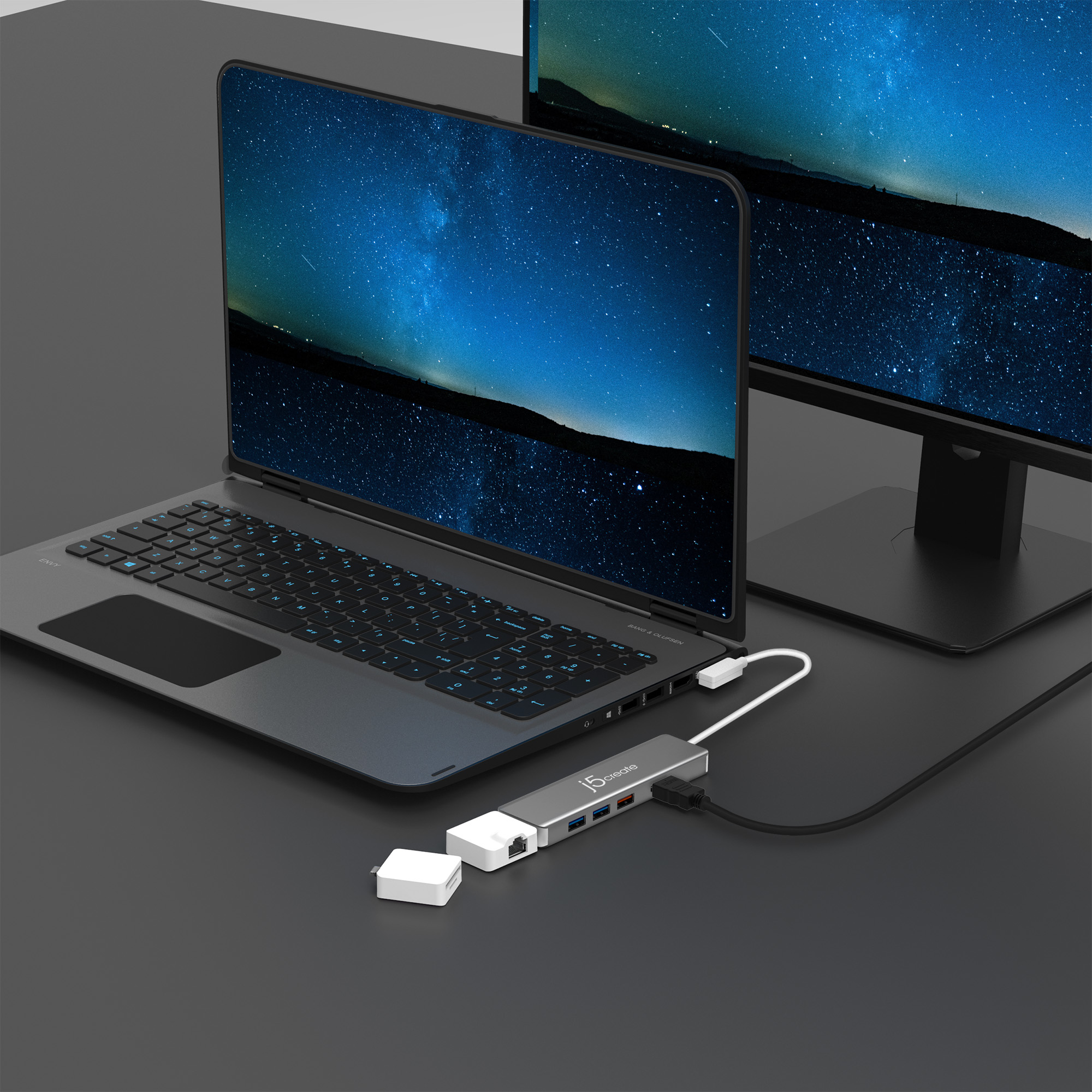

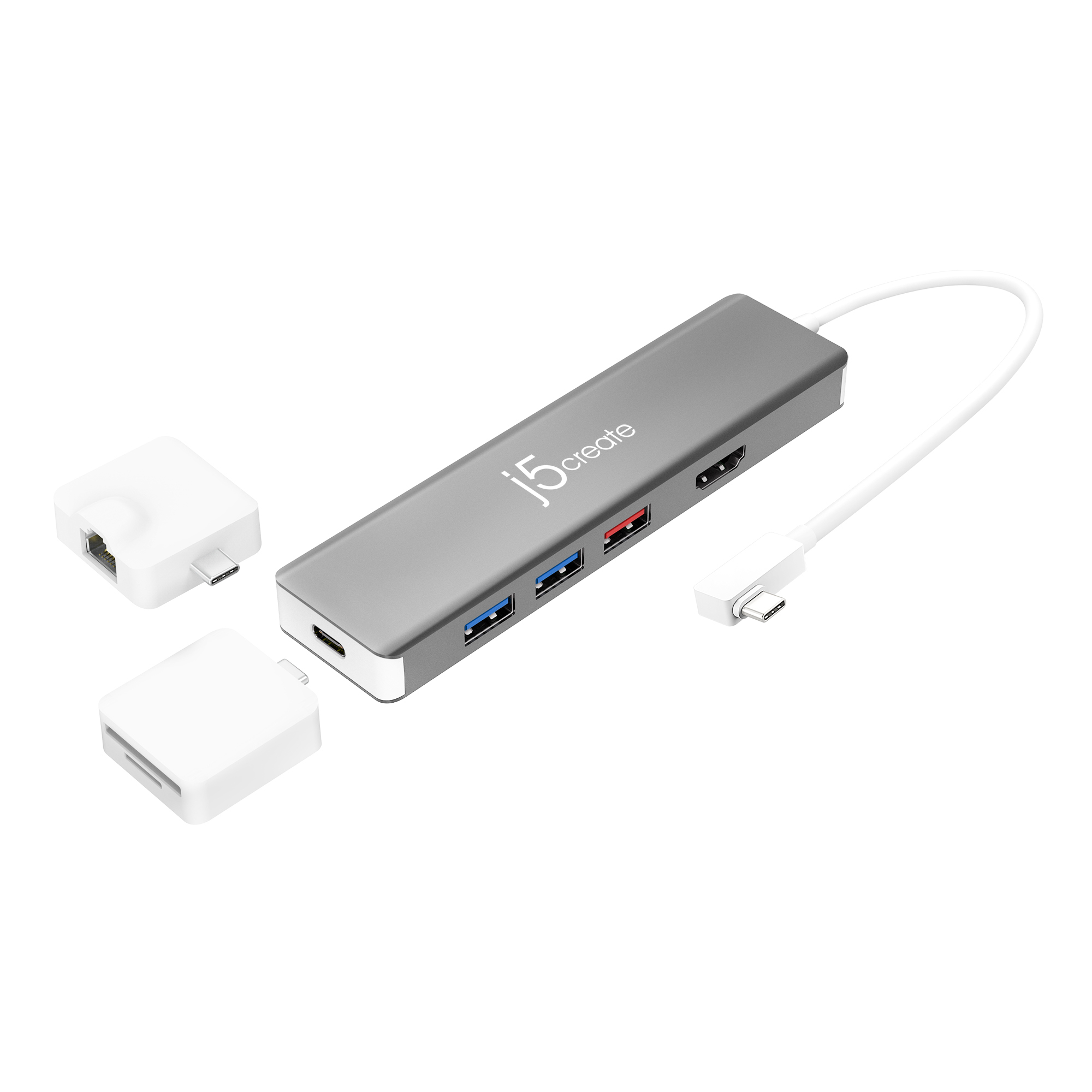

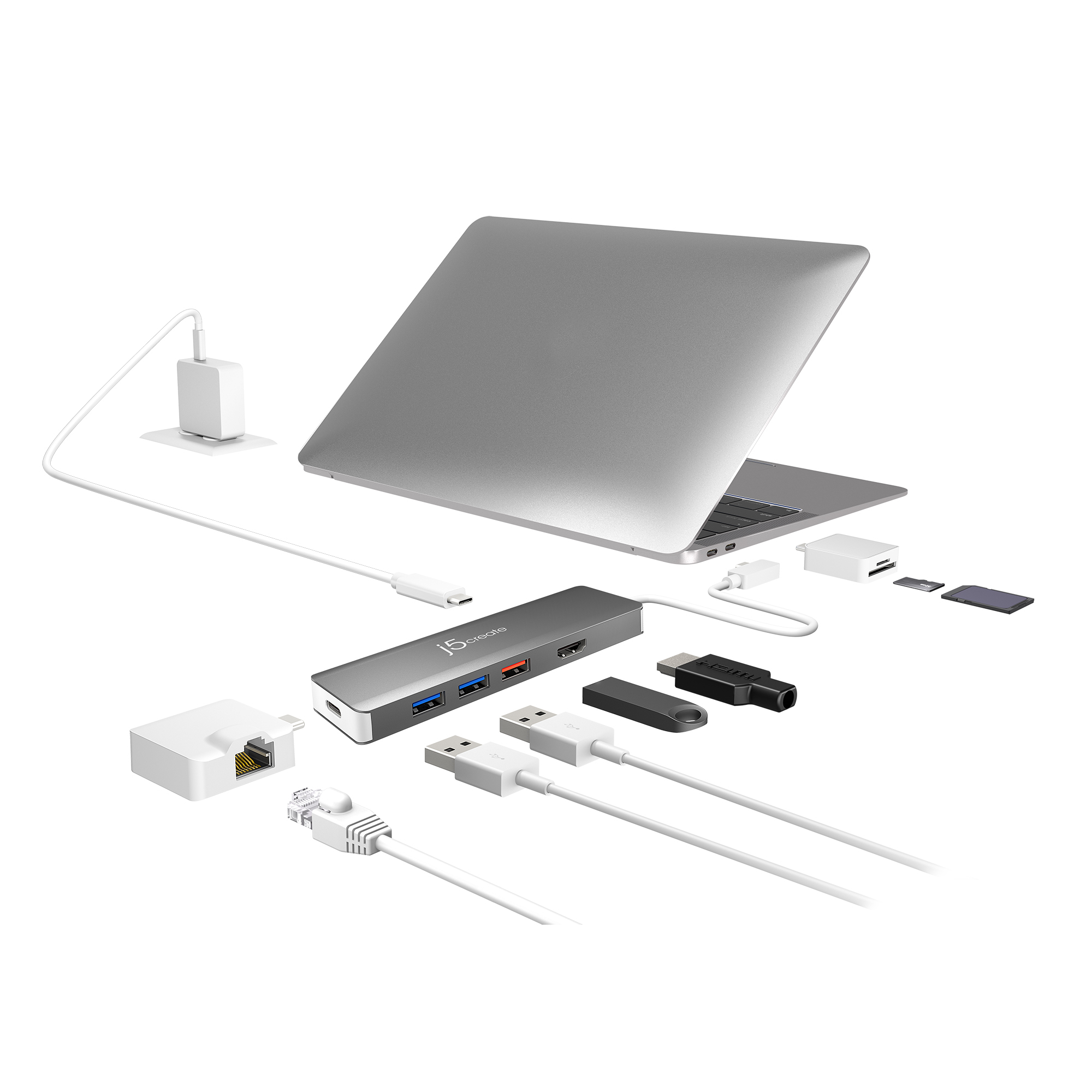

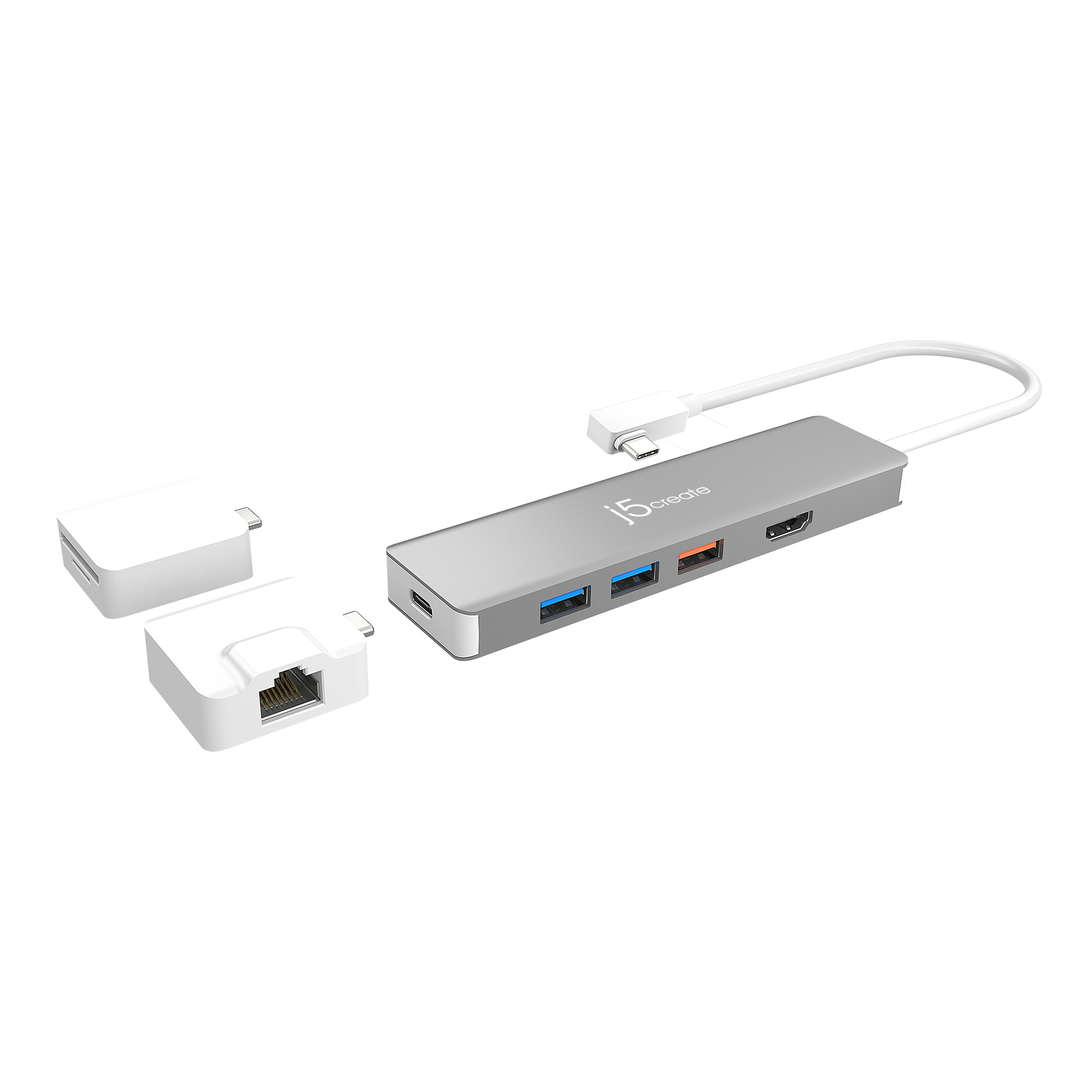

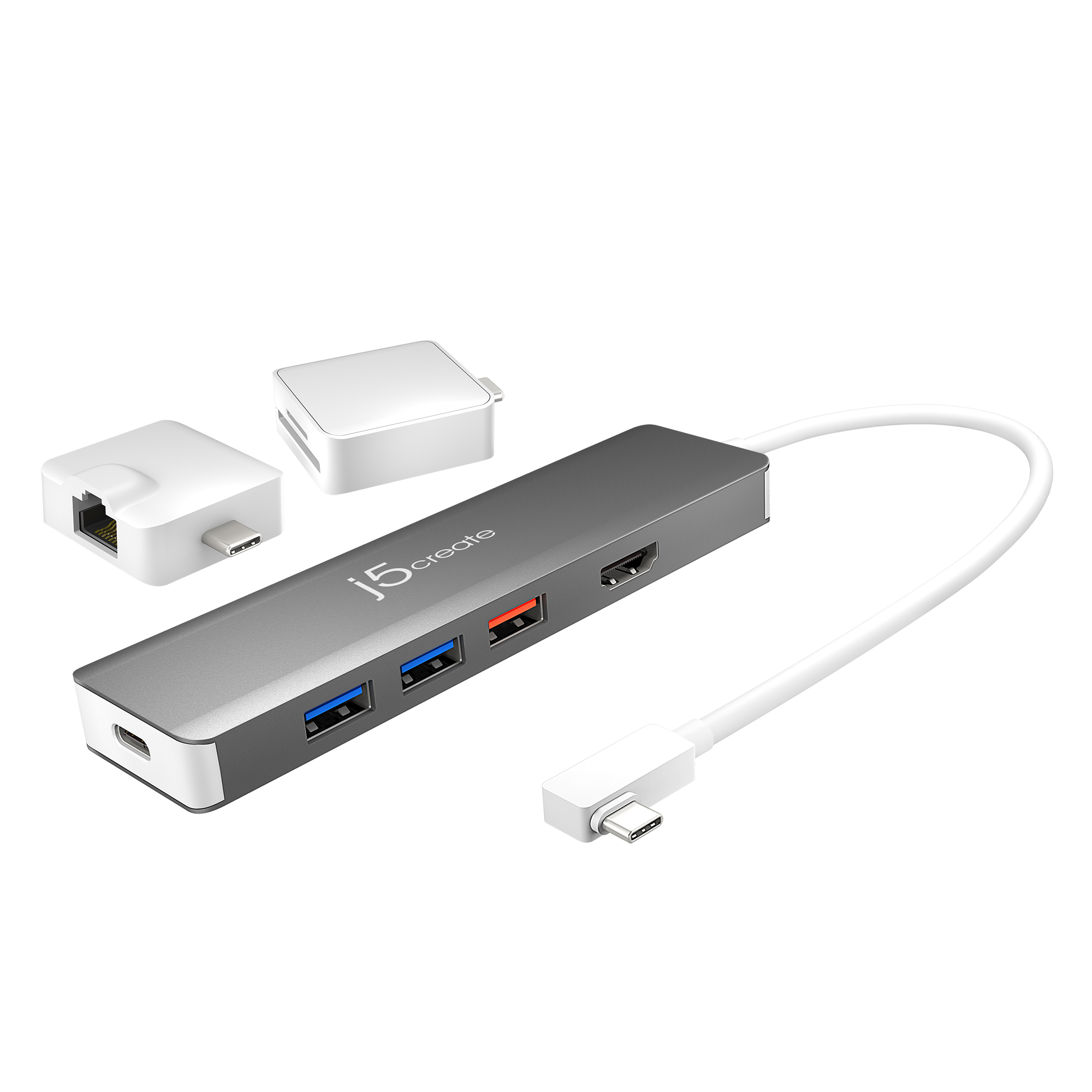

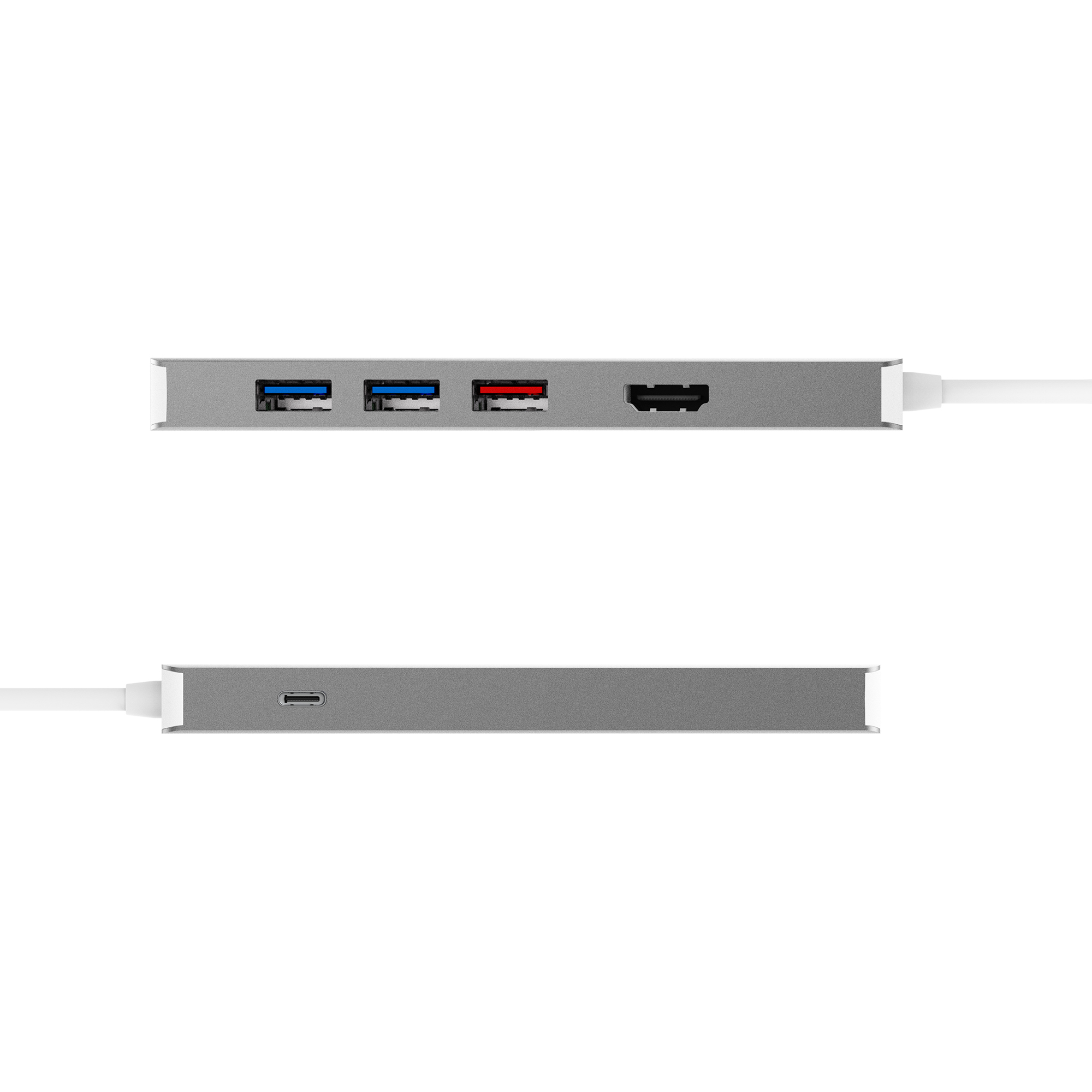

j5create JCD375-N USB-C™ Modular Multi-Adapter with 2 Kits
j5create

JCD375-N USB-C™ Modular Multi-Adapter with 2 Kits

Model JCD375Part no. JCD375-NEAN 24712795084928

60 specifications
  • Weight92 g
  • ColourSilver, White
  • Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
  • Ethernet LAN (RJ-45) ports1
  • Power supply typeUSB
  • Windows operating systems supportedWindows 10
See all specifications

Overview

Weight
92 g
Colour
Silver, White
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports
1
Power supply type
USB
Windows operating systems supported
Windows 10
Brand
j5create
Model
JCD375
Part number
JCD375-N
EAN / UPC
24712795084928, 4712795084924
Also known as
j5create JCD375-N USB-C™ Modular Multi-Adapter with 2 Kits

Specifications

60 specifications in 12 groups

Ports & interfaces

Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI ports quantity1
VGA (D-Sub) ports quantity0
DisplayPorts quantity0
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Product colourSilver, White
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SD
HD type4K Ultra HD
Maximum refresh rate30 Hz
Number of displays supported1
Hub interfacesHDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Housing materialAcrylonitrile butadiene styrene (ABS), Aluminium
Plug and PlayYes
Country of originTaiwan

Power

Power supply typeUSB
Output current0.5 A
Output voltage20 V
Power consumption (typical)2.25 W

Software

Windows operating systems supportedWindows 10
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)-1 - 41 °C
Storage temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Weight & dimensions

Width32.6 mm
Depth12.2 mm
Height126.5 mm
Weight92 g

Packaging data

Quantity per pack1 pc(s)
Package width193 mm
Package depth125 mm
Package height22.5 mm
Package weight187 g

Packaging content

Packaging content1 x JCD375 Ultradrive Kit USB-C Modular Mini Dock 9-in-1, 2 x modular kits, 1 x Quick Installation Guide
Quick start guideYes

Technical details

Master (outer) case GTIN (EAN/UPC)24712795084928
Box contents1 x JCD375 Ultradrive Kit USB-C™ Modular Mini Dock 9-in-1, 2 x modular kits, 1 x Quick Installation Guide
Warranty period2 year(s)

Logistics data

Export Control Classification Number (ECCN)EAR99
Master (outer) case gross weight4.54 kg
Master (outer) case height190 mm
Master (outer) case length445 mm
Master (outer) case width226 mm
Products per master (outer) case18 pc(s)
Products per shipping (inner) case6 pc(s)
Shipping (inner) case width16.5 cm
Shipping (inner) case length21.2 cm
Shipping (inner) case height13.7 cm

Other features

Cable length0.125 m
Compatible operating systemsMicrosoft® Windows® 10 MacOS® 10.11 or later
Maximum operating temperature40 °C
Technical featuresModular Design, 5 Combinations with 2 Adapters, USB-C™ Power Delivery 100W Pass-through
