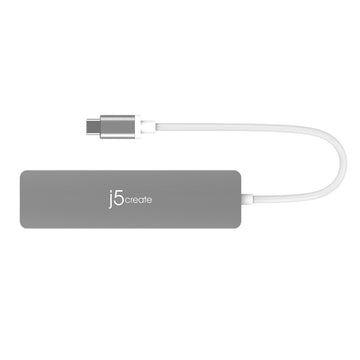

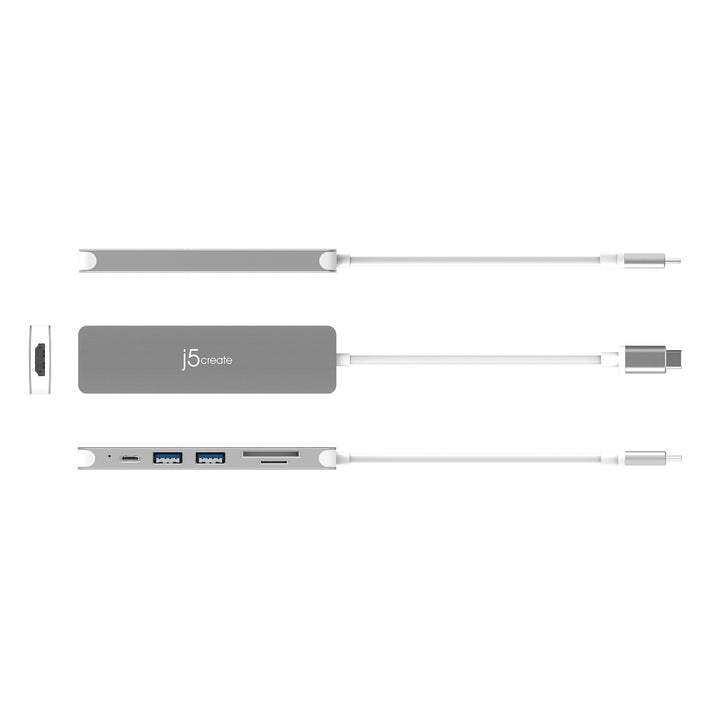

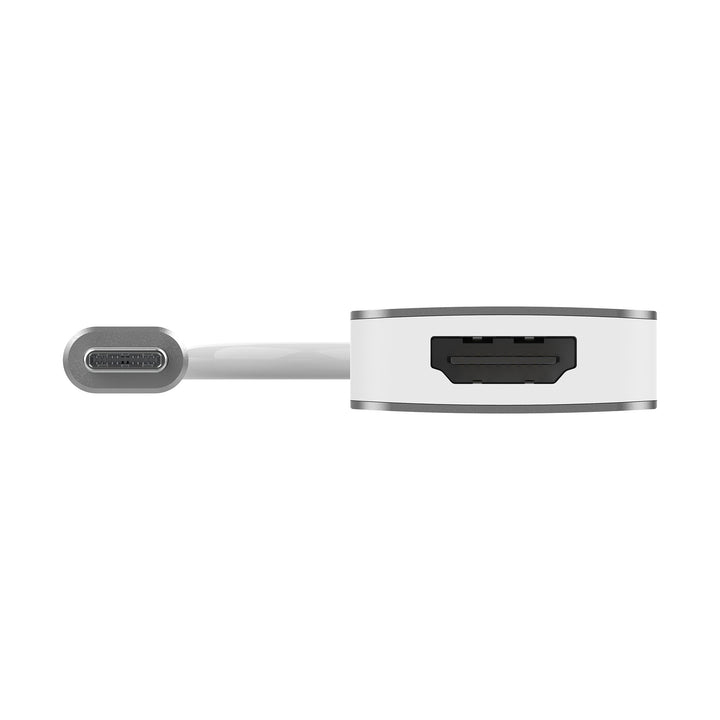

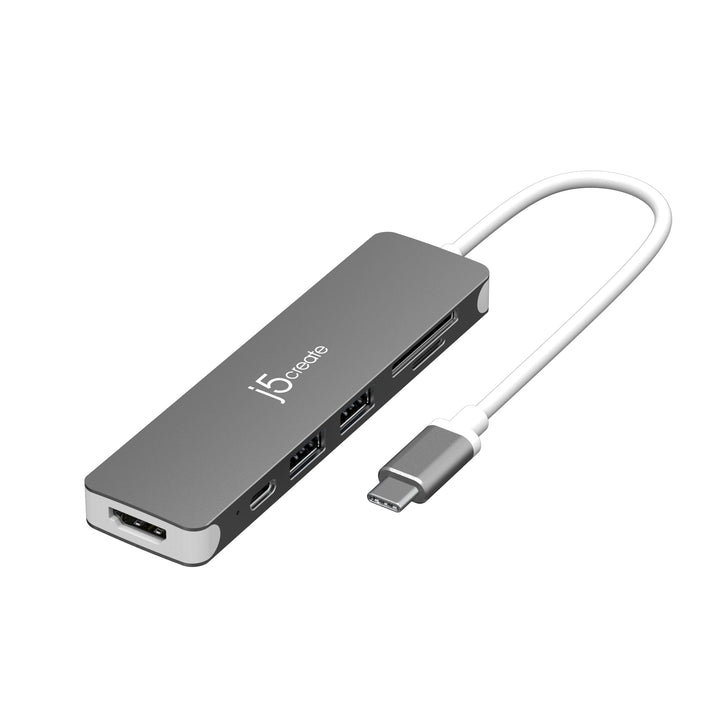

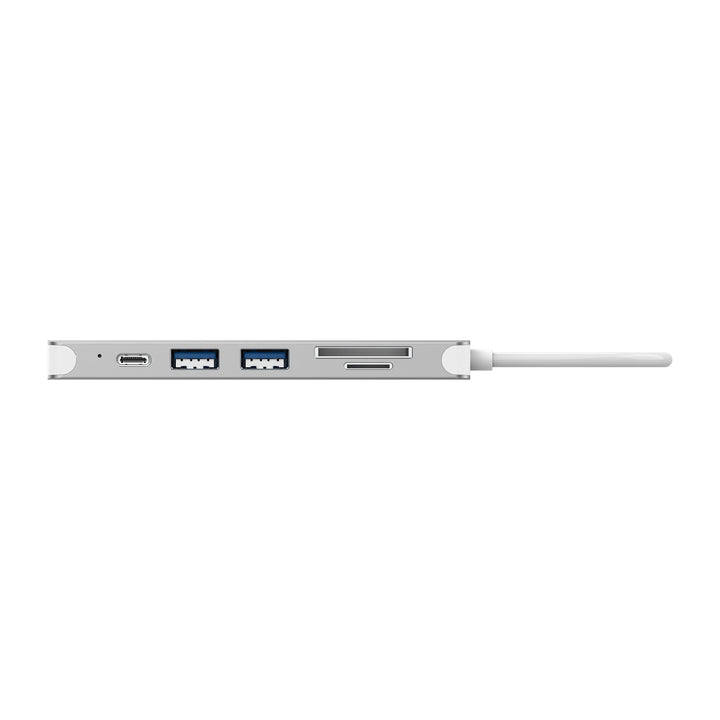

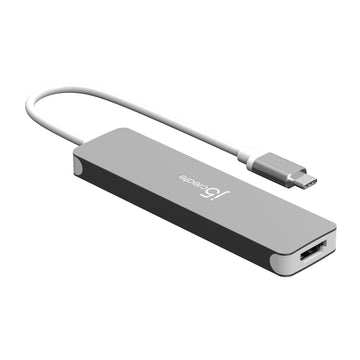

JCD353 laptop dock/port replicator USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Model JCD353
24 specifications
- Weight48 g
- ColourGrey
- Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Power supply typeUSB
- Operating temperature (T-T)-1 - 41 °C
- Width29.8 mm
Overview
- Weight
- 48 g
- Colour
- Grey
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Power supply type
- USB
- Operating temperature (T-T)
- -1 - 41 °C
- Width
- 29.8 mm
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JCD353
- Part number
- JCD353
- Also known as
- j5create JCD353 laptop dock/port replicator USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Specifications
24 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Maximum refresh rate | 60 Hz |
| Hub interfaces | DisplayPort, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -1 - 41 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 29.8 mm |
| Depth | 10.4 mm |
| Height | 112.2 mm |
| Weight | 48 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | 1 x JCD353 USB-C to 4K HDMI Multi-Port Hub, 1 x Quick Installation Guide (QIG) |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.17 m |
