JCD3199 USB-C® Dock Dual 4K HDMI™, Space Grey
Model JCD3199-NEAN 20847626000762
69 specifications
- ConnectivityWired
- Weight416 g
- ColourGrey
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)-1 - 41 °C
Overview
- Connectivity
- Wired
- Weight
- 416 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- -1 - 41 °C
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JCD3199-N
- Part number
- JCD3199-N
- EAN / UPC
- 20847626000762, 4712795087666
- Also known as
- j5create JCD3199 USB-C® Dock Dual 4K HDMI™, Space Grey
Specifications
69 specifications in 13 groups

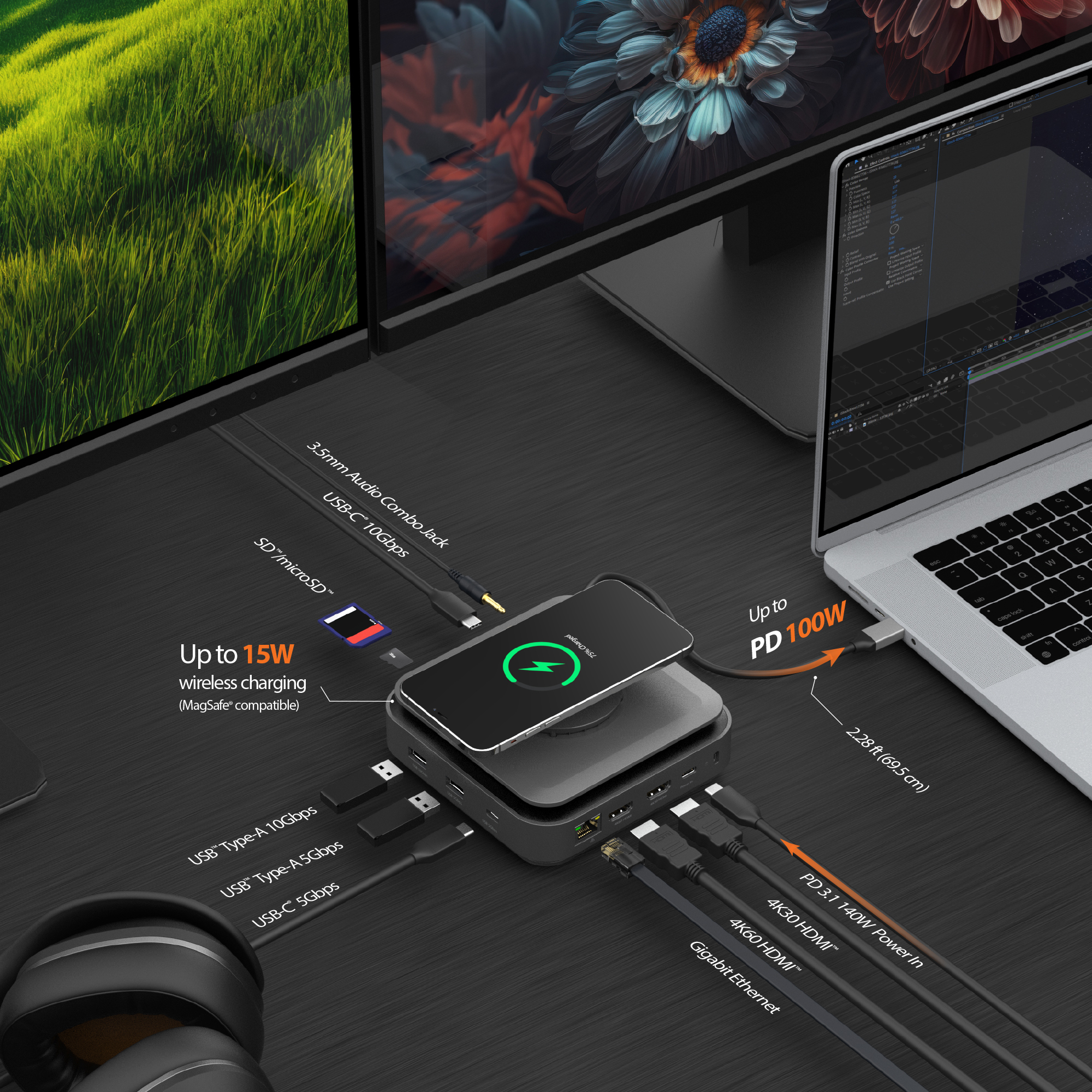

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0/2.1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Colour name | Space Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 10 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Housing material | Aluminium |
| Country of origin | Taiwan |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| Input current | 5 A |
| Output current | 5 A |
| Output voltage | 20 V |
| Wireless charging | Yes |
| Wireless charging power | 15 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -1 - 41 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 130 mm |
| Height | 40 mm |
| Weight | 416 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 154 mm |
| Package depth | 170.5 mm |
| Package height | 56 mm |
| Package weight | 740 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| Manual | No |
| Packaging content | 1 - JCD3199 USB-C® Dock Dual 4K HDMI™ 1 - Dock Holder 1 - Quick Installation Guide (QIG) |
| Quick start guide | Yes |
| User guide | No |
| Stand included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Master (outer) case GTIN (EAN/UPC) | 20847626000762 |
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case gross weight | 3.2 kg |
| Master (outer) case height | 174 mm |
| Master (outer) case length | 249 mm |
| Master (outer) case width | 186 mm |
| Products per master (outer) case | 4 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.695 m |
