JCD3191 4K60 Elite USB-C® Travel Adapter, Black
Model JCD3191-NEAN 4712795087659
59 specifications
- ConnectivityWired
- Weight71.5 g
- ColourGrey
- Ethernet LANYes
- Input current5 A
- Operating temperature (T-T)-1 - 41 °C
Overview
- Connectivity
- Wired
- Weight
- 71.5 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Input current
- 5 A
- Operating temperature (T-T)
- -1 - 41 °C
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JCD3191-N
- Part number
- JCD3191-N
- EAN / UPC
- 4712795087659
- Also known as
- j5create JCD3191 4K60 Elite USB-C® Travel Adapter, Black
Specifications
59 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

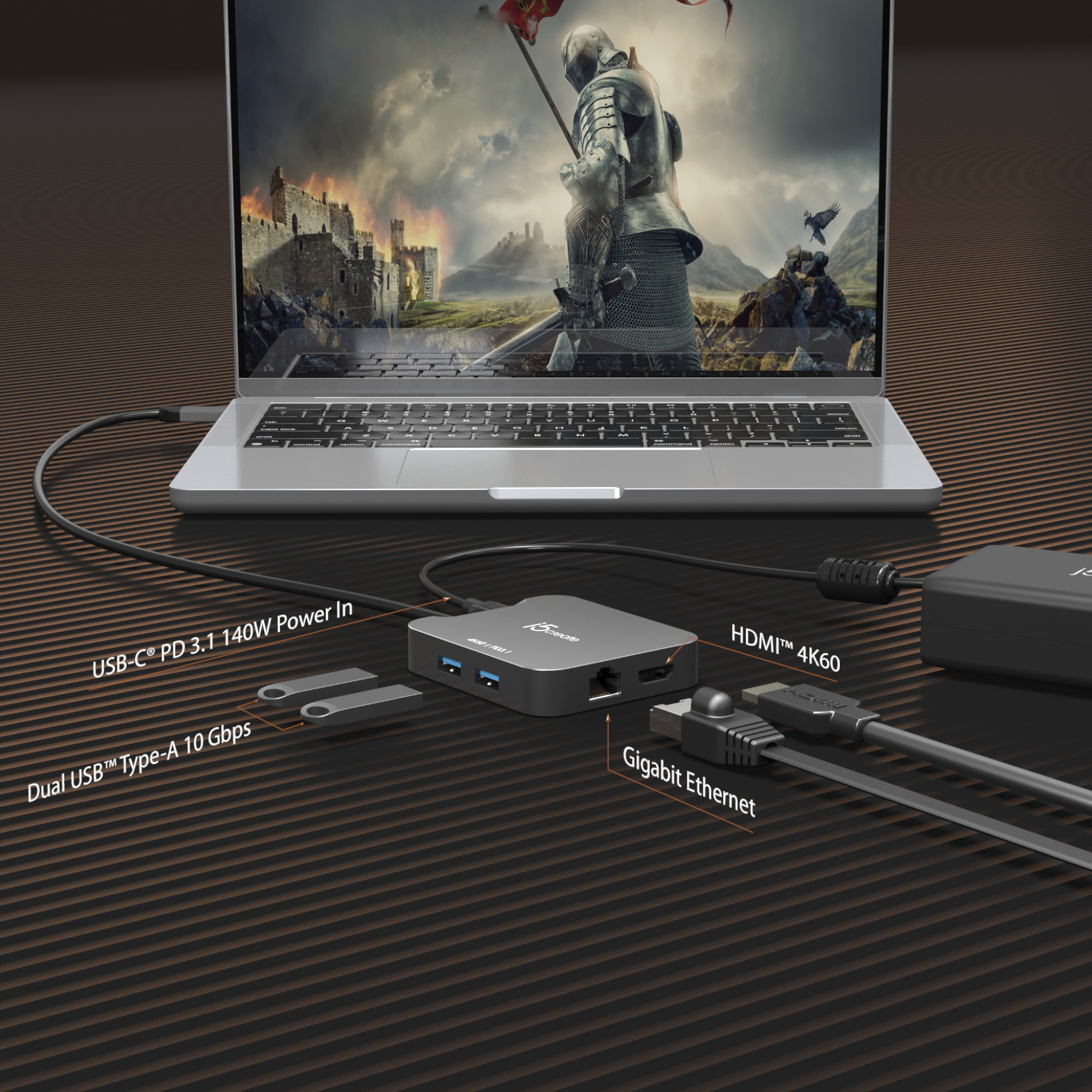

| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |

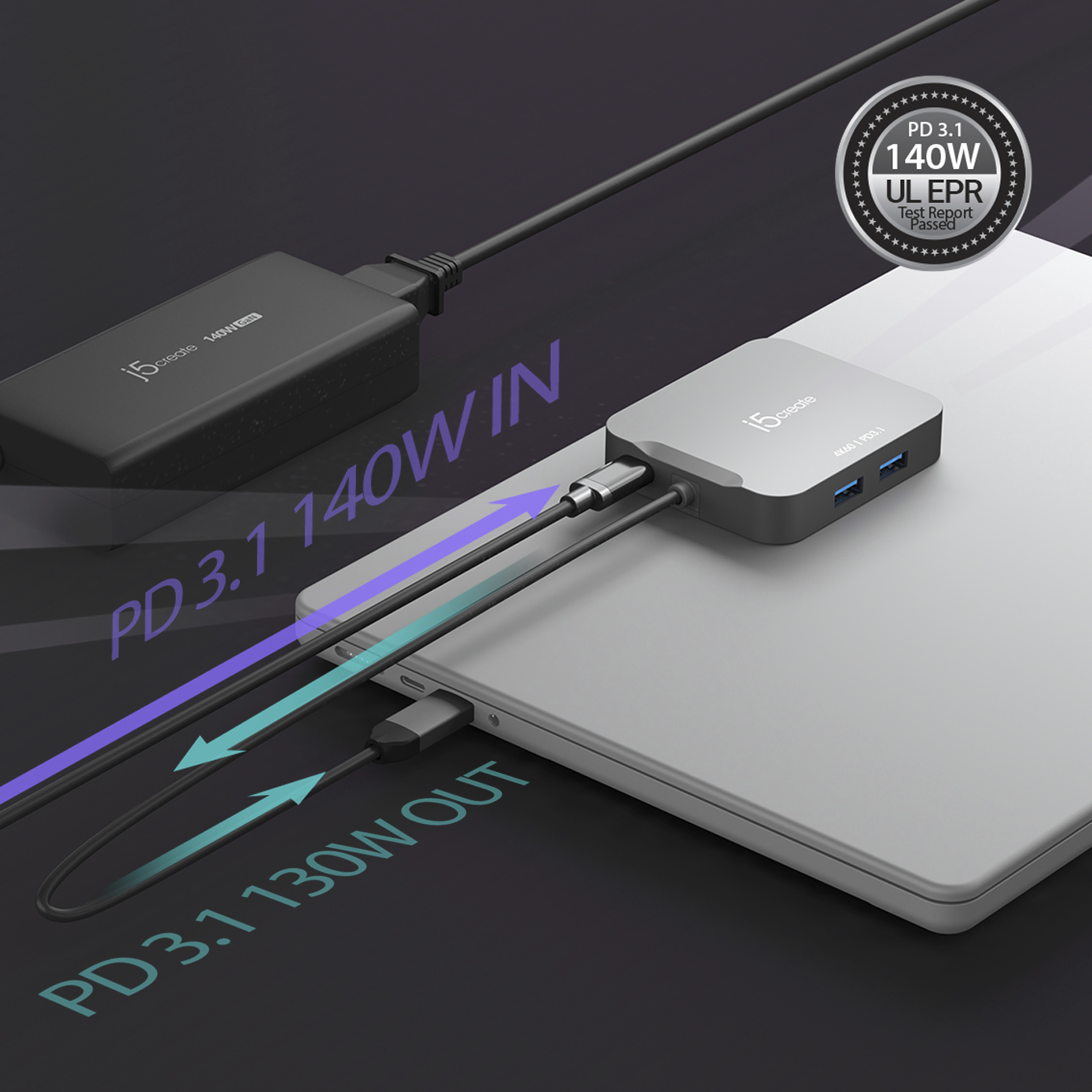

| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | No |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Colour name | Space Grey |
| Card reader integrated | No |

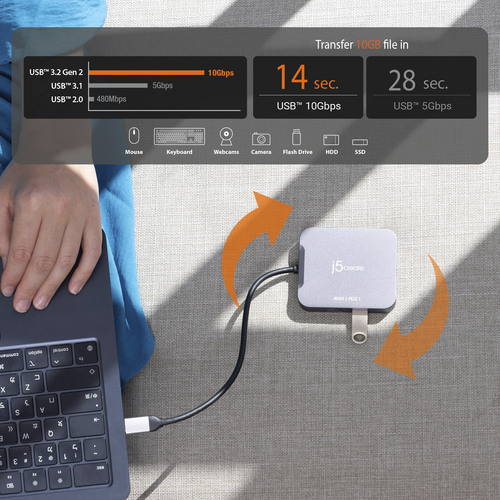

| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |

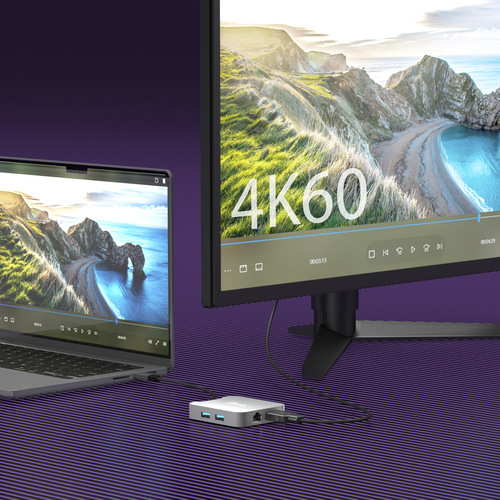

| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 240 Hz |
| Number of displays supported | 1 |
| Housing material | Aluminium |
| Plug and Play | Yes |
| Country of origin | Taiwan |
Power
| Specification | Value |
|---|---|
| Input current | 5 A |
| Output current | 4.64 A |
| Output voltage | 28 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -1 - 41 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|

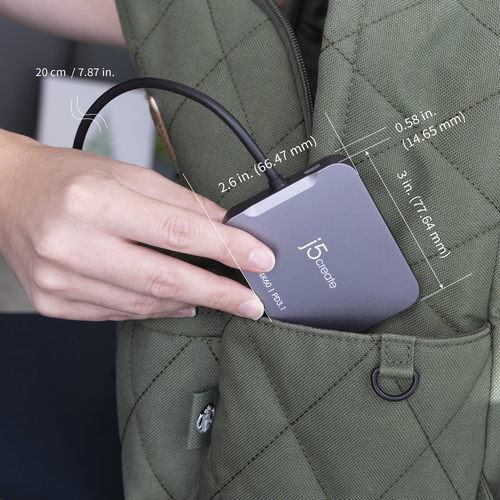

| Width | 66.5 mm |
| Depth | 77.5 mm |
| Height | 14.7 mm |
| Weight | 71.5 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 190 mm |
| Package depth | 85 mm |
| Package height | 17.5 mm |
| Package weight | 130 g |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | 1 - JCD3191 4K60 Elite USB-C® Travel Adapter 1 - Quick Installation Guide (QIG) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Master (outer) case GTIN (EAN/UPC) | 24712795087653 |
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case height | 115 mm |
| Master (outer) case length | 256 mm |
| Master (outer) case net weight | 2 kg |
| Master (outer) case width | 225 mm |
| Products per master (outer) case | 12 pc(s) |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case width | 12.5 cm |
| Shipping (inner) case length | 21.5 cm |
| Shipping (inner) case height | 9.2 cm |
| Shipping (inner) case net weight | 900 g |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.2 m |
