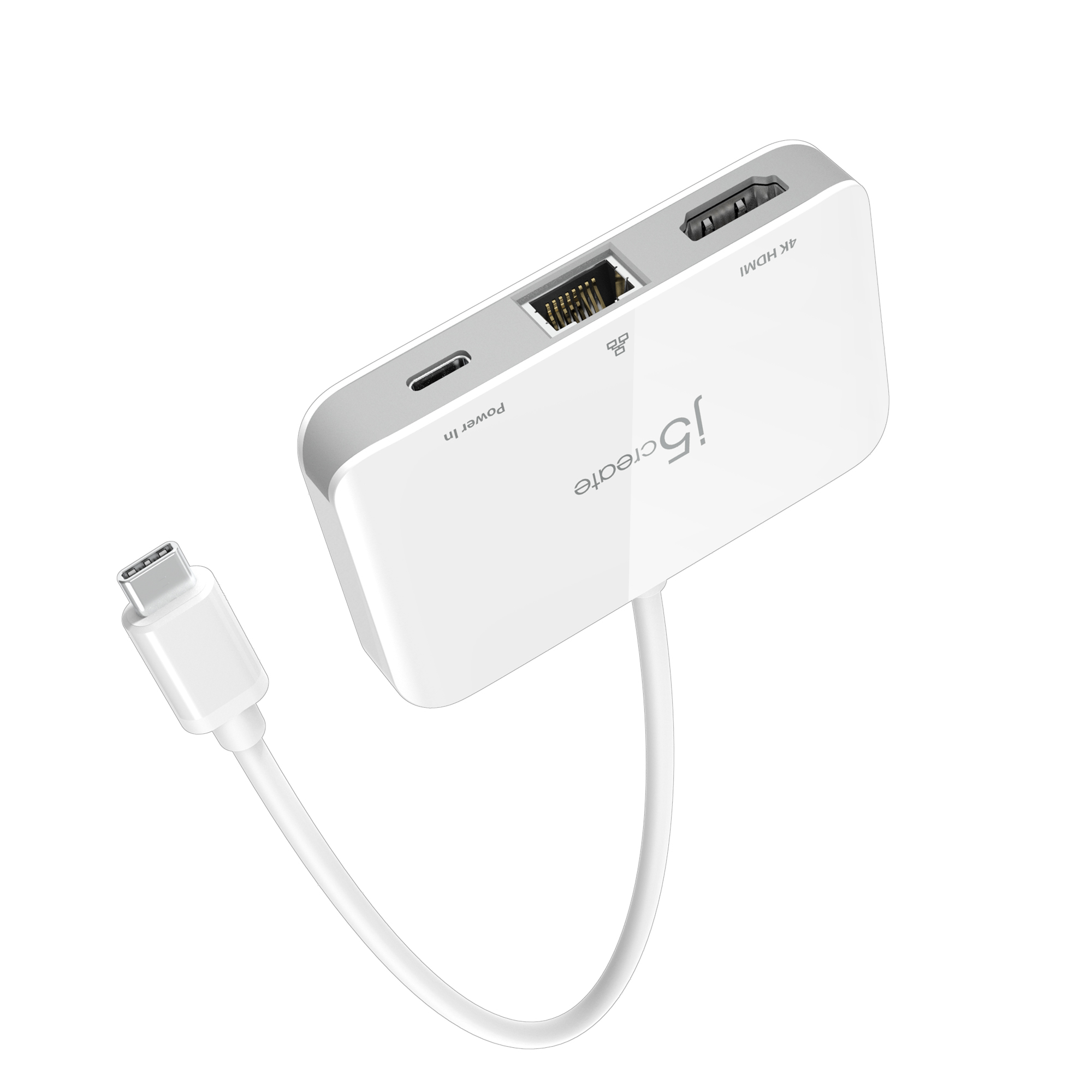

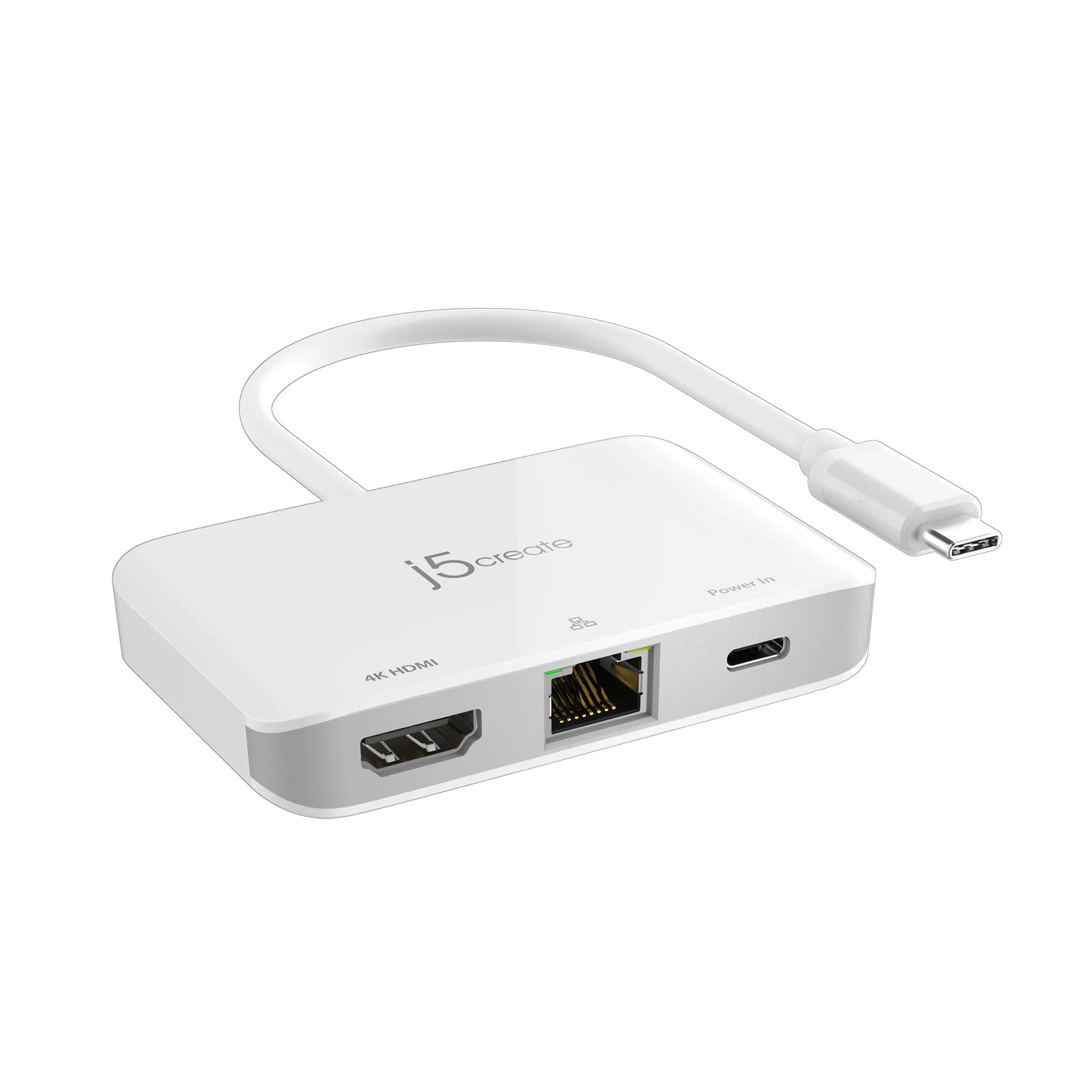

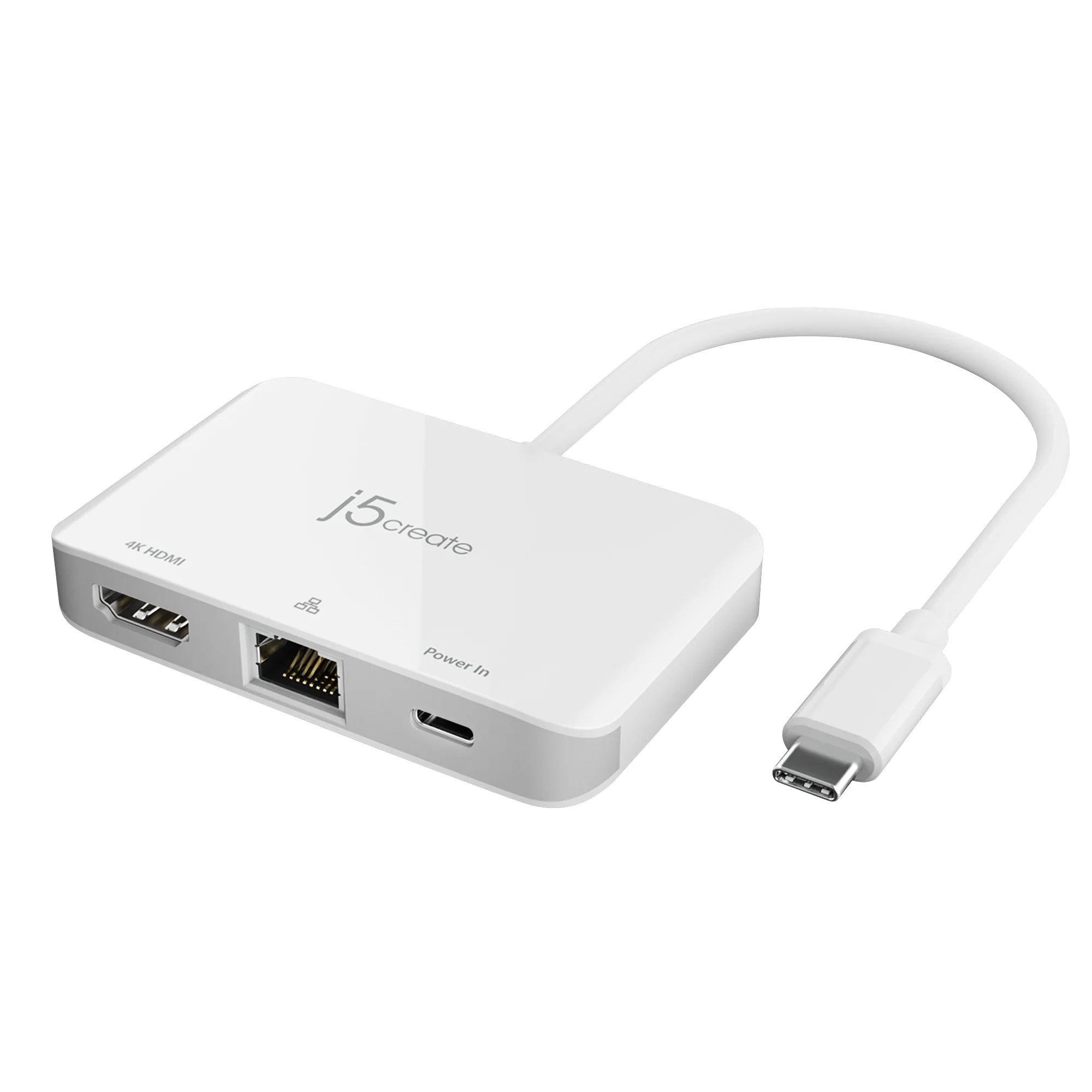

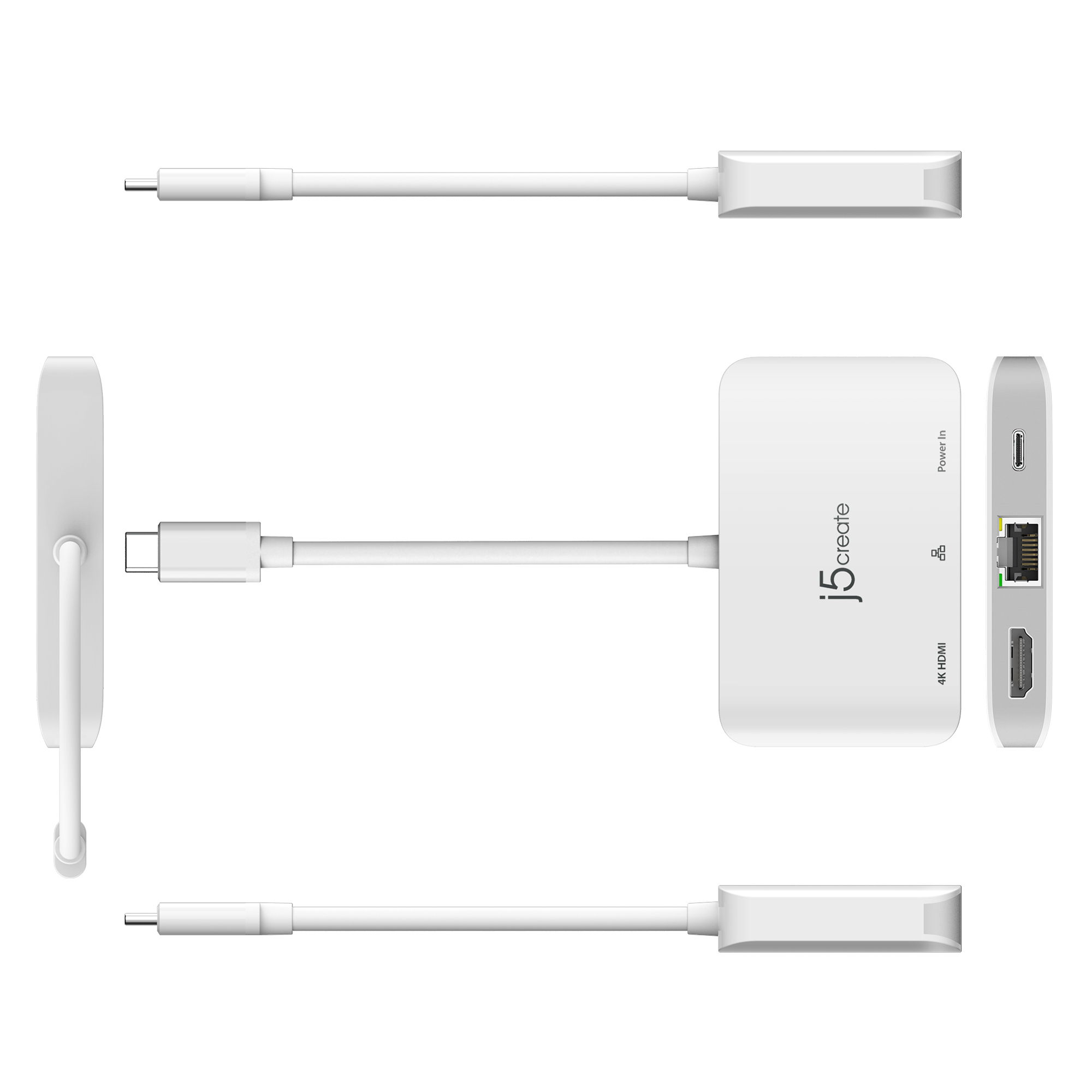

JCA351-N USB-C® to 4K HDMI™ Ethernet Adapter
Model JCA351Part no. JCA351-NEAN 24712795086472
59 specifications
- ConnectivityWired
- Weight52 g
- ColourWhite
- Ethernet LANYes
- Maximum resolution3840 x 2160 pixels
- Power source typeUSB
Overview
- Connectivity
- Wired
- Weight
- 52 g
- Colour
- White
- Ethernet LAN
- Yes
- Maximum resolution
- 3840 x 2160 pixels
- Power source type
- USB
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JCA351
- Part number
- JCA351-N
- EAN / UPC
- 24712795086472, 4712795086478
- Also known as
- j5create JCA351-N USB-C® to 4K HDMI™ Ethernet Adapter
Specifications
59 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |

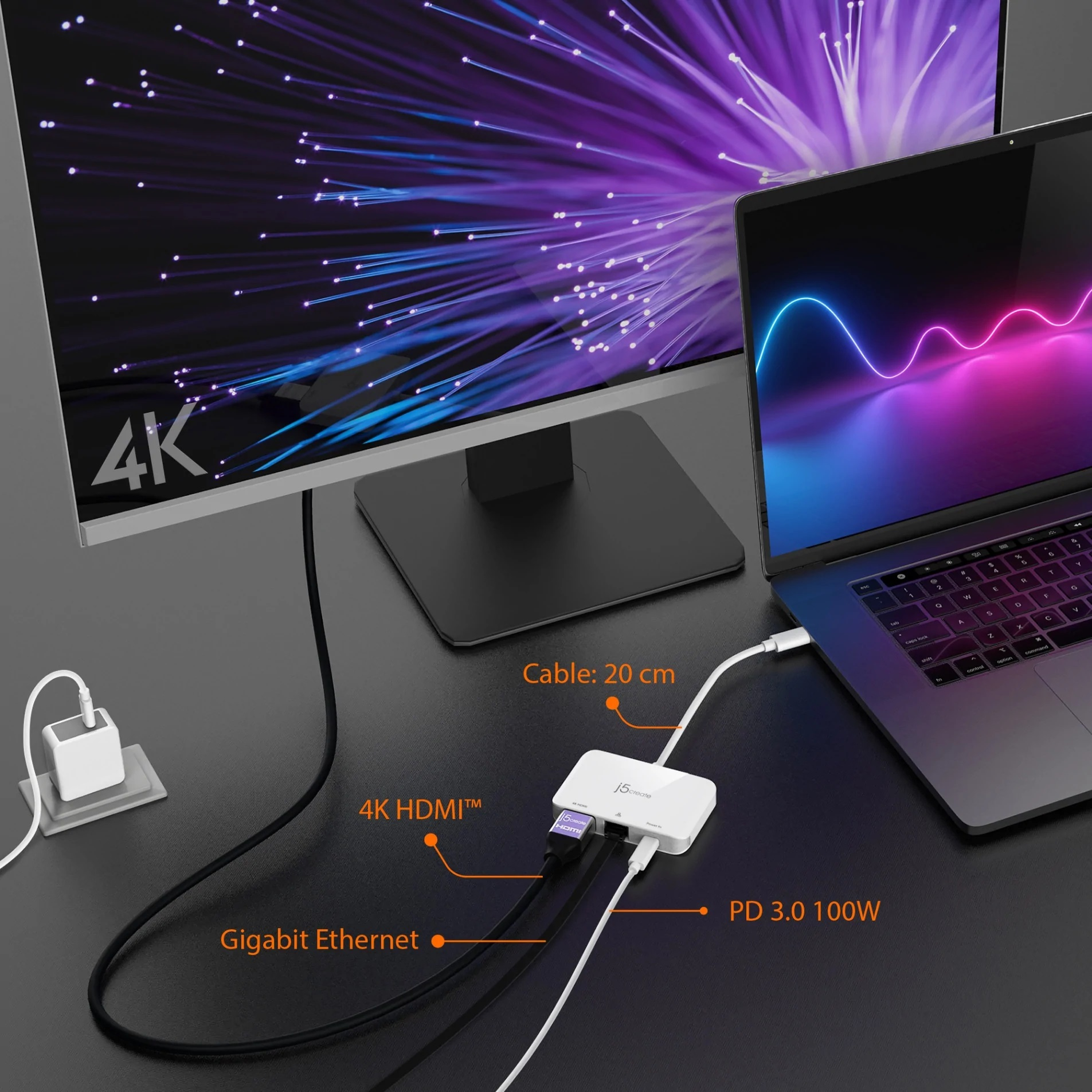

| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DVI-I ports quantity | 0 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
| USB connector type | USB Type-C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

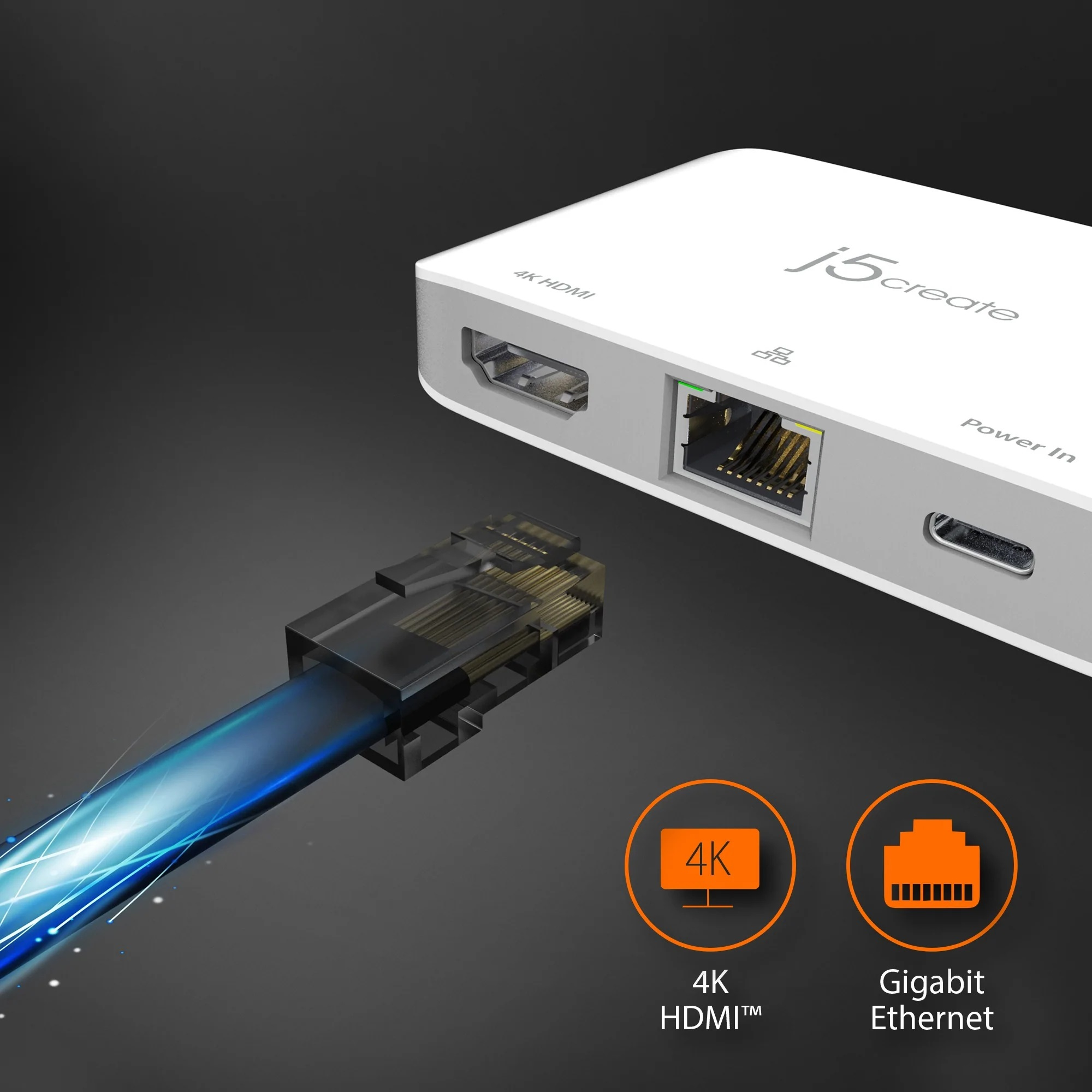

| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Card reader integrated | No |
| Number of displays supported | 1 |
| High Dynamic Range (HDR) supported | No |
| Country of origin | Taiwan |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power plug type | Type C |
| USB cable length | 0.2 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 47 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 14 mm |
| Height | 50 mm |
| Weight | 52 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package weight | 89.5 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| Drivers included | No |
| Manual | No |
| Packaging content | 1 - JCA351 USB-C to 4K HDMI Ethernet Adapter 1 - Quick Installation Guide (QIG) |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case gross weight | 2.6 kg |
| Master (outer) case height | 180 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case width | 225 mm |
| Products per master (outer) case | 20 pc(s) |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case width | 10.5 cm |
| Shipping (inner) case length | 15 cm |
| Shipping (inner) case height | 16 cm |
