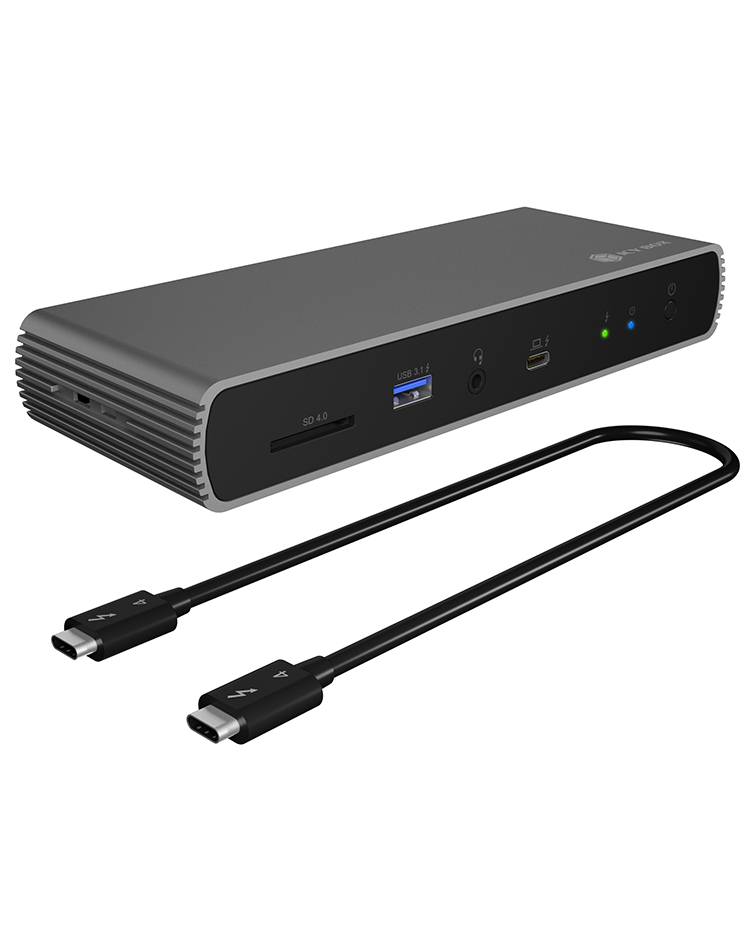

IB-DK8801-TB4 Wired Thunderbolt 4 Anthracite, Black
Model IB-DK8801-TB4Part no. 60988EAN 4250078172710
59 specifications
- ConnectivityWired
- Weight435 g
- ColourAnthracite, Black
- Ethernet LANYes
- Power source typeAC
- Width200 mm
Overview
- Connectivity
- Wired
- Weight
- 435 g
- Colour
- Anthracite, Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 200 mm
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK8801-TB4
- Part number
- 60988
- EAN / UPC
- 4250078172710
- Also known as
- ICY BOX IB-DK8801-TB4 Wired Thunderbolt 4 Anthracite, Black
Specifications
59 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |

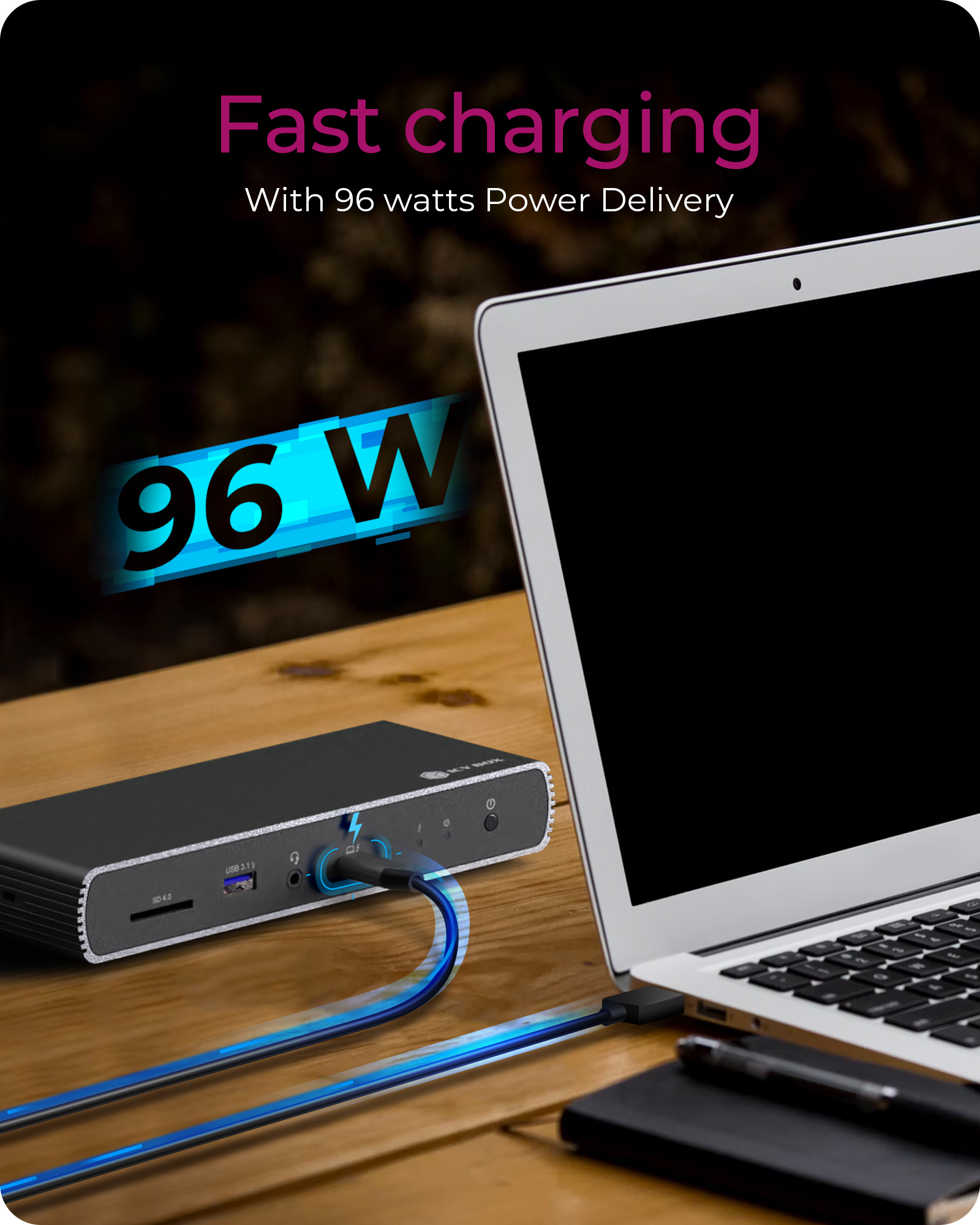

| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 1 |

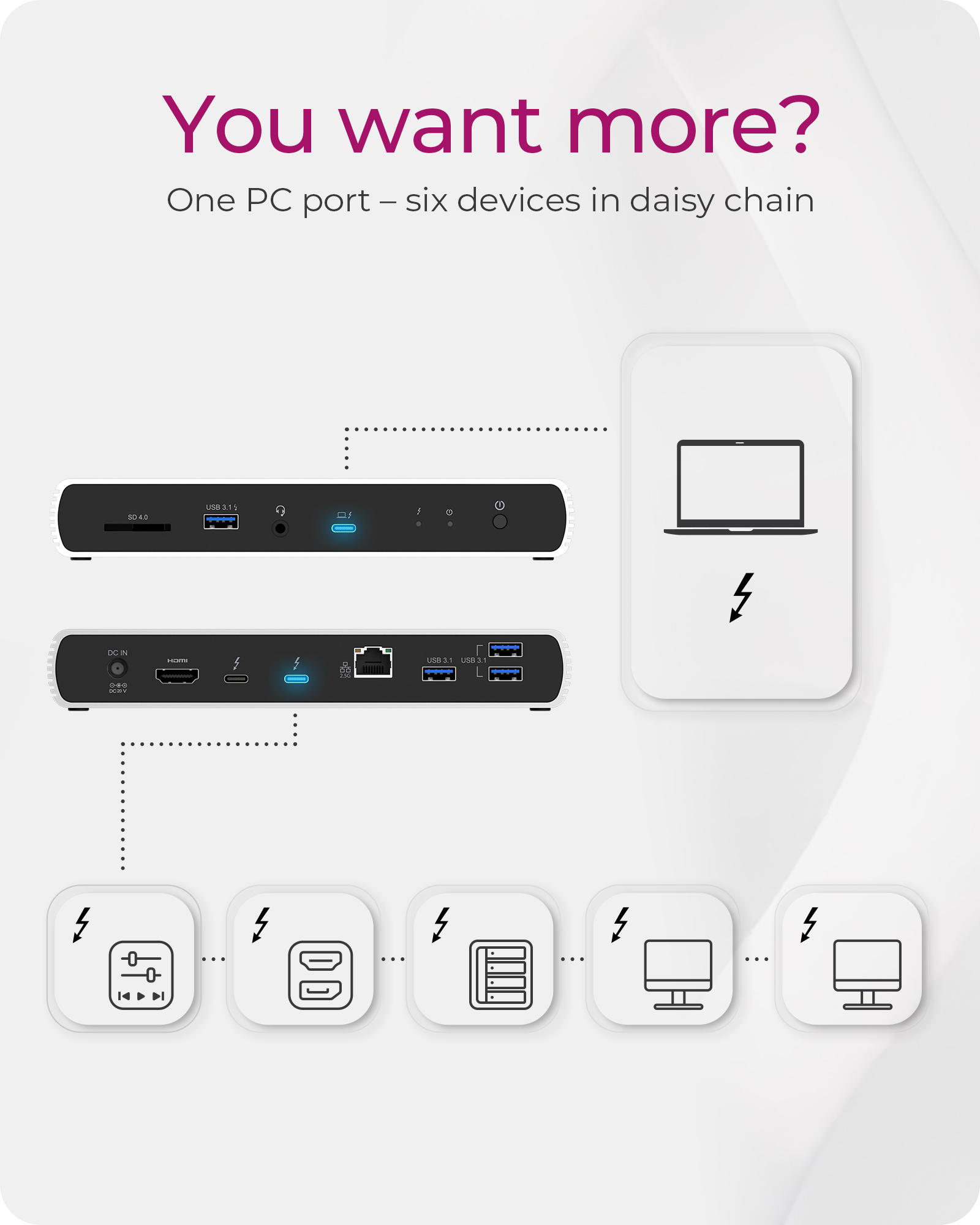

| Thunderbolt ports quantity | 3 |
| Thunderbolt 4 ports quantity | 2 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Anthracite, Black |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum refresh rate | 60 Hz |

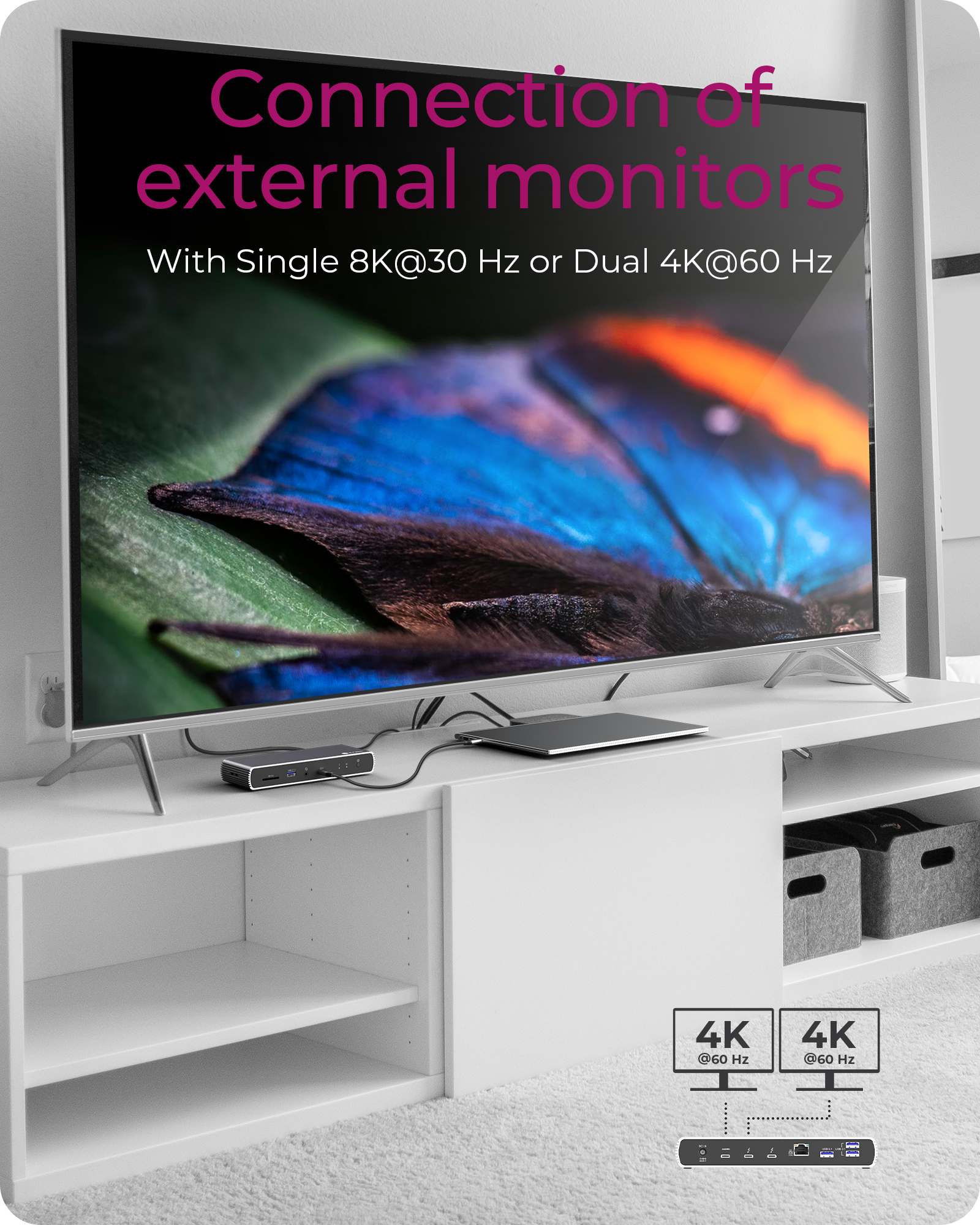

| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| Housing material | Aluminium |
| LED indicators | Yes |
| Plug and Play | Yes |
| UASP support | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 135 W |
| Output current | 6.75 A |
| Output voltage | 5 - 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 75 mm |
| Height | 31 mm |
| Weight | 435 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 290 mm |
| Package depth | 92 mm |
| Package height | 158 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DC, Thunderbolt |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84718000 |
| Master (outer) case gross weight | 12.6 kg |
| Master (outer) case height | 500 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case width | 305 mm |
| Products per master (outer) case | 9 pc(s) |
