IB-DK4040-CPD Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite, Black
Model IB-DK4040-CPDPart no. 60514EAN 4250078168966
50 specifications
- ConnectivityWired
- Weight100 g
- ColourAnthracite, Black
- Ethernet LANYes
- Power source typeUSB
- Width60 mm
Overview
- Connectivity
- Wired
- Weight
- 100 g
- Colour
- Anthracite, Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Width
- 60 mm
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK4040-CPD
- Part number
- 60514
- EAN / UPC
- 4250078168966
- Also known as
- ICY BOX IB-DK4040-CPD Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite, Black
Specifications
50 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |

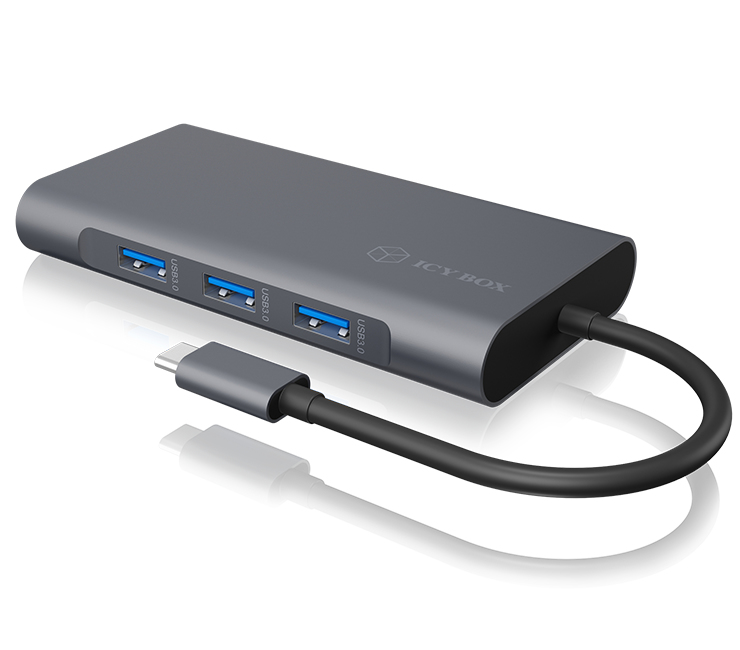

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |

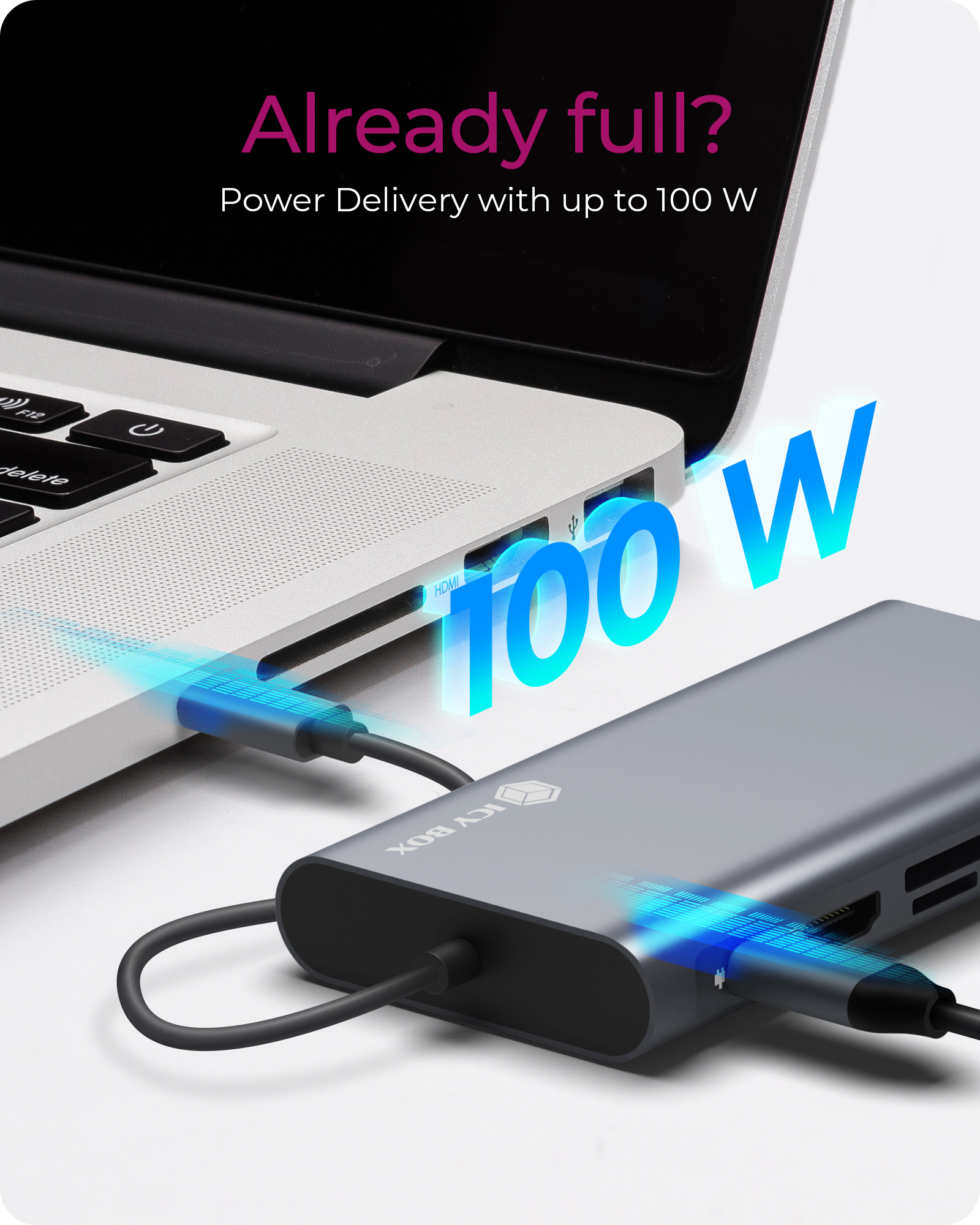

| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

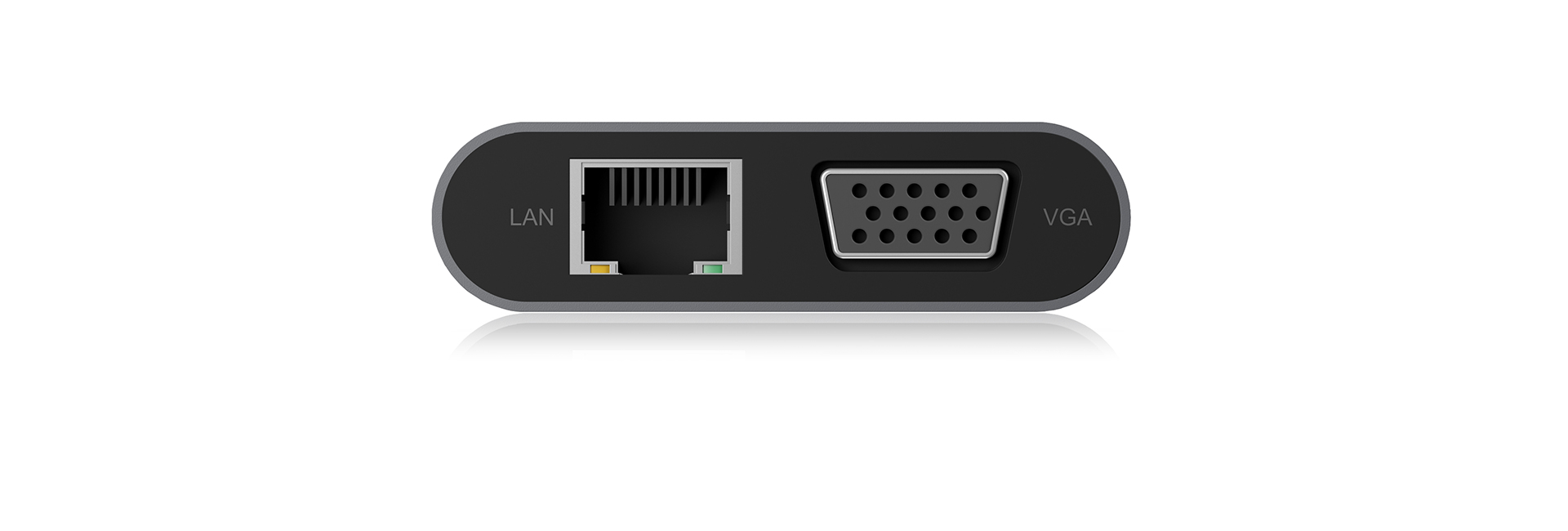

| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Anthracite, Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |

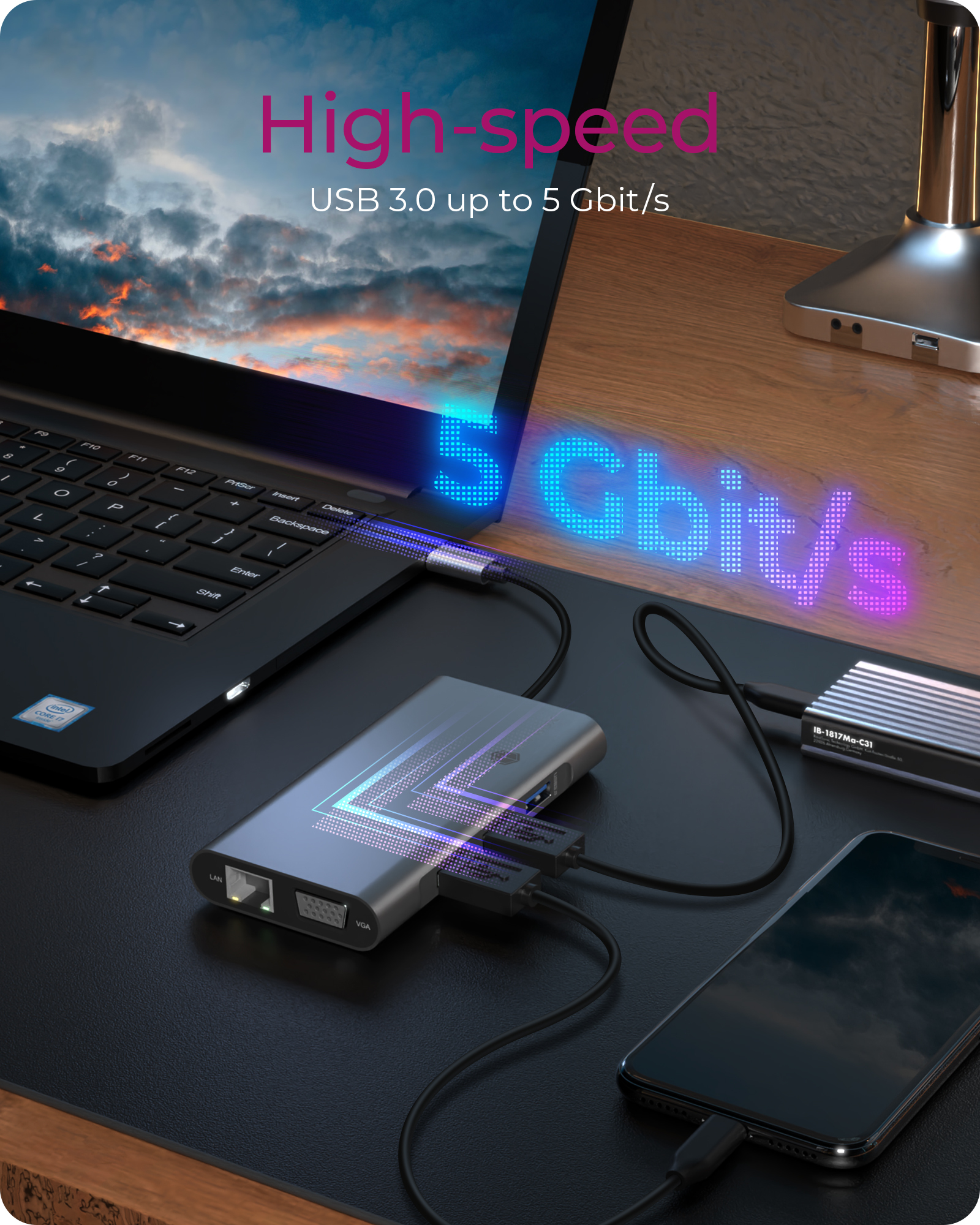

| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Housing material | Aluminium, Plastic |
| UASP support | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 115 mm |
| Height | 17 mm |
| Weight | 100 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 100 mm |
| Package depth | 25 mm |
| Package height | 200 mm |
| Package weight | 176 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84718000 |
| Master (outer) case gross weight | 10.7 kg |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case width | 330 mm |
| Products per master (outer) case | 60 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.2 m |
