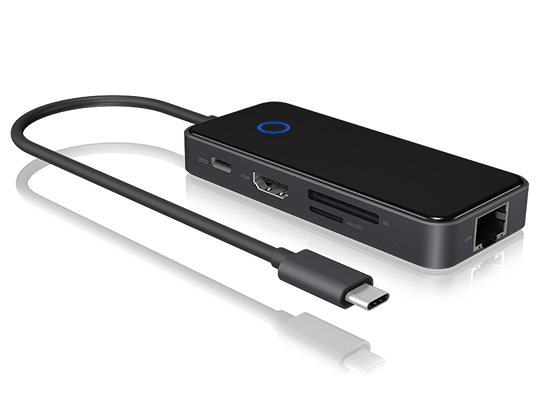

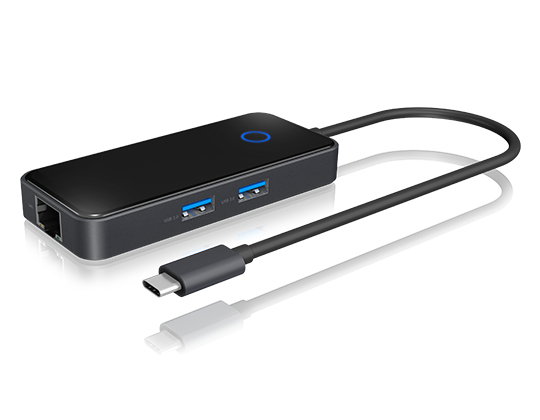

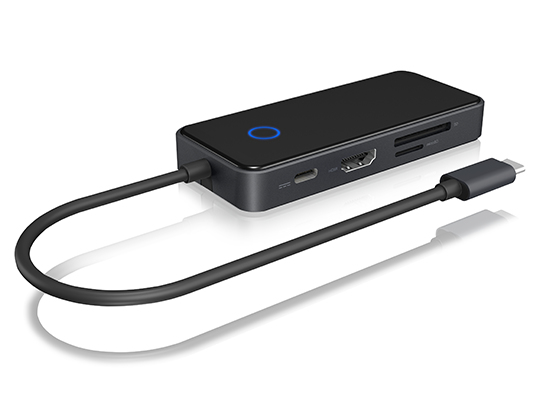

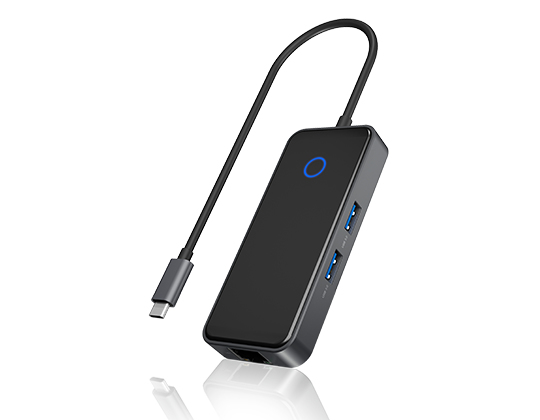

IB-DK4028-CPD Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite, Black
Model IB-DK4028-CPDPart no. 60828EAN 4250078171645
39 specifications
- ConnectivityWired
- Weight87 g
- ColourAnthracite, Black
- Ethernet LANYes
- Power source typeUSB
- Width45 mm
Overview
- Connectivity
- Wired
- Weight
- 87 g
- Colour
- Anthracite, Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Width
- 45 mm
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK4028-CPD
- Part number
- 60828
- EAN / UPC
- 4250078171645
- Also known as
- ICY BOX IB-DK4028-CPD Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite, Black
Specifications
39 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Audio output | No |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

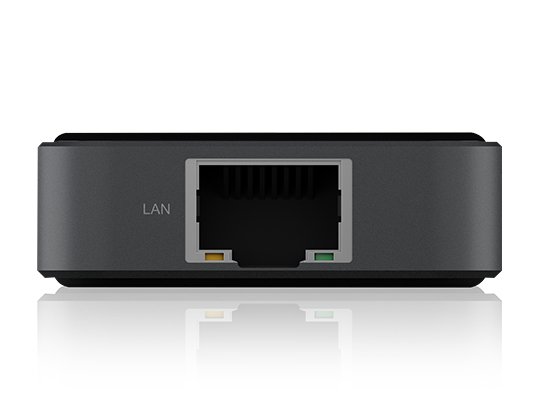

| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Anthracite, Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Maximum memory card size | 2 TB |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Housing material | Aluminium, Glass, Plastic |
| LED indicators | Power |
| Plug and Play | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power cable length | 0.3 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 45 mm |
| Depth | 105 mm |
| Height | 15 mm |
| Weight | 87 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 25 mm |
| Package depth | 100 mm |
| Package height | 200 mm |
| Package weight | 166 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
