IB-DK4012-CPD Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite, Black
Model IB-DK4012-CPDPart no. 61058EAN 4250078173908
50 specifications
- ConnectivityWired
- Weight94 g
- ColourAnthracite, Black
- Ethernet LANYes
- USB cable length0.15 m
- Width48 mm
Overview
- Connectivity
- Wired
- Weight
- 94 g
- Colour
- Anthracite, Black
- Ethernet LAN
- Yes
- USB cable length
- 0.15 m
- Width
- 48 mm
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK4012-CPD
- Part number
- 61058
- EAN / UPC
- 4250078173908
- Also known as
- ICY BOX IB-DK4012-CPD Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite, Black
Specifications
50 specifications in 9 groups

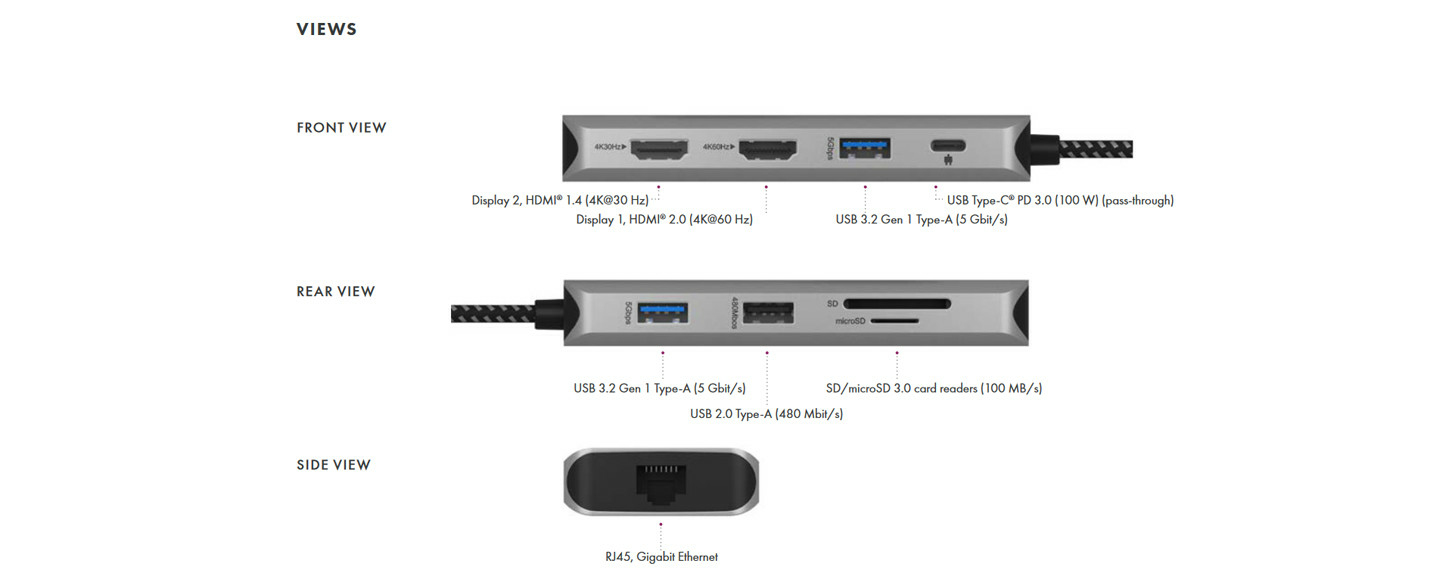

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| HDMI version | 1.4/2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
Performance
| Specification | Value |
|---|---|
| Product colour | Anthracite, Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| UASP support | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| USB cable length | 0.15 m |

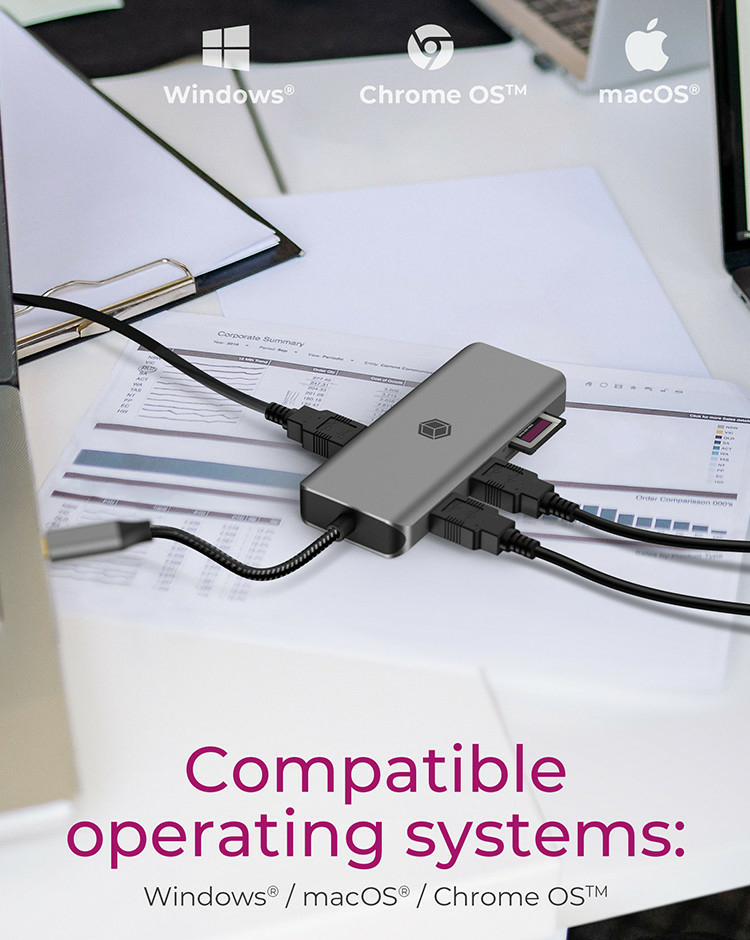

Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 48 mm |
| Depth | 115 mm |
| Height | 17 mm |
| Weight | 94 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 25 mm |
| Package depth | 100 mm |
| Package height | 200 mm |
| Package weight | 157 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Packaging content | 1x IB-DK4012-CPD 1x Manual |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84718000 |
| Master (outer) case gross weight | 10.1 kg |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case width | 445 mm |
| Products per master (outer) case | 60 pc(s) |
