IB-DK2408-C Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black, Silver
Model IB-DK2408-CPart no. 60846EAN 4250078171829
67 specifications
- ConnectivityWired
- Weight438 g
- ColourBlack, Silver
- Ethernet LANYes
- Built-in speaker(s)No
- Power source typeDC
Overview
- Connectivity
- Wired
- Weight
- 438 g
- Colour
- Black, Silver
- Ethernet LAN
- Yes
- Built-in speaker(s)
- No
- Power source type
- DC
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK2408-C
- Part number
- 60846
- EAN / UPC
- 4250078171829
- Also known as
- ICY BOX IB-DK2408-C Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black, Silver
Specifications
67 specifications in 11 groups

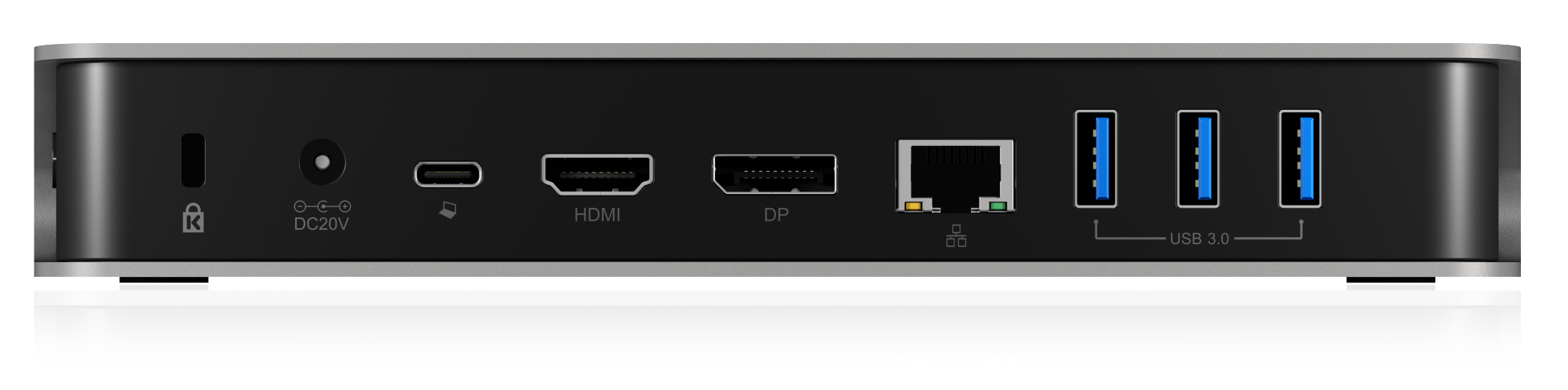

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Built-in SSD | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| Housing material | Aluminium, Plastic |
| LED indicators | Power |
| Plug and Play | Yes |
| Rubber feet | Yes |
| UASP support | Yes |
| Country of origin | China |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 100 W |
| Output current | 5 A |
| Output voltage | 20 V |
| Compatible power plug types | EU |
| USB cable length | 1 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 98 mm |
| Height | 18 mm |
| Weight | 438 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 140 mm |
| Package depth | 80 mm |
| Package height | 240 mm |
| Package weight | 1.15 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | DC, USB Type-C to USB Type-C |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 12.2 kg |
| Master (outer) case height | 440 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case width | 310 mm |
| Products per master (outer) case | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 1 m |
