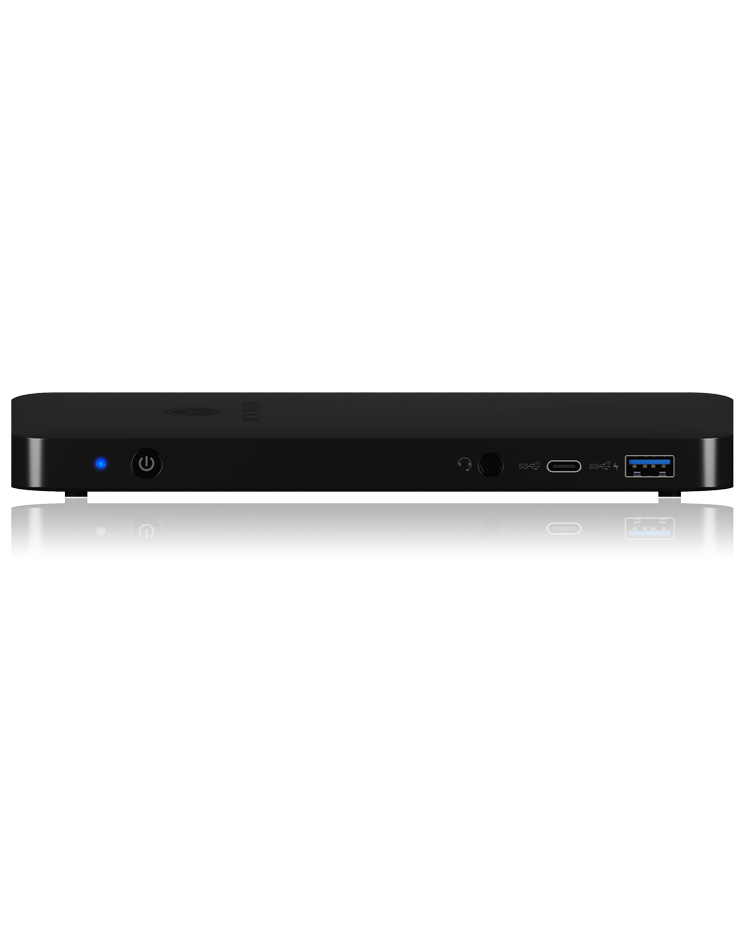

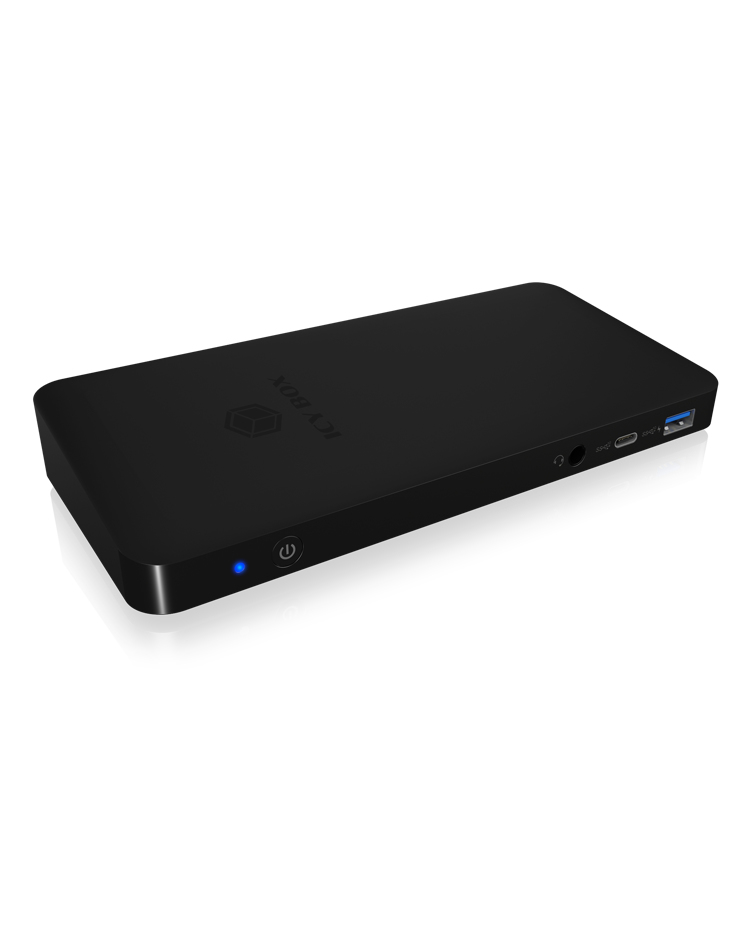

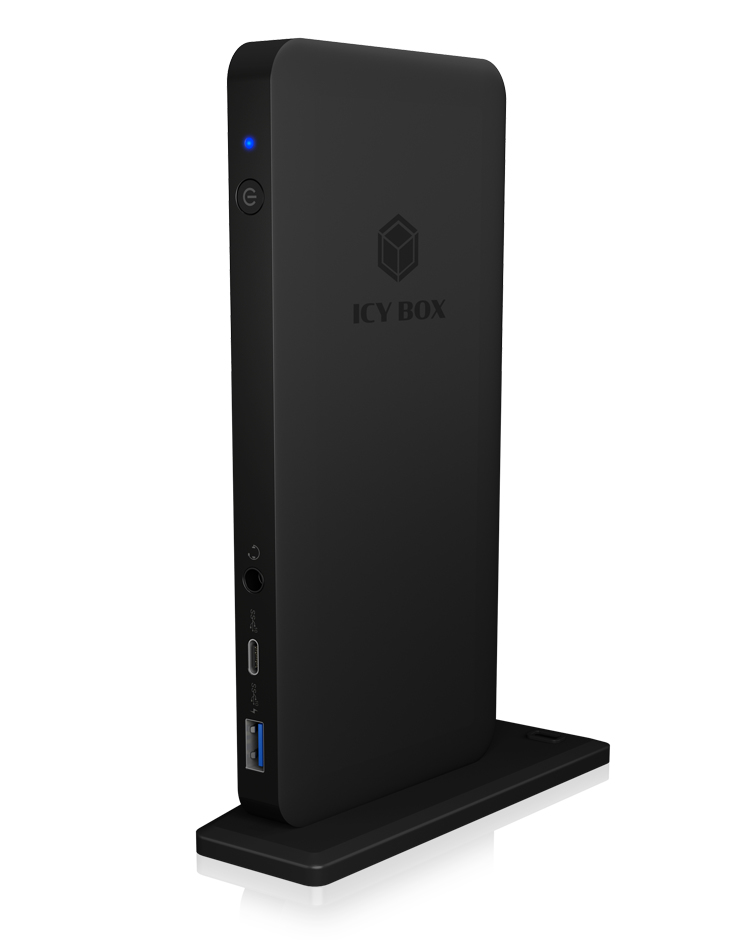

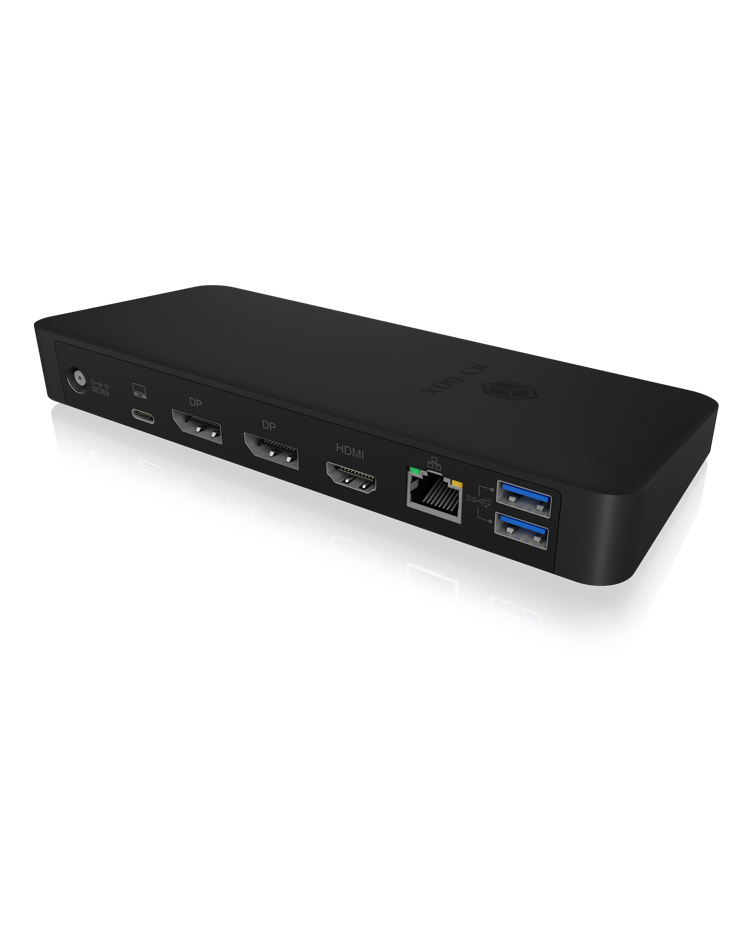

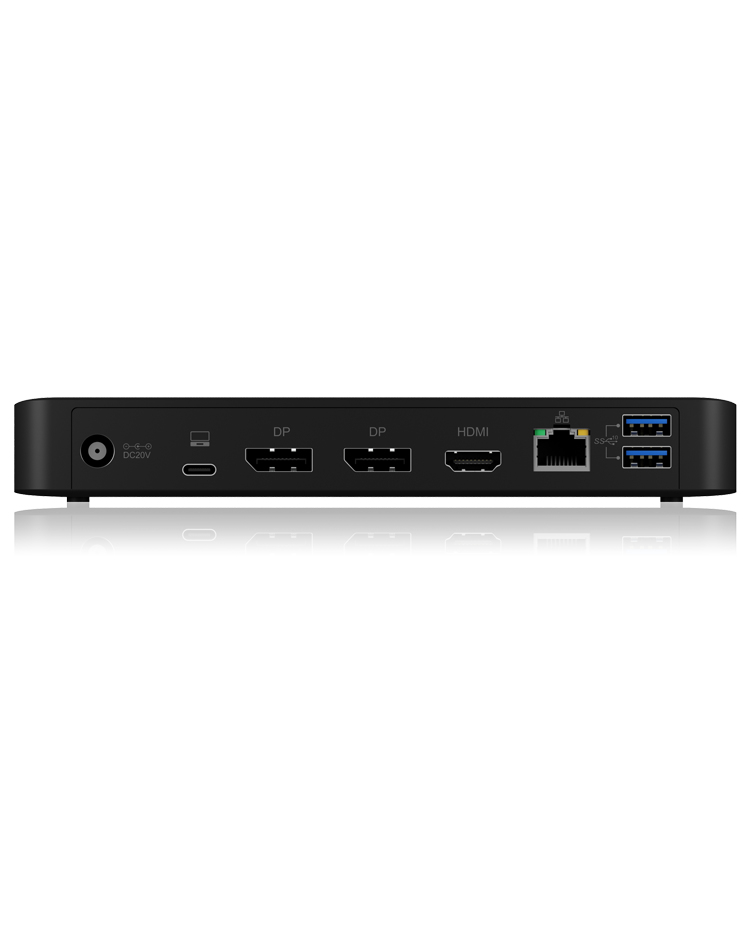

IB-DK2405-C Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Model IB-DK2405-CPart no. 60720EAN 4250078170549
56 specifications
- ConnectivityWired
- Weight402 g
- ColourBlack
- Ethernet LANYes
- Power source typeDC
- Width30 mm
Overview
- Connectivity
- Wired
- Weight
- 402 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- DC
- Width
- 30 mm
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK2405-C
- Part number
- 60720
- EAN / UPC
- 4250078170549
- Also known as
- ICY BOX IB-DK2405-C Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Specifications
56 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Hub interfaces | USB Type-C |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.8 A |
| Power supply | 135 W |
| Output current | 6.75 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30 mm |
| Depth | 86 mm |
| Height | 200 mm |
| Weight | 402 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 290 mm |
| Package depth | 95 mm |
| Package height | 158 mm |
| Package weight | 1.43 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB Type-C |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84719000 |
| Master (outer) case gross weight | 13.9 kg |
| Master (outer) case height | 320 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case width | 500 mm |
| Products per master (outer) case | 9 pc(s) |
