IB-DK2262AC Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite
Model IB-DK2262ACPart no. 60855EAN 4250078171911
52 specifications
- ConnectivityWired
- Weight480 g
- ColourAnthracite
- Ethernet LANYes
- Power source typeAC
- Width50 mm
Overview
- Connectivity
- Wired
- Weight
- 480 g
- Colour
- Anthracite
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 50 mm
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK2262AC
- Part number
- 60855
- EAN / UPC
- 4250078171911
- Also known as
- ICY BOX IB-DK2262AC Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite
Specifications
52 specifications in 9 groups
Ports & interfaces

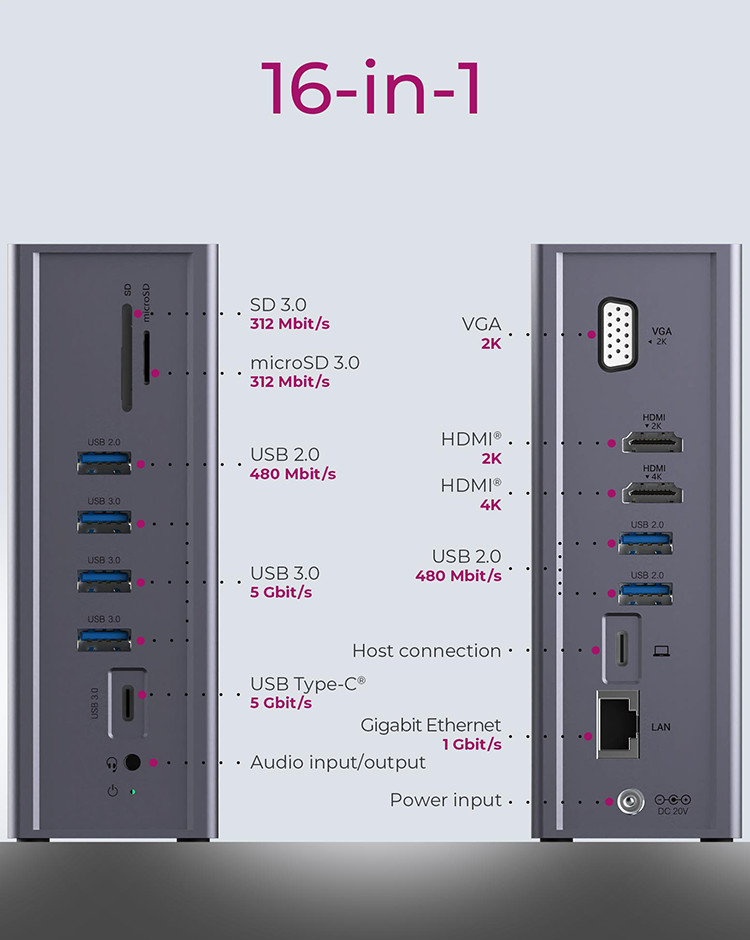

| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |

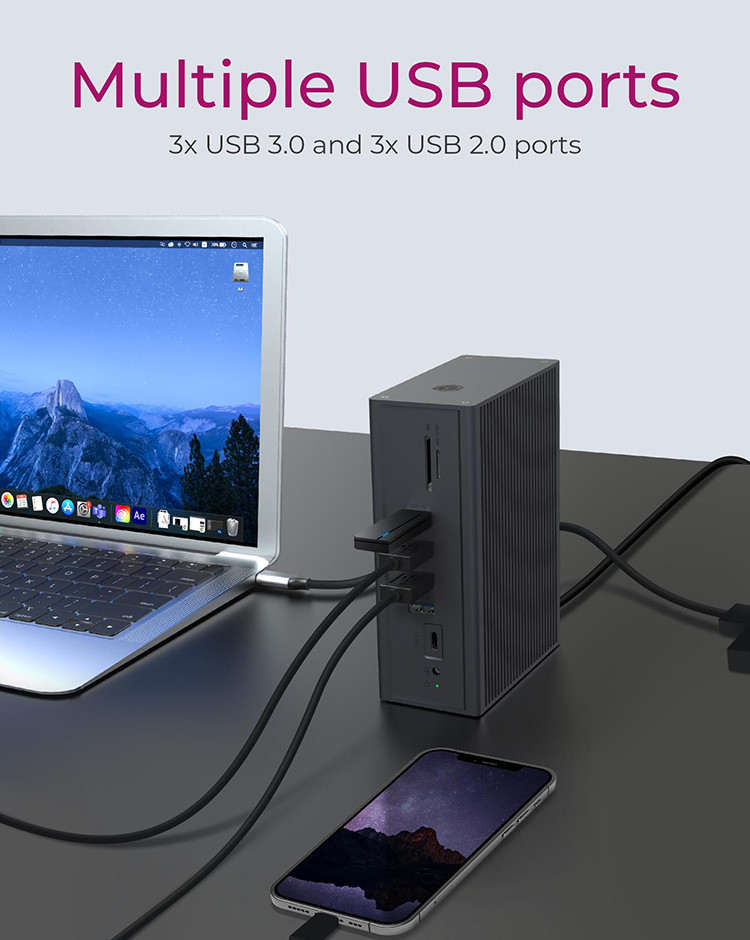

| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |

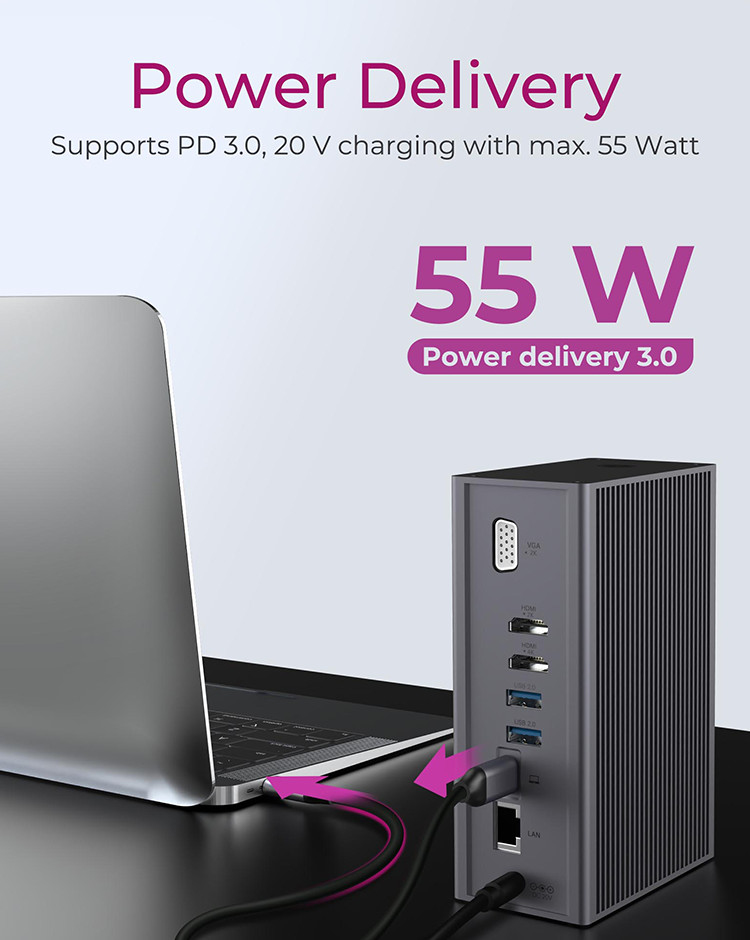

| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 55 W |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |

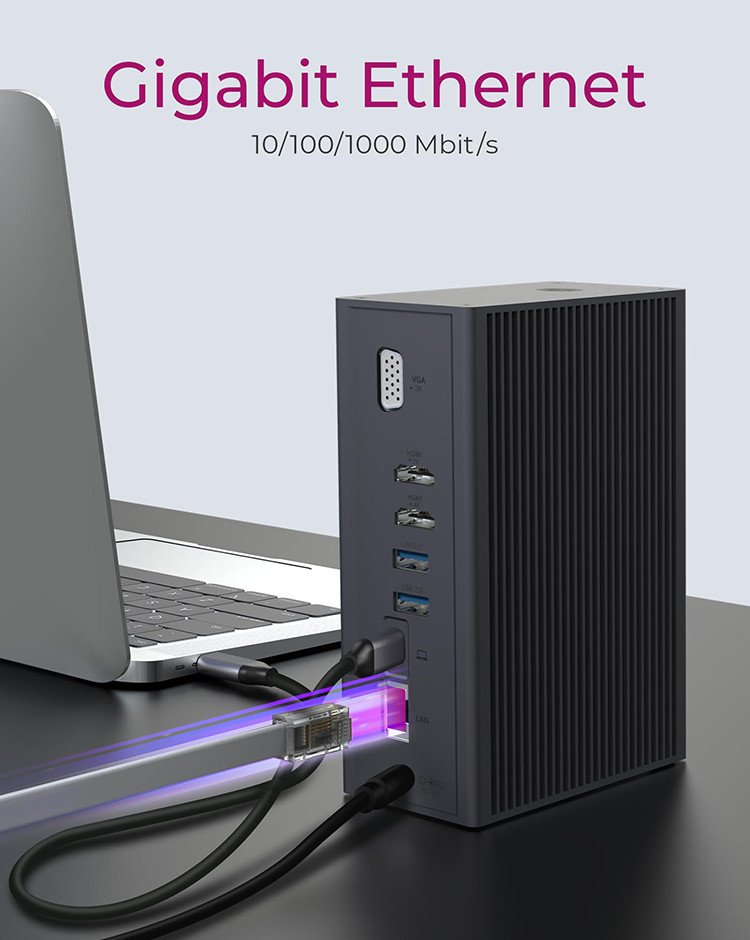

| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Anthracite |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum analog resolution | 1920 x 1080 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 3 |
| Housing material | Aluminium |
| LED indicators | Power |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 65 W |
| Output current | 3.25 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 8 |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 103 mm |
| Height | 140 mm |
| Weight | 480 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 1.19 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB Type-C to USB Type-C |
| Interface adapters included | USB Type-A male - USB Type-C female |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84718000 |
| Master (outer) case gross weight | 14.3 kg |
| Master (outer) case height | 455 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case width | 210 mm |
| Products per master (outer) case | 12 pc(s) |
