Heart Dock 2255 (Dual 4K@60Hz displays)
Model IB-DK2255ACPart no. 61217EAN 4250078175551
43 specifications
- ConnectivityWired
- Weight355 g
- ColourBlack
- Ethernet LANYes
- Power source typeAC
- Width33 mm
Overview
- Connectivity
- Wired
- Weight
- 355 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 33 mm
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK2255AC
- Part number
- 61217
- EAN / UPC
- 4250078175551
- Also known as
- ICY BOX Heart Dock 2255 (Dual 4K@60Hz displays)
Specifications
43 specifications in 8 groups

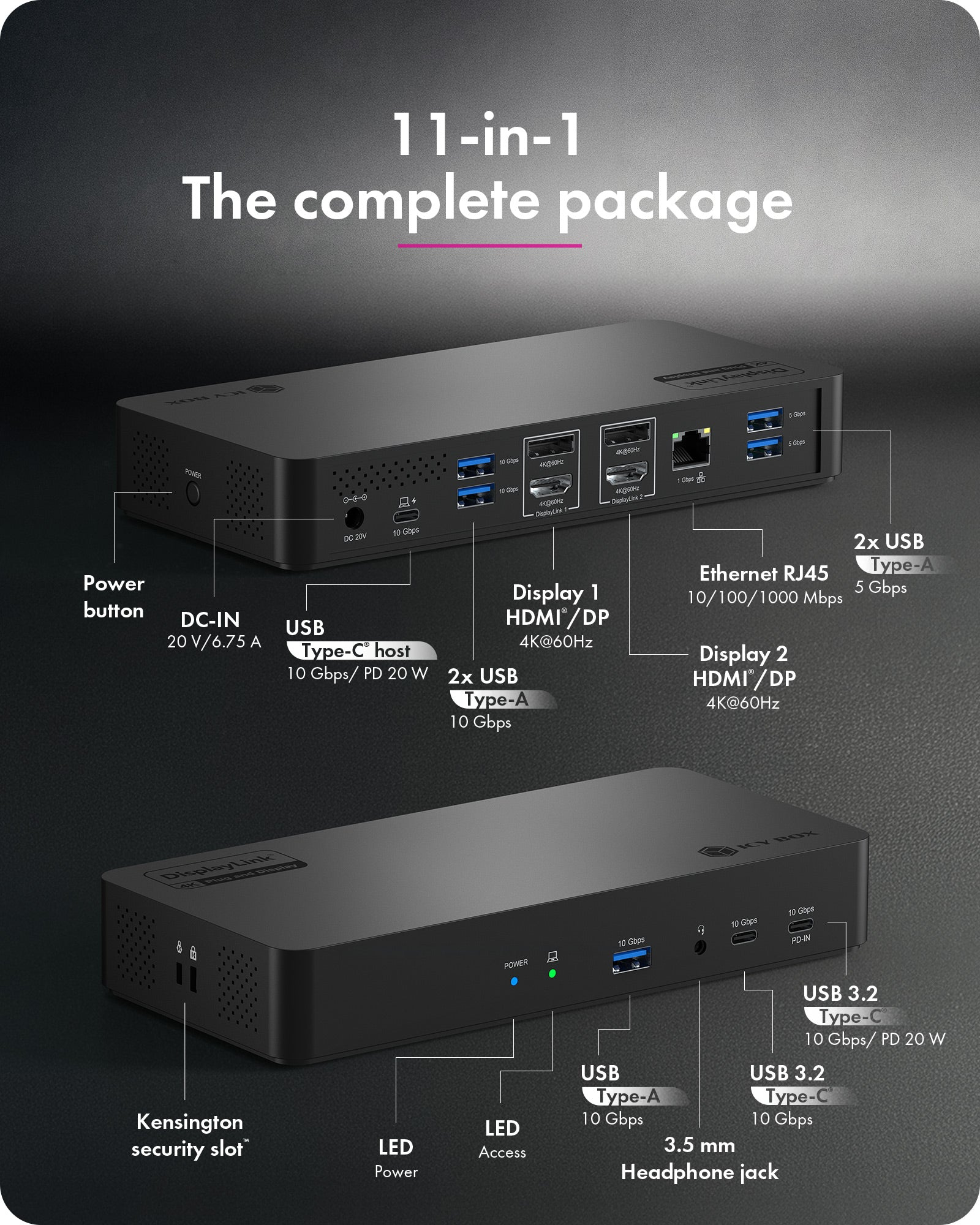

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |

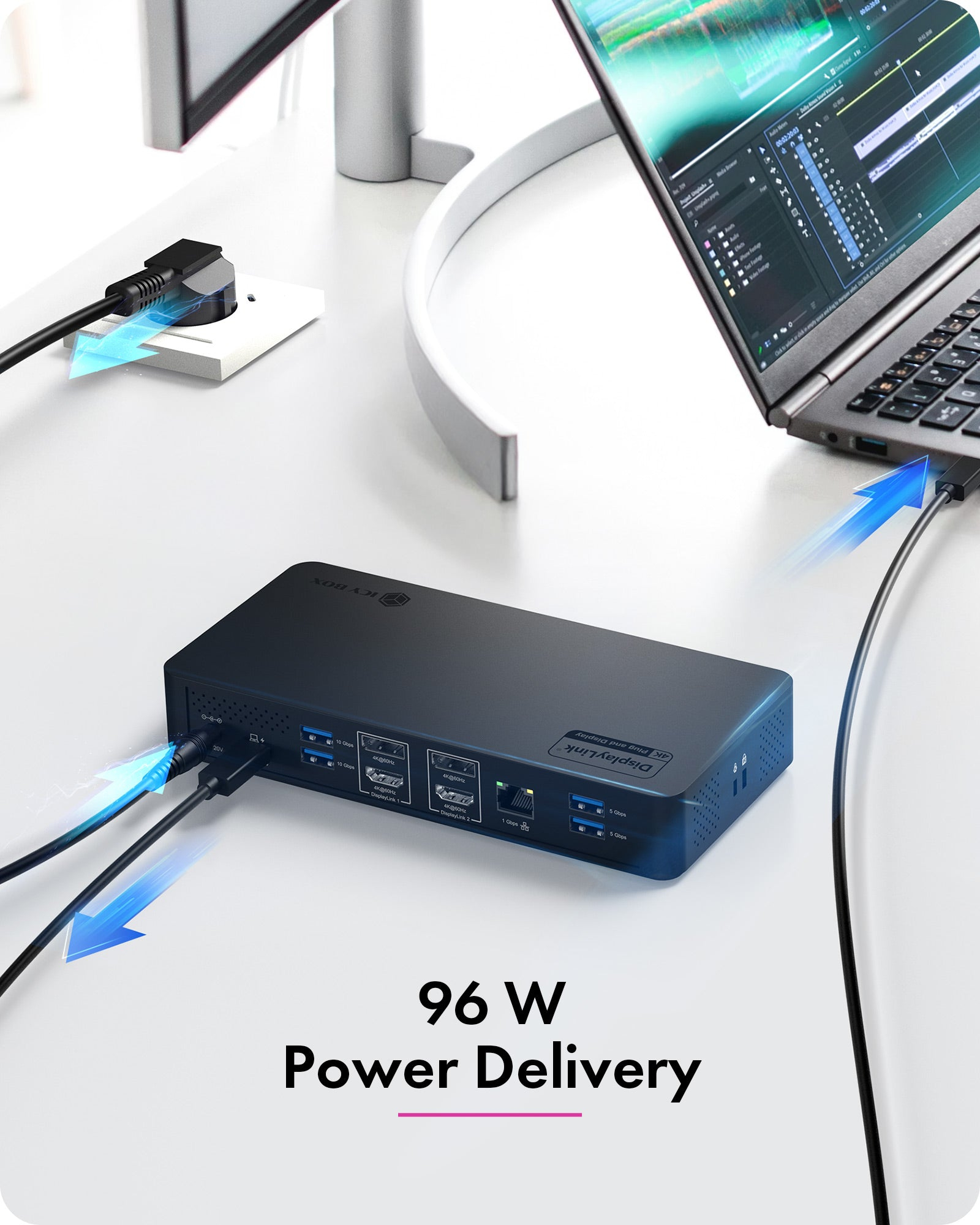

| USB Power Delivery up to | 96 W |

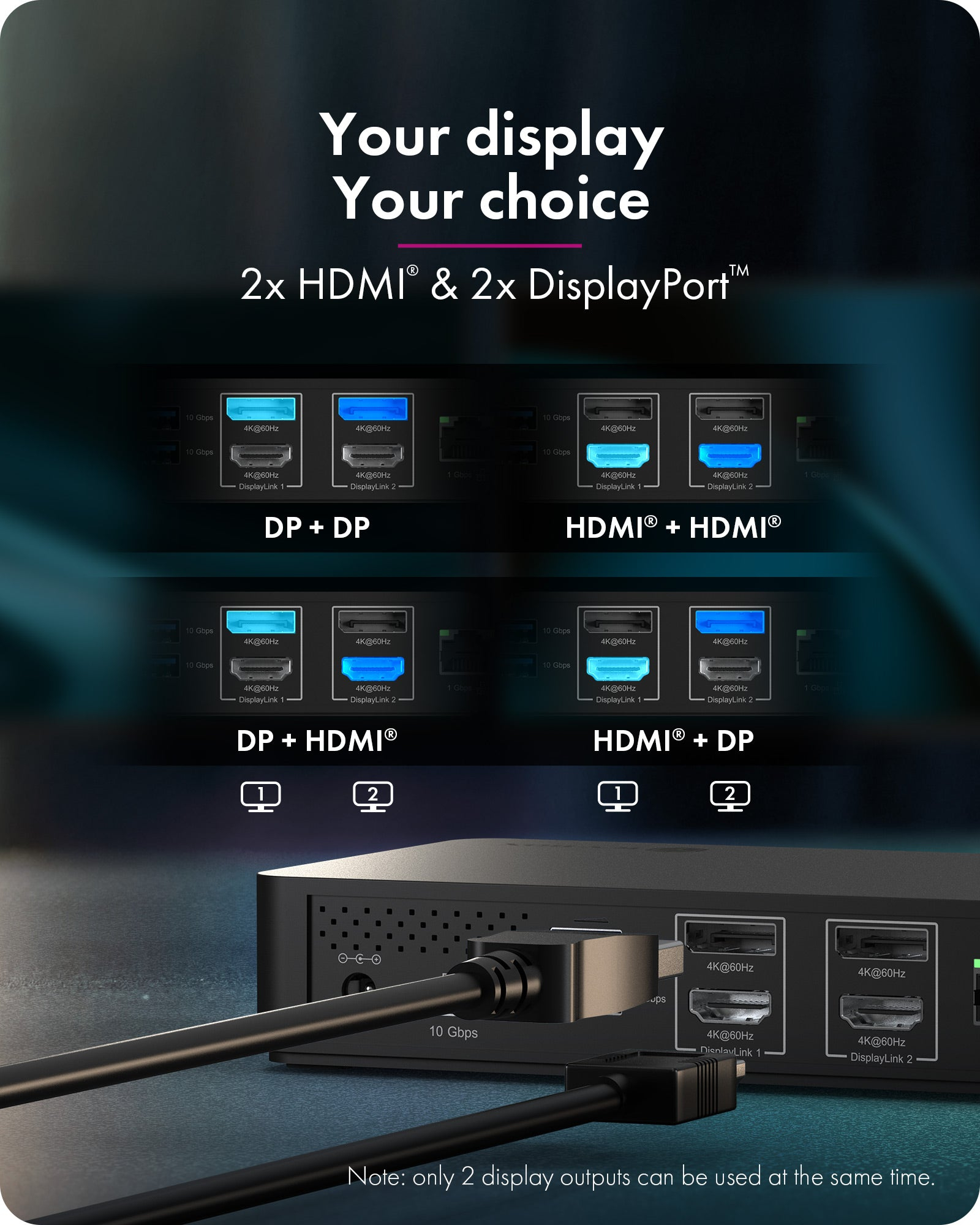

| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |

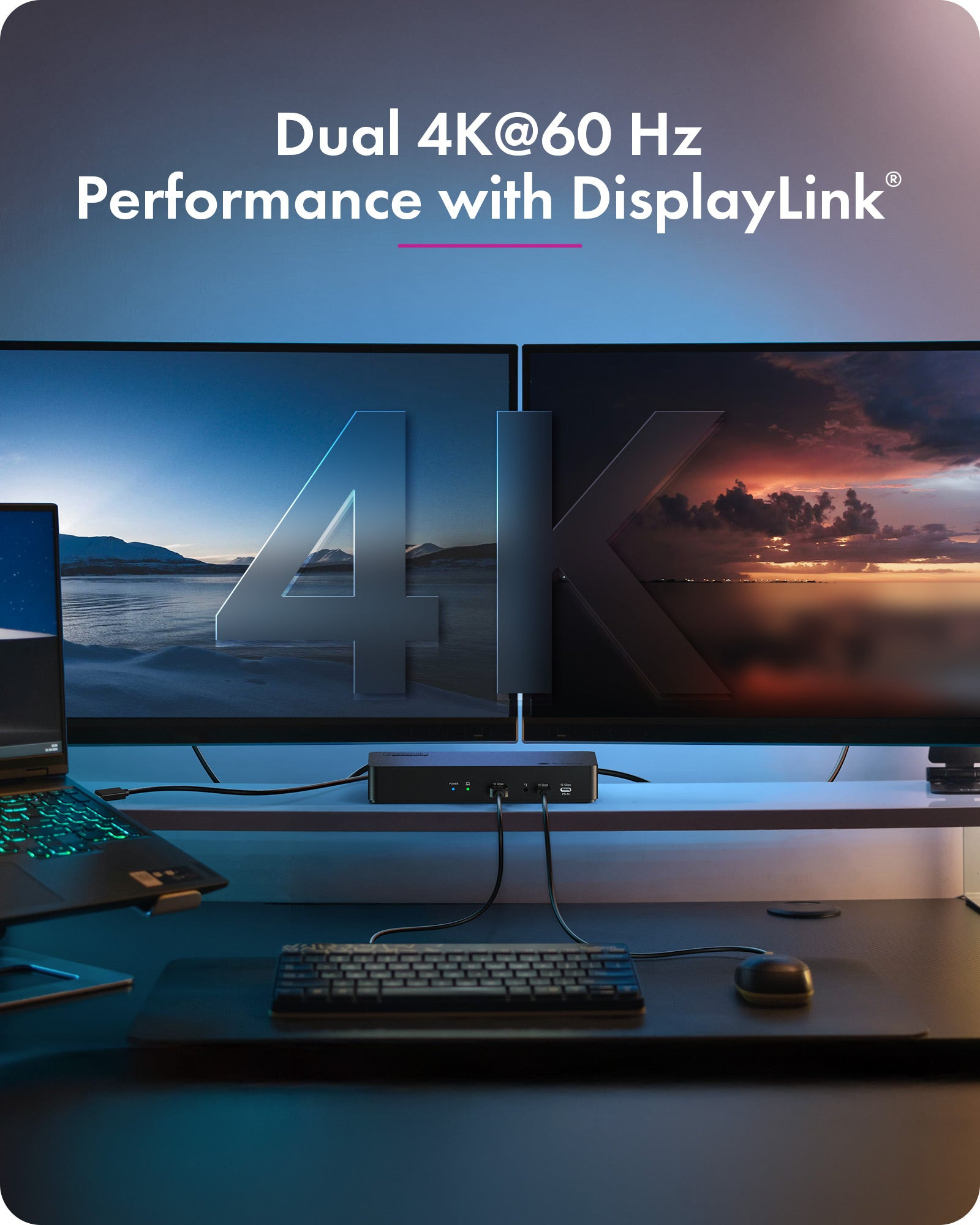

| Number of displays supported | 2 |

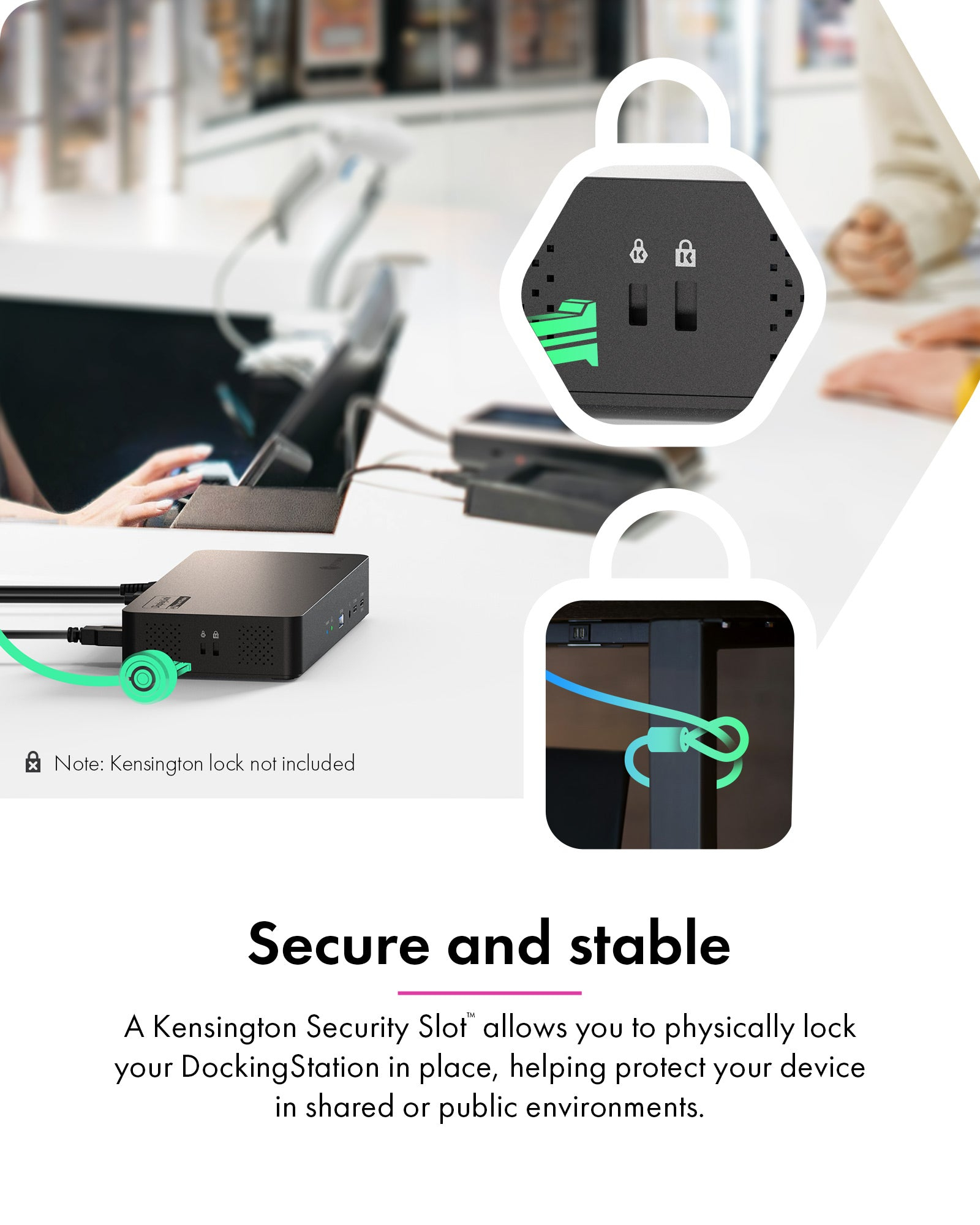

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Access, Power |
| Country of origin | Taiwan |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply | 135 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 33 mm |
| Depth | 200 mm |
| Height | 95 mm |
| Weight | 355 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 90 mm |
| Package depth | 255 mm |
| Package height | 135 mm |
| Package weight | 1.19 kg |
Logistics data
| Specification | Value |
|---|---|
| Commodity code | 84718000 |
