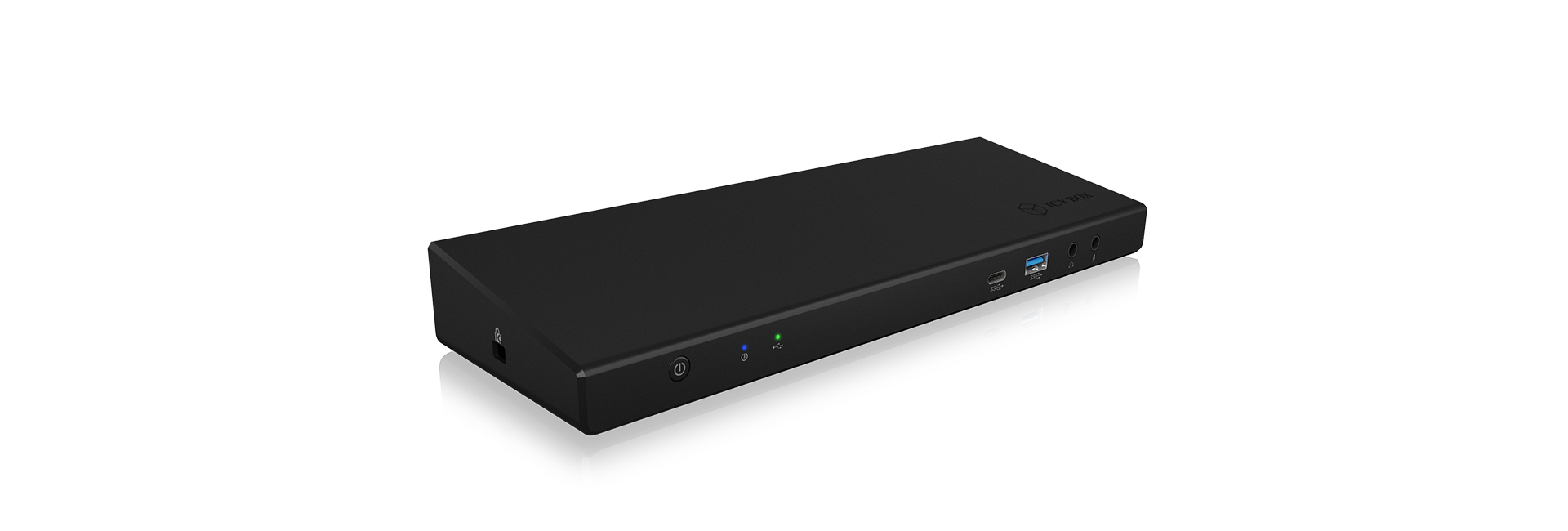

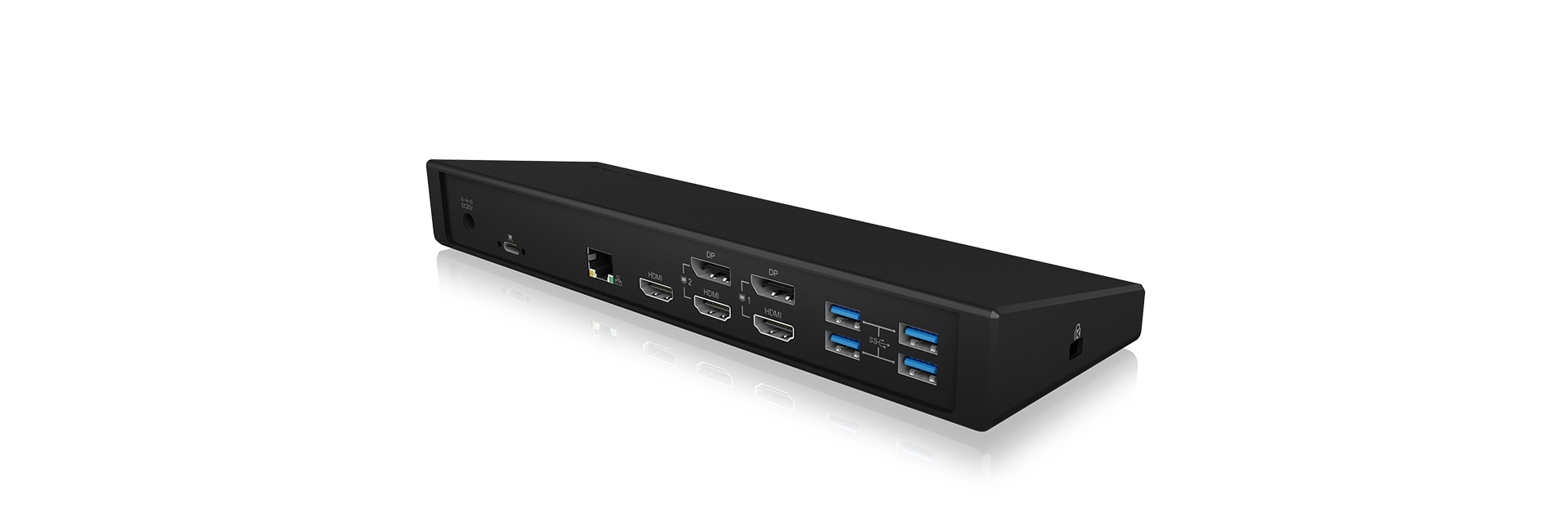

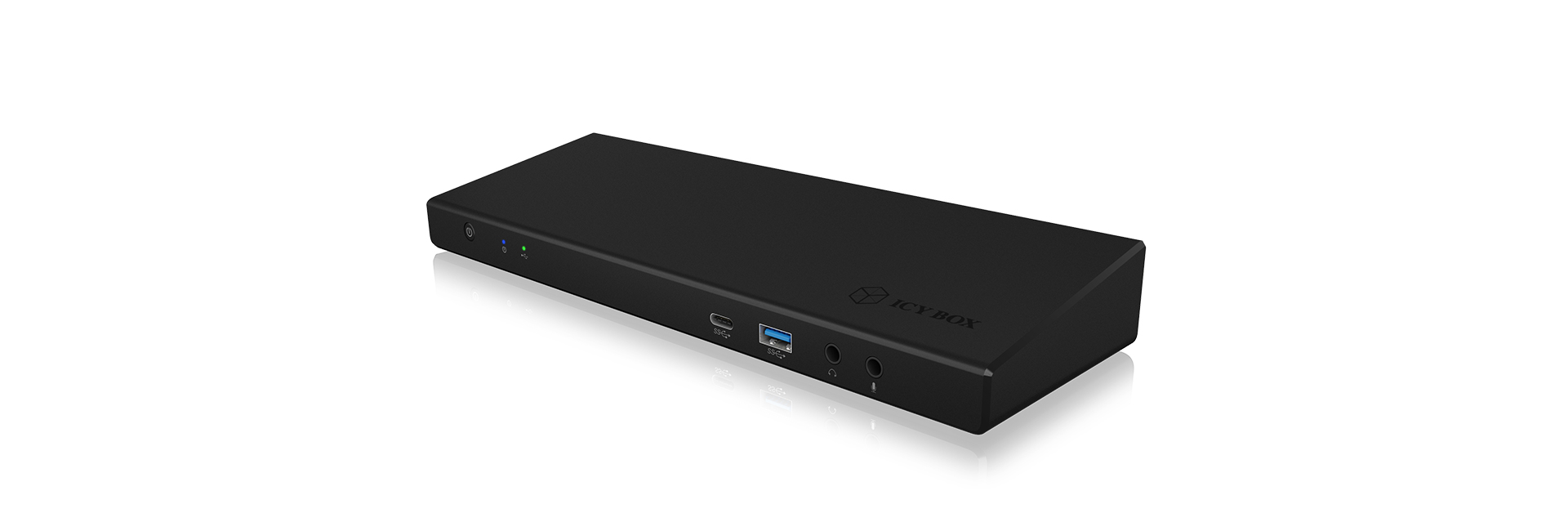

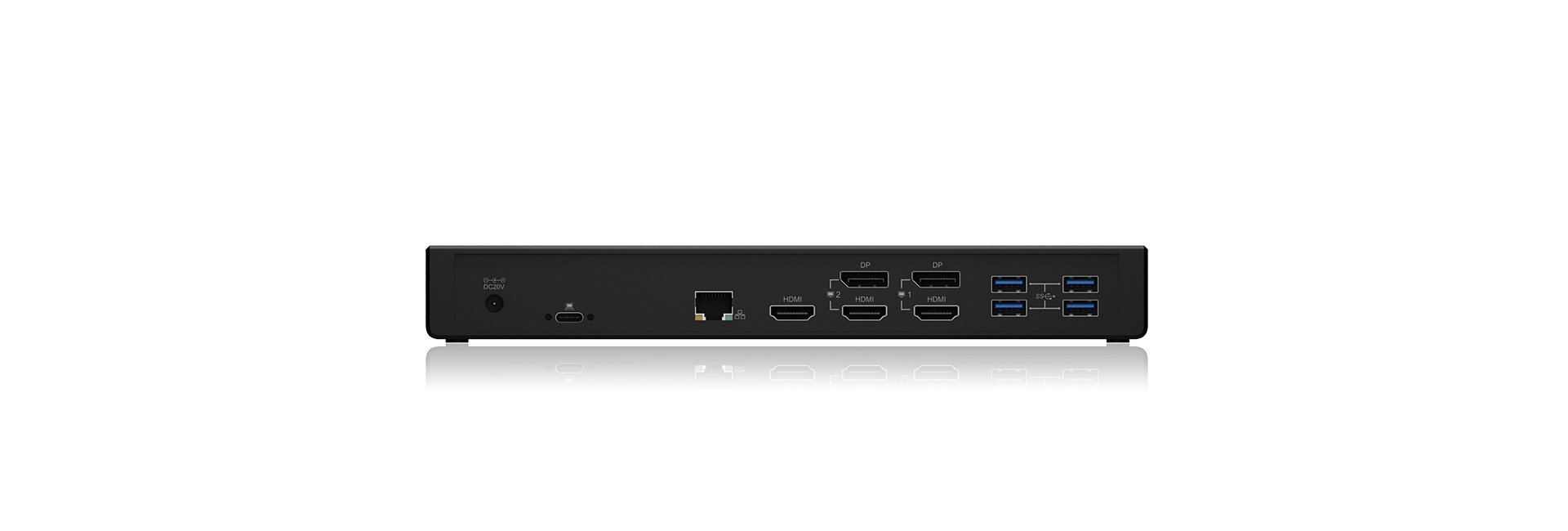

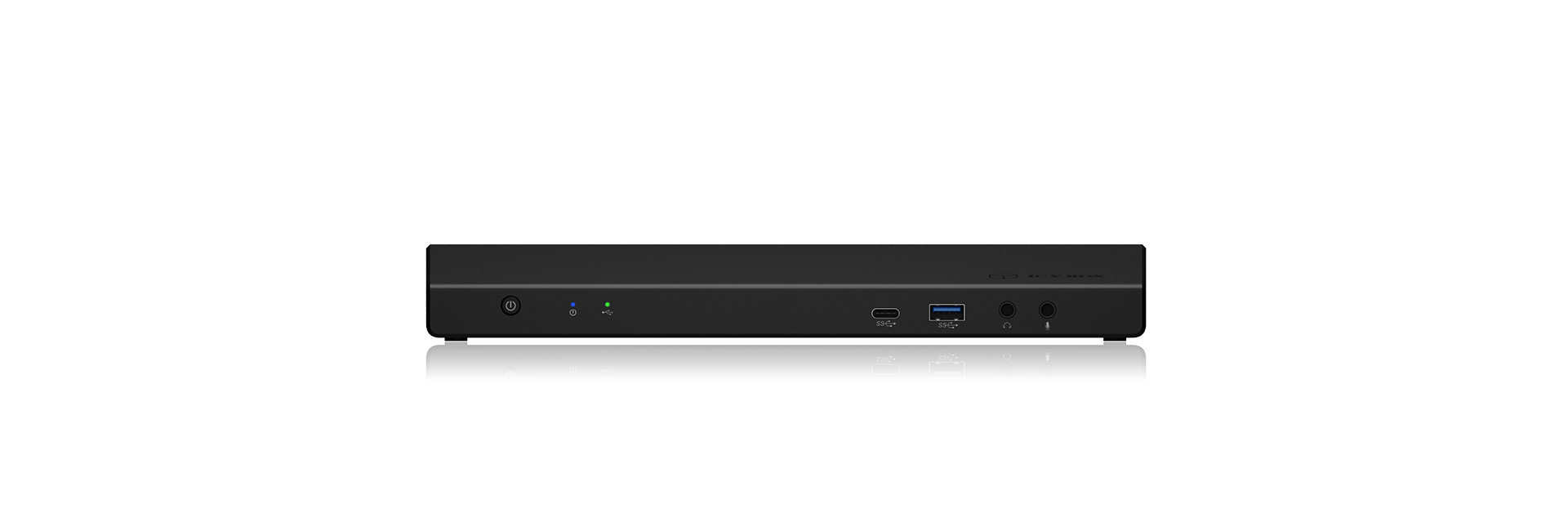

IB-DK2244AC Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Model IB-DK2244ACPart no. 60573EAN 4250078169413
59 specifications
- ConnectivityWired
- Weight392 g
- ColourBlack
- Ethernet LANYes
- Power source typeDC
- Width250 mm
Overview
- Connectivity
- Wired
- Weight
- 392 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- DC
- Width
- 250 mm
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK2244AC
- Part number
- 60573
- EAN / UPC
- 4250078169413
- Also known as
- ICY BOX IB-DK2244AC Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Specifications
59 specifications in 10 groups

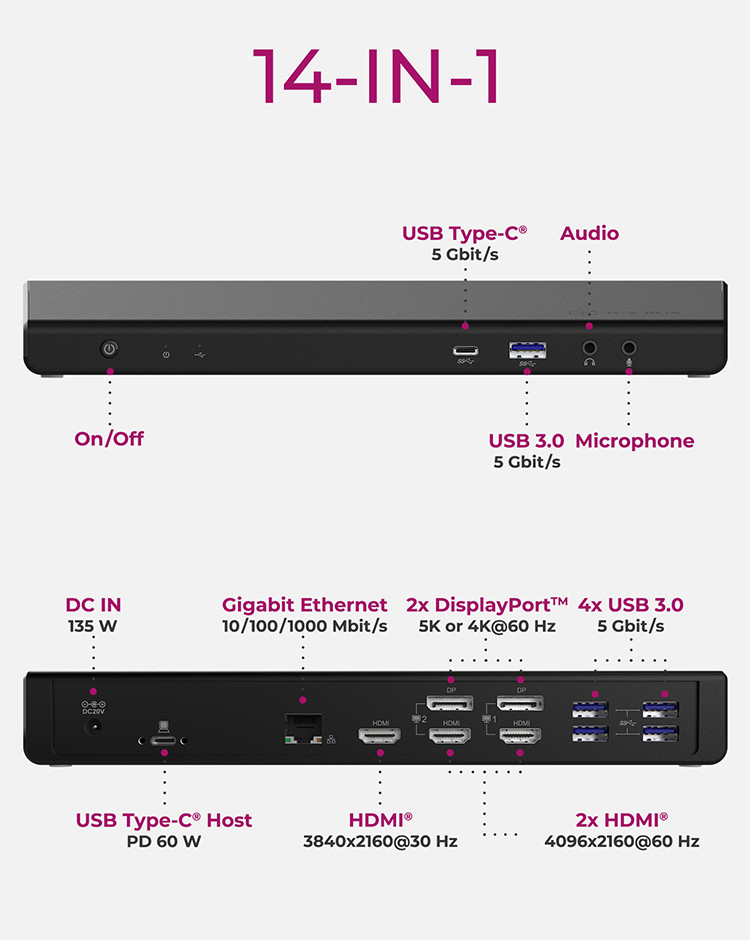

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 2.0 |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| HD type | 5K Ultra HD |
| Maximum digital resolution | 5120 x 2880 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Charging function | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Plug and Play | Yes |
| UASP support | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power supply | 135 W |
| Output current | 6.75 A |
| Output voltage | 50 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 80 mm |
| Height | 35 mm |
| Weight | 392 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 290 mm |
| Package depth | 95 mm |
| Package height | 155 mm |
| Package weight | 1.56 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |

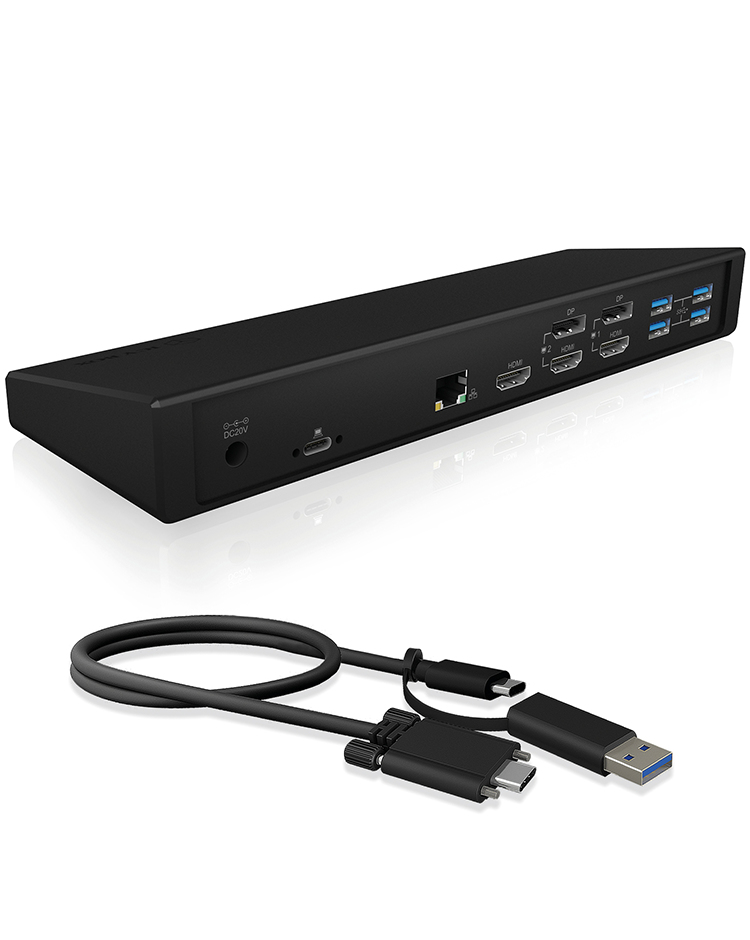

| Cables included | USB Type-C to USB Type-C |
| Interface adapters included | USB Type-A male - USB Type-C female |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case gross weight | 14.7 kg |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case width | 305 mm |
| Products per master (outer) case | 9 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 1 m |
