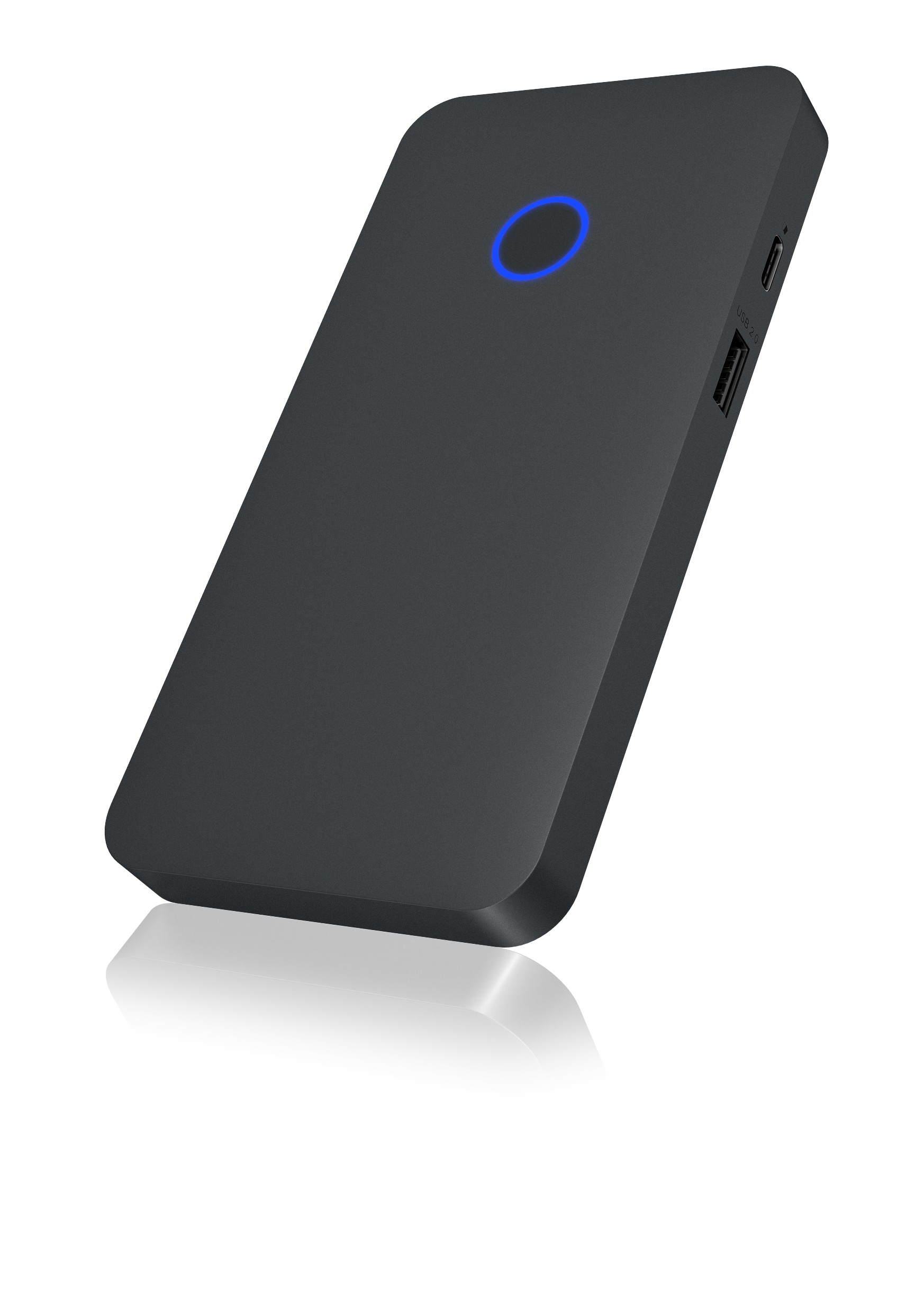

IB-DK2108M-C Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite
Model IB-DK2108M-CPart no. 60794EAN 4250078171300
53 specifications
- ConnectivityWired
- Weight165 g
- ColourAnthracite
- Ethernet LANNo
- Power source typeUSB
- Windows operating systems supportedYes
Overview
- Connectivity
- Wired
- Weight
- 165 g
- Colour
- Anthracite
- Ethernet LAN
- No
- Power source type
- USB
- Windows operating systems supported
- Yes
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- IB-DK2108M-C
- Part number
- 60794
- EAN / UPC
- 4250078171300
- Also known as
- ICY BOX IB-DK2108M-C Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite
Specifications
53 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |

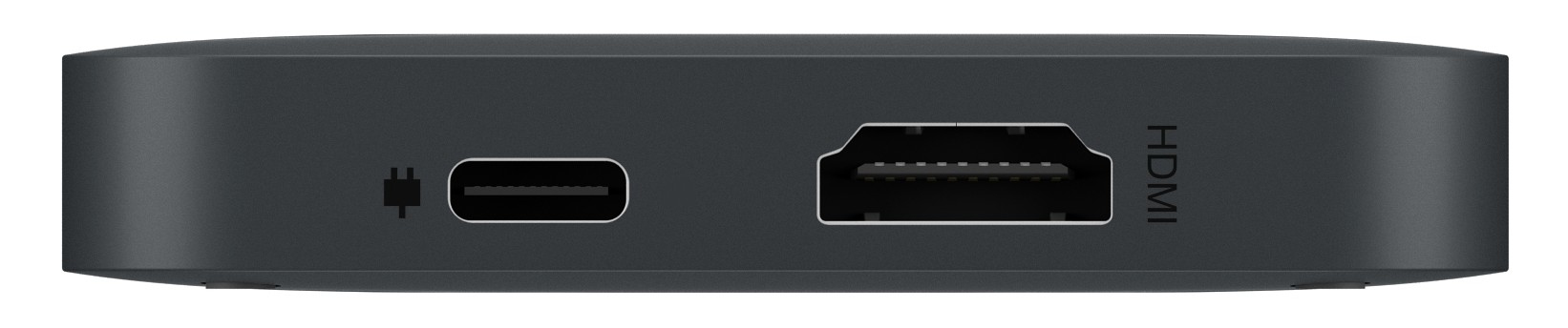

| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Anthracite |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Number of storage drives supported | 1 |

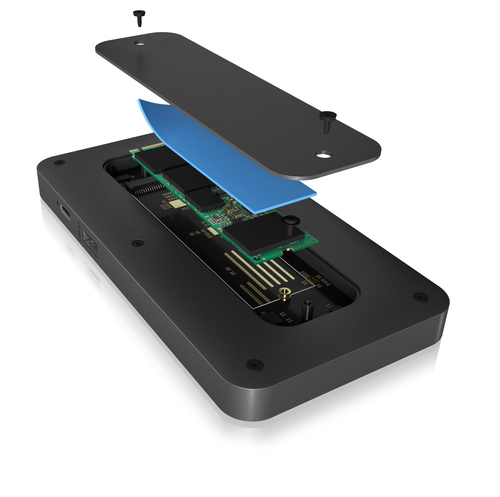

| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| NVMe | Yes |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| LED indicators | Power |
| Plug and Play | Yes |
| UASP support | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Output current | 5 A |
| Output voltage | 5 - 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 70 mm |
| Height | 12 mm |
| Weight | 165 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 110 mm |
| Package depth | 35 mm |
| Package height | 200 mm |
| Package weight | 770 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C to USB Type-C |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case gross weight | 13.2 kg |
| Master (outer) case height | 240 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 360 mm |
| Products per master (outer) case | 36 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.34 m |
