Heart RAID 2818
Model Heart RAID 2818Part no. 61203EAN 4250078175391
53 specifications
- ConnectivityWired
- Weight242 g
- ColourBlack
- Ethernet LANNo
- Built-in fanYes
- Output current5 A
Overview
- Connectivity
- Wired
- Weight
- 242 g
- Colour
- Black
- Ethernet LAN
- No
- Built-in fan
- Yes
- Output current
- 5 A
- Brand
- ICY BOX
- Category
- Laptop Docks & Port Replicators
- Model
- Heart RAID 2818
- Part number
- 61203
- EAN / UPC
- 4250078175391
- Also known as
- ICY BOX Heart RAID 2818 RAID & DockingStation for 2x M.2 NVMe SSD
Specifications
53 specifications in 11 groups

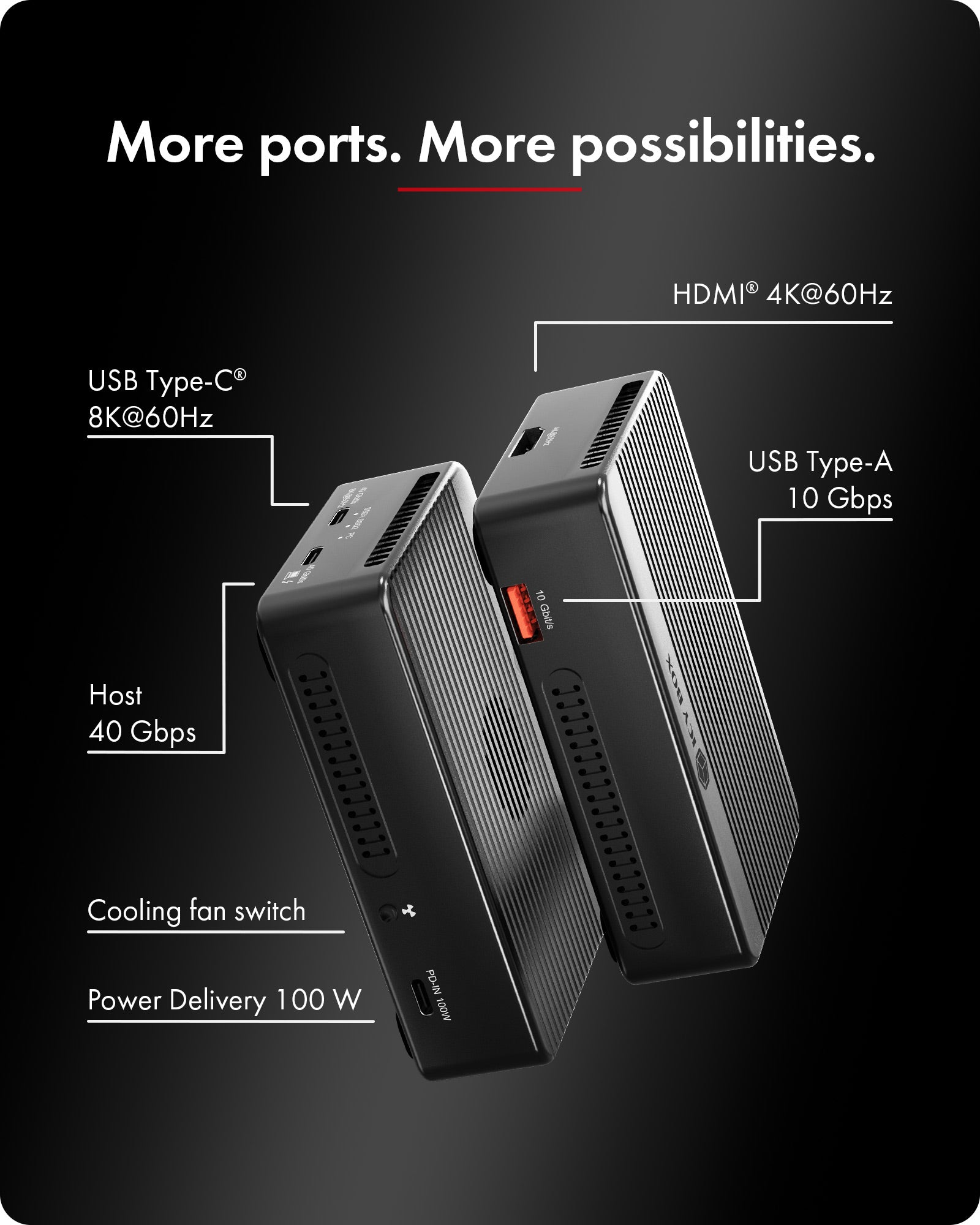

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB4 |
| USB 2.0 ports quantity | 0 |
| USB 2.0 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB4 ports quantity | 1 |

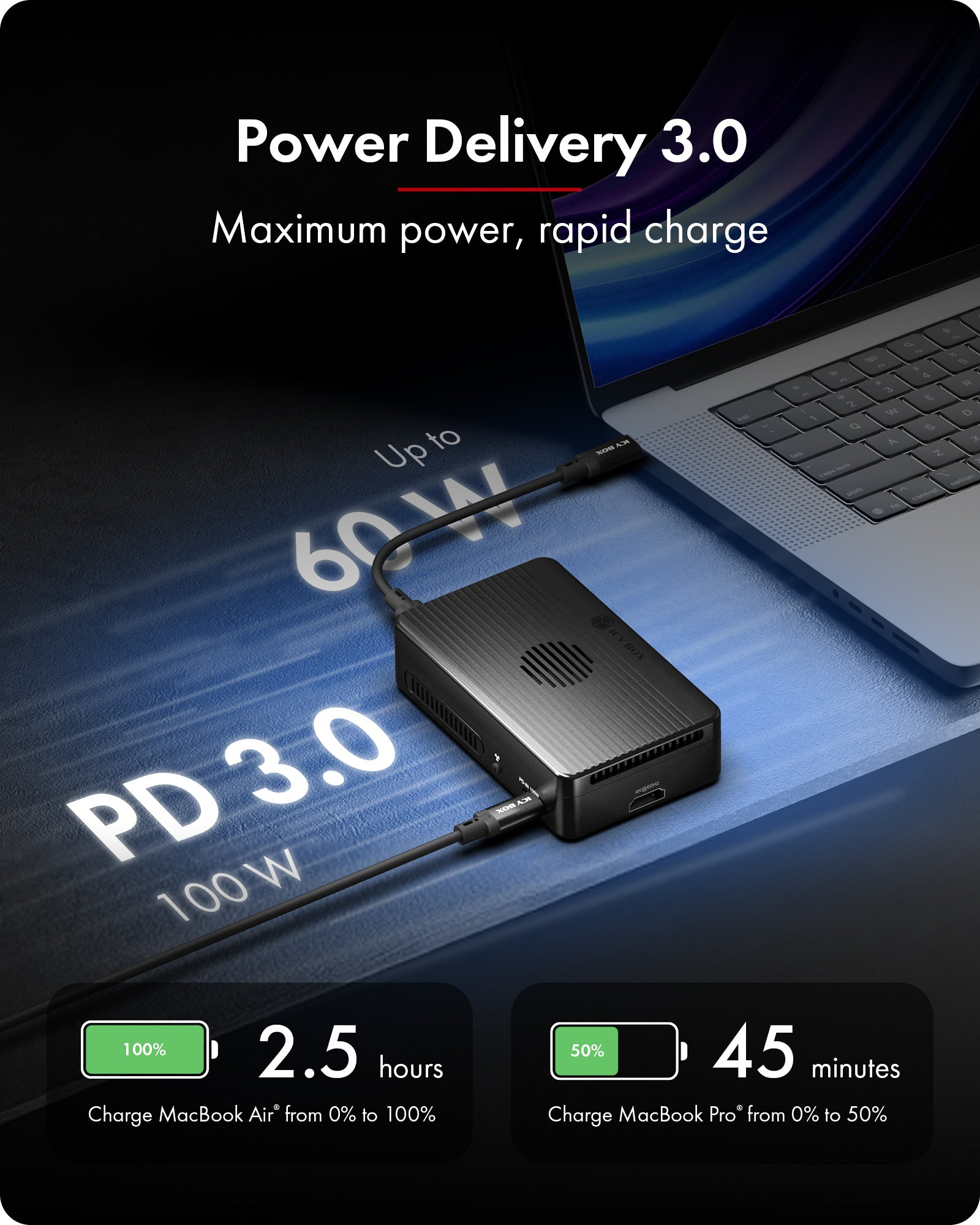

| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |

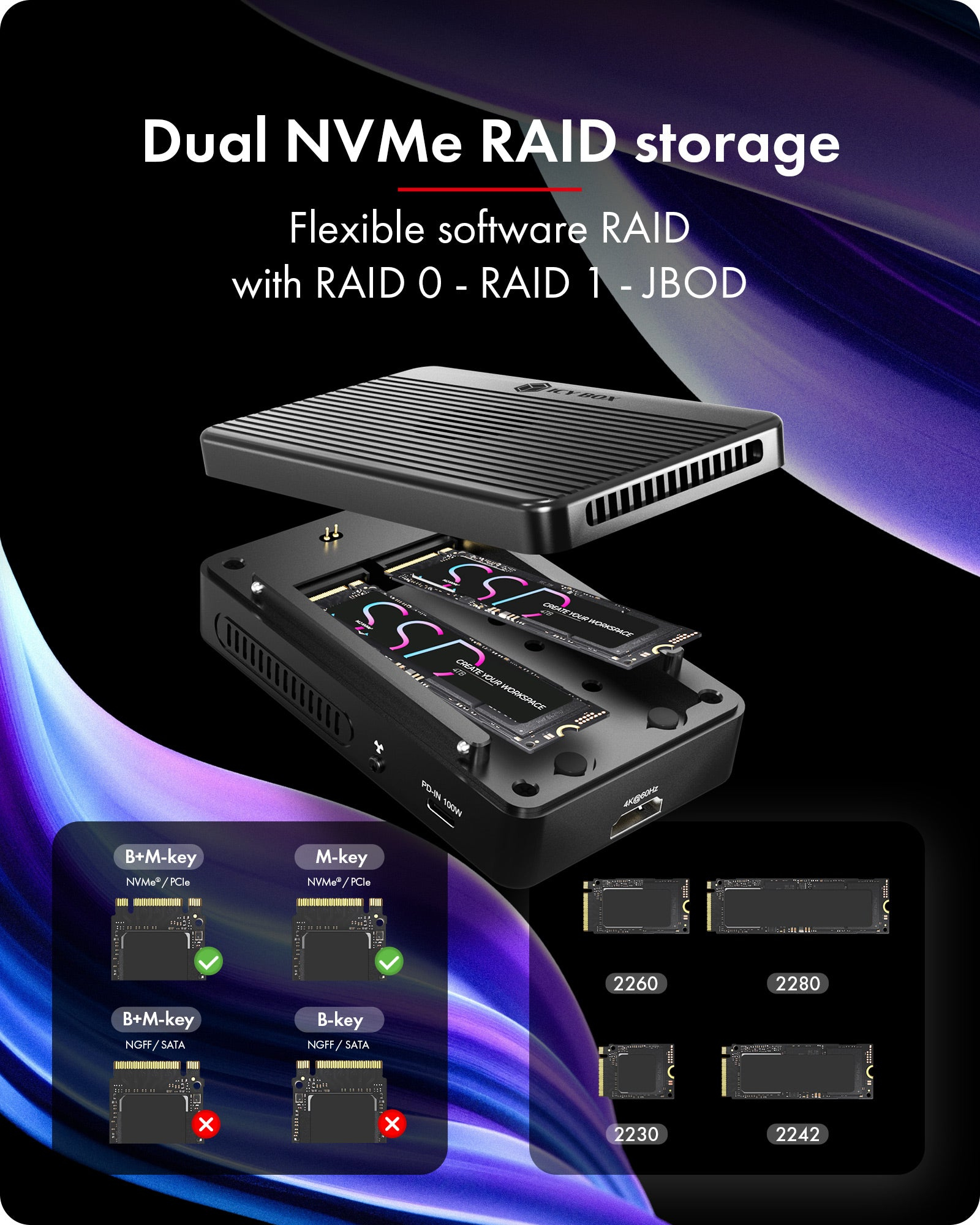

| RAID type | Software |
| Number of storage drives supported | 2 |
| Supported storage drive types | SSD |
| Maximum storage capacity | 32 TB |
| NVMe | Yes |
| Supported SSD sizes | M.2 |
| Supported storage drive lengths | 30,42,60,80 mm |

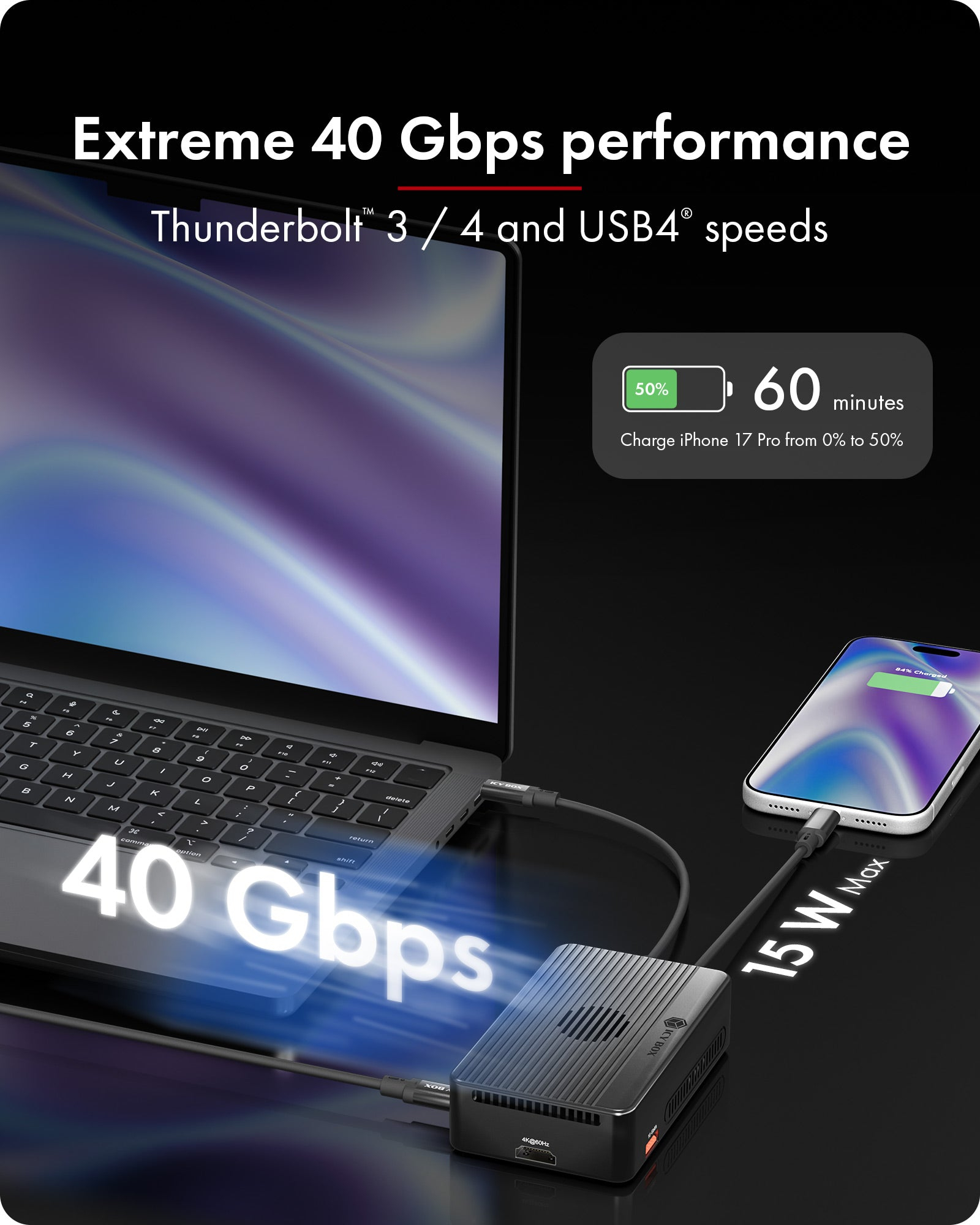

| Data transfer rate | 40 Gbit/s |

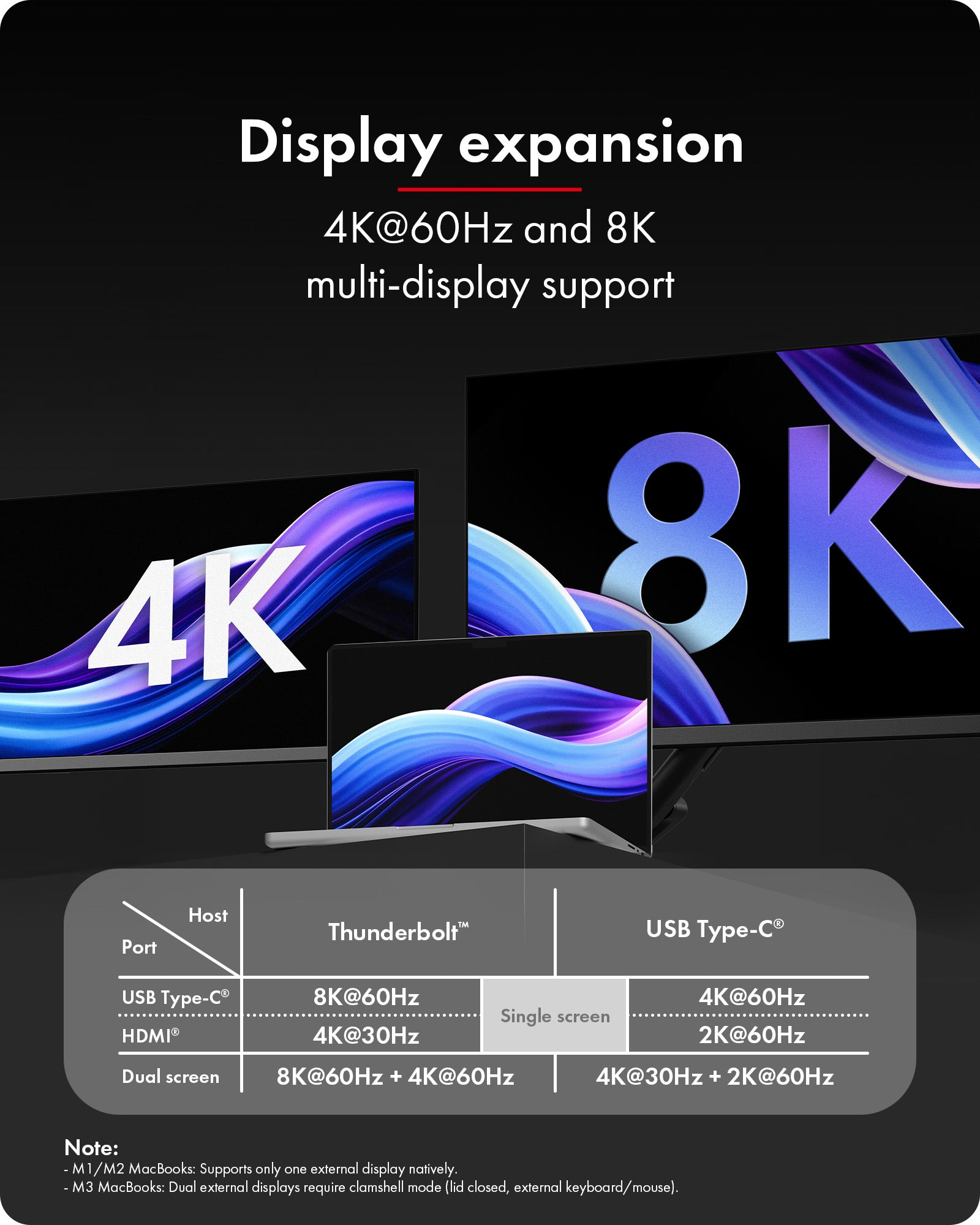

| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Housing material | Aluminium |
| LED indicators | Yes |
| Plug and Play | Yes |
| Country of origin | China |

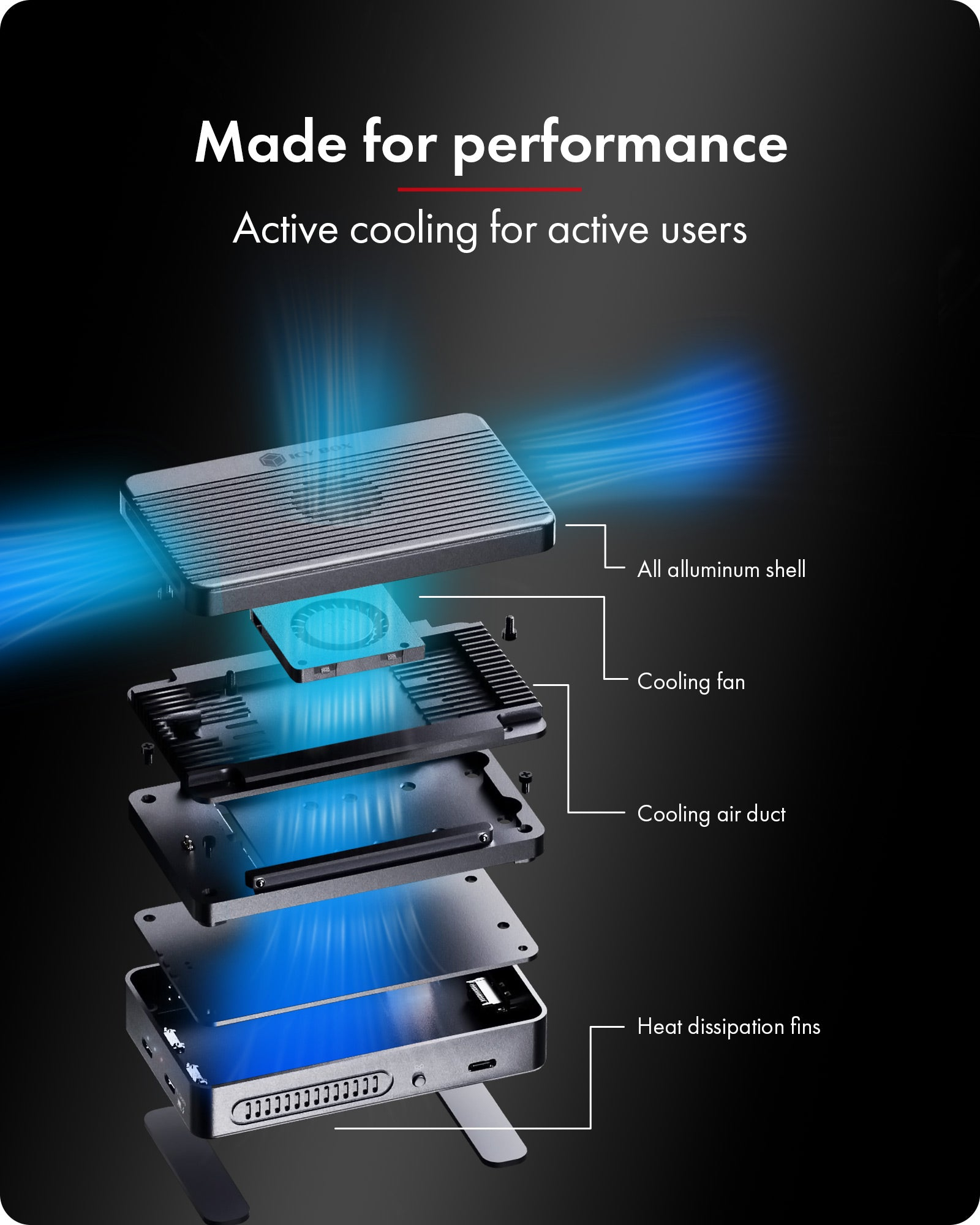

Cooling
| Specification | Value |
|---|---|
| Built-in fan | Yes |
Power
| Specification | Value |
|---|---|
| Output current | 5 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 54 mm |
| Height | 28 mm |
| Weight | 242 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 150 pc(s) |
| Package width | 40 mm |
| Package depth | 210 mm |
| Package weight | 680 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C to USB Type-C |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 7.16 kg |
| Master (outer) case height | 195 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case width | 235 mm |
| Products per master (outer) case | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | JHL7440, CH224K, GSV2201E |
