Thunderbolt 5 Triple Display Docking Station, M.2 slot, 6x USB, 2.5GLAN + Power Delivery
140W
Model TB5TRIPLEDOCKM2PDEAN 8595611707940
48 specifications
- ConnectivityWired
- Weight360 g
- ColourBlack
- Ethernet LANYes
- Power supply180 W
- Width215 mm
Overview
- Connectivity
- Wired
- Weight
- 360 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power supply
- 180 W
- Width
- 215 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- TB5TRIPLEDOCKM2PD
- Part number
- TB5TRIPLEDOCKM2PD
- EAN / UPC
- 8595611707940
- Also known as
- i-tec Thunderbolt 5 Triple Display Docking Station, M.2 slot, 6x USB, 2.5GLAN + Power Delivery 140W
Specifications
48 specifications in 7 groups

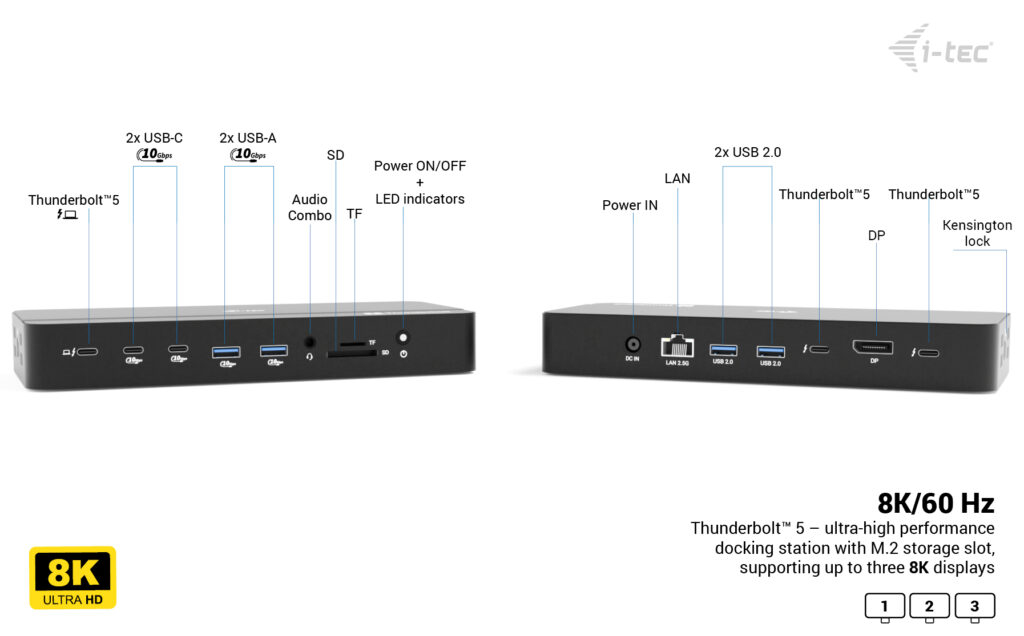

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Thunderbolt 5 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Number of storage drives supported | 1 |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Data transfer rate | 120 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 120 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
| Output current | 9 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS, iPadOS |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 360 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Manual | Yes |
