Thunderbolt 4 Intelligent Dual Display Docking Station + Power Delivery
90W
Model TB4INTGDUAL4KDOCPDEAN 8595611707575
45 specifications
- ConnectivityWired
- Weight295 g
- ColourBlack
- Ethernet LANYes
- Power supply135 W
- Width220 mm
Overview
- Connectivity
- Wired
- Weight
- 295 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power supply
- 135 W
- Width
- 220 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- TB4INTGDUAL4KDOCPD
- Part number
- TB4INTGDUAL4KDOCPD
- EAN / UPC
- 8595611707575
- Also known as
- i-tec Thunderbolt 4 Intelligent Dual Display Docking Station + Power Delivery 90W
Specifications
45 specifications in 7 groups

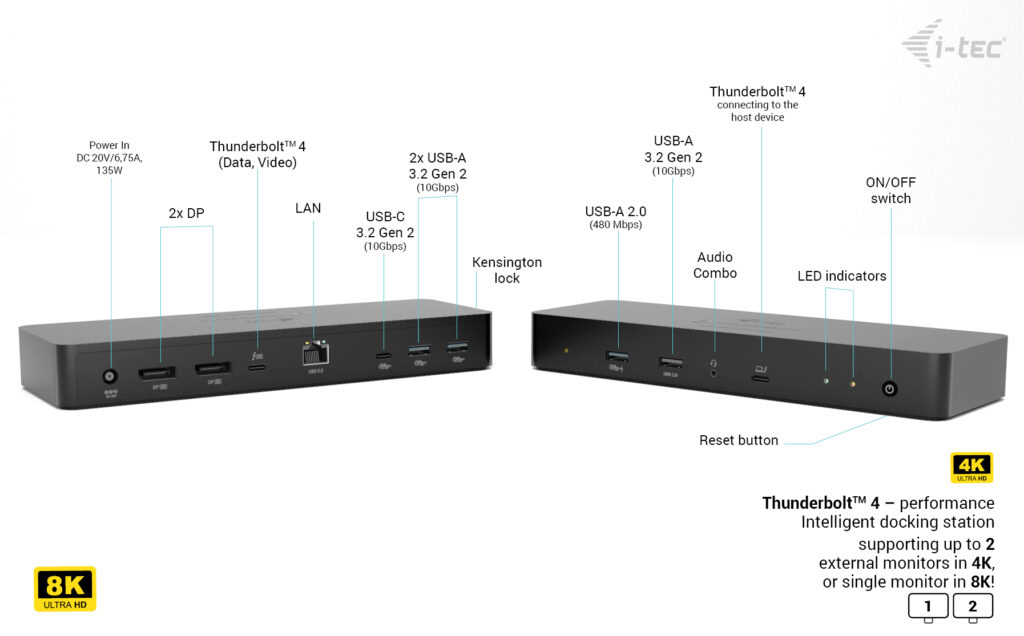

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 90 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 360 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 135 W |
| Output current | 6.75 A |
| Output voltage | 20 V |
| Compatible power plug types | EU |
| Power cable length | 1.5 m |
| Thunderbolt 4 cable length | 1 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS, iPadOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 75 mm |
| Height | 30 mm |
| Weight | 295 g |

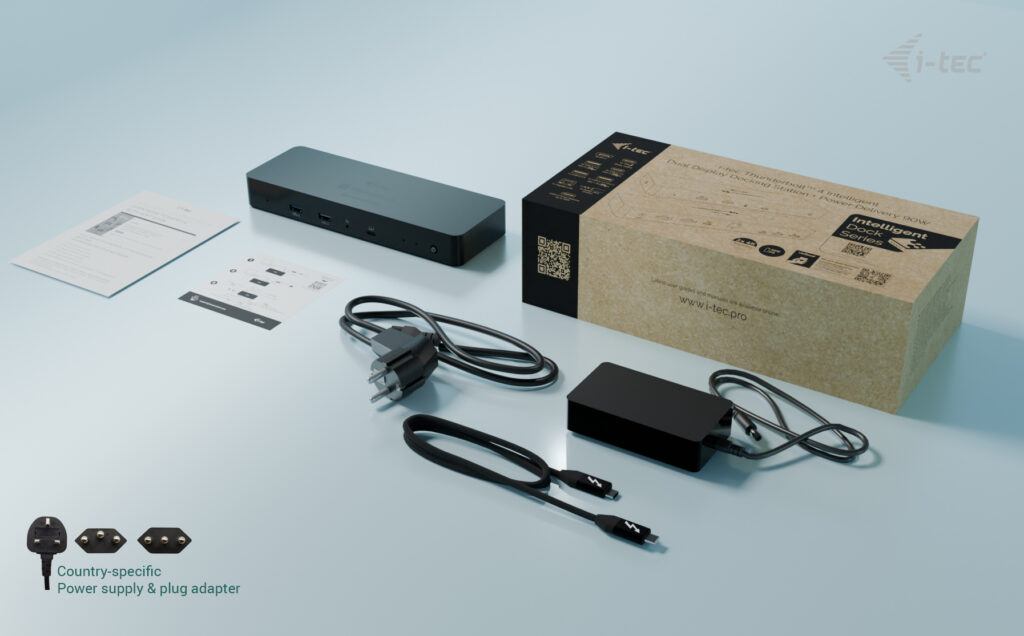

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | DC, Power, Thunderbolt |
| Manual | Yes |
