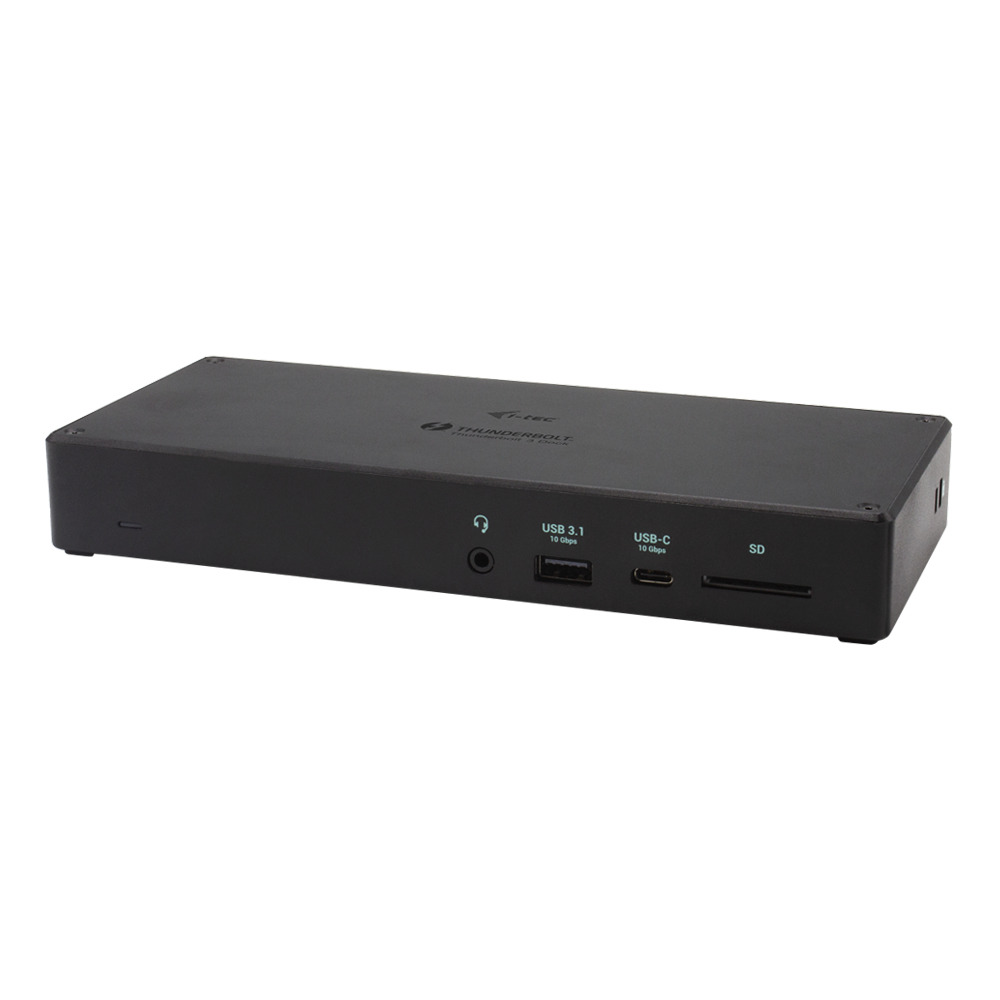

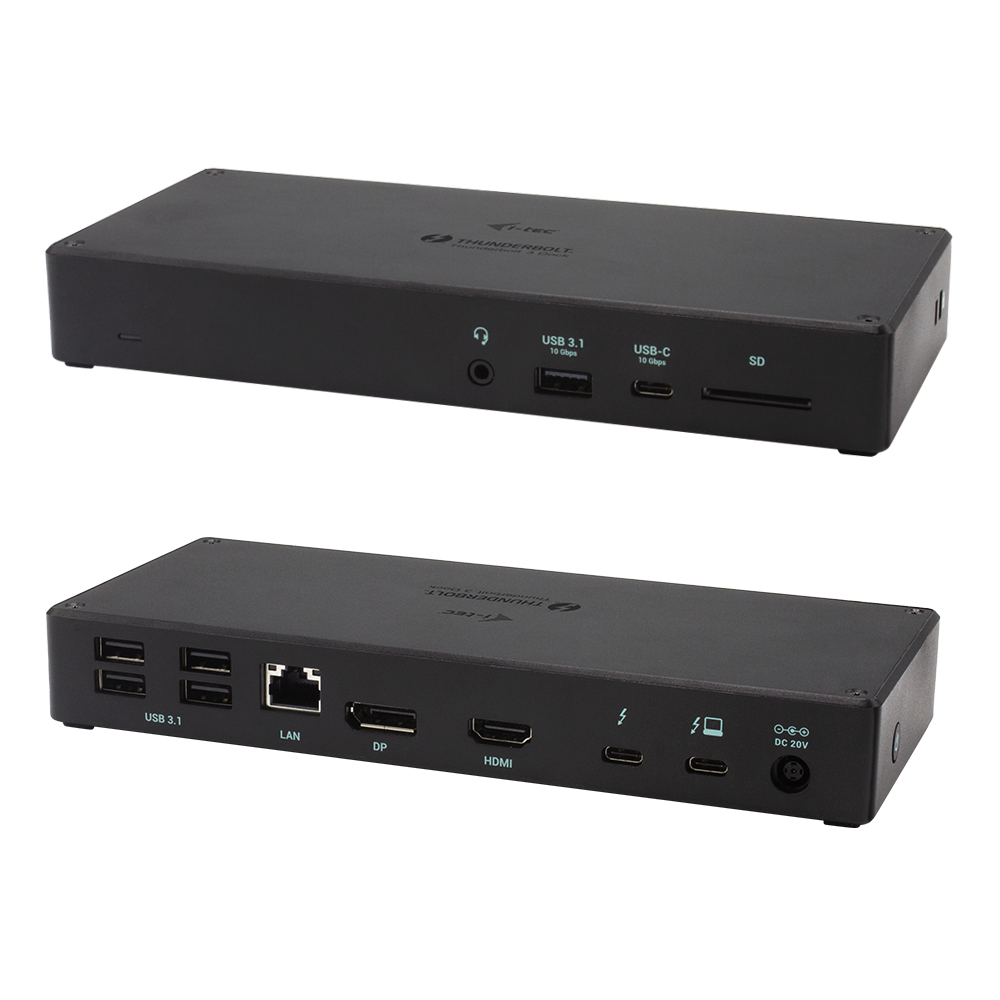

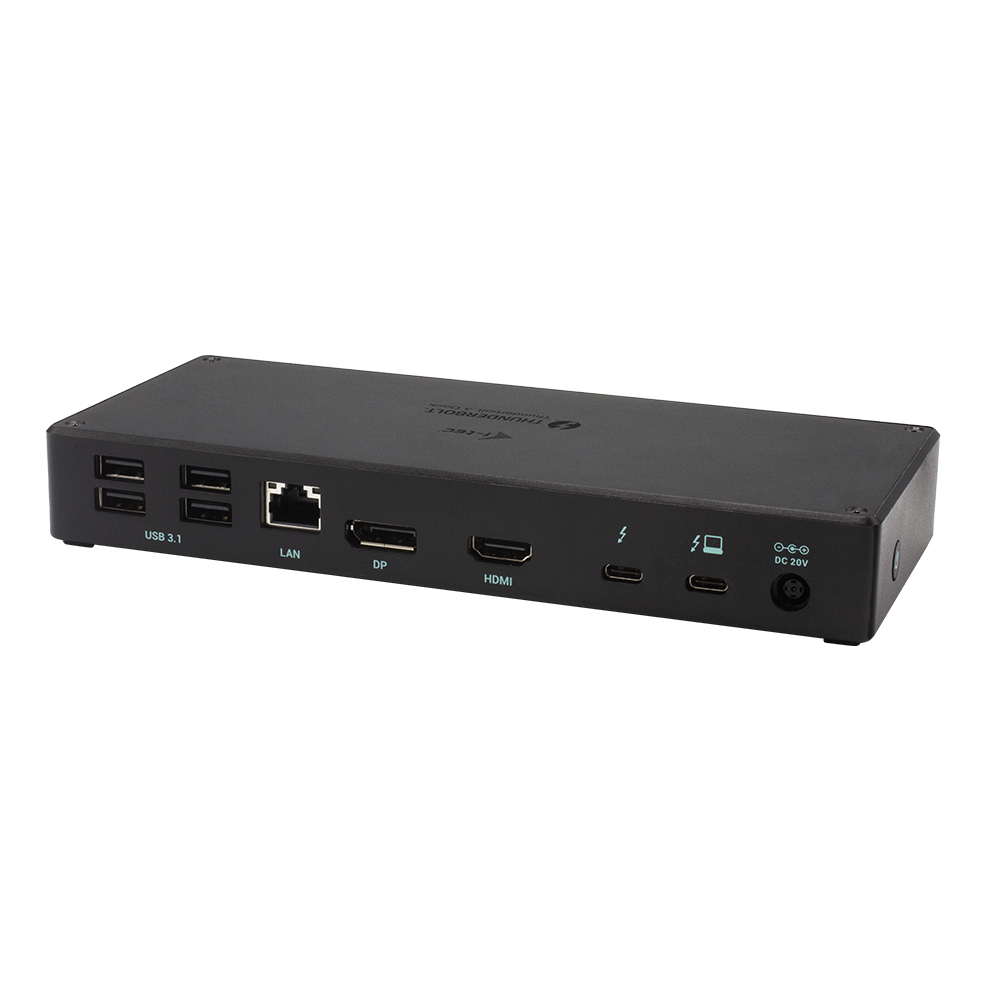

Thunderbolt 3 3x Display Docking Station + Power Delivery
96W
Model TB3TRIPLEDOCKPDITEAN 8595611703720
41 specifications
- ConnectivityWired
- Weight414 g
- ColourBlack
- Ethernet LANYes
- Power source typeAC
- Width210 mm
Overview
- Connectivity
- Wired
- Weight
- 414 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 210 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- TB3TRIPLEDOCKPDIT
- Part number
- TB3TRIPLEDOCKPDIT
- EAN / UPC
- 8595611703720
- Also known as
- i-tec Thunderbolt 3 3x Display Docking Station + Power Delivery 96W
Specifications
41 specifications in 9 groups

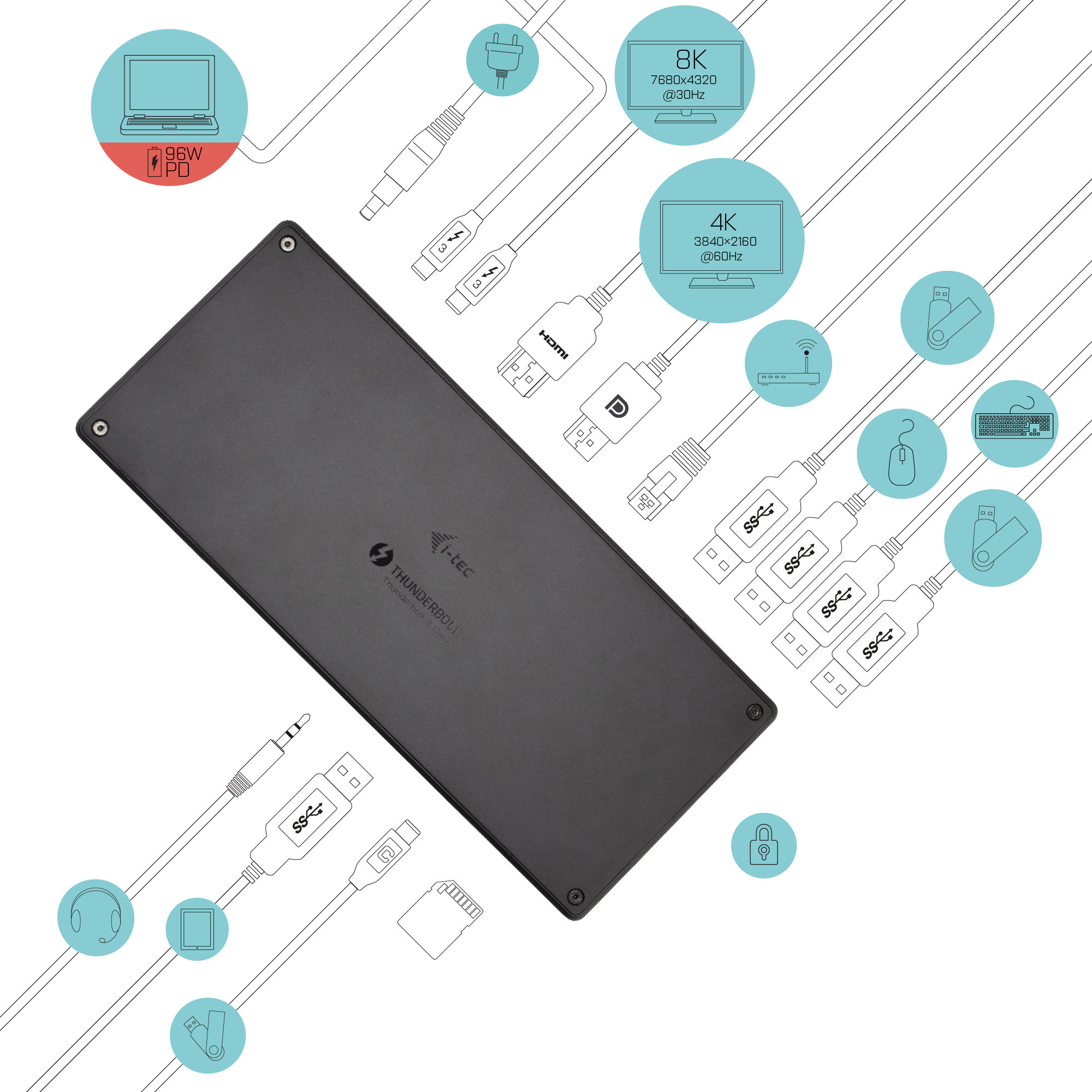

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output current | 8.5 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 90 mm |
| Height | 31 mm |
| Weight | 414 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 150 mm |
| Package height | 90 mm |
| Package weight | 1.37 kg |

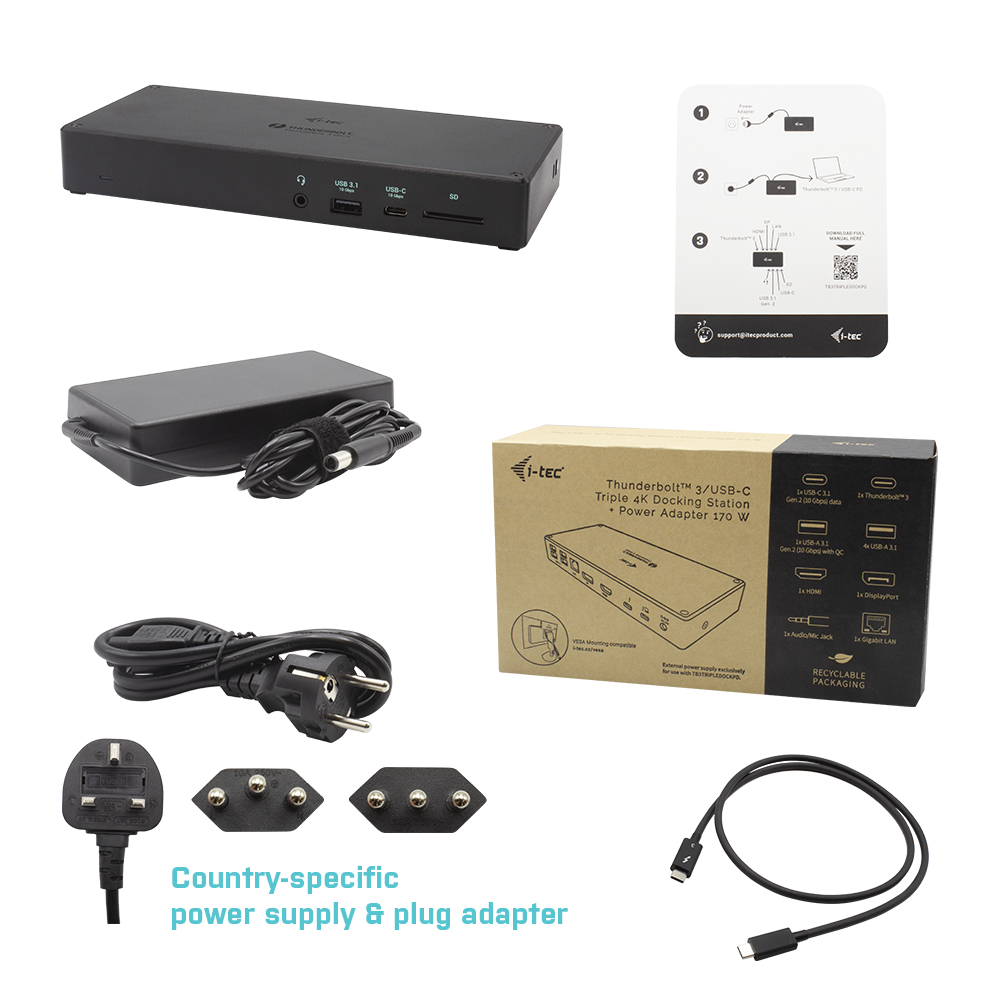

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
