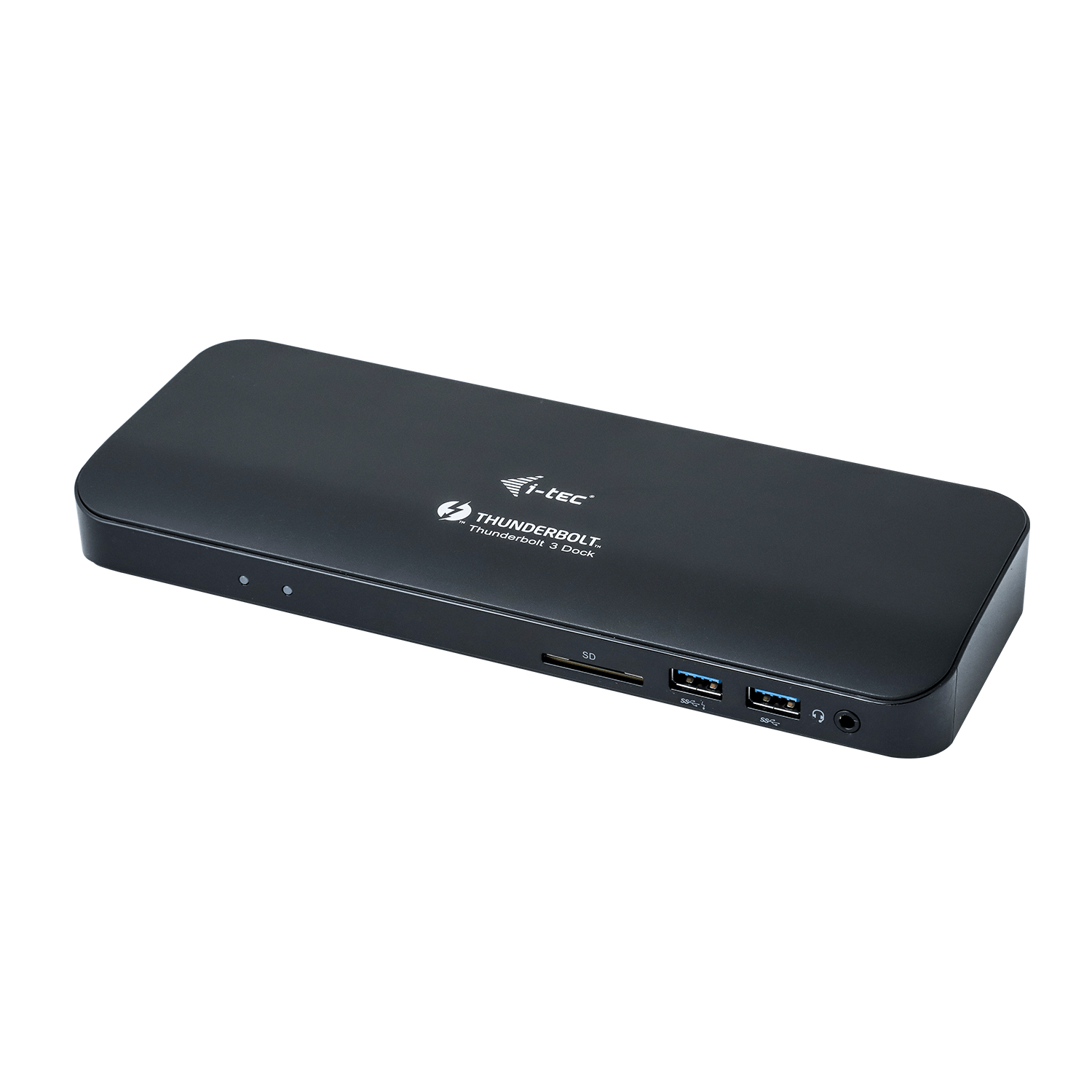

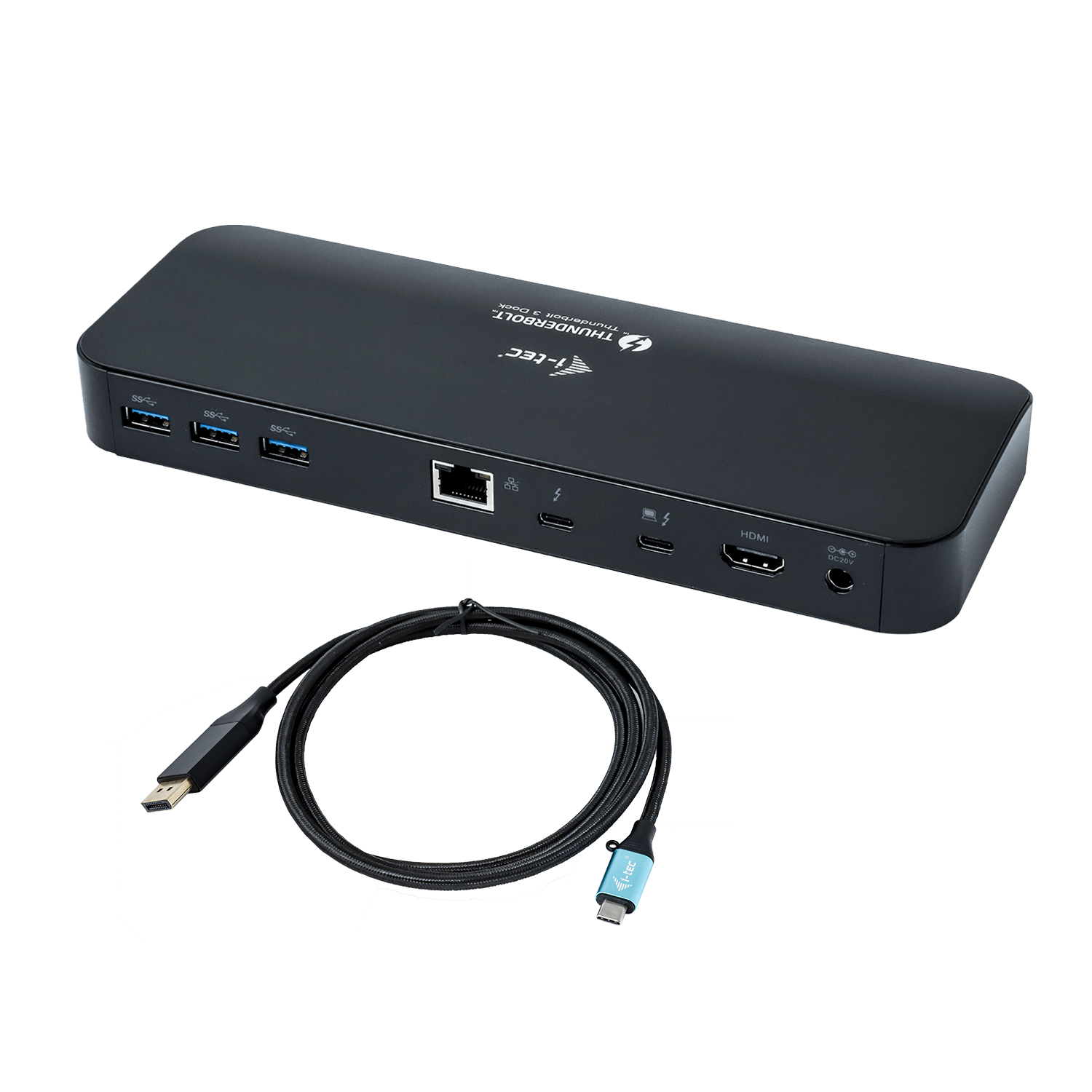

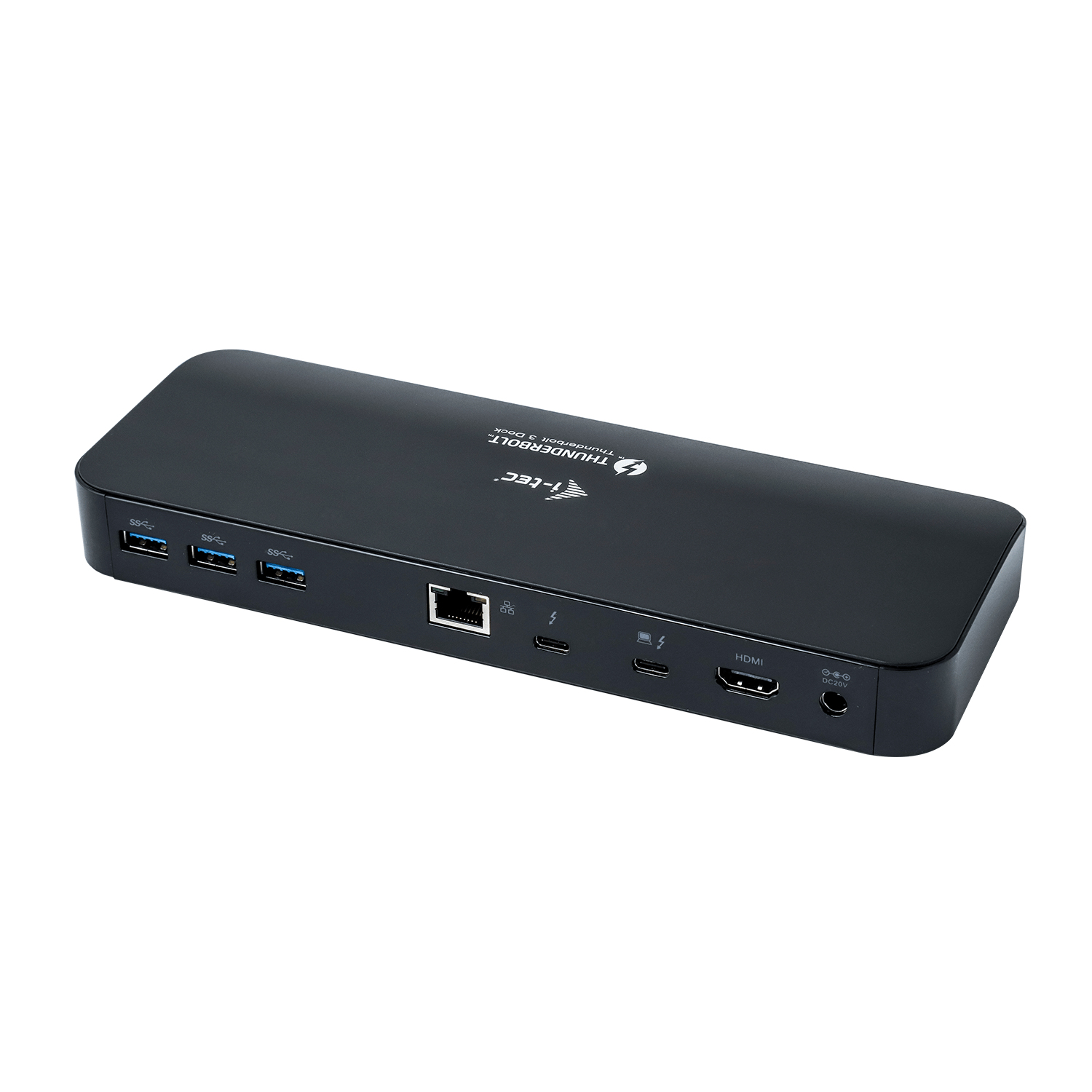

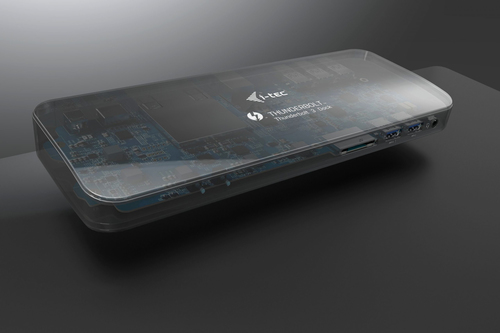

Thunderbolt 3 Dual 4K Docking Station + USB-C to DisplayPort Adapter + Power Delivery
85W
Model TB3HDMIDOCKPLUSITEAN 8595611703614
42 specifications
- ConnectivityWired
- Weight457 g
- ColourBlack
- Ethernet LANYes
- Power source typeAC
- Width229 mm
Overview
- Connectivity
- Wired
- Weight
- 457 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 229 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- TB3HDMIDOCKPLUSIT
- Part number
- TB3HDMIDOCKPLUSIT
- EAN / UPC
- 8595611703614
- Also known as
- i-tec Thunderbolt 3 Dual 4K Docking Station + USB-C to DisplayPort Adapter + Power Delivery 85W
Specifications
42 specifications in 8 groups

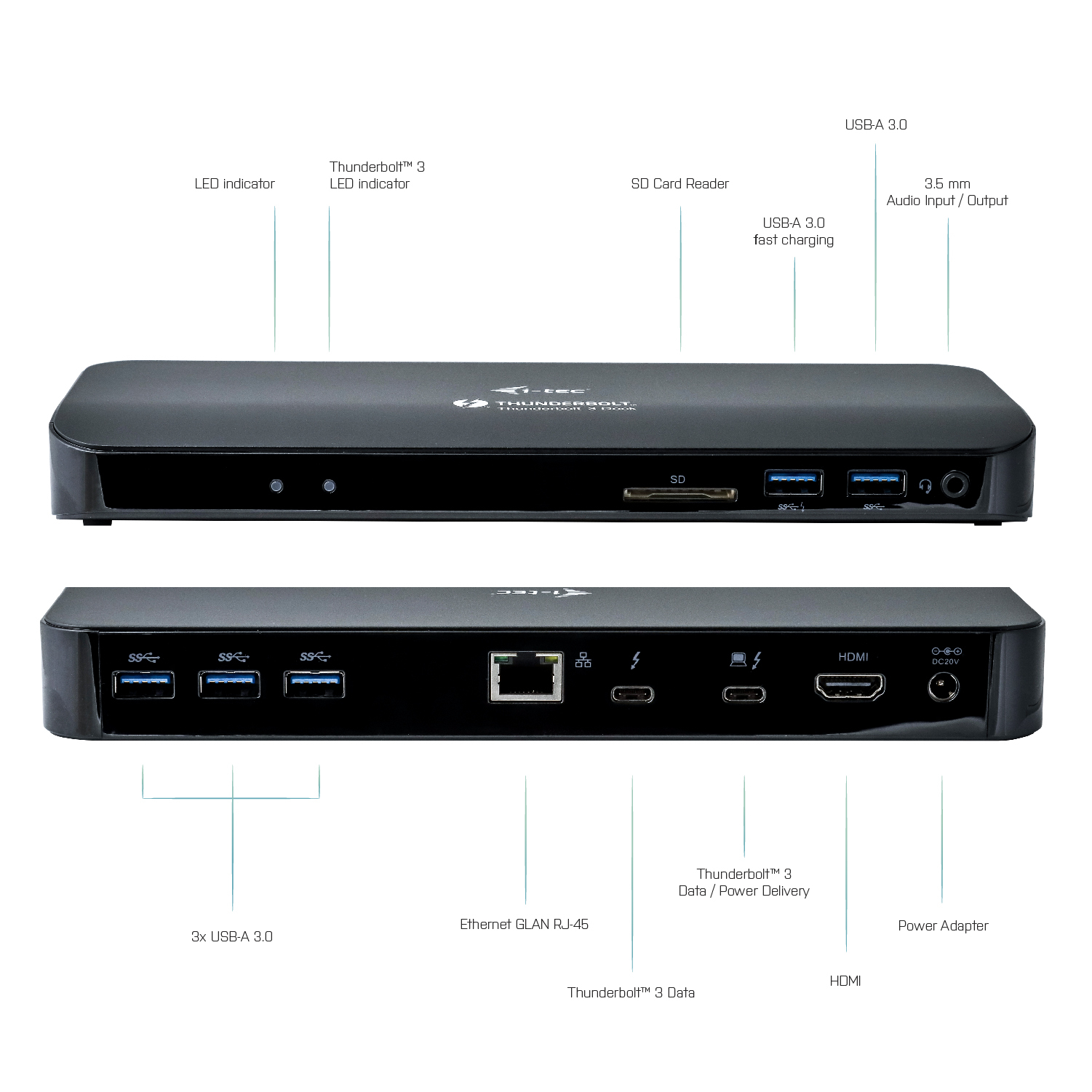

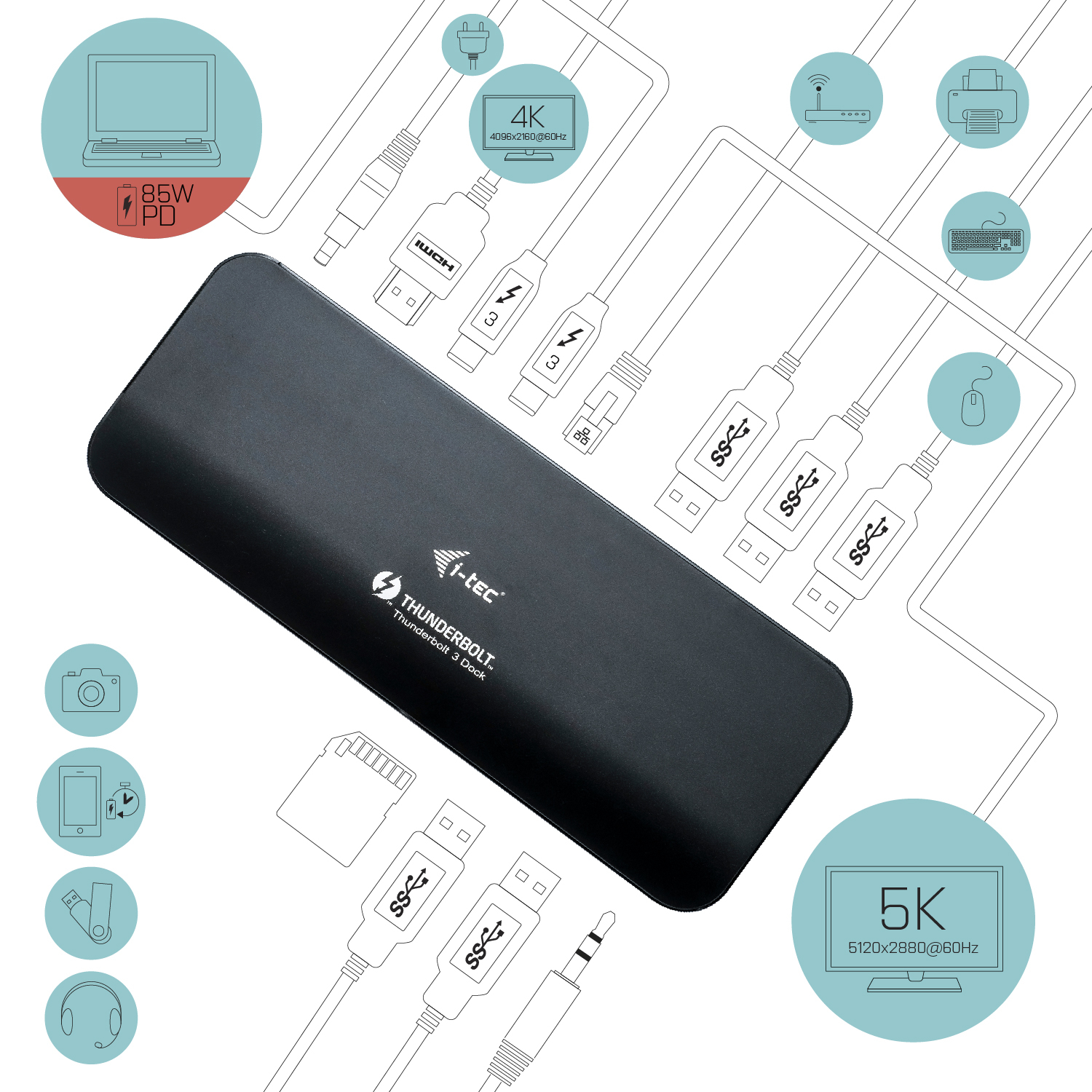

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Thunderbolt 3 ports quantity | 2 |
| Microphone in | No |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Data transfer rate | 40 Gbit/s |
| Maximum digital resolution | 5120 x 2880 pixels |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| Output current | 9 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 229 mm |
| Depth | 87 mm |
| Height | 27 mm |
| Weight | 457 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 295 mm |
| Package depth | 147 mm |
| Package height | 93 mm |
| Package weight | 1.62 kg |

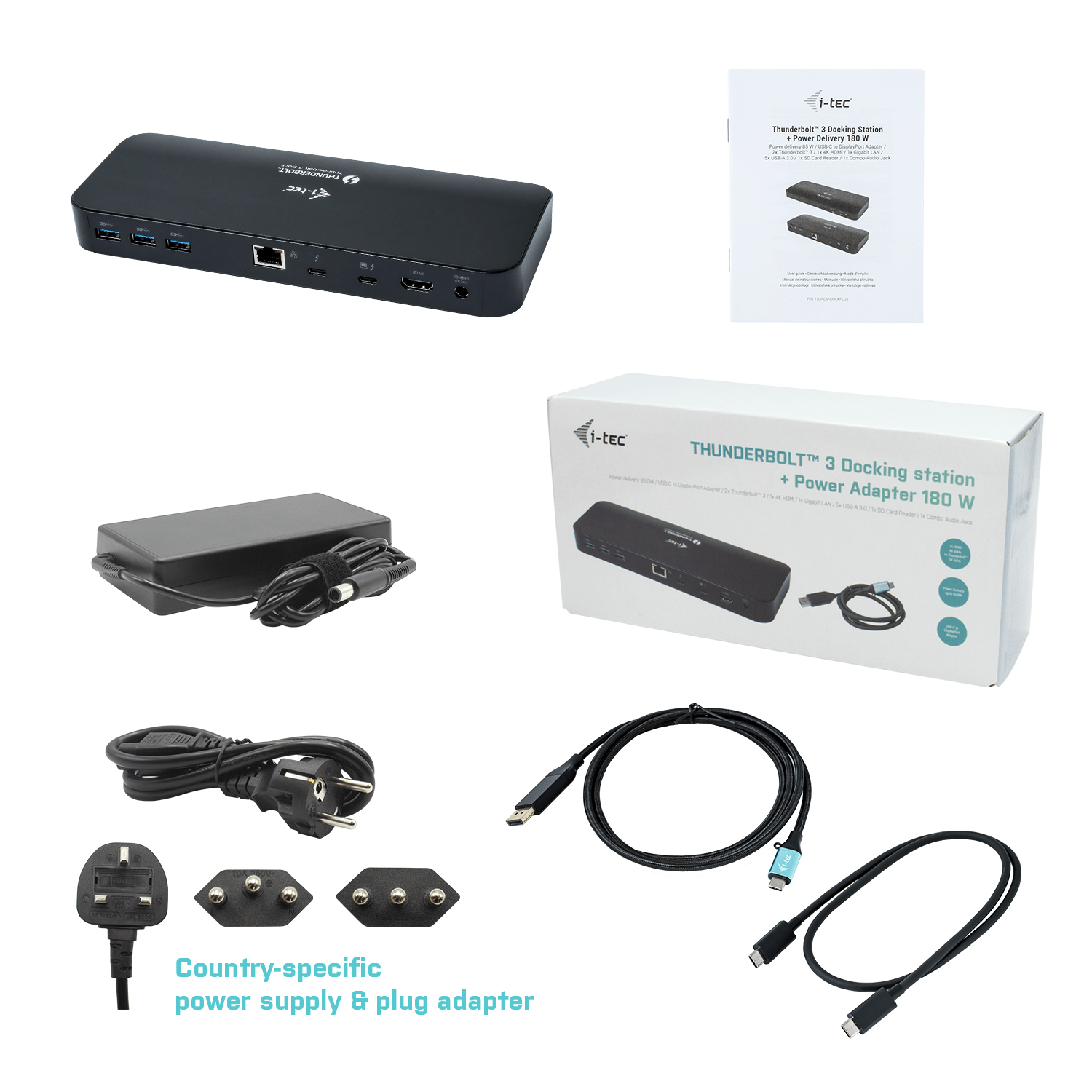

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, Thunderbolt, USB Type-C |
| Quick start guide | Yes |
