Thunderbolt 3 Dual 4K Docking Station + Power Delivery
65W
Model TB3HDMIDOCKCHEAN 8595611702853
37 specifications
- ConnectivityWired
- Weight457 g
- ColourBlack
- Ethernet LANYes
- Power source typeAC
- Width229 mm
Overview
- Connectivity
- Wired
- Weight
- 457 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 229 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- TB3HDMIDOCKCH
- Part number
- TB3HDMIDOCKCH
- EAN / UPC
- 8595611702853
- Also known as
- i-tec Thunderbolt 3 Dual 4K Docking Station + Power Delivery 65W
Specifications
37 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| HDMI ports quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Housing material | Aluminium |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output current | 6.75 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 229 mm |
| Depth | 87 mm |
| Height | 27 mm |
| Weight | 457 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 296 mm |
| Package depth | 147 mm |
| Package height | 89 mm |
| Package weight | 1.15 kg |

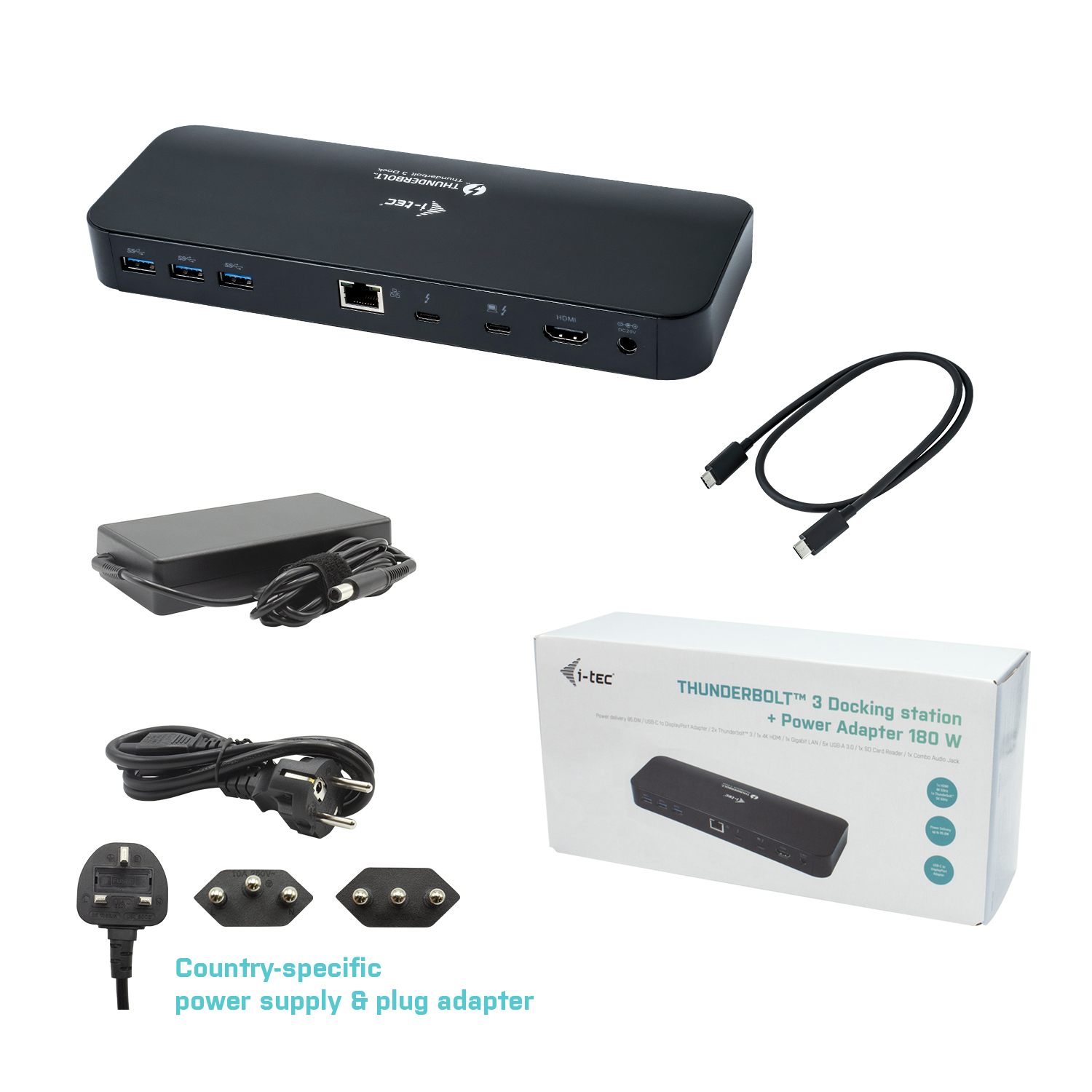

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB |
| Quick start guide | Yes |
