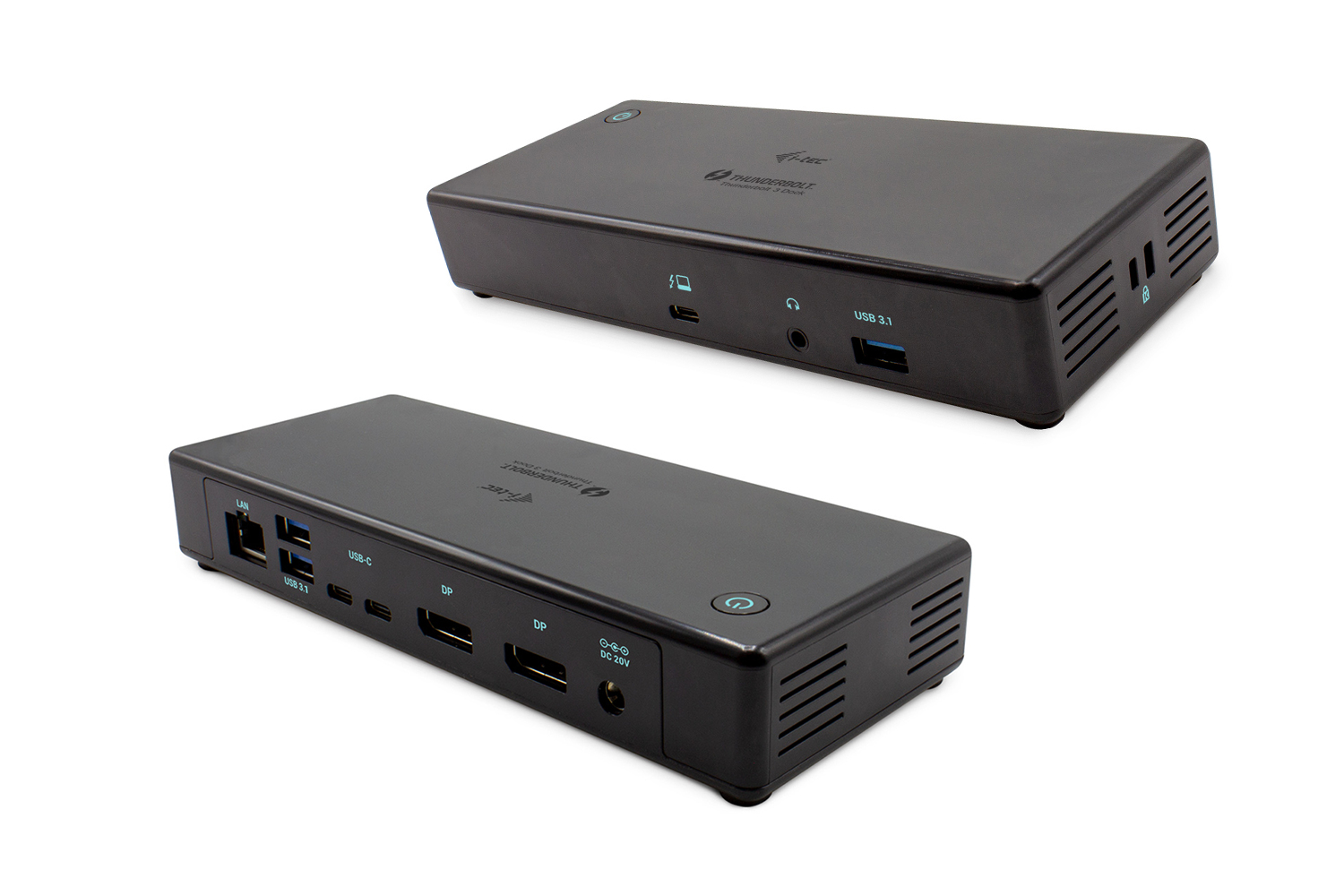

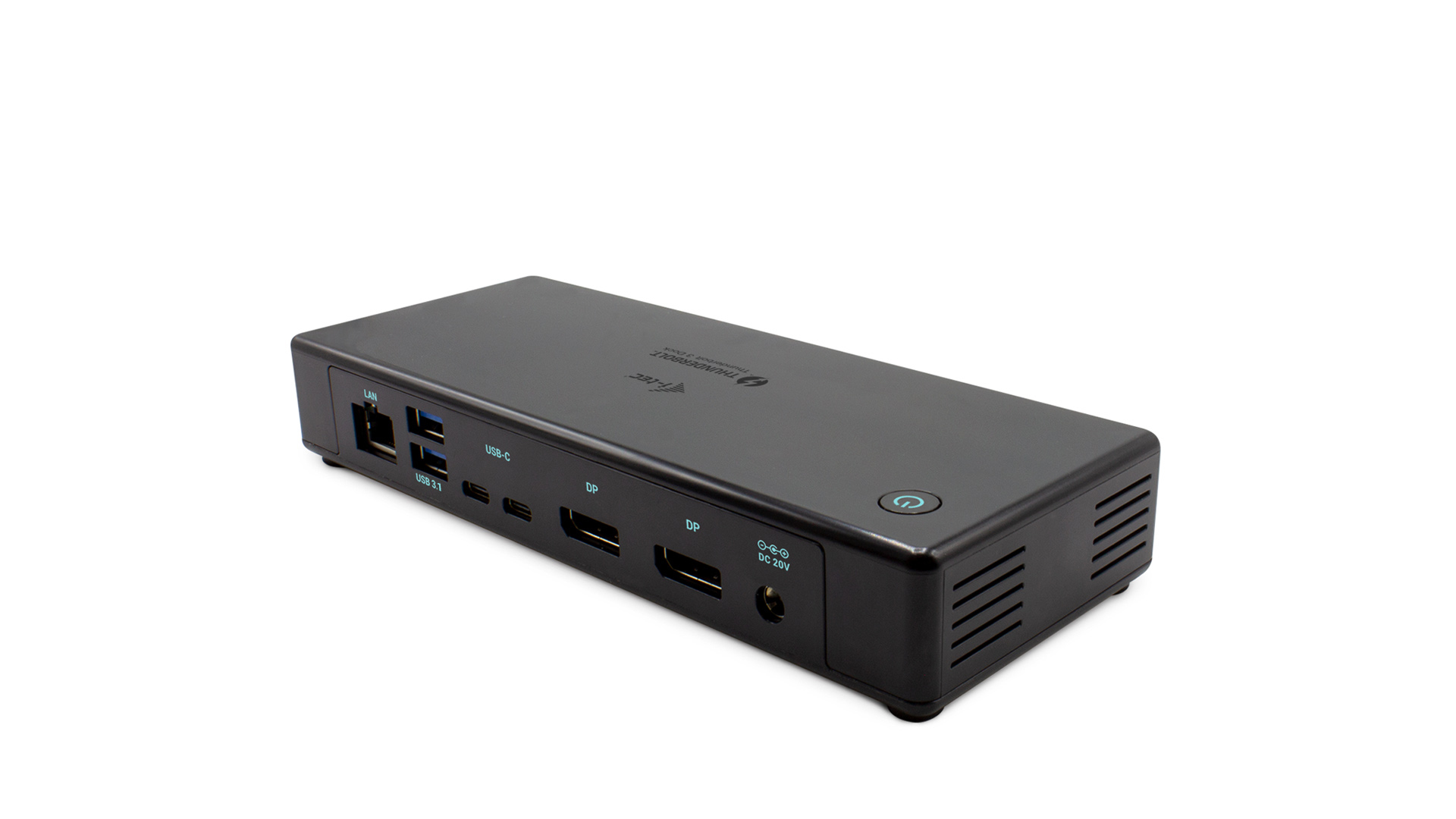

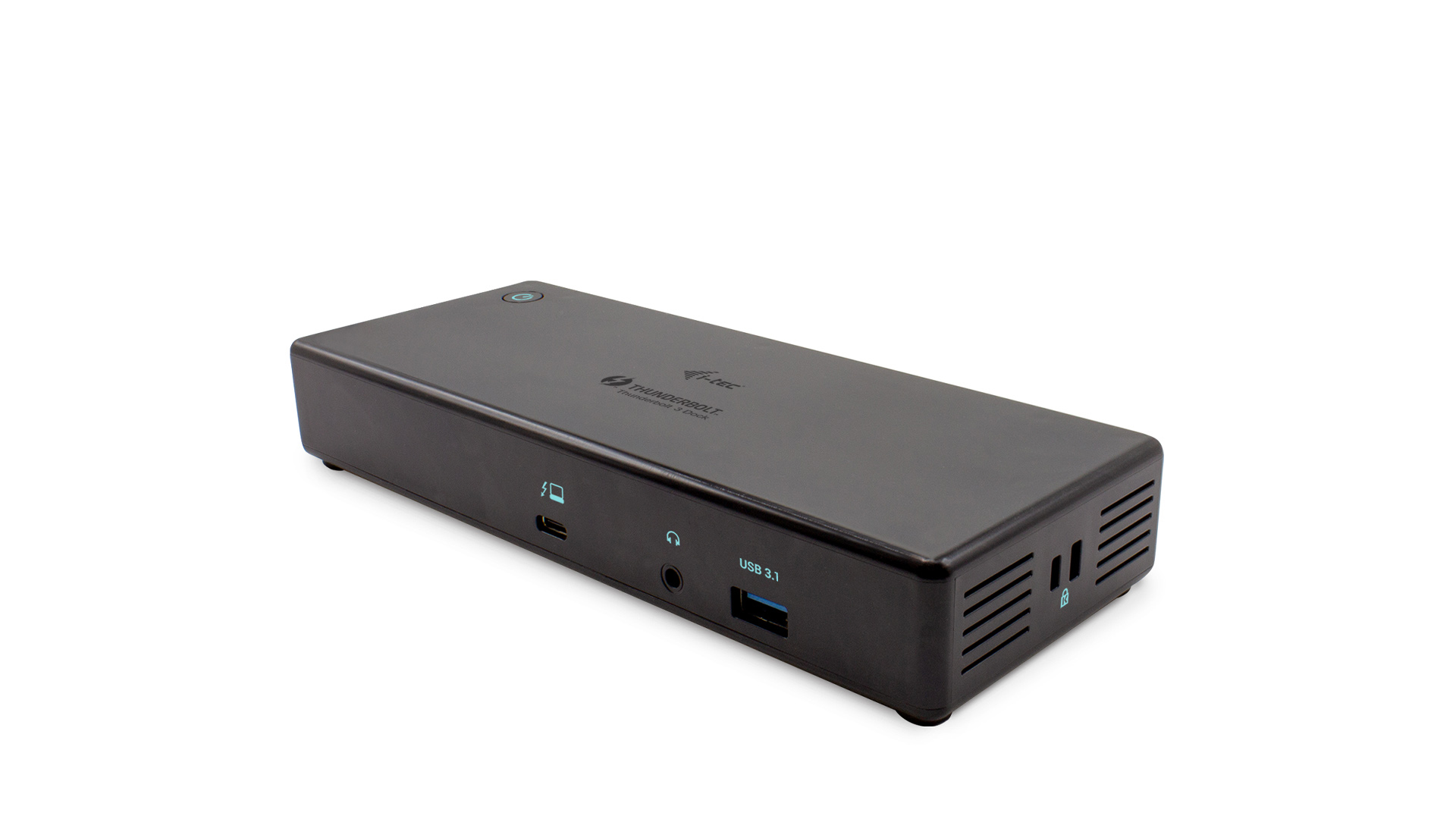

Thunderbolt3/USB-C Dual DisplayPort 4K Docking Station + Power Delivery
85W
Model TB3CDUALDPDOCKPDCHEAN 8595611703270
44 specifications
- ConnectivityWired
- Weight337 g
- ColourBlack
- Ethernet LANYes
- Power source typeAC
- Width197 mm
Overview
- Connectivity
- Wired
- Weight
- 337 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 197 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- TB3CDUALDPDOCKPDCH
- Part number
- TB3CDUALDPDOCKPDCH
- EAN / UPC
- 8595611703270
- Also known as
- i-tec Thunderbolt3/USB-C Dual DisplayPort 4K Docking Station + Power Delivery 85W
Specifications
44 specifications in 8 groups

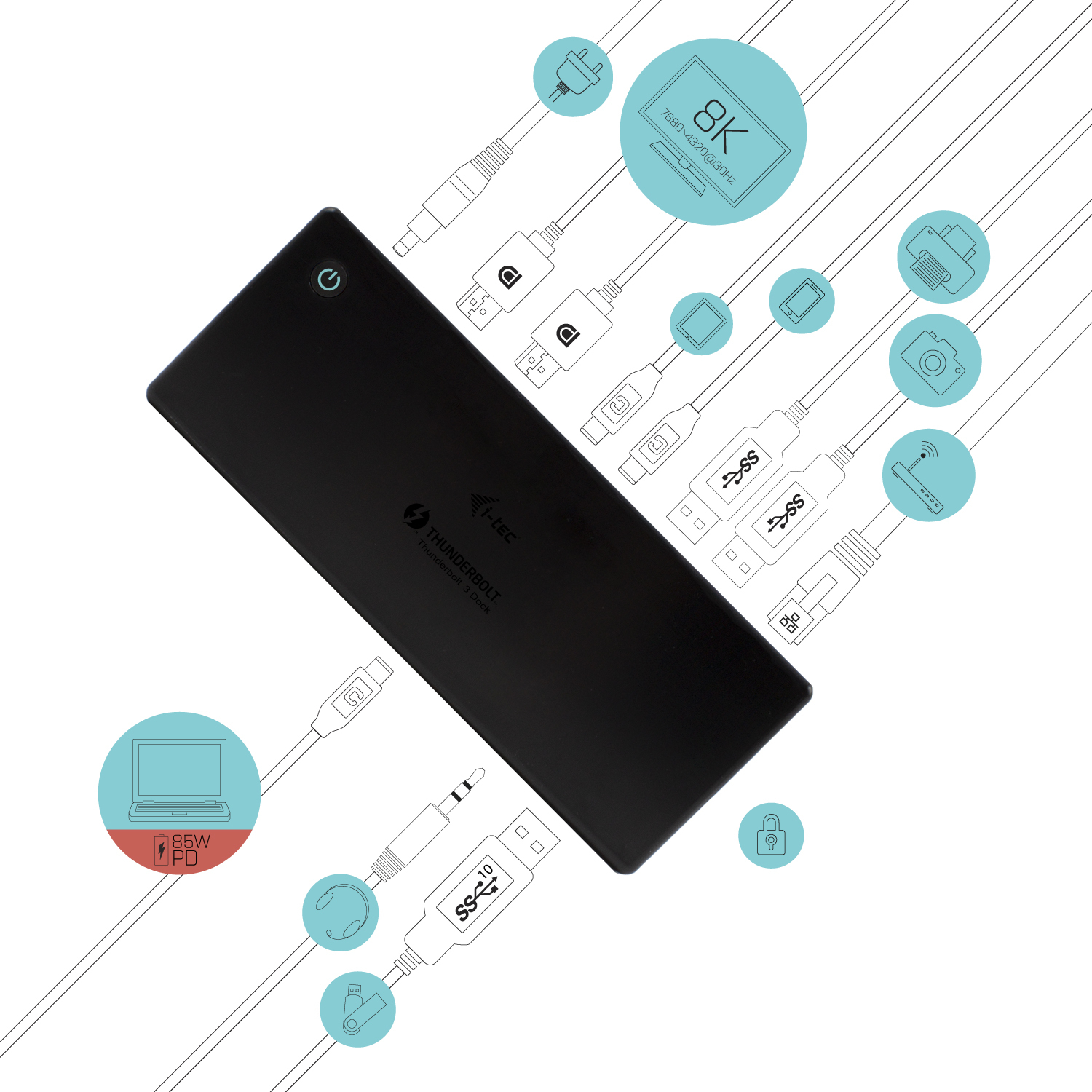

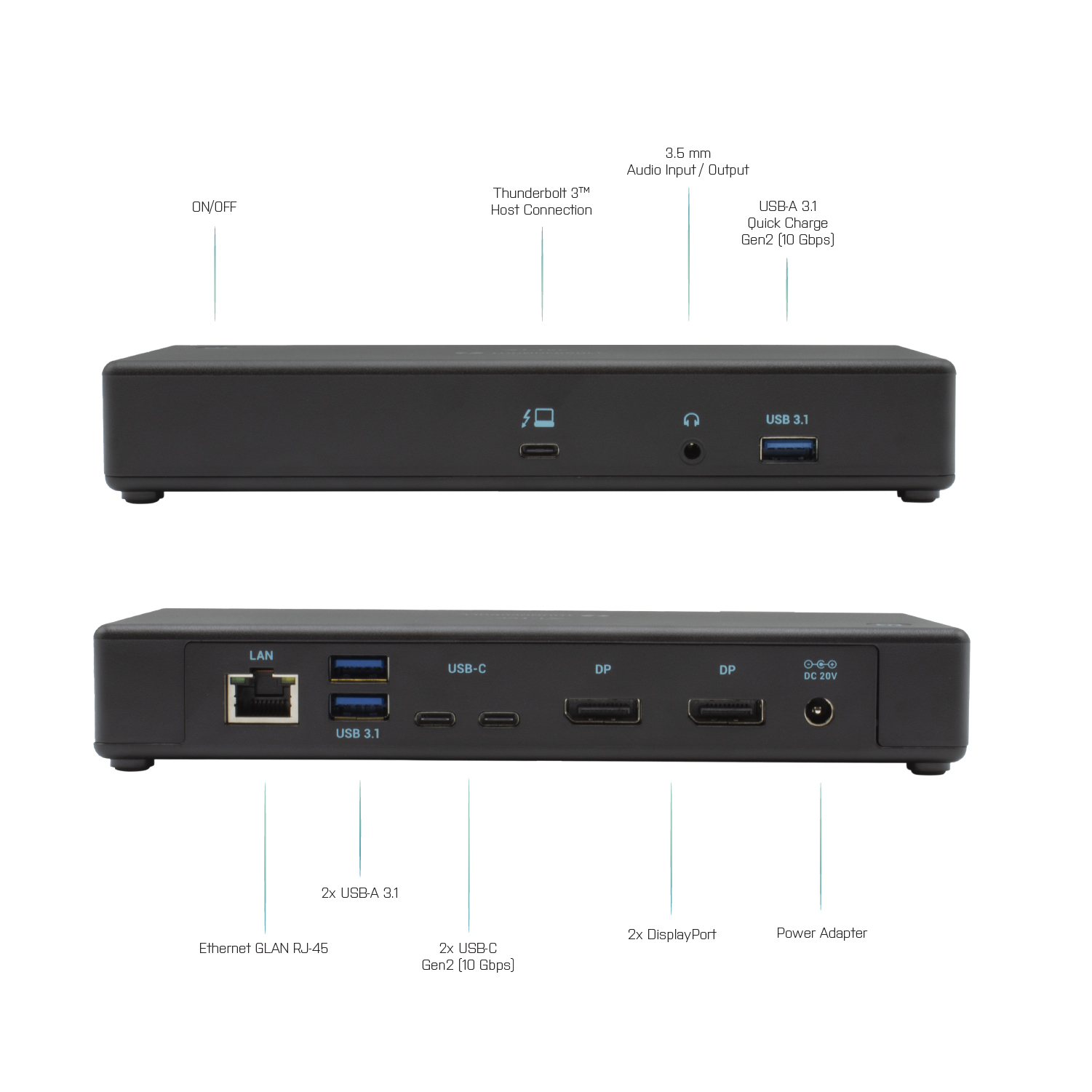

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 8K Ultra HD |

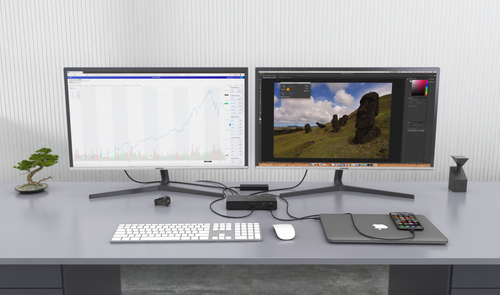

| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply | 135 W |
| Output current | 6.75 A |
| Output voltage | 20 V |
| Power cable length | 1.7 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197 mm |
| Depth | 78 mm |
| Height | 31 mm |
| Weight | 337 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 269 pc(s) |
| Package width | 269 mm |
| Package depth | 210 mm |
| Package height | 48 mm |
| Package weight | 1.39 kg |

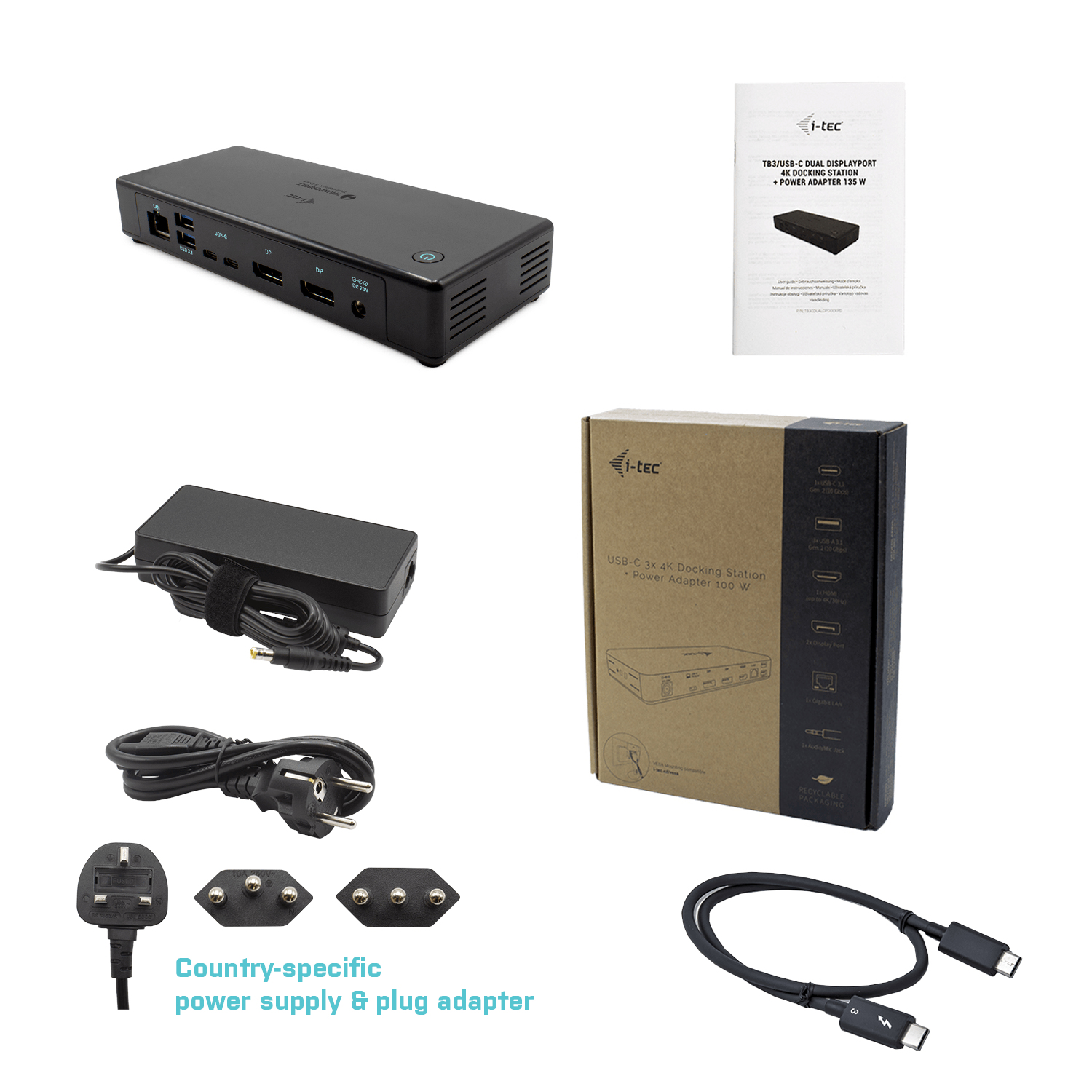

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB Type-C |
| Quick start guide | Yes |
