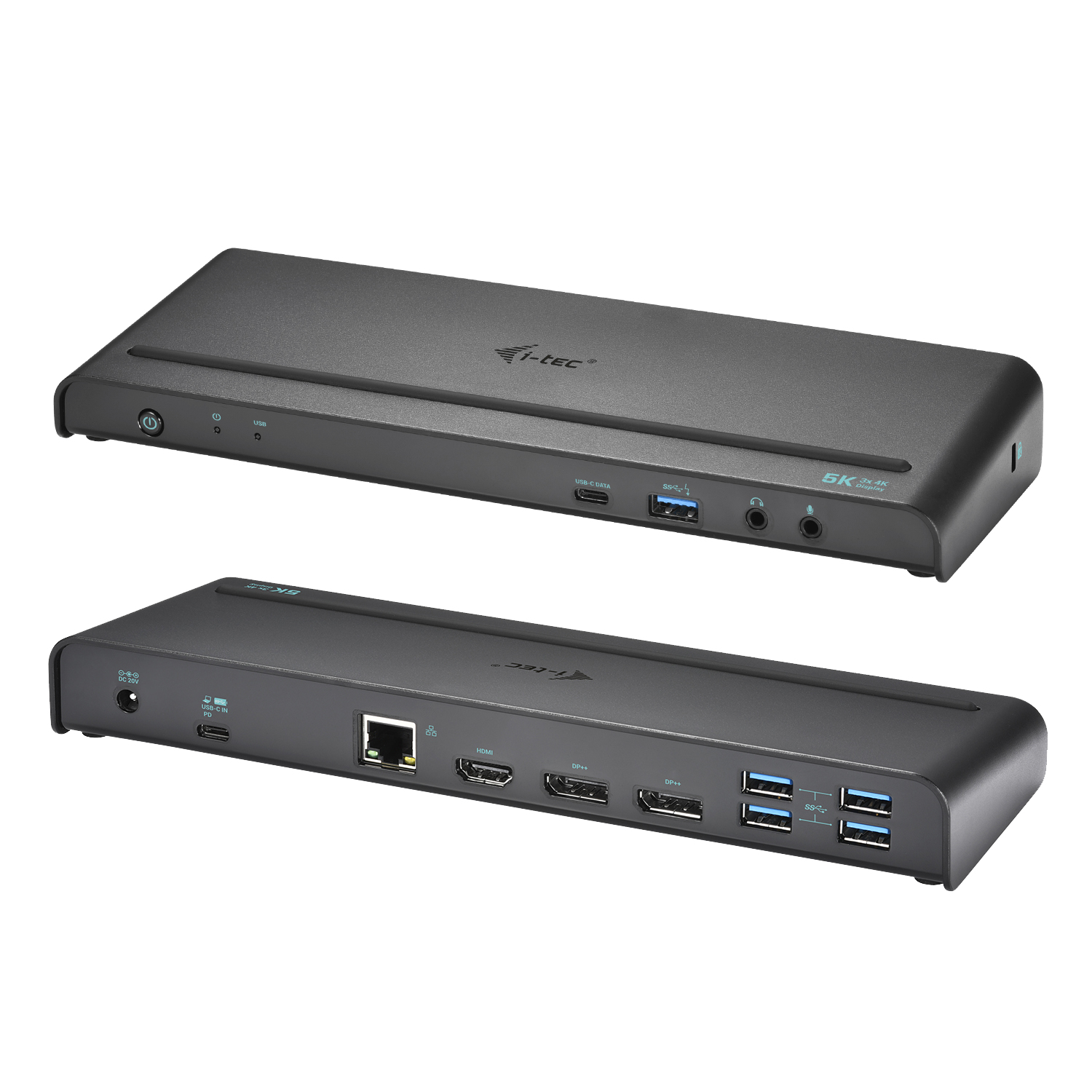

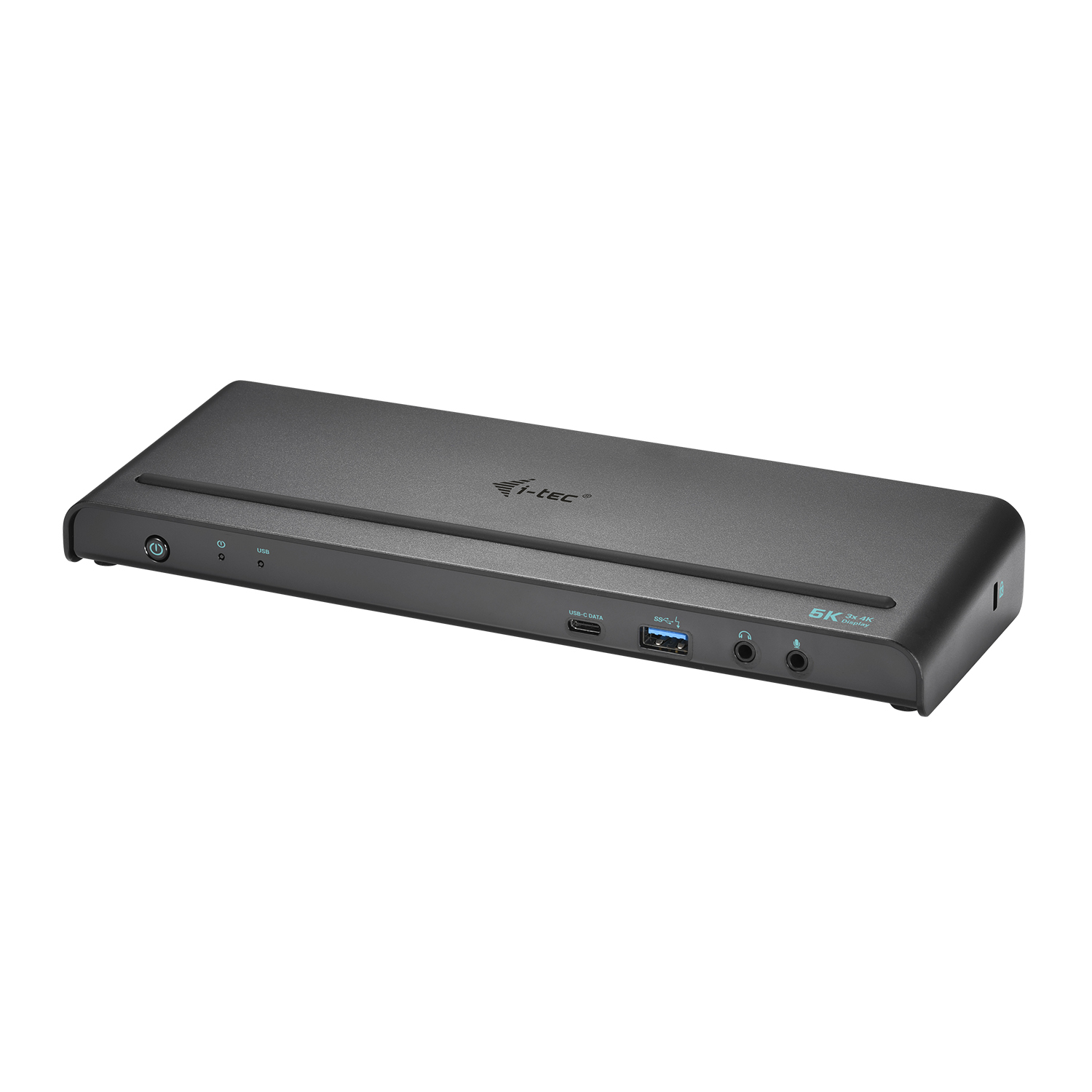

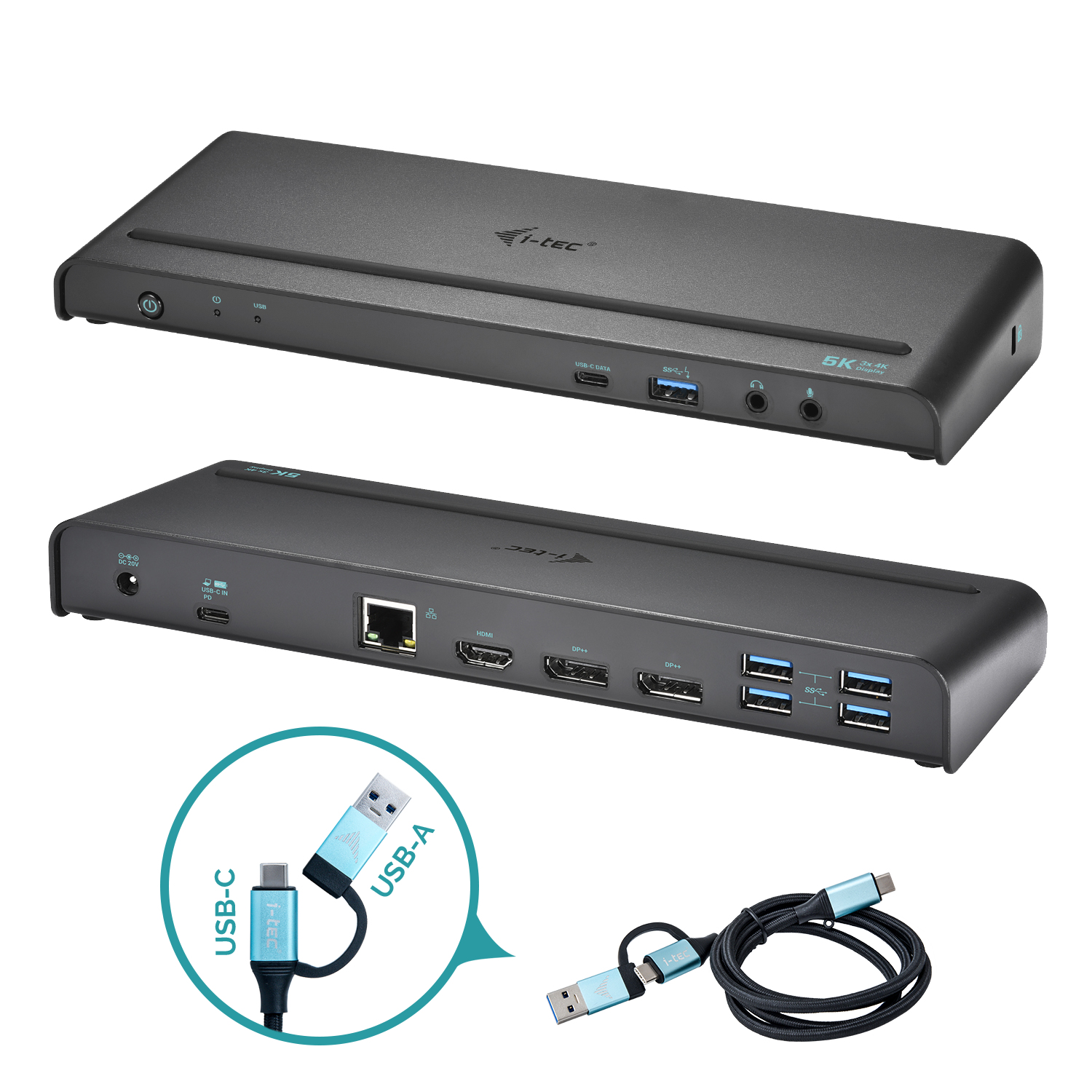

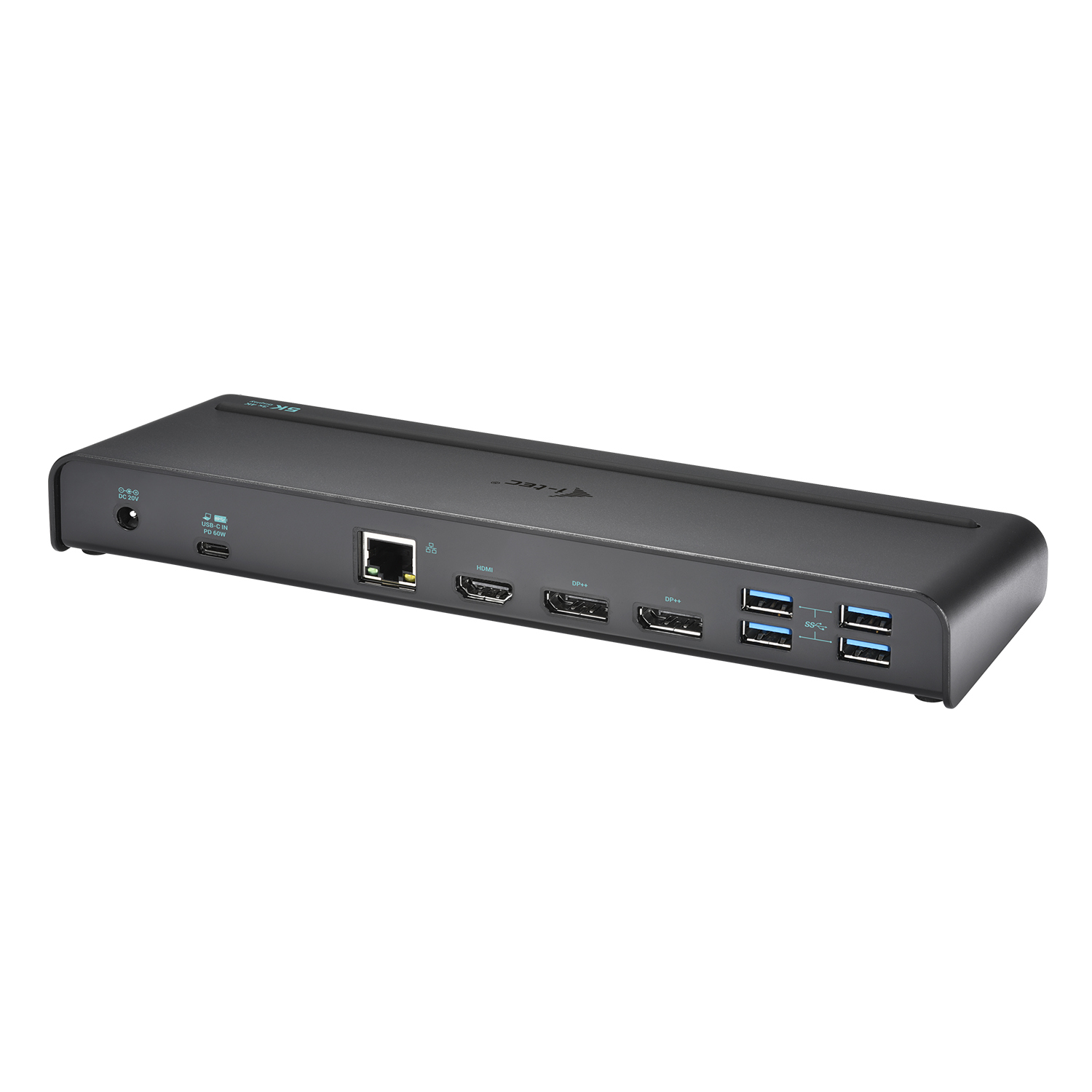

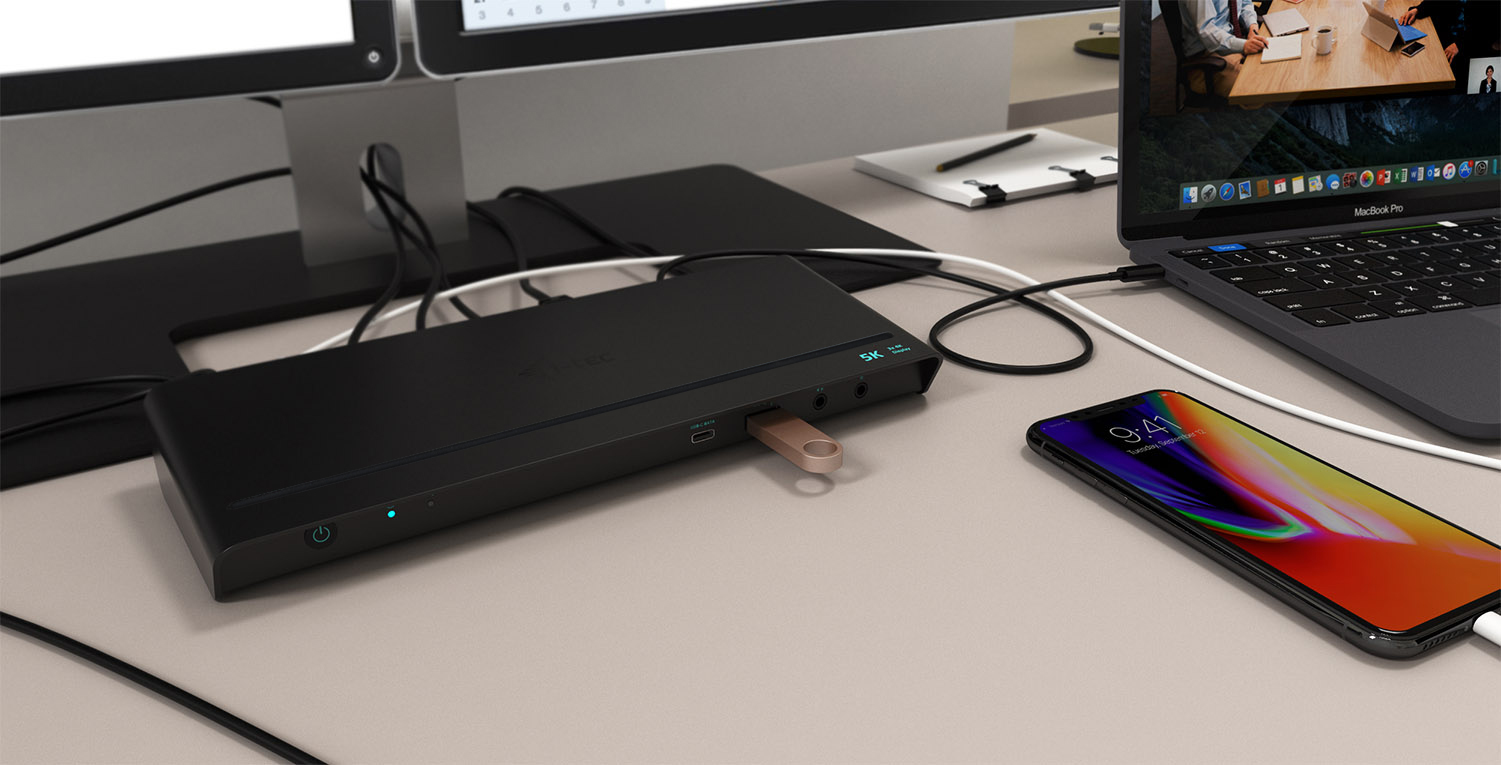

USB 3.0 / USB-C / Thunderbolt 3
3x 4K Docking Station + Power Delivery 85W
Model CATRIPLE4KDOCKPDCHEAN 8595611702846
37 specifications
- ConnectivityWired
- Weight334 g
- ColourBlack
- Ethernet LANYes
- Output current6.75 A
- Width245 mm
Overview
- Connectivity
- Wired
- Weight
- 334 g
- Colour
- Black
- Ethernet LAN
- Yes
- Output current
- 6.75 A
- Width
- 245 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- CATRIPLE4KDOCKPDCH
- Part number
- CATRIPLE4KDOCKPDCH
- EAN / UPC
- 8595611702846
- Also known as
- i-tec USB 3.0 / USB-C / Thunderbolt 3, 3x 4K Docking Station + Power Delivery 85W
Specifications
37 specifications in 8 groups

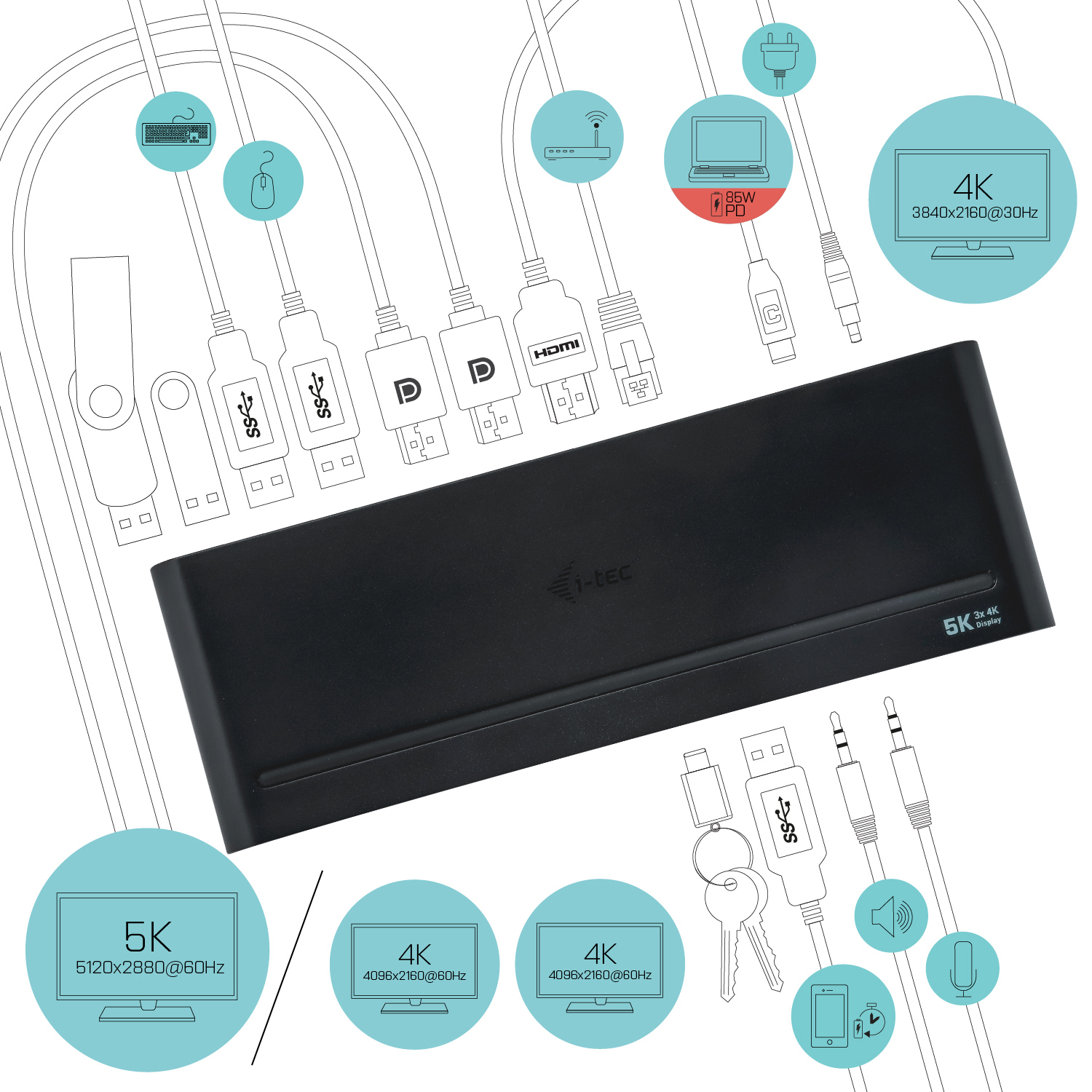

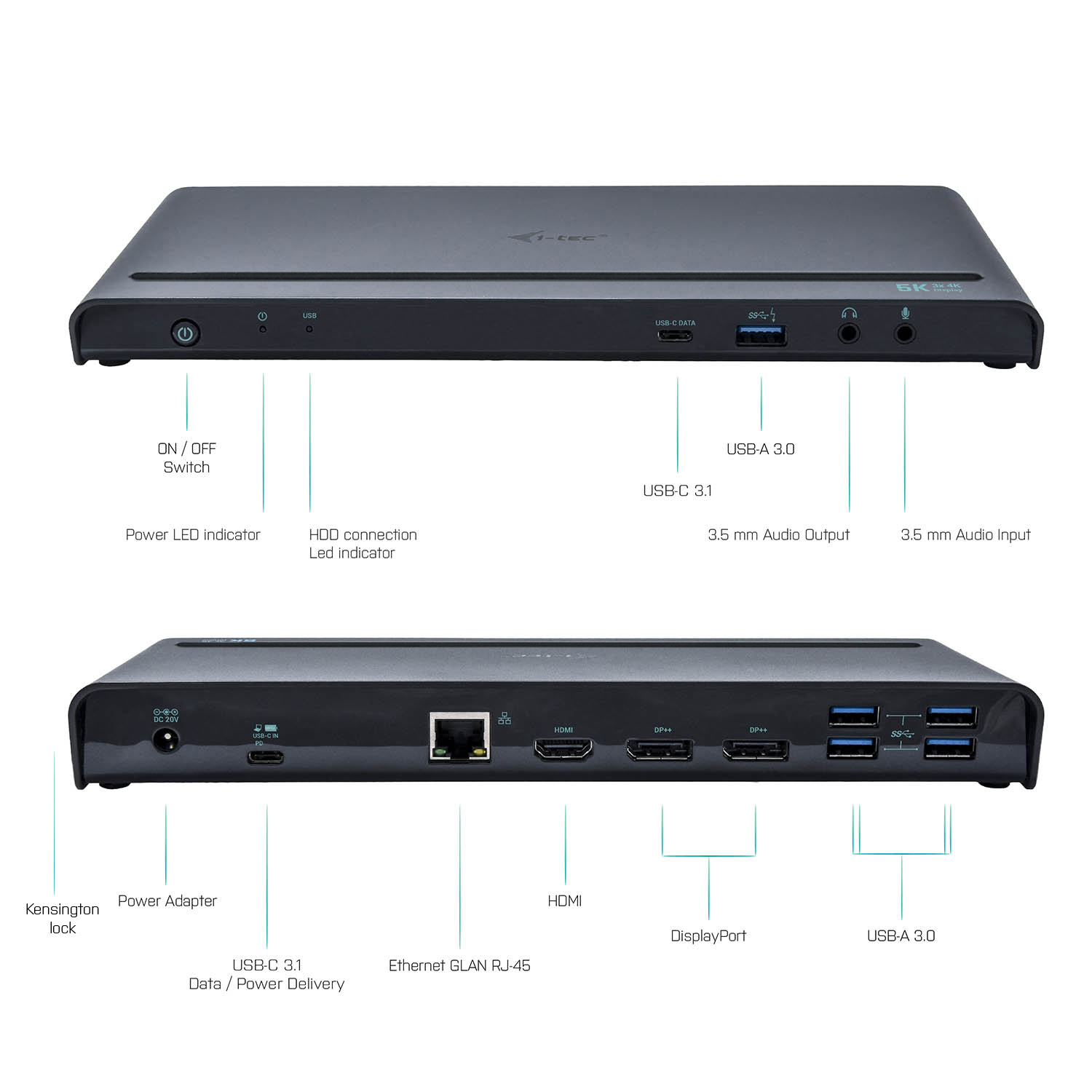

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Output current | 6.75 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 95 mm |
| Height | 30 mm |
| Weight | 334 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 296 mm |
| Package depth | 147 mm |
| Package height | 90 mm |
| Package weight | 1.25 kg |

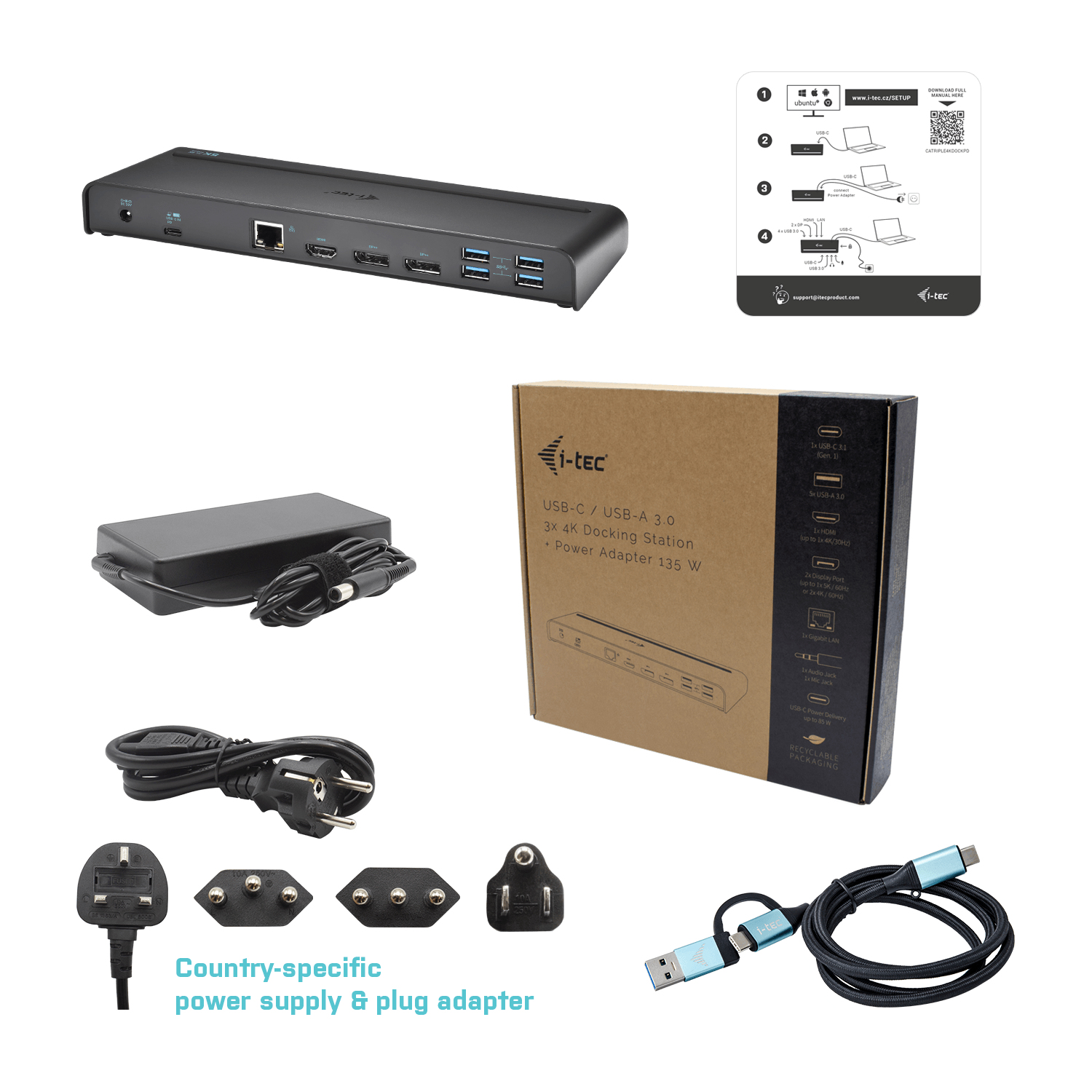

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
