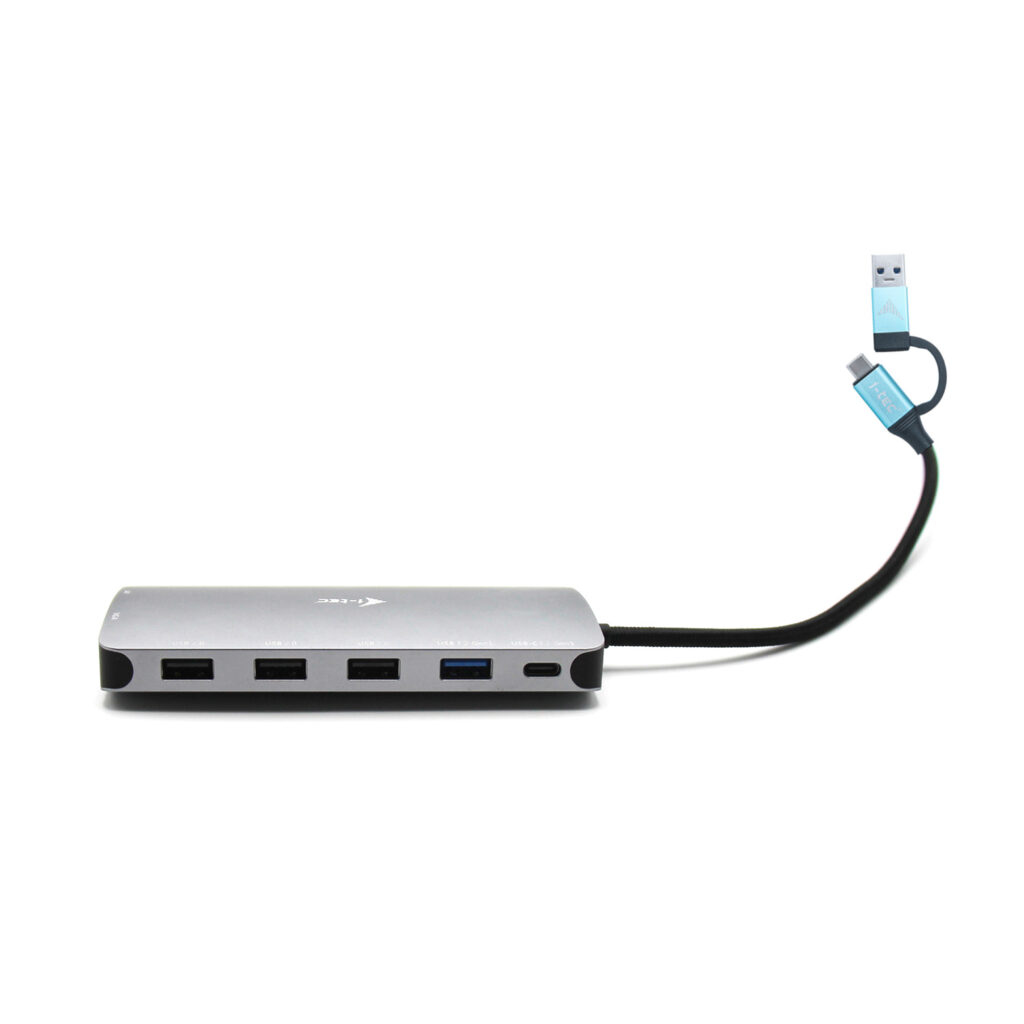

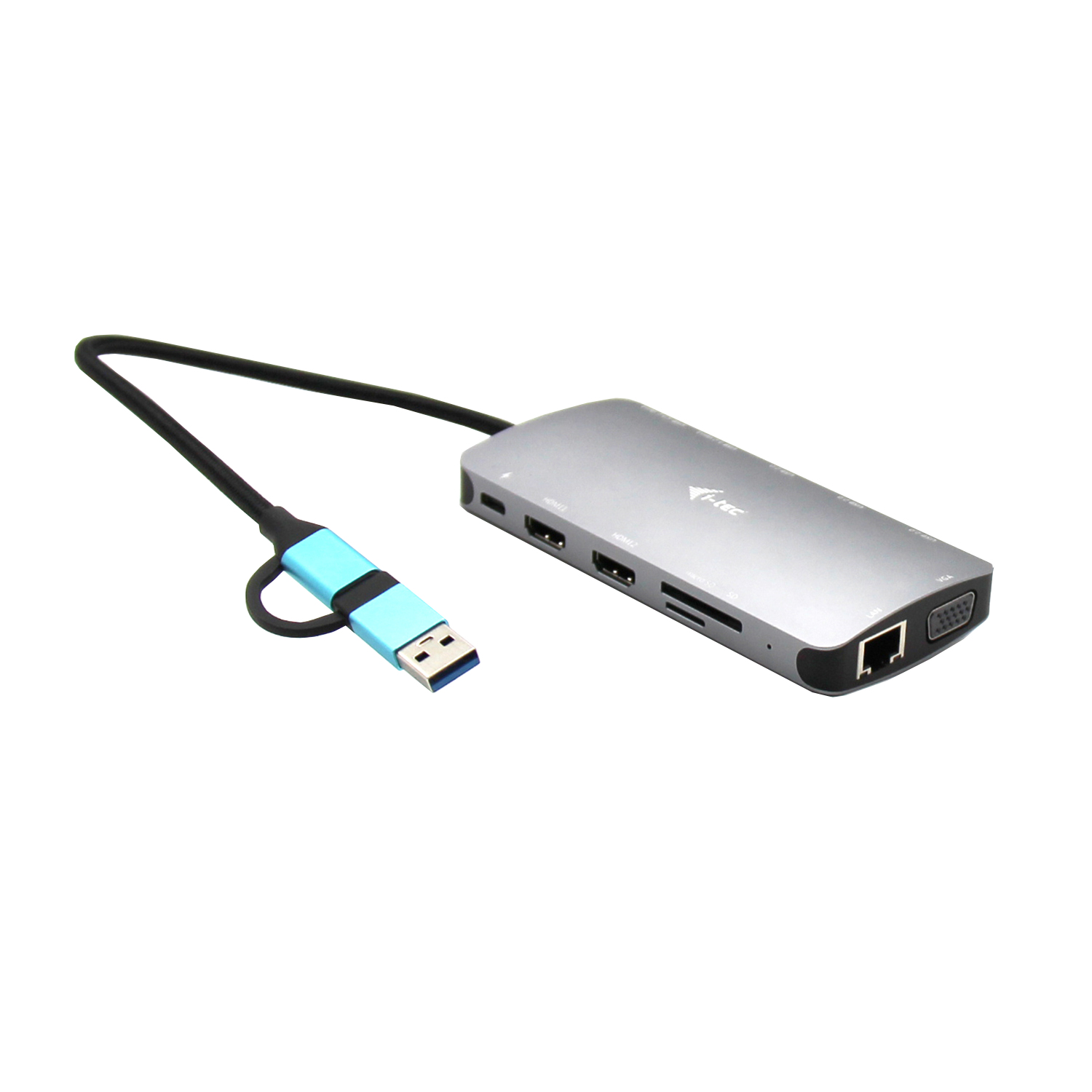

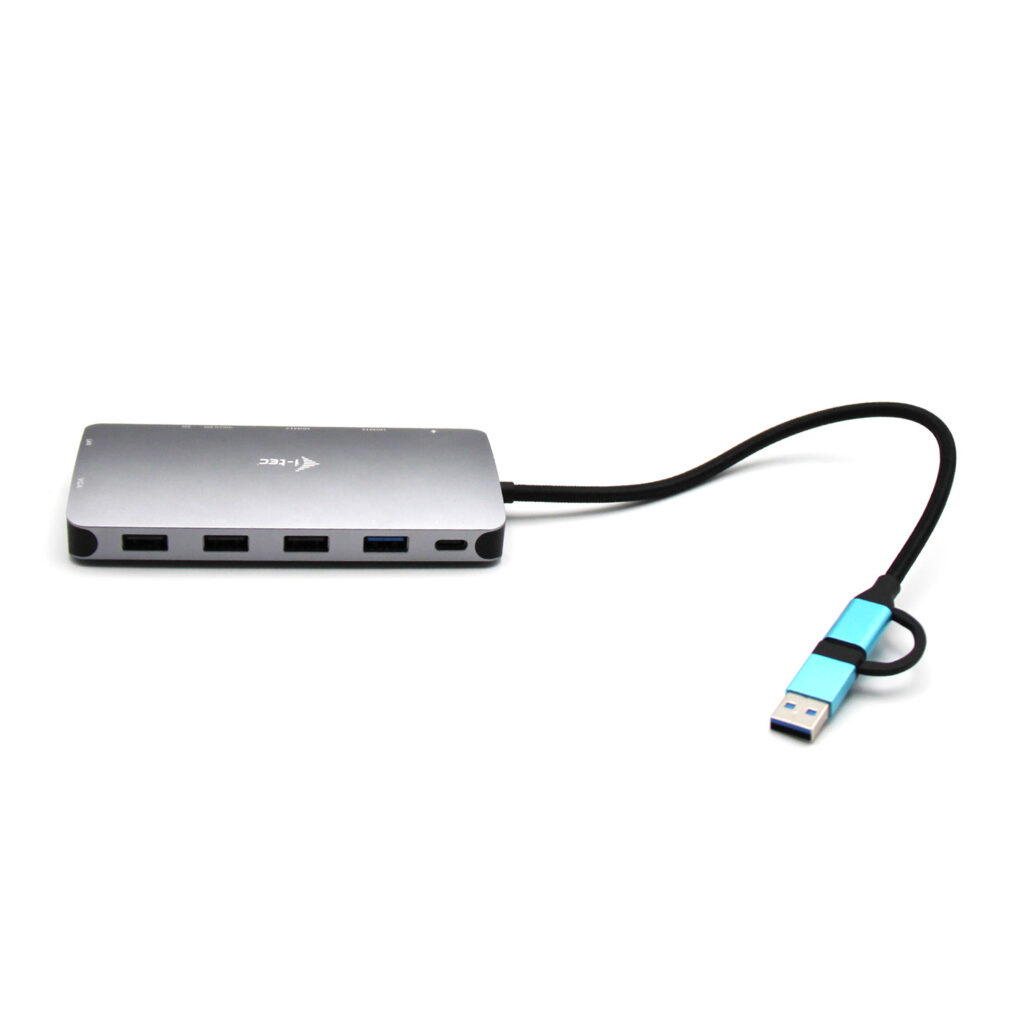

USB 3.0 USB-C/Thunderbolt 3x Display Metal Nano Dock with LAN + Power Delivery
100 W
Model CANANOTDOCKPDEAN 8595611705762
36 specifications
- ConnectivityWired
- Weight122 g
- ColourSilver
- Ethernet LANYes
- Power source typeUSB
- Width127 mm
Overview
- Connectivity
- Wired
- Weight
- 122 g
- Colour
- Silver
- Ethernet LAN
- Yes
- Power source type
- USB
- Width
- 127 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- CANANOTDOCKPD
- Part number
- CANANOTDOCKPD
- EAN / UPC
- 8595611705762
- Also known as
- i-tec USB 3.0 USB-C/Thunderbolt 3x Display Metal Nano Dock with LAN + Power Delivery 100 W
Specifications
36 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |

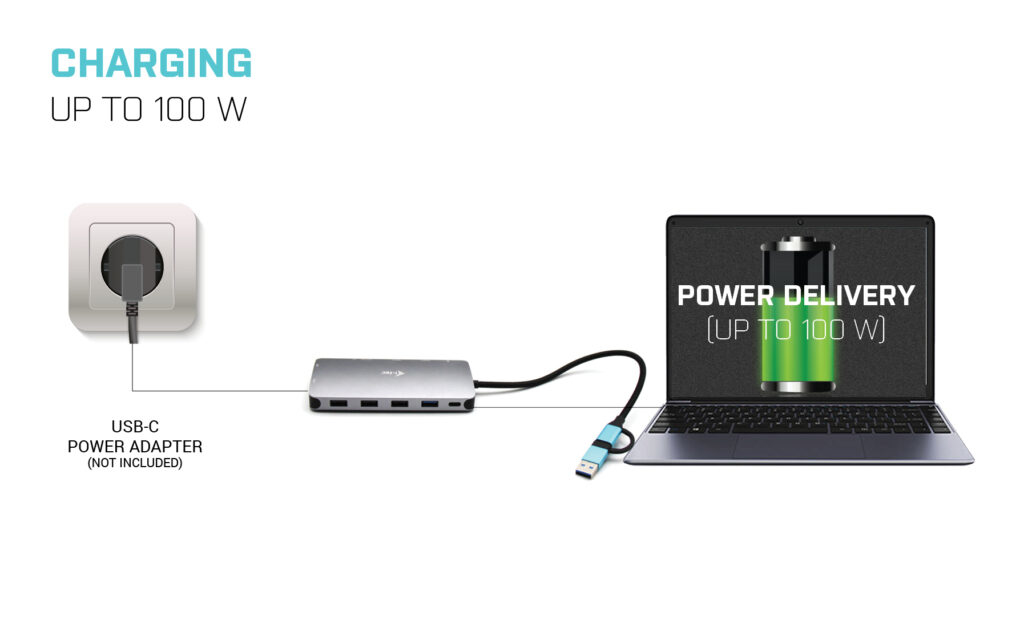

| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 5 Gbit/s |
| Maximum refresh rate | 60 Hz |

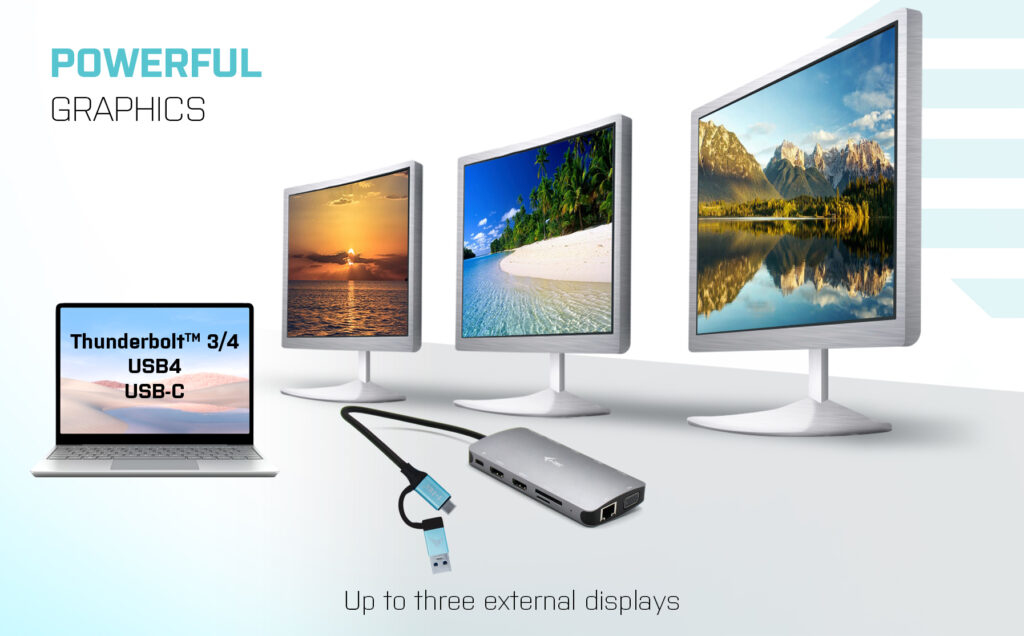

| Number of displays supported | 3 |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 127 mm |
| Depth | 60 mm |
| Height | 18 mm |
| Weight | 122 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 98 mm |
| Package height | 23 mm |
| Package weight | 140 g |

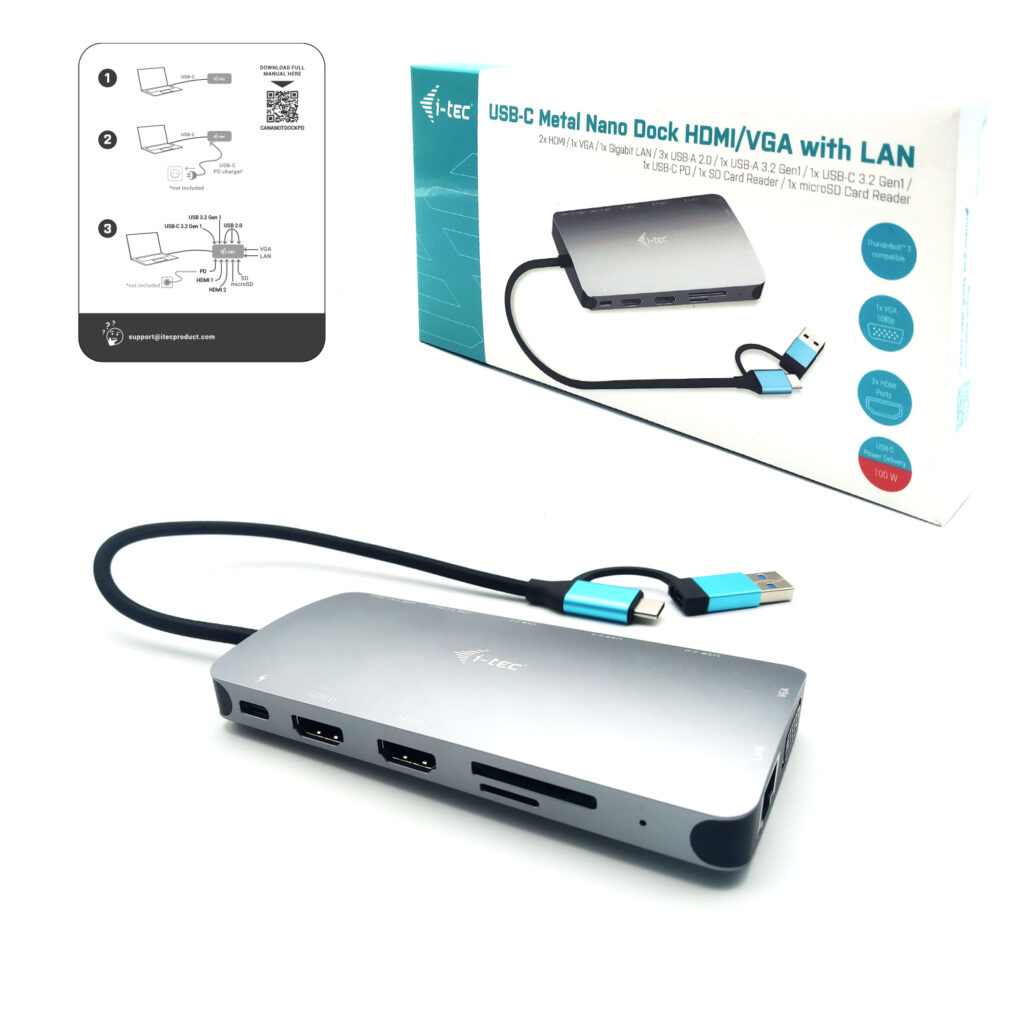

Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
