USB 3.0 / USB-C / Thunderbolt 3 Dual Display Docking Station + Power Delivery
85W
Model CADUAL4KDOCKPDITEAN 8595611703539
43 specifications
- ConnectivityWired
- Weight330 g
- ColourBlack, Turquoise
- Ethernet LANYes
- Power source typeAC
- Width245 mm
Overview
- Connectivity
- Wired
- Weight
- 330 g
- Colour
- Black, Turquoise
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 245 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- CADUAL4KDOCKPDIT
- Part number
- CADUAL4KDOCKPDIT
- EAN / UPC
- 8595611703539
- Also known as
- i-tec USB 3.0 / USB-C / Thunderbolt 3 Dual Display Docking Station + Power Delivery 85W
Specifications
43 specifications in 10 groups

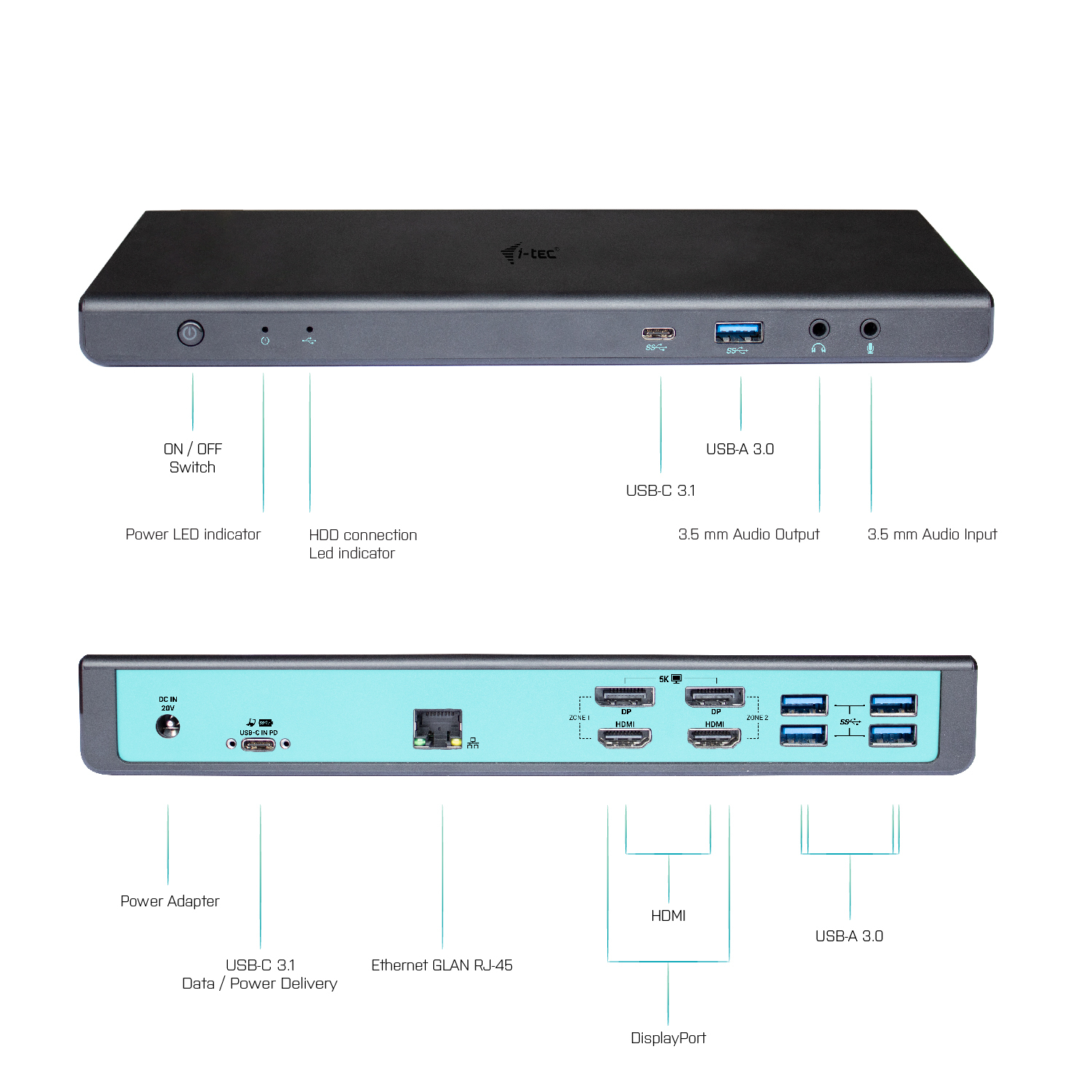

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Turquoise |
| Card reader integrated | No |
| Maximum digital resolution | 5120 x 2880 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output current | 5 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 95 mm |
| Height | 30 mm |
| Weight | 330 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 265 mm |
| Package depth | 244 mm |
| Package height | 40 mm |
| Package weight | 1.38 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB Type-A to USB Type-C |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Number of microphone inputs | 1 |
