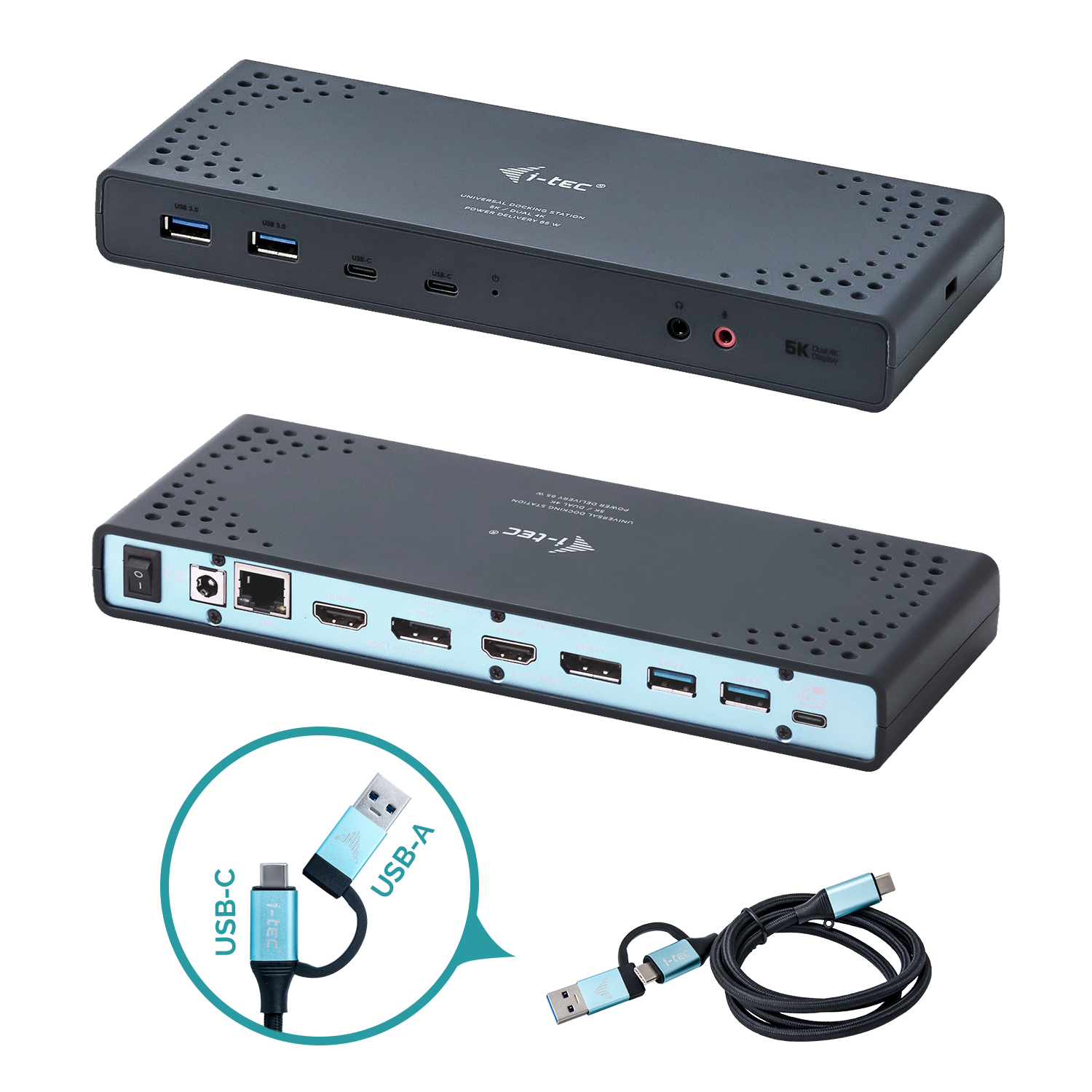

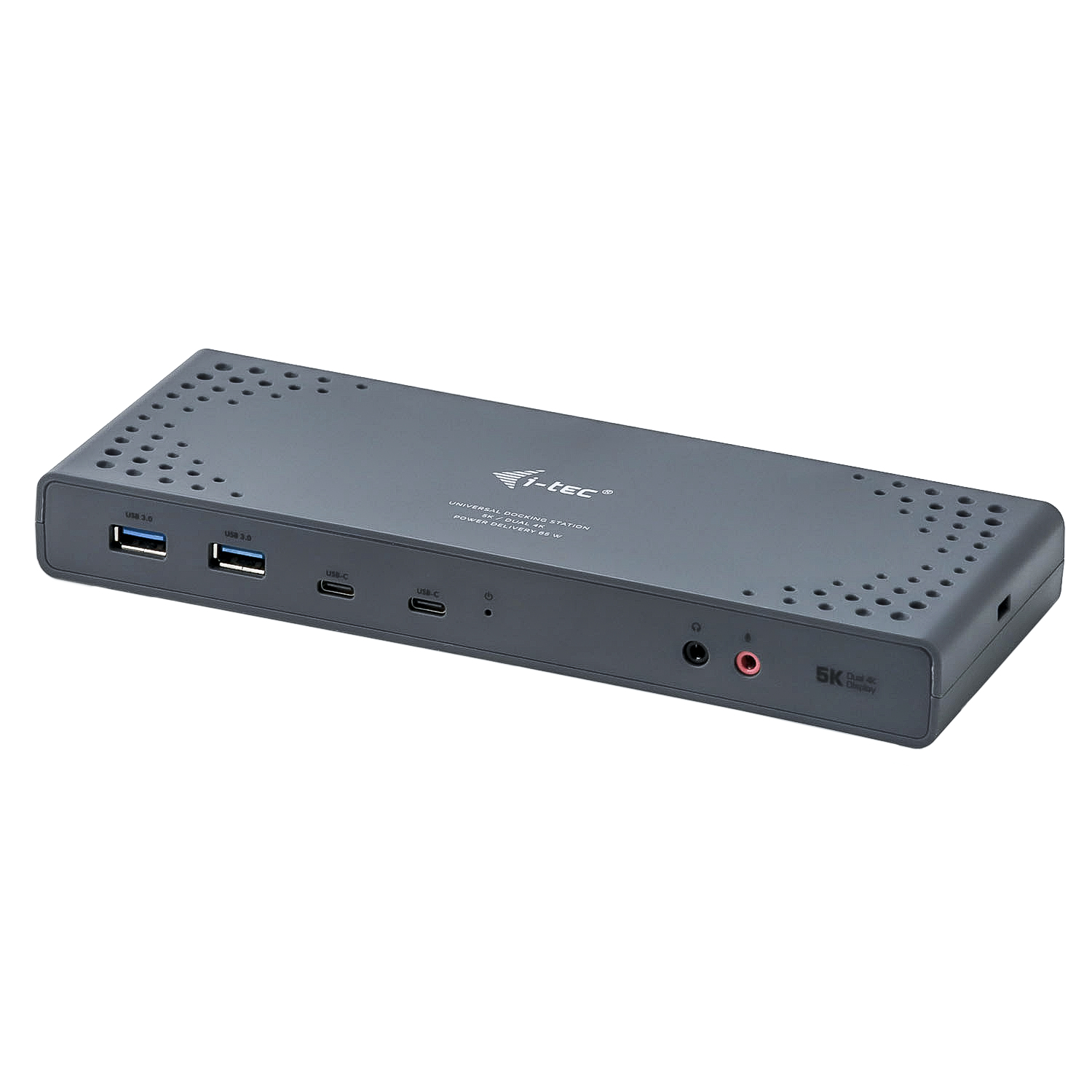

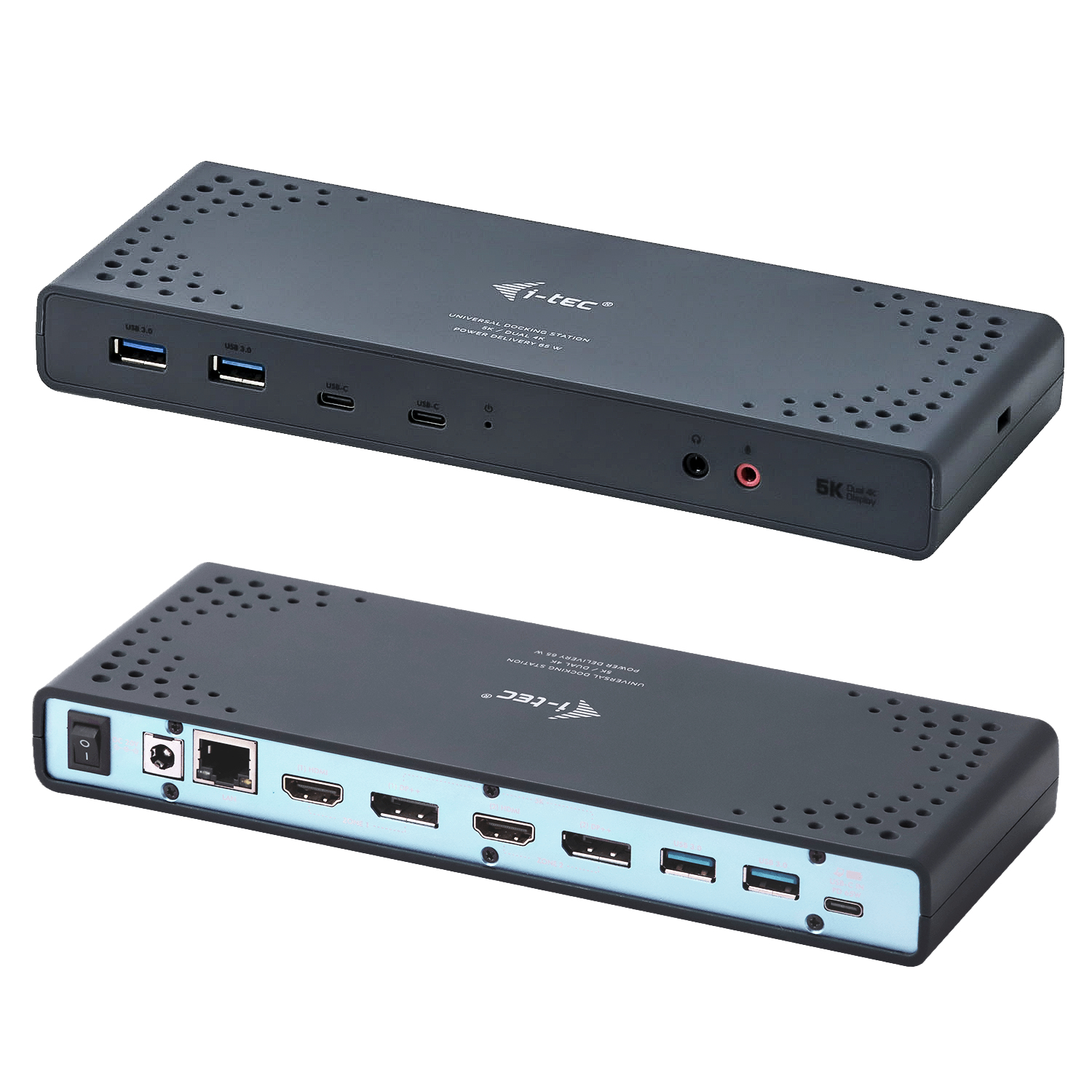

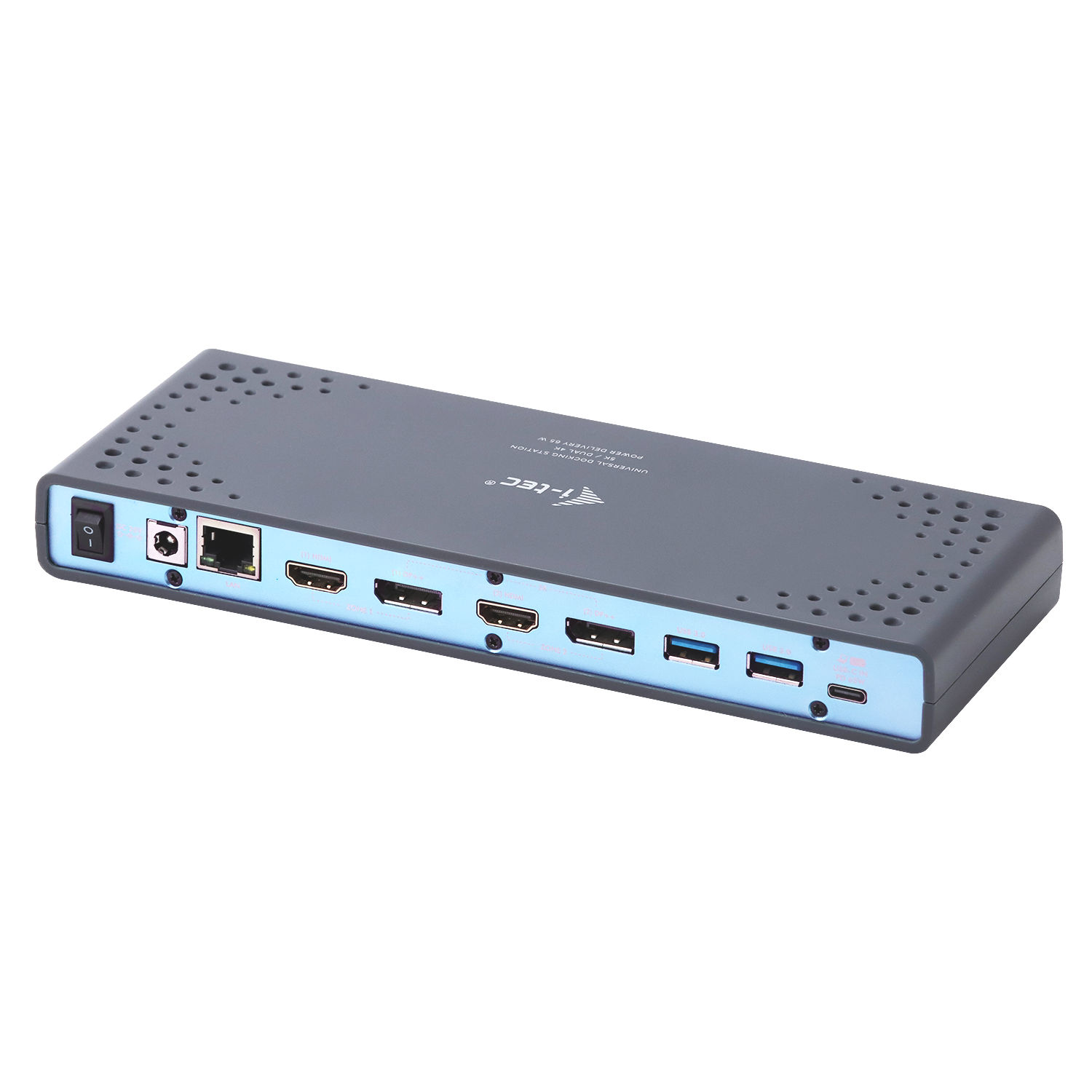

USB 3.0 / USB-C / Thunderbolt 3 Dual Display Docking Station + Power Delivery
65W
Model CADUA4KDOCKPDLITEAN 8595611703522
42 specifications
- ConnectivityWired
- Weight338 g
- ColourBlack, Turquoise
- Ethernet LANYes
- Power source typeAC
- Width223 mm
Overview
- Connectivity
- Wired
- Weight
- 338 g
- Colour
- Black, Turquoise
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 223 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- CADUA4KDOCKPDLIT
- Part number
- CADUA4KDOCKPDLIT
- EAN / UPC
- 8595611703522
- Also known as
- i-tec USB 3.0 / USB-C / Thunderbolt 3 Dual Display Docking Station + Power Delivery 65W
Specifications
42 specifications in 9 groups

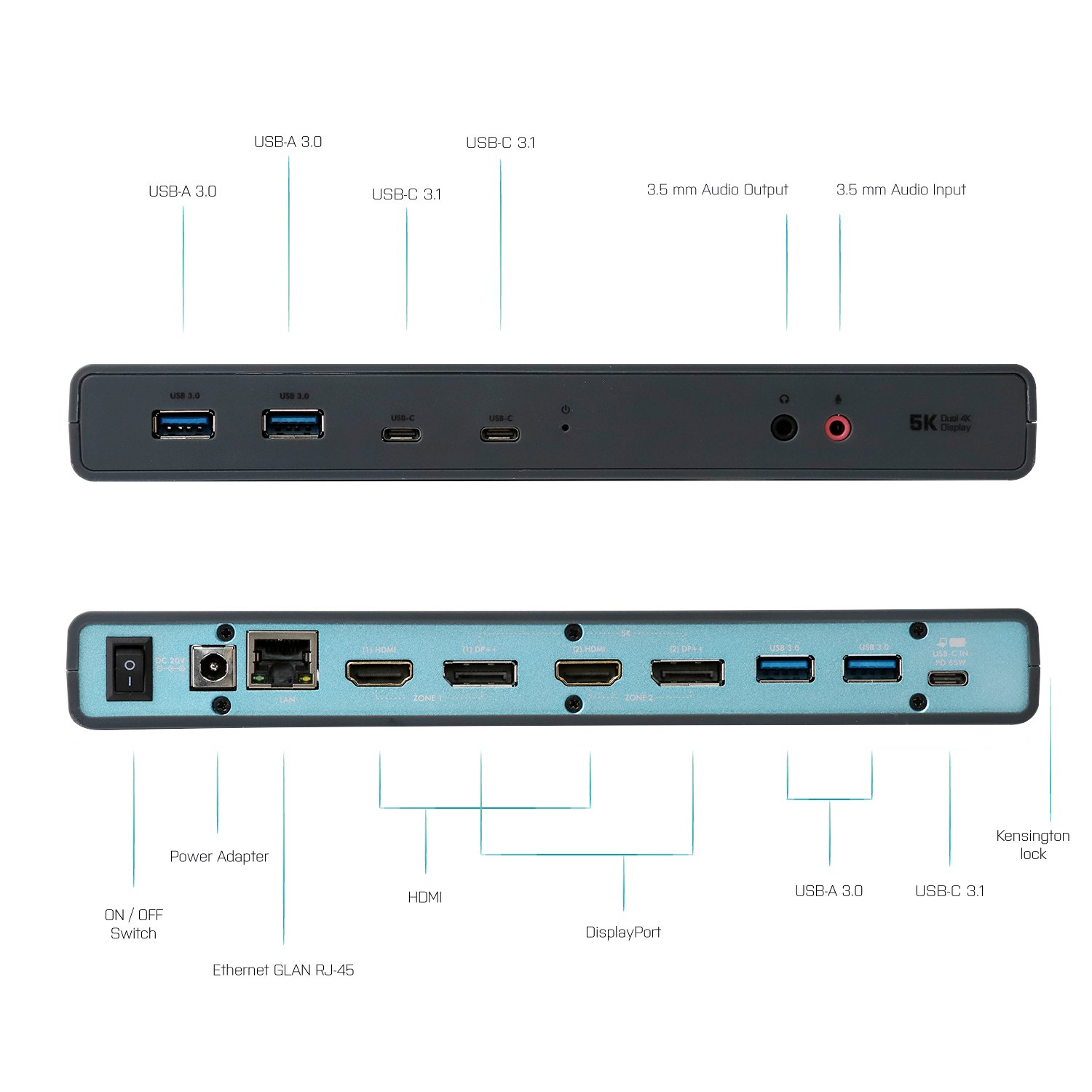

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Turquoise |
| Card reader integrated | No |

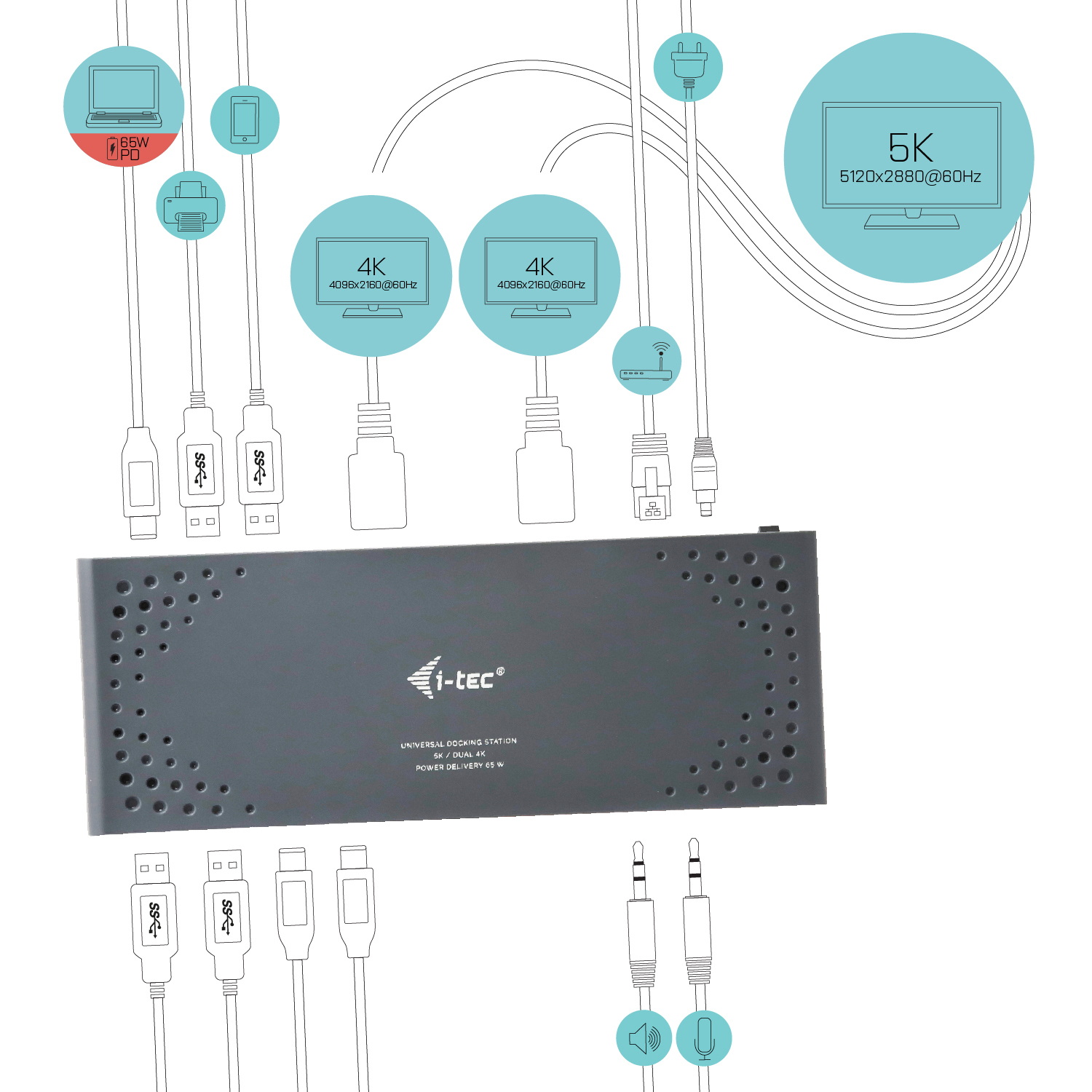

| Maximum digital resolution | 5120 x 2880 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Hot-Plug support | Yes |
| On/off switch | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output current | 5 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 223 mm |
| Depth | 88 mm |
| Height | 27 mm |
| Weight | 338 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 314 mm |
| Package depth | 144 mm |
| Package height | 60 mm |
| Package weight | 1.38 kg |

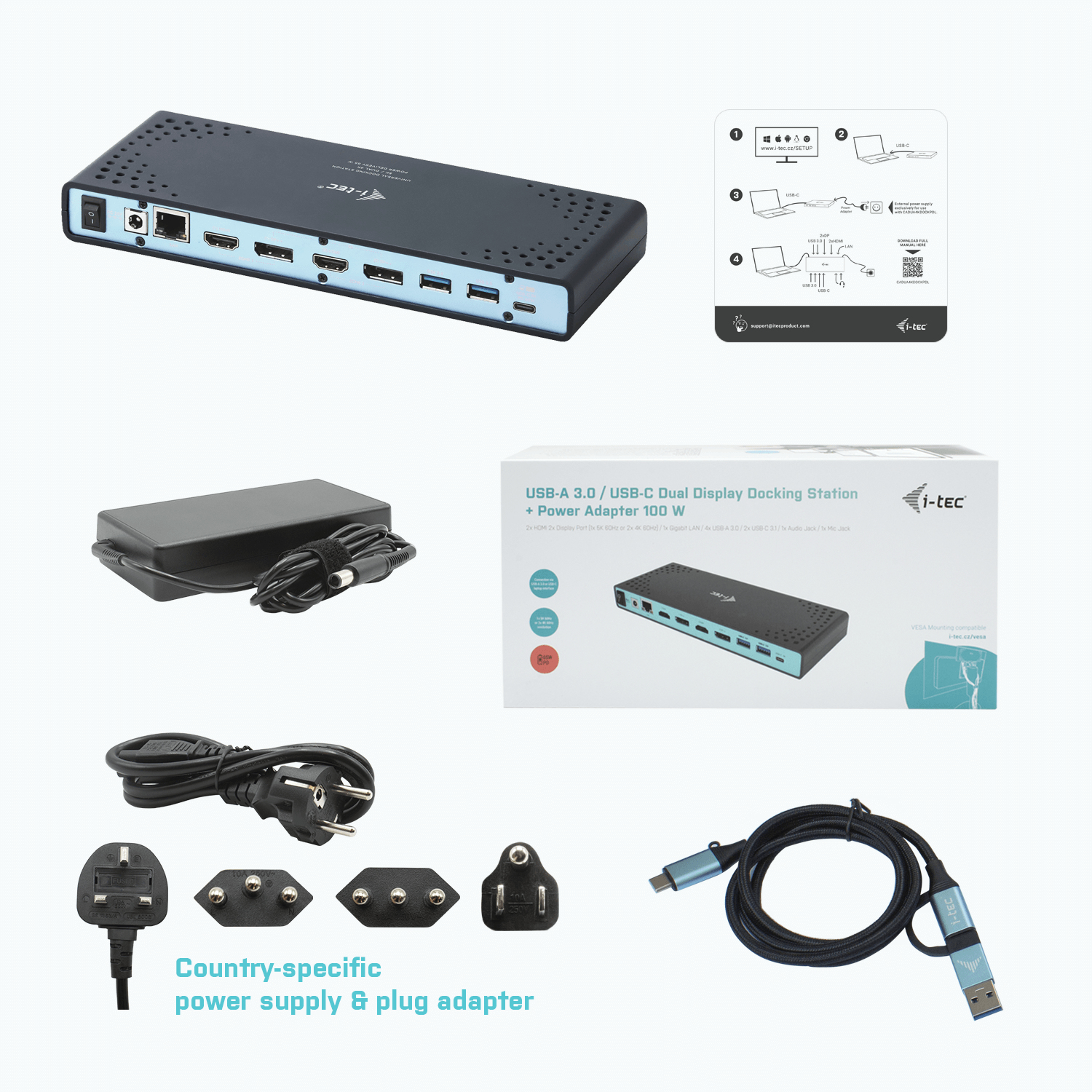

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB Type-C |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| USB data transfer rates | 5000 Mbit/s |
