Universal 5x 4K/60Hz Display Docking Station + Power Delivery 100W
Model CA5MONITORDOCKPDEAN 8595611707001
48 specifications
- ConnectivityWired
- Weight495 g
- ColourBlack
- Ethernet LANYes
- Power supply130 W
- Width245 mm
Overview
- Connectivity
- Wired
- Weight
- 495 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power supply
- 130 W
- Width
- 245 mm
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- CA5MONITORDOCKPD
- Part number
- CA5MONITORDOCKPD
- EAN / UPC
- 8595611707001
- Also known as
- i-tec Universal 5x 4K/60Hz Display Docking Station + Power Delivery 100W
Specifications
48 specifications in 8 groups

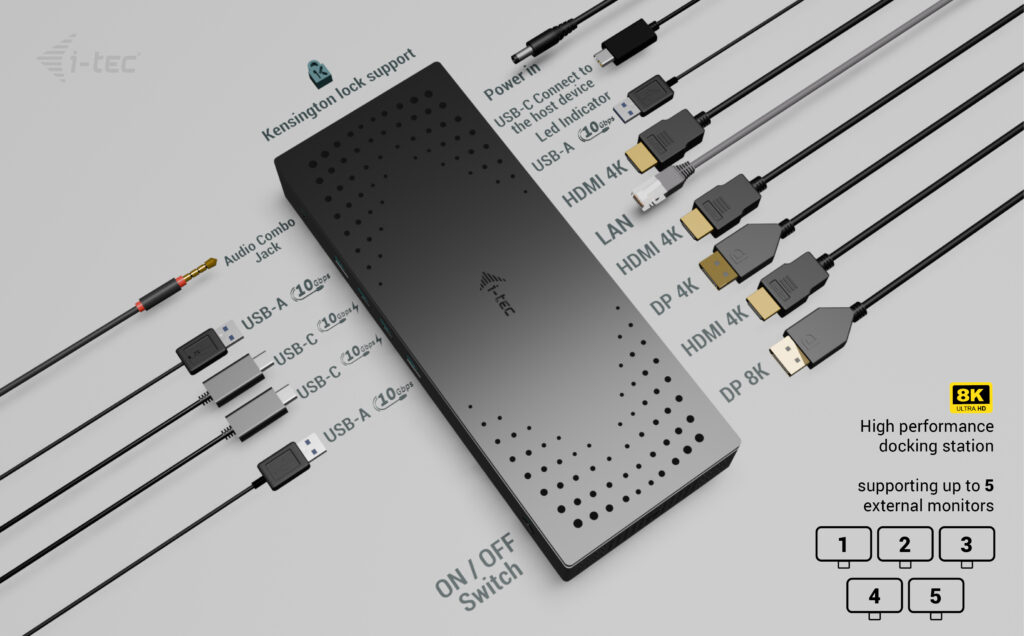

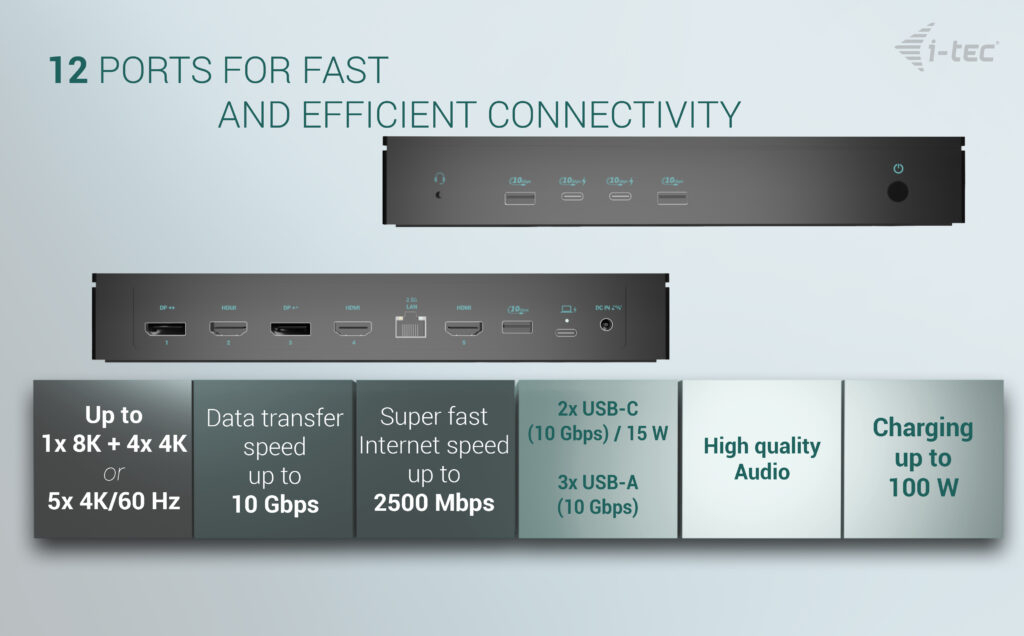

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 5 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| On/off switch | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 130 W |
| Output current | 6.5 A |
| Output voltage | 20 V |
| Compatible power plug types | EU |
| USB cable length | 1 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 98 mm |
| Height | 37 mm |
| Weight | 495 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 259 mm |
| Package depth | 142 mm |
| Package height | 89 mm |
| Package weight | 1.28 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-A to USB Type-C |
| Manual | Yes |
