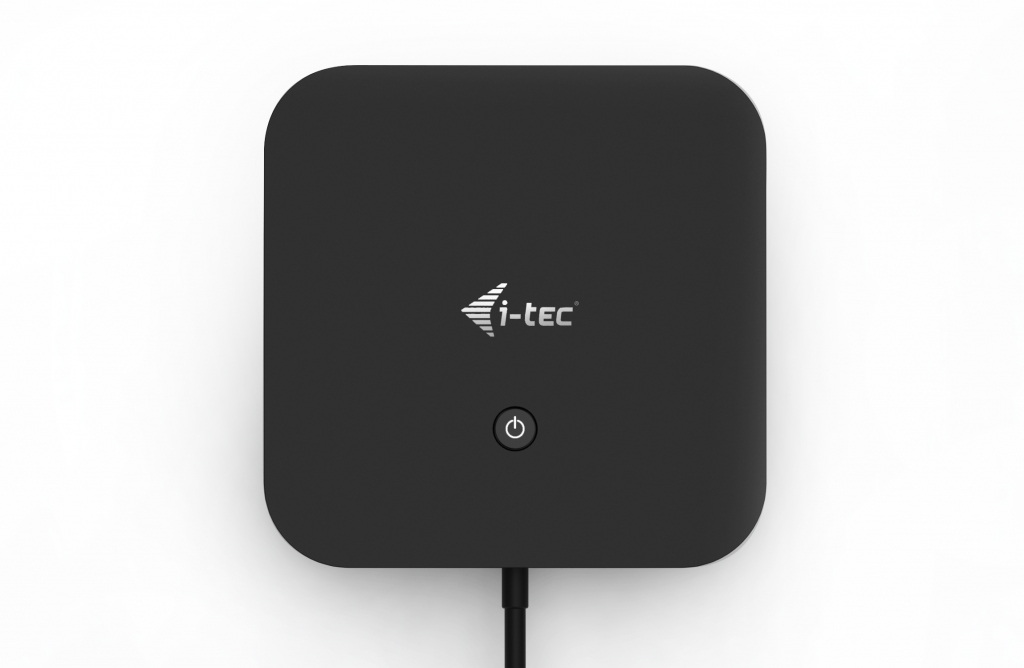

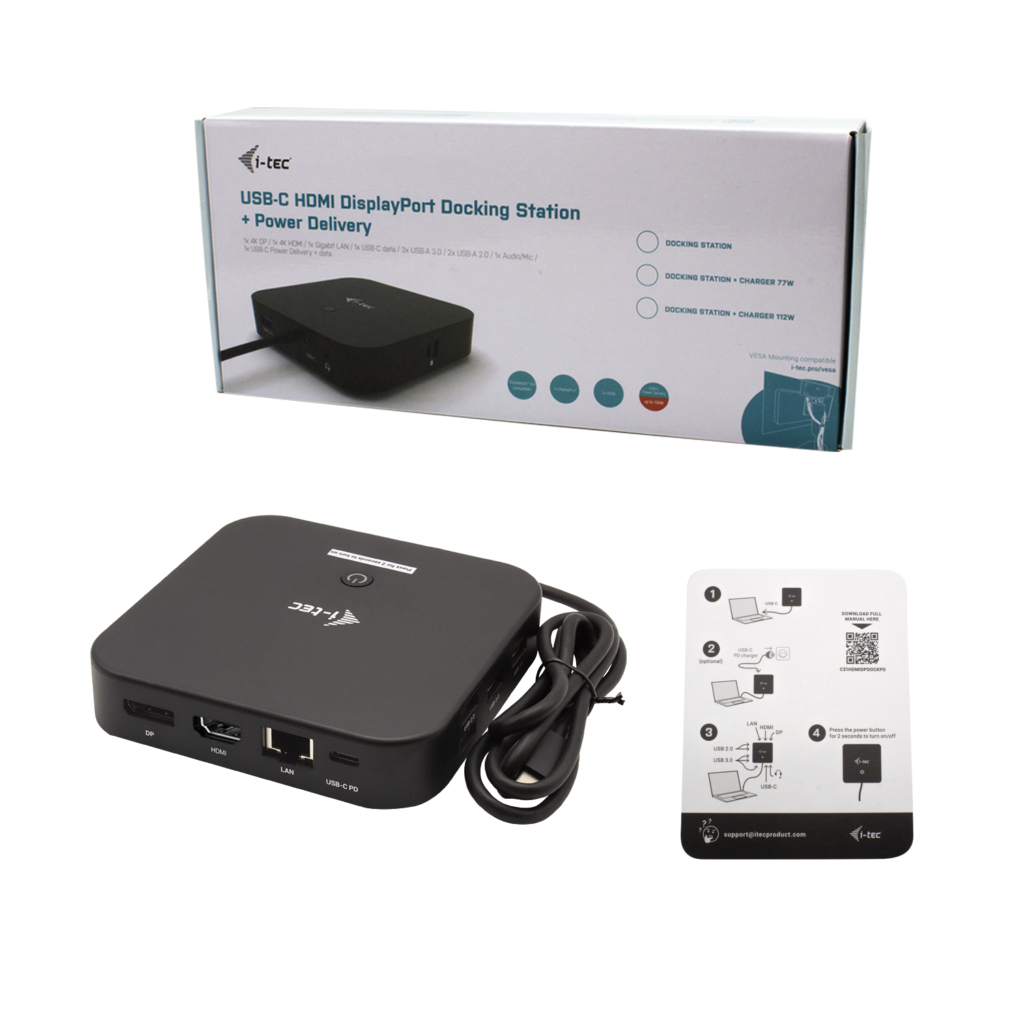

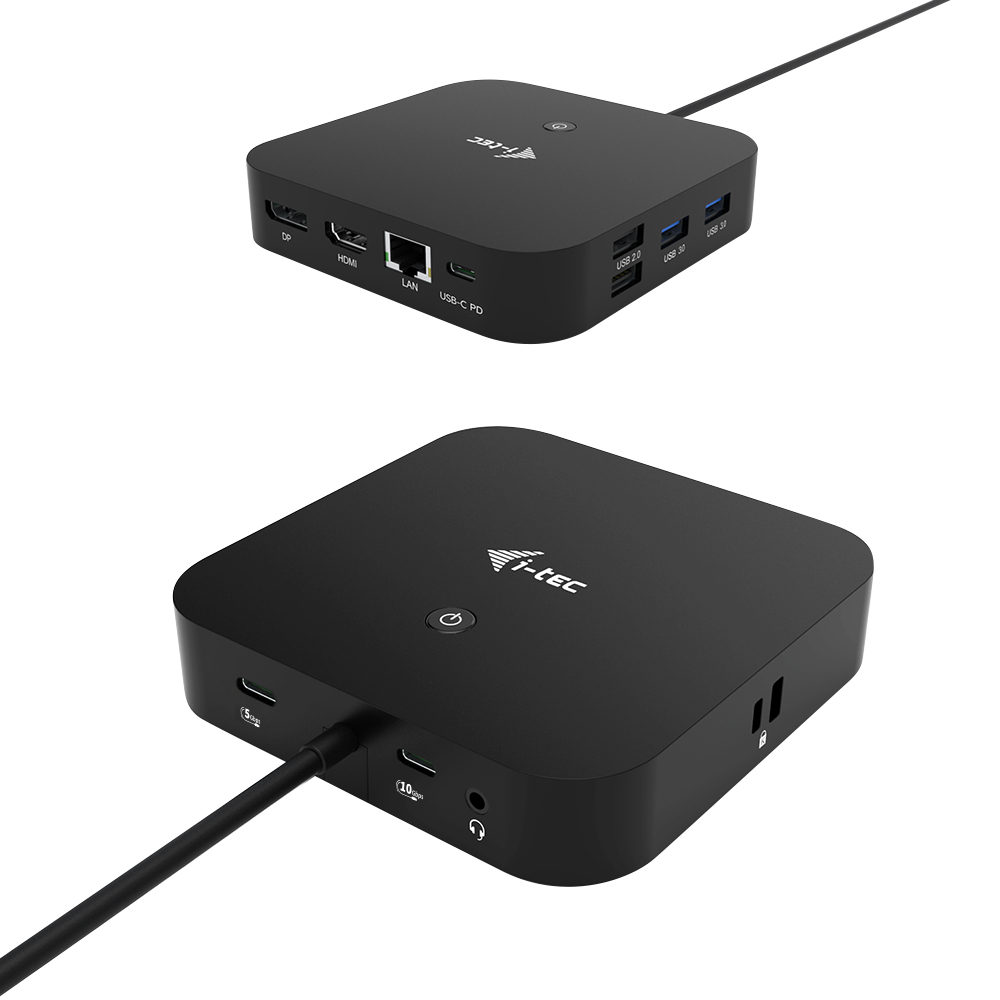

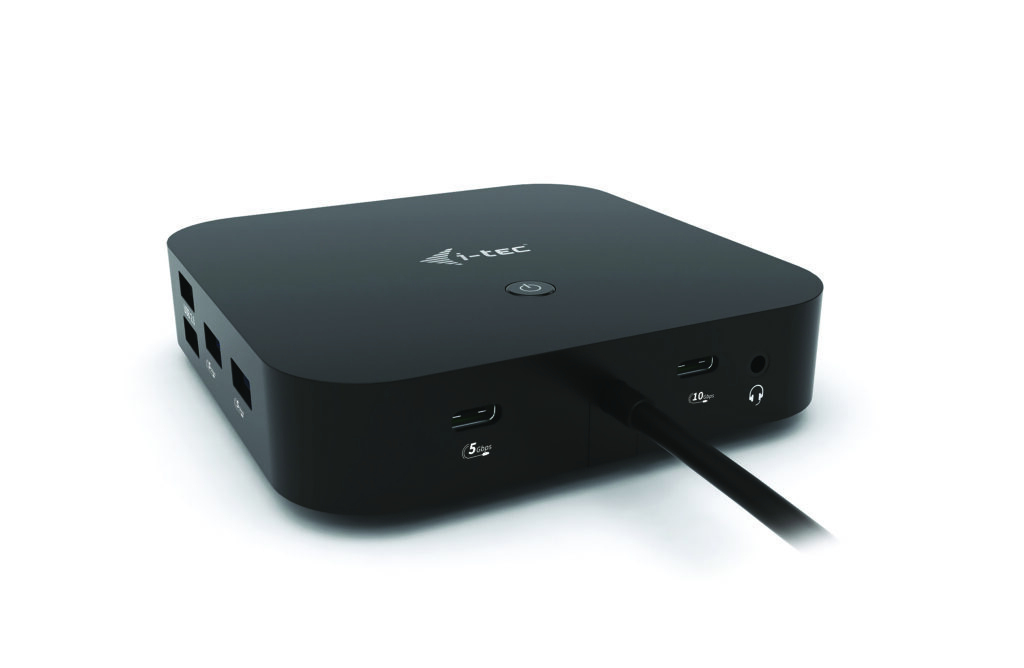

USB-C HDMI DP Docking Station with Power Delivery
100 W
Model C31HDMIDPDOCKPDEAN 8595611704147
43 specifications
- ConnectivityWired
- Weight245 g
- ColourBlack
- Ethernet LANYes
- Wireless chargingNo
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 245 g
- Colour
- Black
- Ethernet LAN
- Yes
- Wireless charging
- No
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- i-tec
- Category
- Laptop Docks & Port Replicators
- Model
- C31HDMIDPDOCKPD
- Part number
- C31HDMIDPDOCKPD
- EAN / UPC
- 8595611704147
- Also known as
- i-tec USB-C HDMI DP Docking Station with Power Delivery 100 W
Specifications
43 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| On/off switch | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 113 mm |
| Depth | 113 mm |
| Height | 40 mm |
| Weight | 245 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 338 mm |
| Package depth | 150 mm |
| Package height | 55 mm |
| Package weight | 458 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
