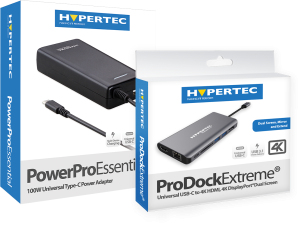

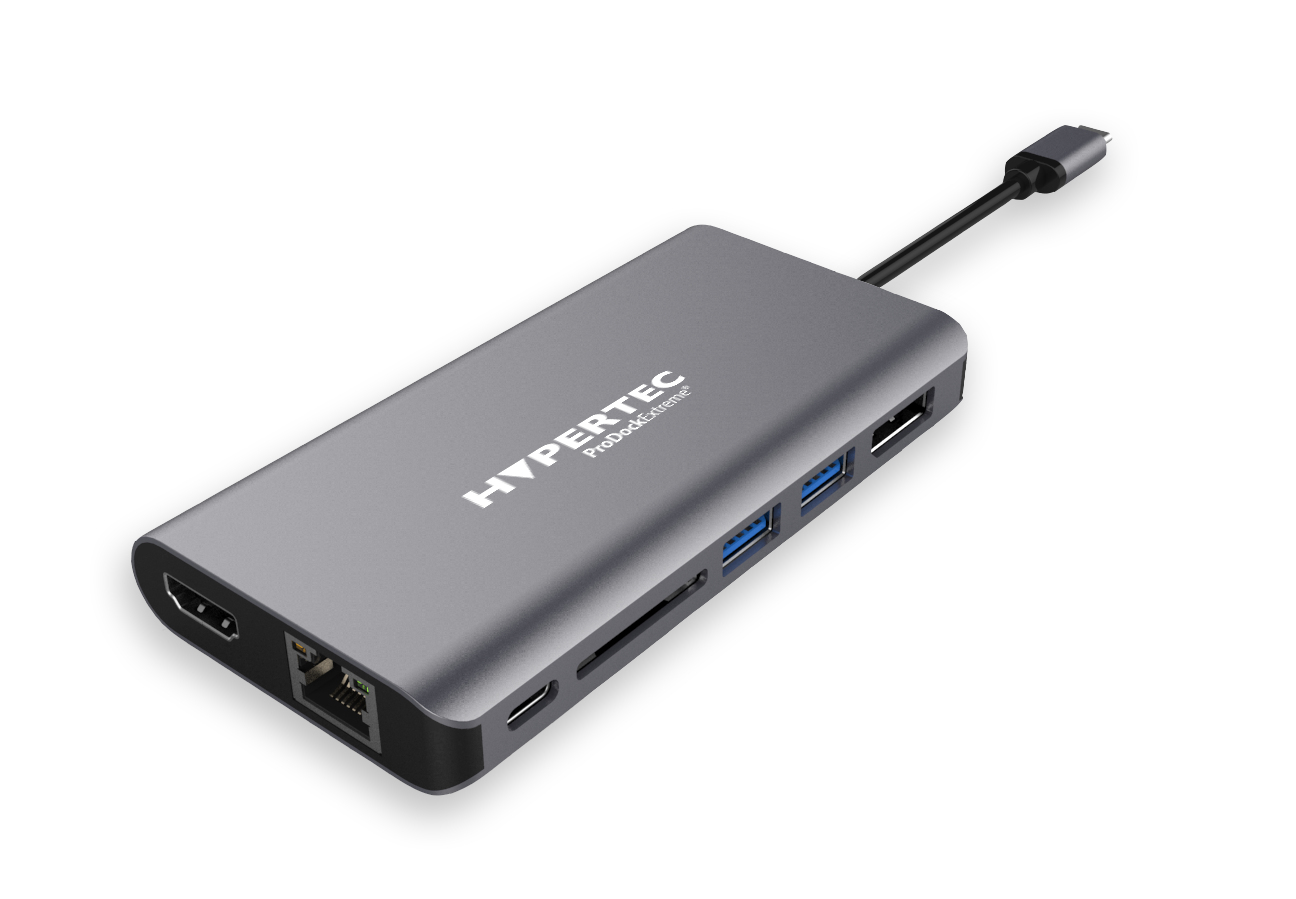

USB Type-C bundle - includes Extreme and

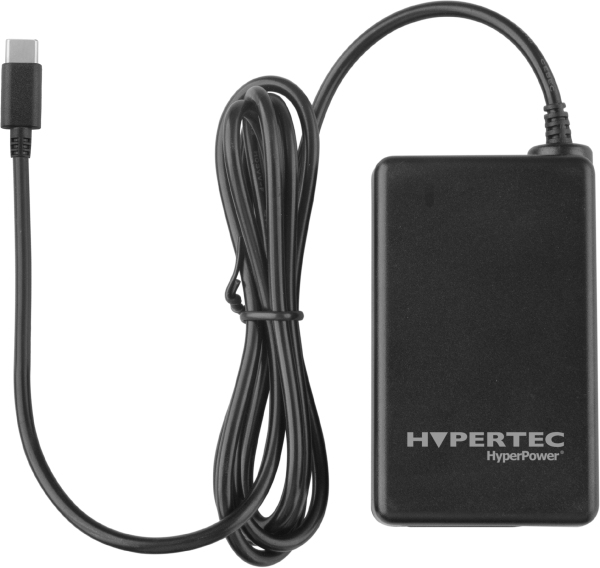

60W power supply unit.
Model HYP-USBC-DOCX-PSUEAN 5050914119188
49 specifications
- ConnectivityWired
- Weight151 g
- ColourSilver
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 151 g
- Colour
- Silver
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Hypertec
- Category
- Laptop Docks & Port Replicators
- Model
- HYP-USBC-DOCX-PSU
- Part number
- HYP-USBC-DOCX-PSU
- EAN / UPC
- 5050914119188
- Also known as
- Hypertec USB Type-C bundle - includes Extreme and 60W power supply unit.
Specifications
49 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB connector type | USB Type-C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Display modes | Single, Dual, Extended, Duplicate |
| Charging function | Yes |
| Housing material | Aluminium |
| Plug and Play | Yes |
| Country of origin | China |
| Brand compatibility | Any brand |
| Certification | CE,FCC,RoHS, REACH |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| AC input voltage | 20 V |
| Input current | 5 A |
| Power supply | 100 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60.8 mm |
| Depth | 116.5 mm |
| Height | 16 mm |
| Weight | 151 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package dimensions (WxDxH) | 133 x 20 x 150 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Other features
| Specification | Value |
|---|---|
| Accessories included | 65W USB-C Power Supply |
| Maximum operating temperature | 40 °C |
| USB data transfer rates | 5000 Mbit/s |
| USB port | Yes |
| USB ports quantity | 3 |
