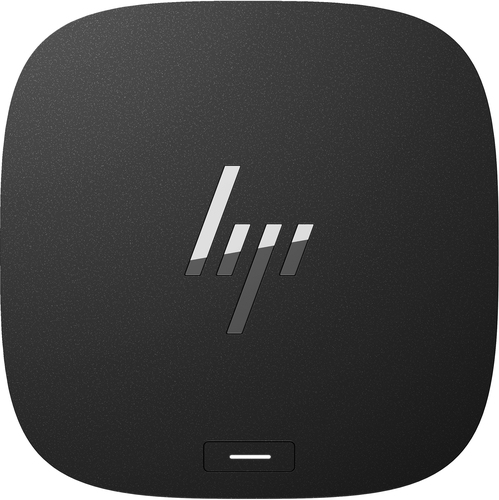

HP Thunderbolt Dock 120W G4
Model Thunderbolt Dock 120W G4Part no. 4J0A2AA#ABU-VSIEAN 5715063021279
46 specifications
- ConnectivityWired
- Weight760 g
- ColourBlack
- Ethernet LANYes
- AC input voltage100 - 240 V
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Connectivity
- Wired
- Weight
- 760 g
- Colour
- Black
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- HP
- Category
- Laptop Docks & Port Replicators
- Model
- Thunderbolt Dock 120W G4
- Part numbers
- 4J0A2AA#ABU-VSI, 4J0A2AA#ABB, 4J0A2AAR, 72Y47AA, 4J0A2ET#ABB
- EAN / UPC
- 5715063021279, 196068757403, 1960687574036, 197029062628 +1 more
- Also known as
- HP Thunderbolt Dock 120W G4
Specifications
46 specifications in 12 groups

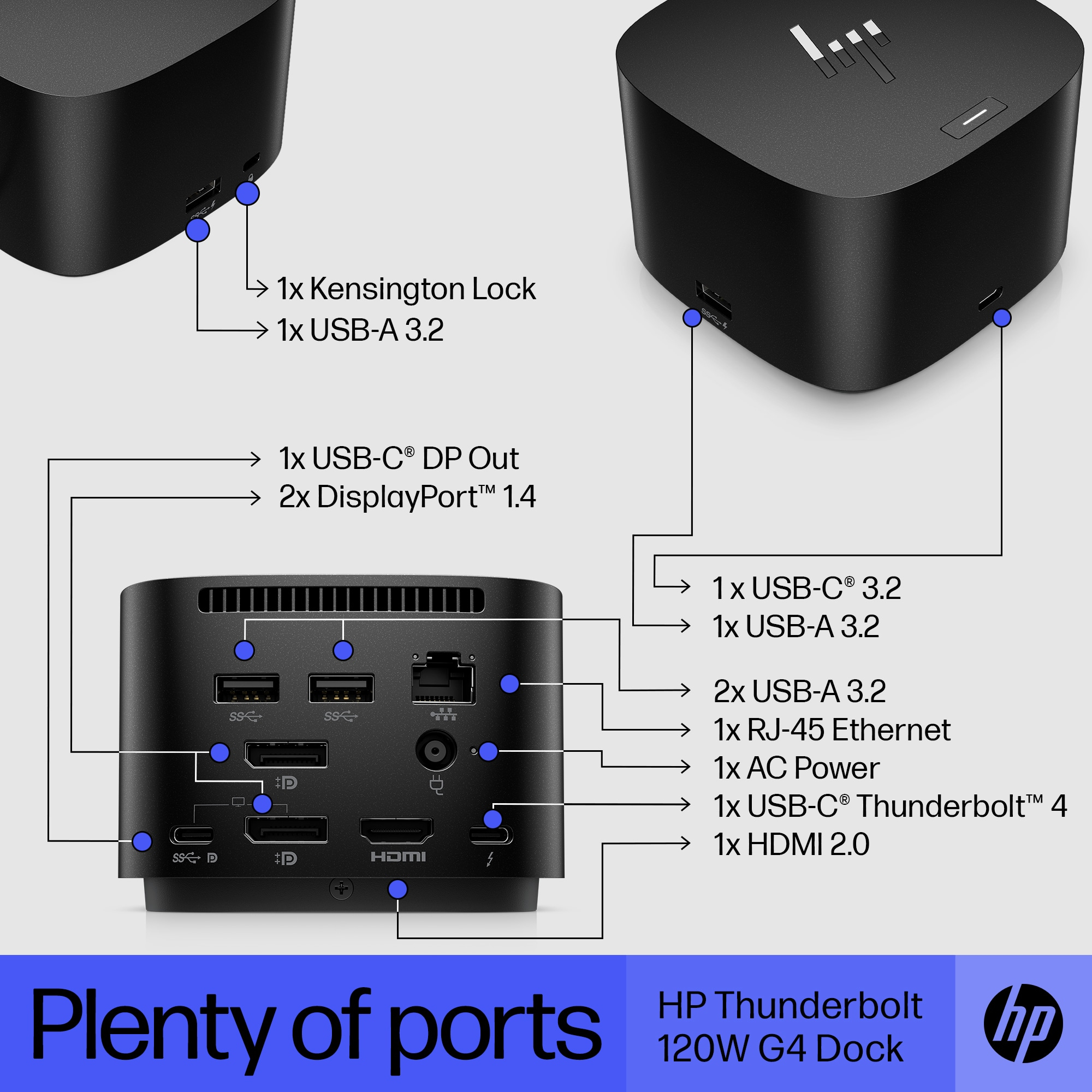

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Country of origin | China, Thailand, Taiwan |
| HP segment | Business |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output current | 6.15 A |
| Output voltage | 19.5 V |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | MacOS |

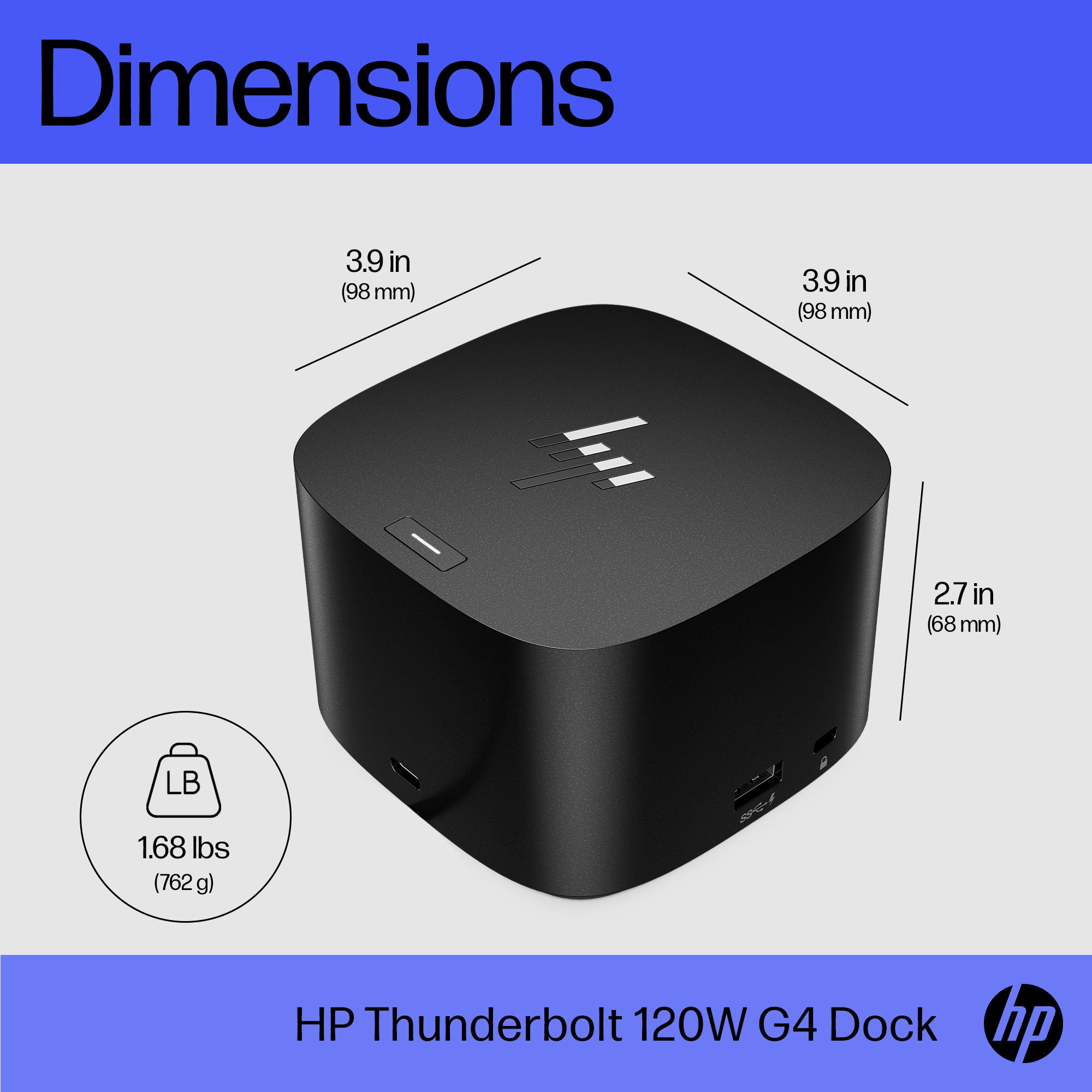

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 98 mm |
| Depth | 98 mm |
| Height | 68 mm |
| Weight | 760 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 275 mm |
| Package depth | 143 mm |
| Package height | 148.5 mm |
| Package weight | 760 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Brand-specific features
| Specification | Value |
|---|---|
| HP GTIN (EAN/UPC) | 196068757403, 196068757434 |
| HP GTIN (EAN/UPC) with options | (ABB) 196068757403; (ABU) 196068757434 |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Box contents | Dock, power supply, power cord, warranty |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 11; Windows 10; MacOS; Chrome |
| Special features | 4K capability |
| UNSPSC-code | 43211602 |
