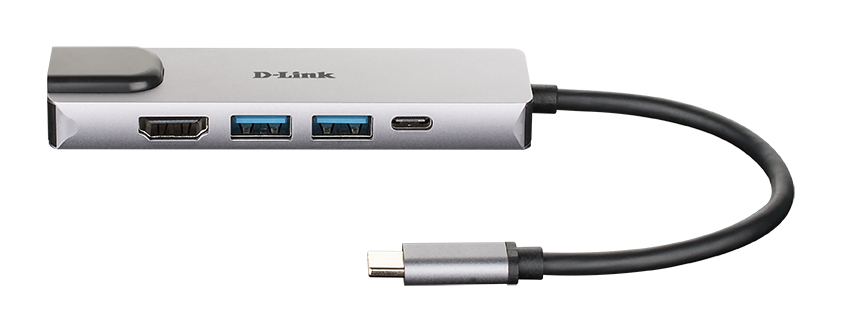

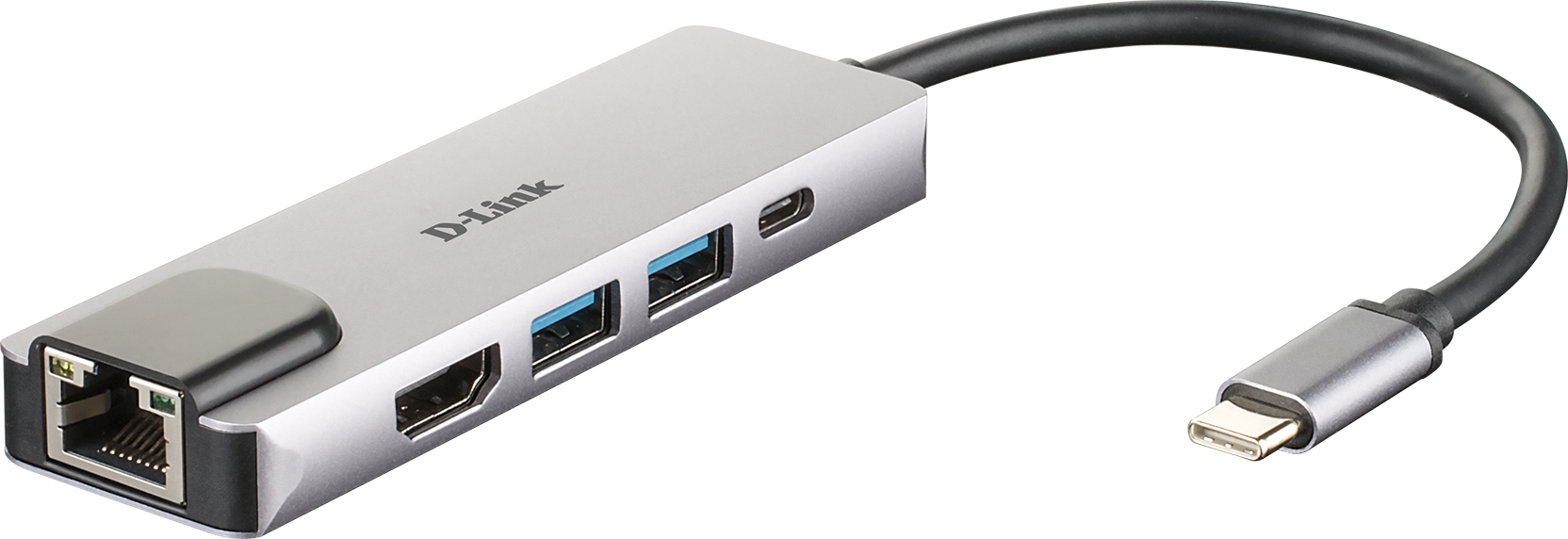

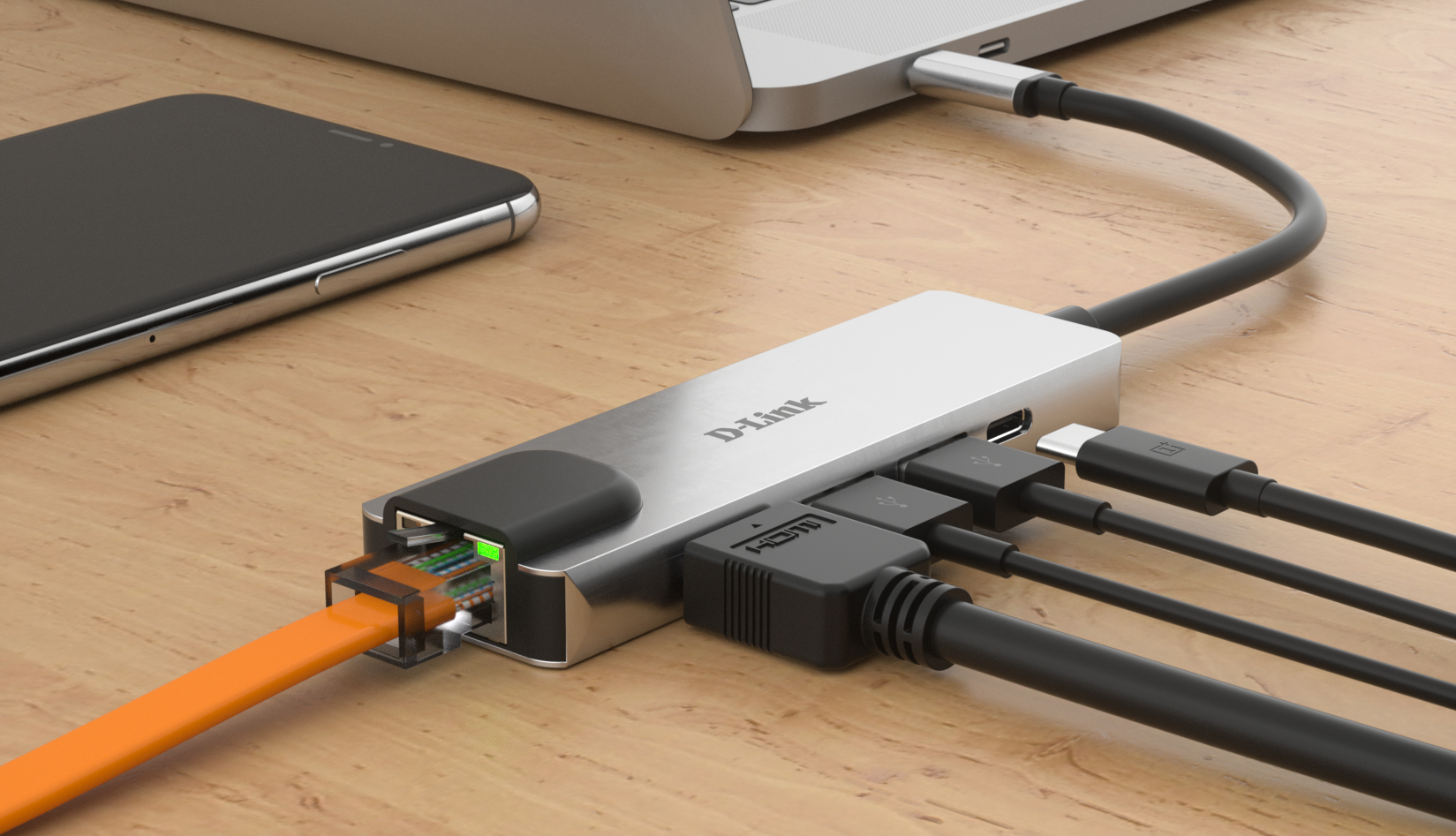

5-in-1 USB-C Hub with HDMI/Ethernet and Power Delivery
Model DUB-M520EAN 790069447884
38 specifications
- ConnectivityWired
- Weight49 g
- ColourAluminium
- Ethernet LANYes
- Input current0.12 A
- Operating temperature (T-T)0 - 70 °C
Overview
- Connectivity
- Wired
- Weight
- 49 g
- Colour
- Aluminium
- Ethernet LAN
- Yes
- Input current
- 0.12 A
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- D-Link
- Category
- Laptop Docks & Port Replicators
- Model
- DUB-M520
- Part number
- DUB-M520
- EAN / UPC
- 790069447884
- Also known as
- D-Link 5-in-1 USB-C Hub with HDMI/Ethernet and Power Delivery
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Microphone in | No |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Aluminium |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Housing material | Aluminium |
| LED indicators | Yes |
| Plug and Play | Yes |
| Certification | CE, FCC, IC, RCM |
Power
| Specification | Value |
|---|---|
| Input current | 0.12 A |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 103 mm |
| Depth | 31 mm |
| Height | 11 mm |
| Weight | 49 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
