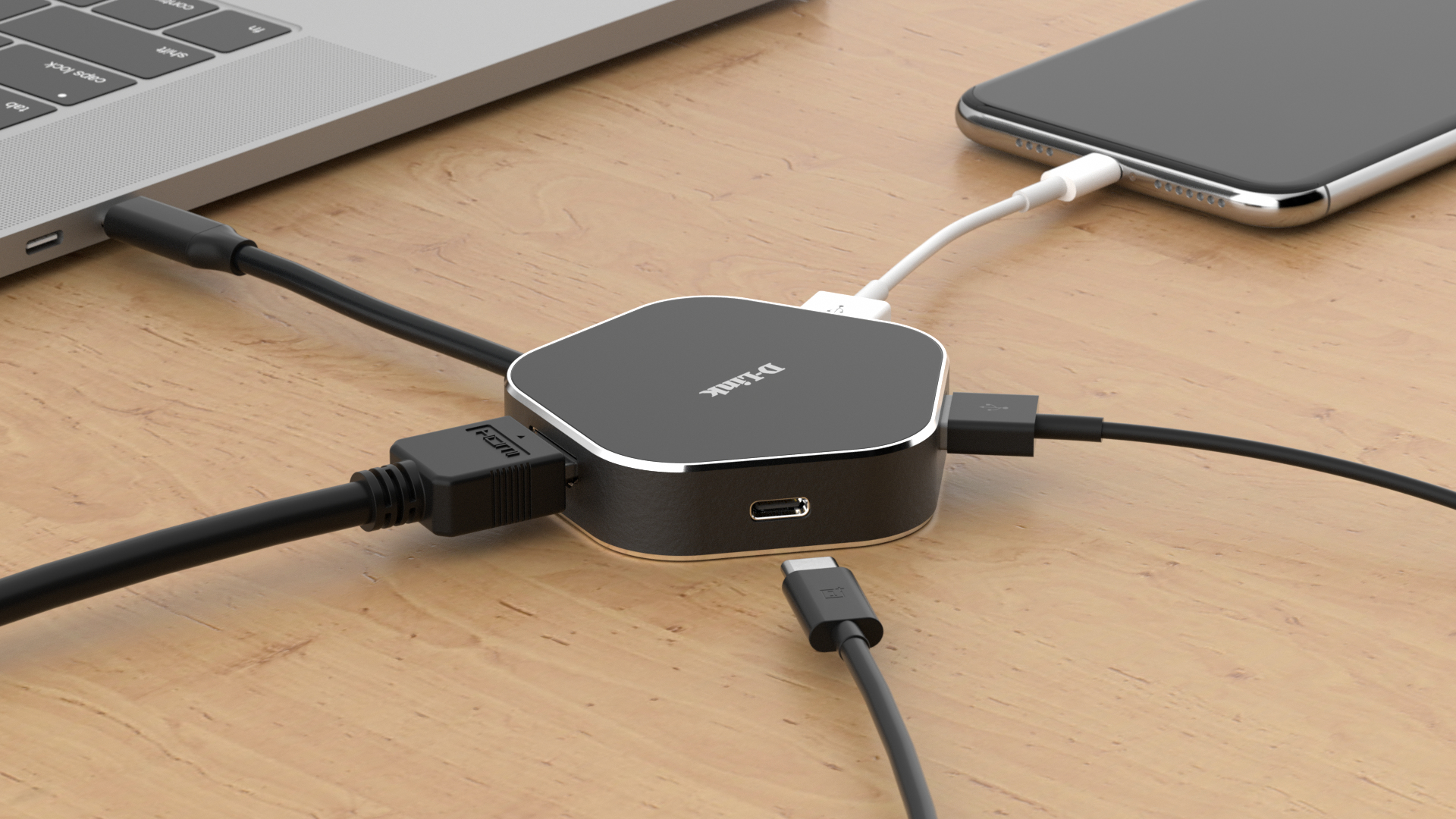

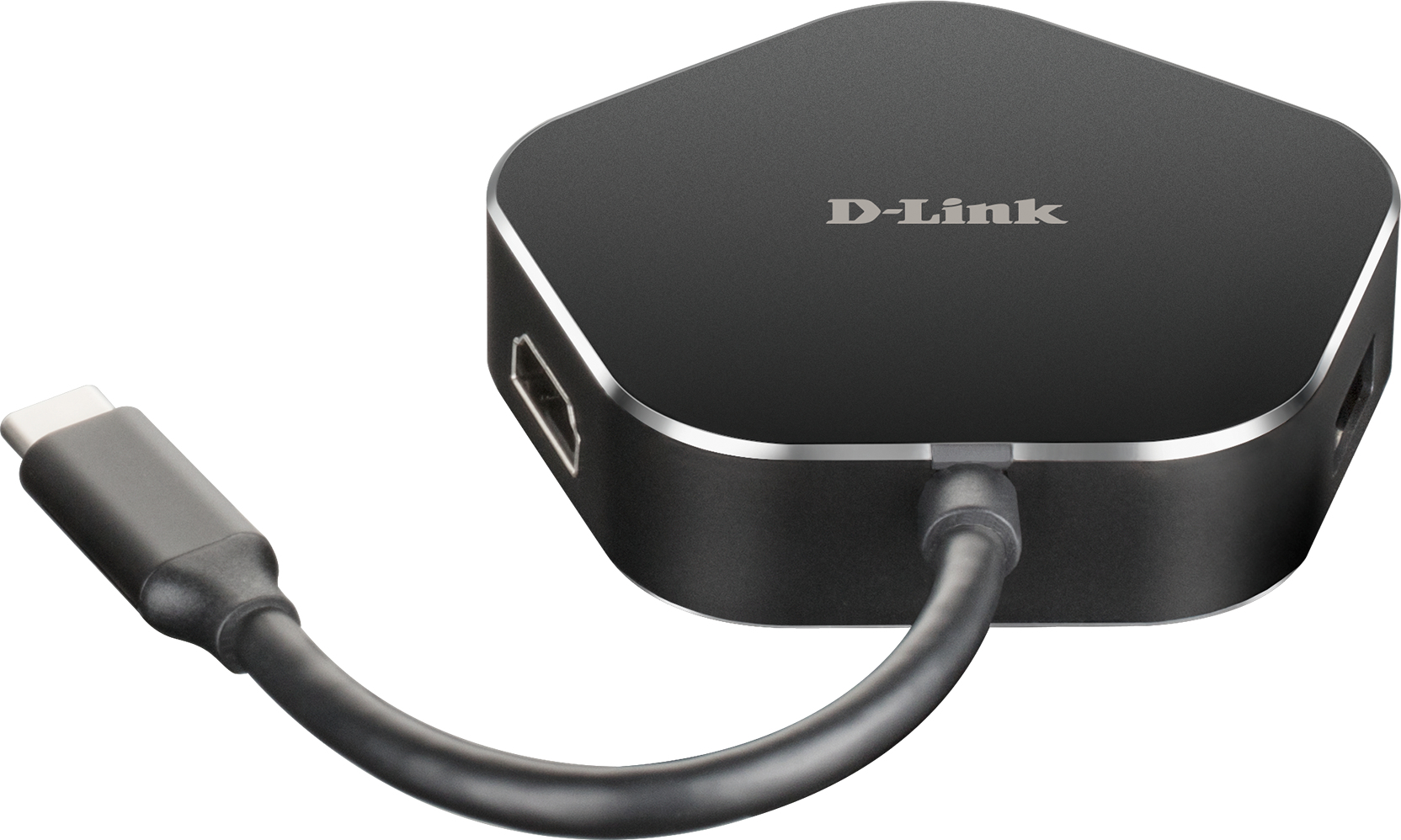

4-in-1 USB-C Hub with HDMI and Power Delivery
Model DUB-M420EAN 790069447761
34 specifications
- ConnectivityWired
- Weight50 g
- ColourAluminium, Black
- Ethernet LANNo
- Power source typeUSB
- Windows operating systems supportedYes
Overview
- Connectivity
- Wired
- Weight
- 50 g
- Colour
- Aluminium, Black
- Ethernet LAN
- No
- Power source type
- USB
- Windows operating systems supported
- Yes
- Brand
- D-Link
- Category
- Laptop Docks & Port Replicators
- Model
- DUB-M420
- Part number
- DUB-M420
- EAN / UPC
- 790069447761
- Also known as
- D-Link 4-in-1 USB-C Hub with HDMI and Power Delivery
Specifications
34 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Microphone in | No |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Plug and Play | Yes |
| Certification | CE, FCC, IC, RCM |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Input current | 0.031 A |
| Output current | 3 A |
| Output voltage | 20 V |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 67 mm |
| Height | 18 mm |
| Weight | 50 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
