DONN14G laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Model DONN14GEAN 4015867229125
43 specifications
- ConnectivityWired
- Weight65 g
- ColourGrey
- Ethernet LANYes
- Power source typeUSB
- Width43.5 mm
Overview
- Connectivity
- Wired
- Weight
- 65 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- USB
- Width
- 43.5 mm
- Brand
- Conceptronic
- Category
- Laptop Docks & Port Replicators
- Model
- DONN14G
- Part number
- DONN14G
- EAN / UPC
- 4015867229125, 4015867245941
- Also known as
- Conceptronic DONN14G laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Specifications
43 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

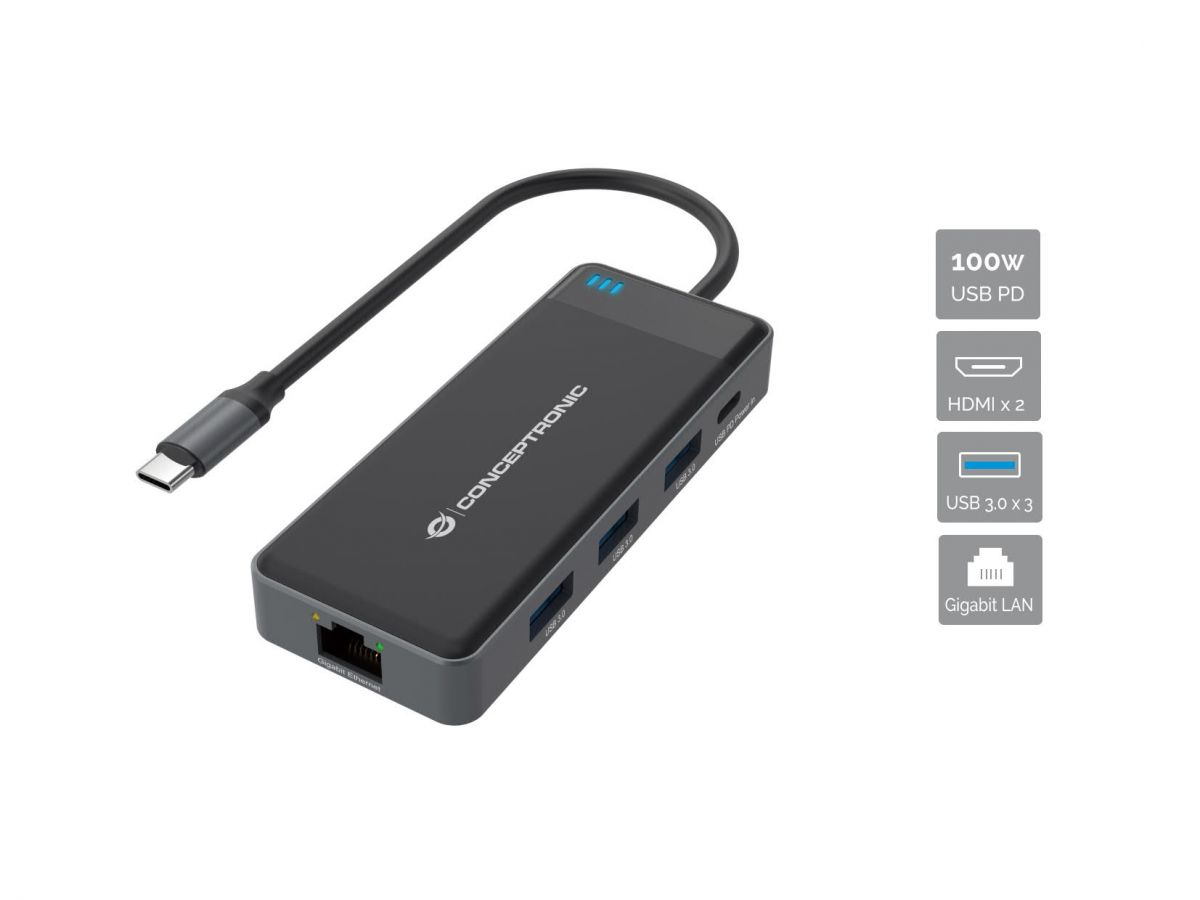

| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |

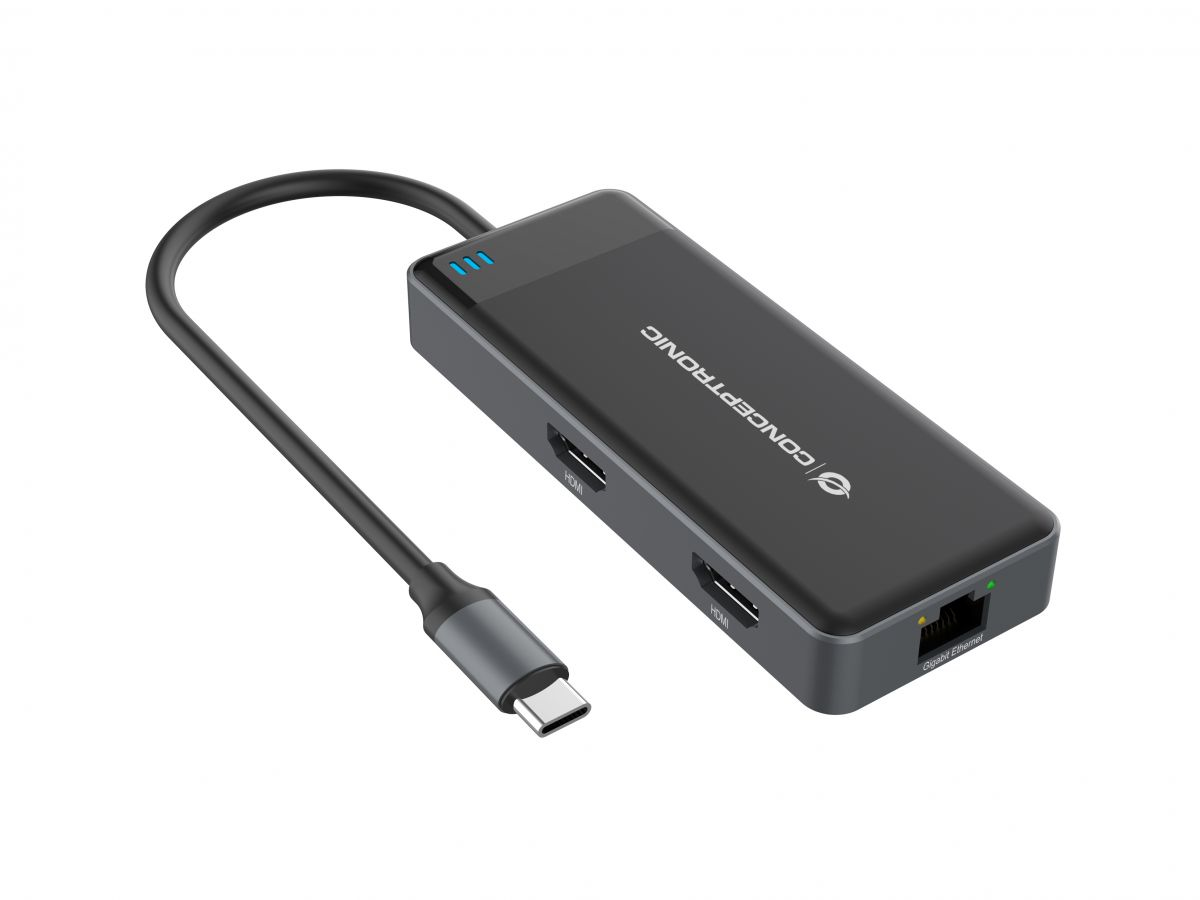

| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wake-on-LAN ready | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |

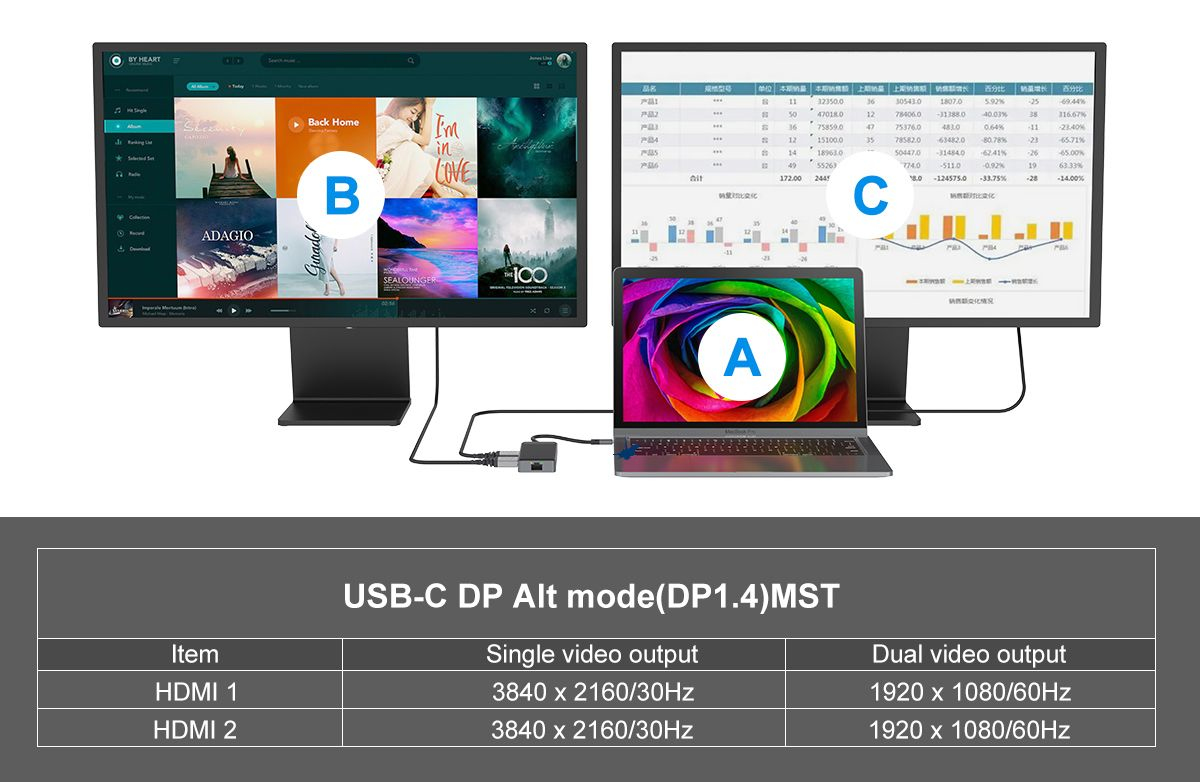

| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |

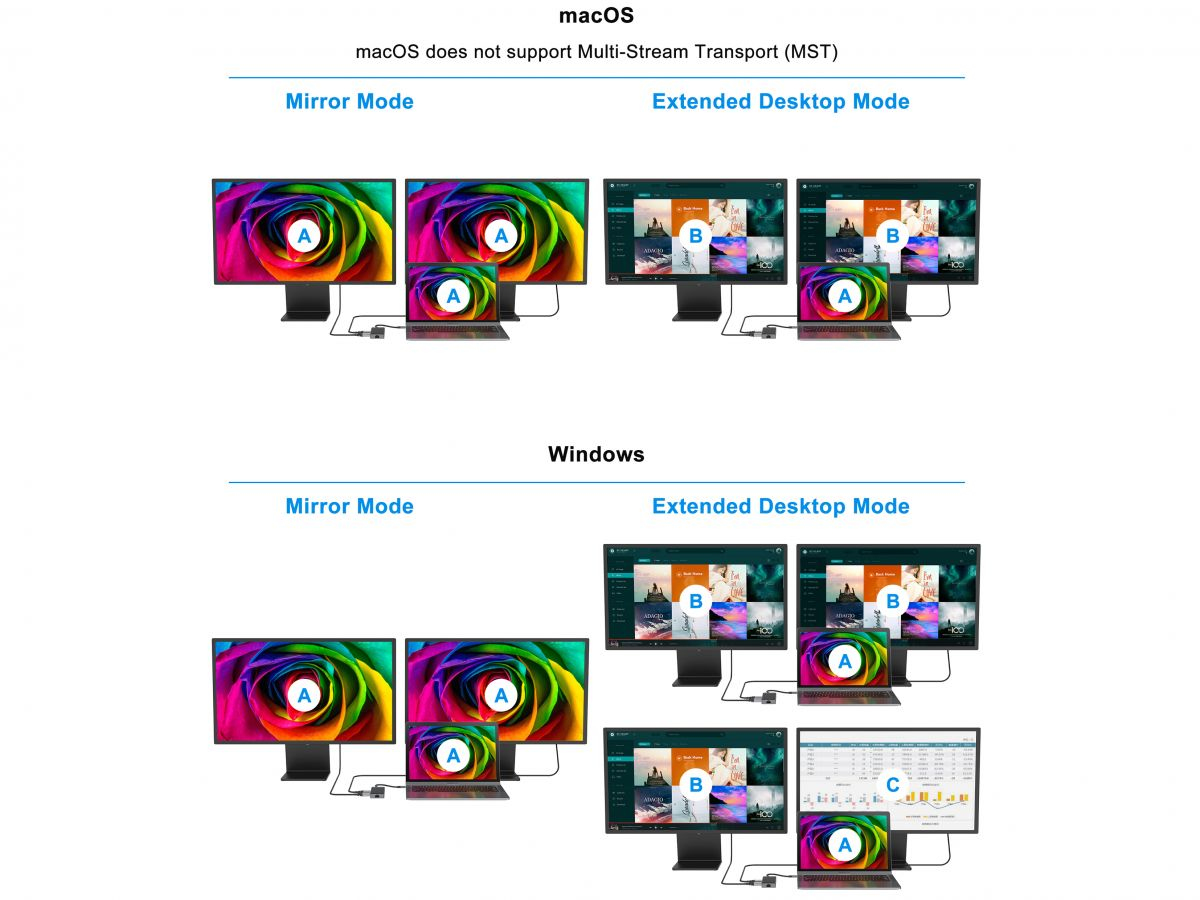

| Number of displays supported | 2 |
| Plug and Play | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| USB cable length | 0.25 m |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43.5 mm |
| Depth | 106.5 mm |
| Height | 16 mm |
| Weight | 65 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 160 mm |
| Package height | 25 mm |
| Package weight | 100 g |
Packaging content
| Specification | Value |
|---|---|

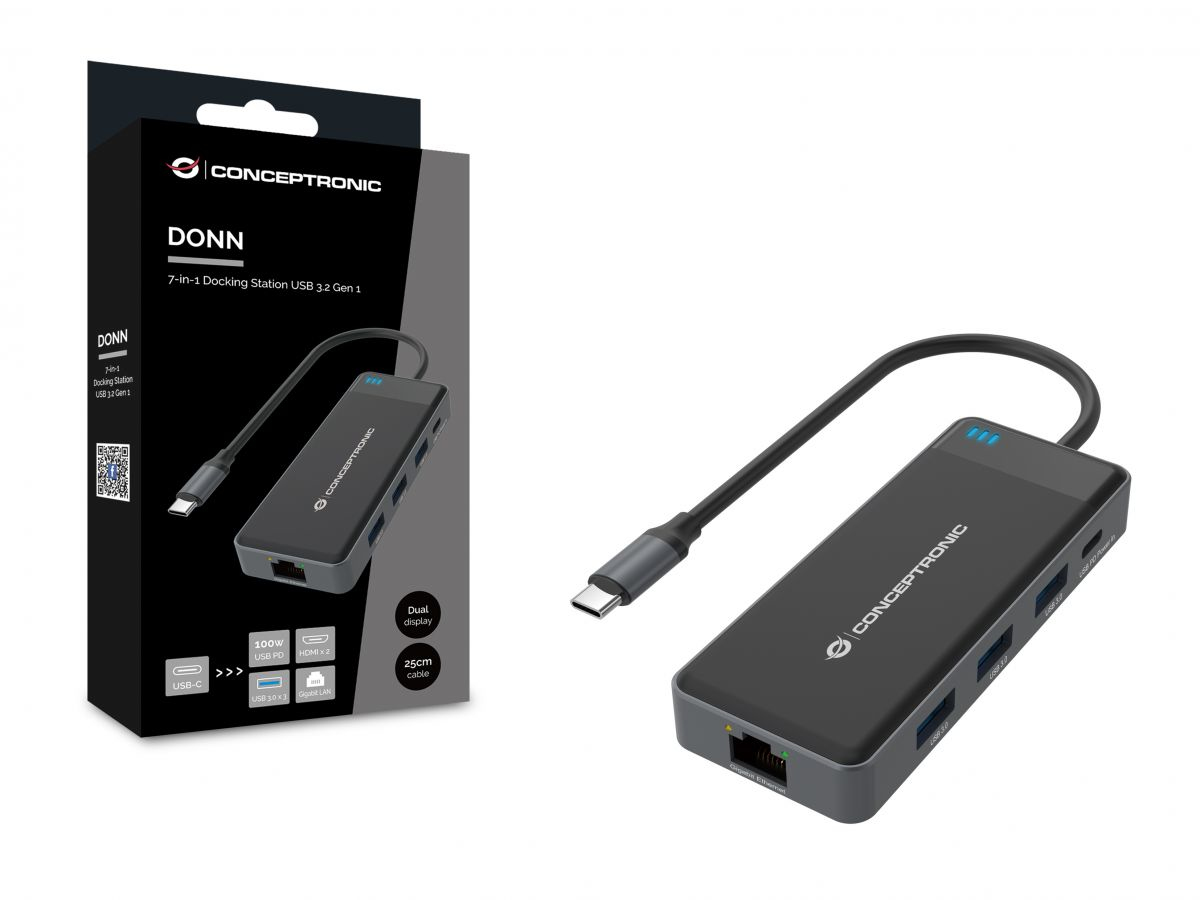

| Quick start guide | Yes |
