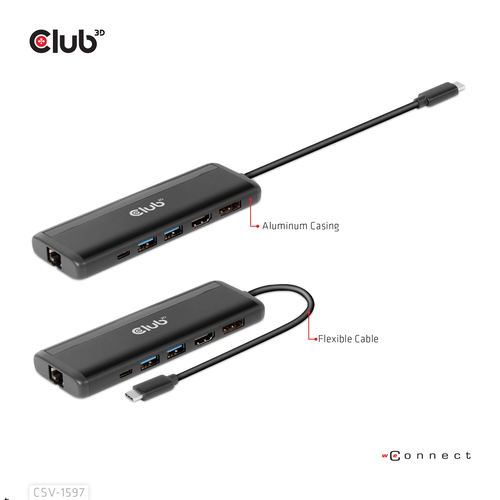

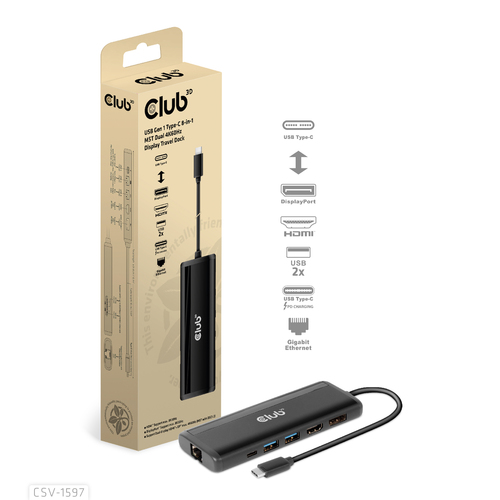

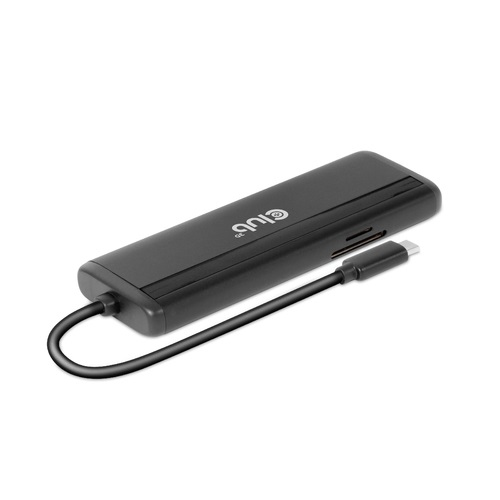

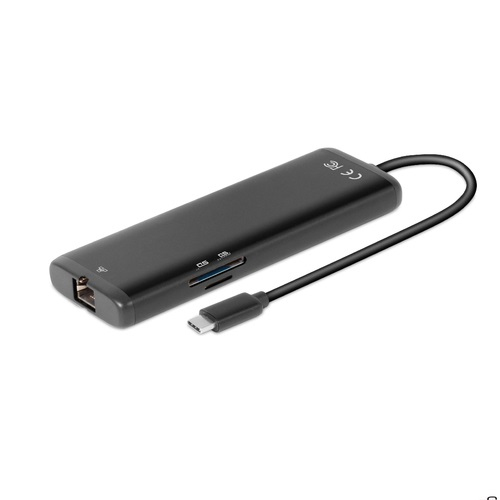

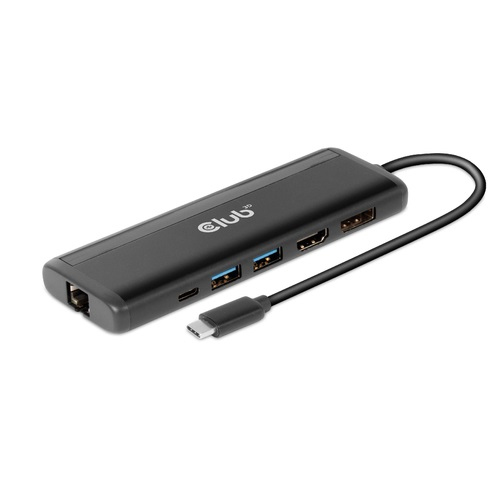

USB Gen 1 Type-C 8-in-1 MST Dual 4K60Hz Display Travel Dock
Model CSV-1597EAN 841615102716
29 specifications
- ConnectivityDocking
- Weight82 g
- ColourBlack
- Ethernet LAN (RJ-45) ports1
- Power supply typeUSB
- Width130 mm
Overview
- Connectivity
- Docking
- Weight
- 82 g
- Colour
- Black
- Ethernet LAN (RJ-45) ports
- 1
- Power supply type
- USB
- Width
- 130 mm
- Brand
- CLUB3D
- Category
- Laptop Docks & Port Replicators
- Model
- CSV-1597
- Part number
- CSV-1597
- EAN / UPC
- 841615102716, 8719214472368
- Also known as
- CLUB3D USB Gen 1 Type-C 8-in-1 MST Dual 4K60Hz Display Travel Dock
Specifications
29 specifications in 8 groups

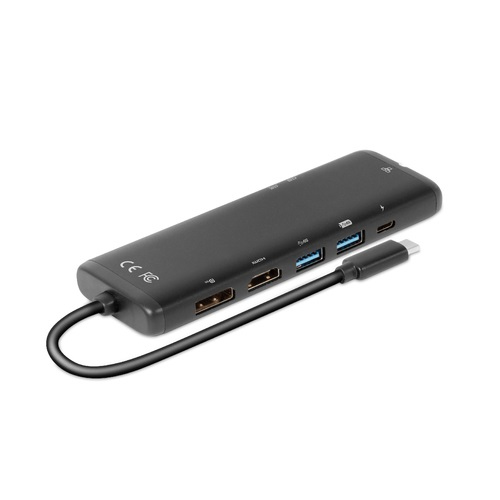

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |

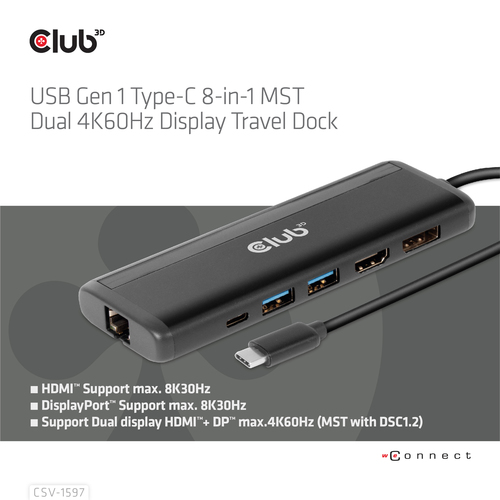

| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Maximum refresh rate | 60 Hz |

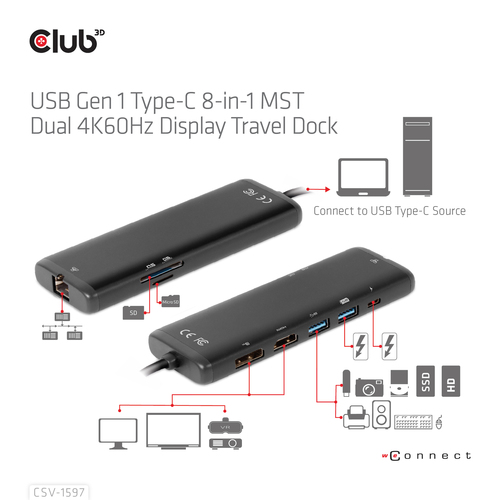

| Hub interfaces | DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |

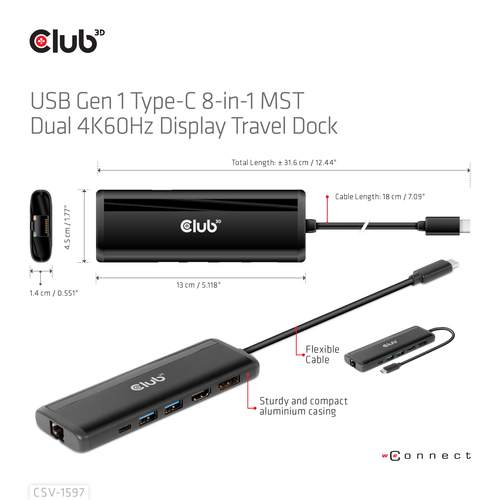

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 45 mm |
| Height | 14 mm |
| Weight | 82 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 80 mm |
| Package height | 35 mm |
| Package weight | 136 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Other features
| Specification | Value |
|---|---|
| Overload protection | Yes |
