USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
Model CSV-1592EAN 841615101658
42 specifications
- ConnectivityDocking
- Weight69 g
- ColourBlack
- Ethernet LANYes
- Power source typeUSB
- Width136 mm
Overview
- Connectivity
- Docking
- Weight
- 69 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Width
- 136 mm
- Brand
- CLUB3D
- Category
- Laptop Docks & Port Replicators
- Model
- CSV-1592
- Part number
- CSV-1592
- EAN / UPC
- 841615101658, 8719214471477
- Also known as
- CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3
Specifications
42 specifications in 10 groups

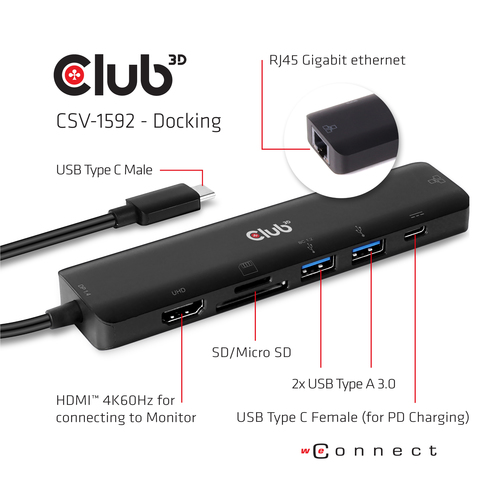

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Microphone in | No |
| Headphone outputs | 0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Charging function | Yes |
| Plug and Play | Yes |
| Country of origin | China |
| Compatibility | Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer |
| Certification | FCC, CE EMI |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|

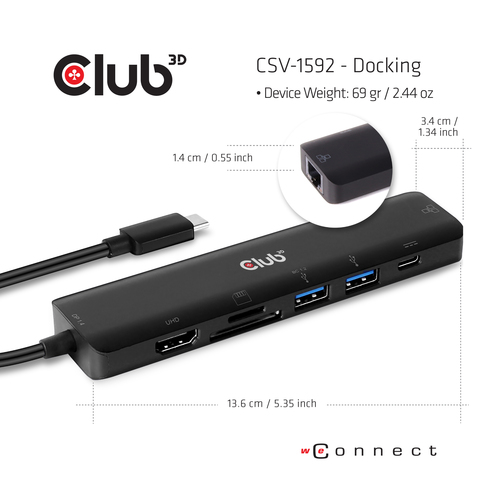

| Width | 136 mm |
| Depth | 34 mm |
| Height | 14 mm |
| Weight | 69 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 320 mm |
| Package depth | 60 mm |
| Package height | 30 mm |
| Package weight | 110 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
