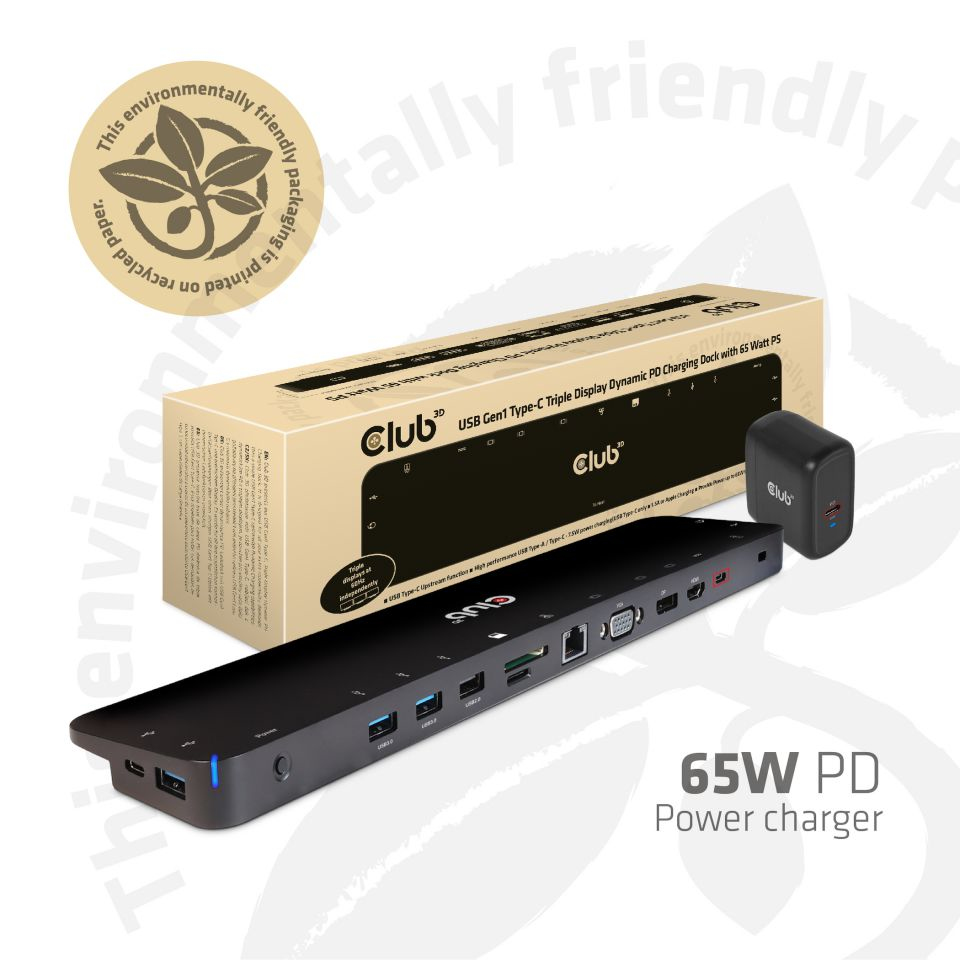

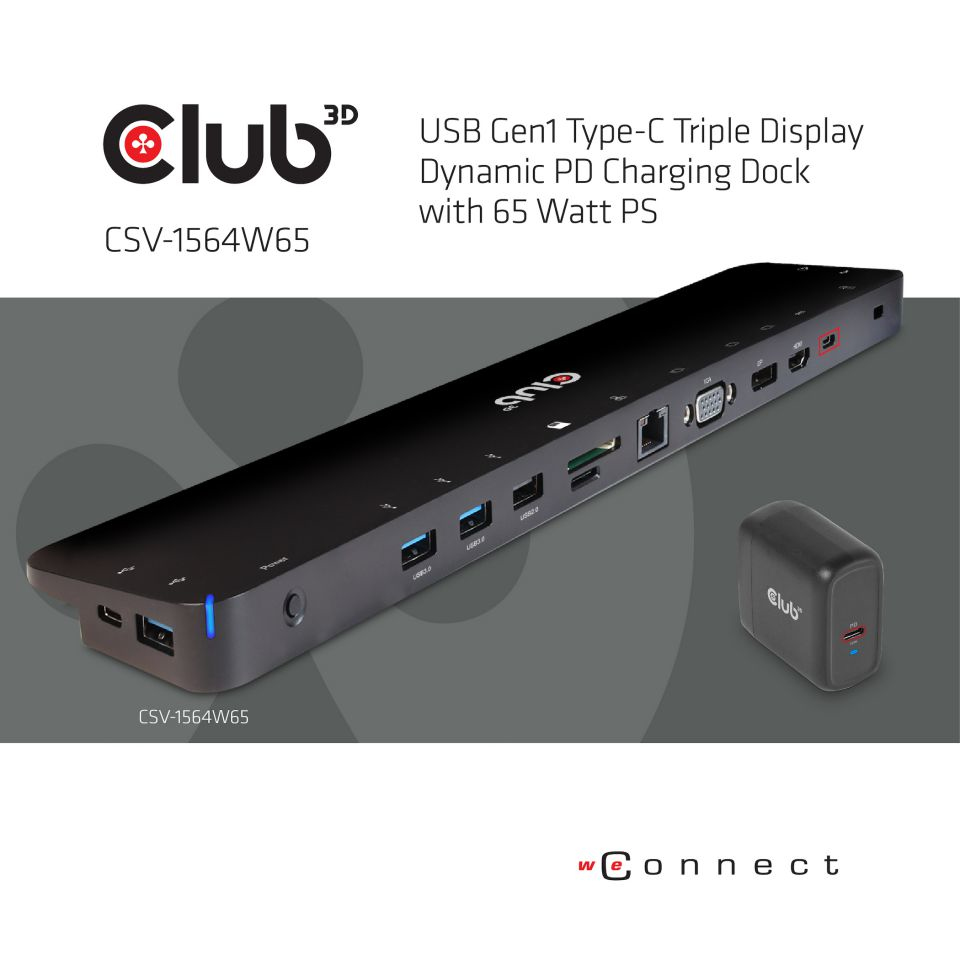

UNIVERSAL USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS ( VGA, HDMI, DP, ETHERNET)
Model CSV-1564W65EAN 841615102327
42 specifications
- ConnectivityDocking
- Weight616 g
- ColourBlack
- Ethernet LANYes
- Power source typeAC
- Width350 mm
Overview
- Connectivity
- Docking
- Weight
- 616 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 350 mm
- Brand
- CLUB3D
- Category
- Laptop Docks & Port Replicators
- Model
- CSV-1564W65
- Part number
- CSV-1564W65
- EAN / UPC
- 841615102327, 8719214472108
- Also known as
- CLUB3D UNIVERSAL USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS ( VGA, HDMI, DP, ETHERNET)
Specifications
42 specifications in 10 groups

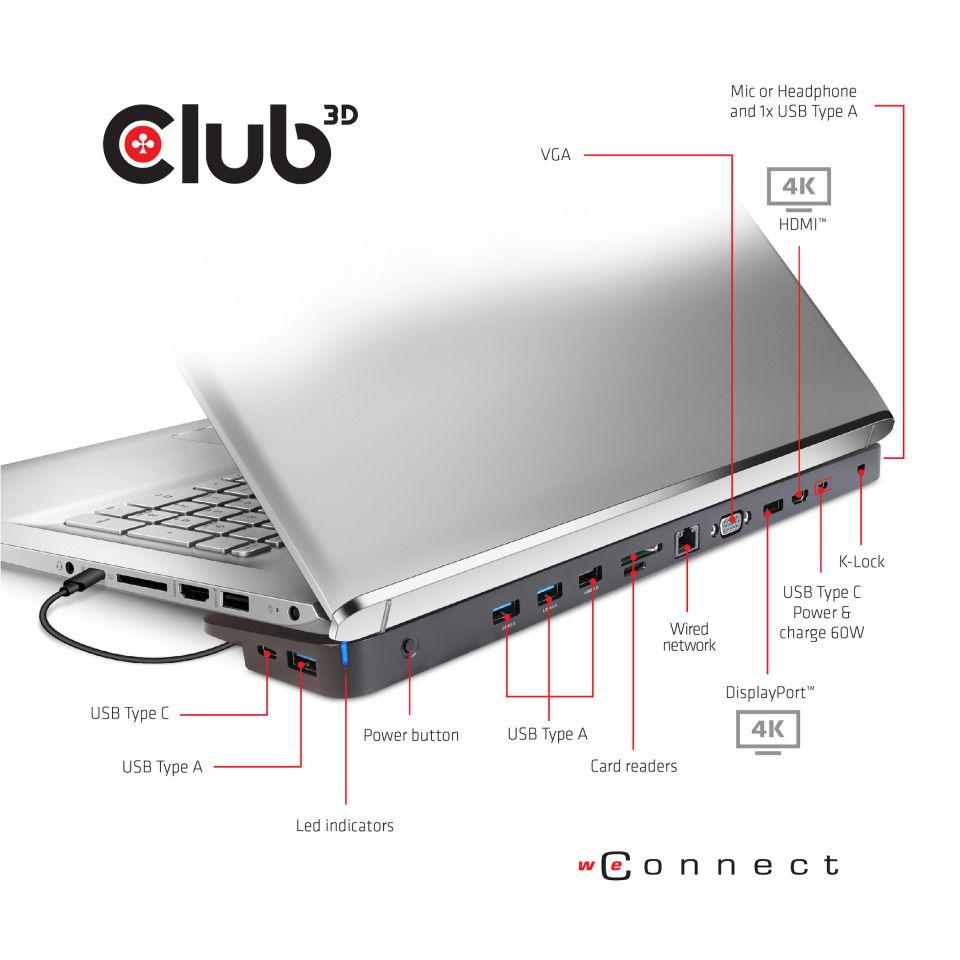

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| PowerShare | Yes |
| USB Power Delivery (USB PD) | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-TX |
| Networking standards | IEEE 802.3 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |

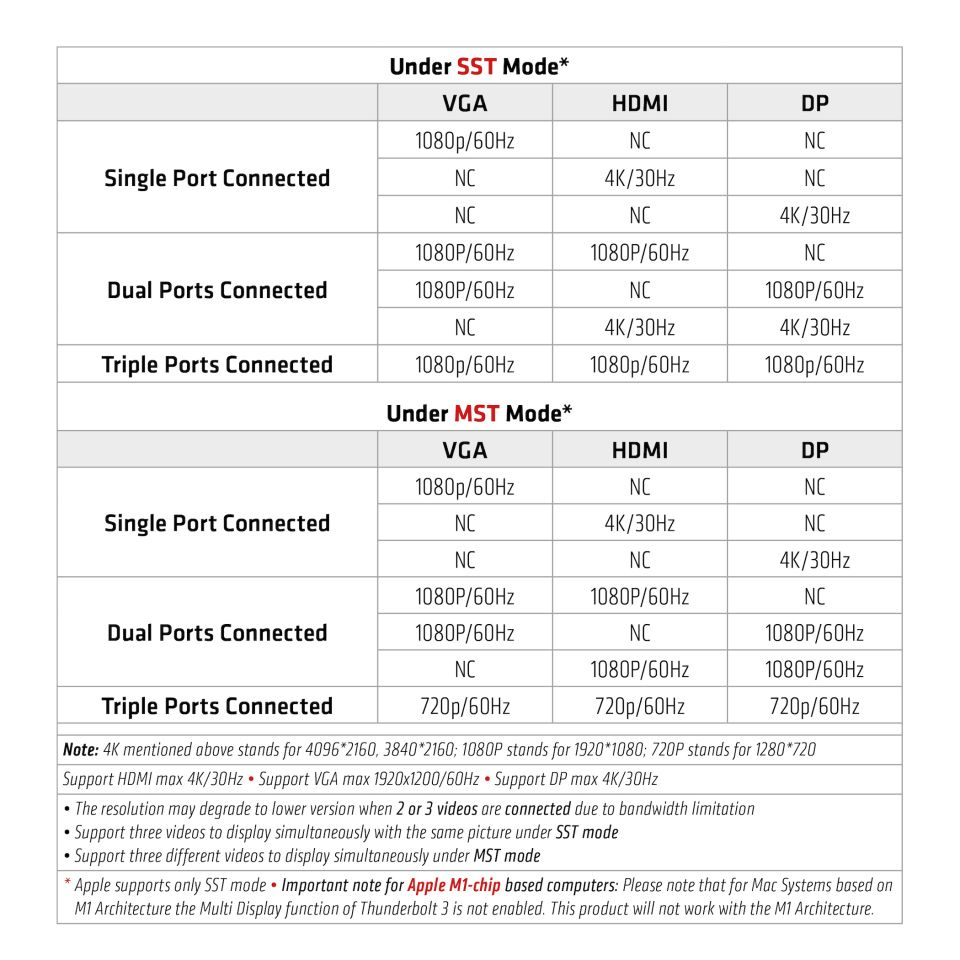

| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power connector | USB Type-C |
| Power supply | 100 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 350 mm |
| Depth | 75 mm |
| Height | 20 mm |
| Weight | 616 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-C |
Packaging composition
| Specification | Value |
|---|---|
| Paper/cardboard packaging weight | 239 g |
| Plastic packaging weight | 5 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8473 3020 |
