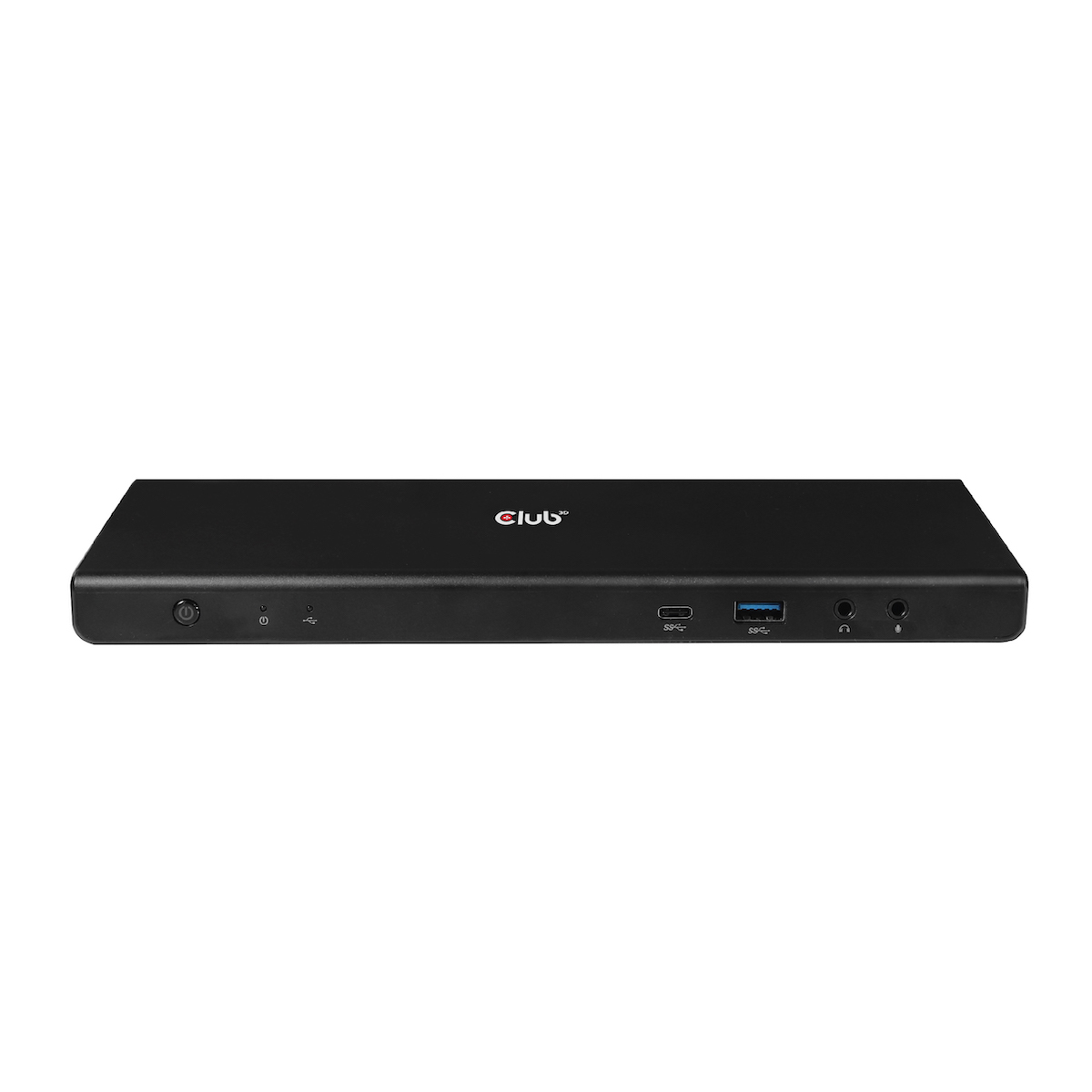

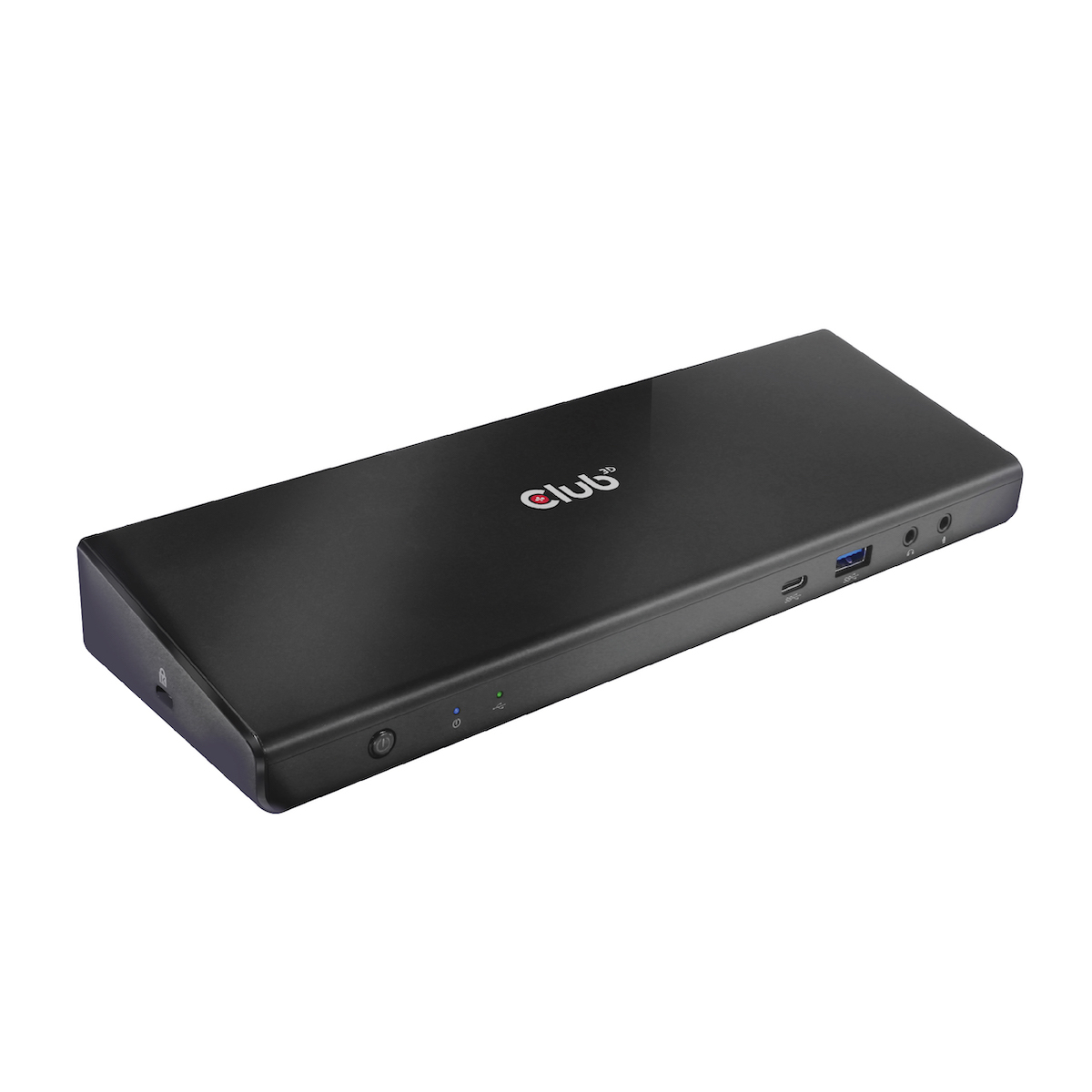

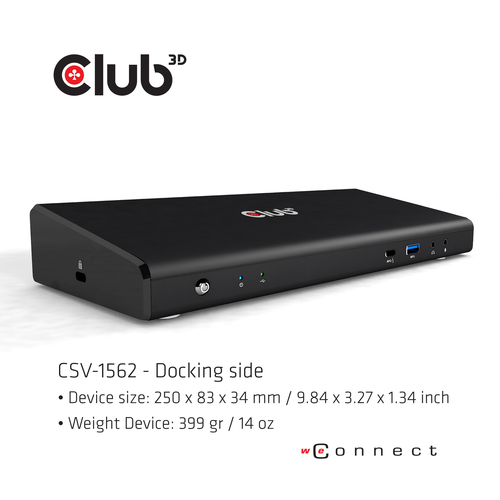

CLUB3D The CSV-1562 is an USB3.2 Gen1 Type-C Universal Triple 4K30Hz Charging Docking Station and is DisplayLink® Certified. The Universal Charging Dock
CLUB3D

The CSV-1562 is an USB3.2 Gen1 Type-C Universal Triple 4K30Hz Charging Docking Station and is DisplayLink® Certified. The Universal Charging Dock

Model CSV-1562EAN 8719214471293

52 specifications
  • ConnectivityDocking
  • Weight399 g
  • ColourBlack
  • Ethernet LANYes
  • Windows operating systems supportedWindows 10, Windows 11
  • Width250 mm
See all specifications

Overview

Connectivity
Docking
Weight
399 g
Colour
Black
Ethernet LAN
Yes
Windows operating systems supported
Windows 10, Windows 11
Width
250 mm
Brand
CLUB3D
Model
CSV-1562
Part number
CSV-1562
EAN / UPC
8719214471293
Also known as
CLUB3D The CSV-1562 is an USB3.2 Gen1 Type-C Universal Triple 4K30Hz Charging Docking Station and is DisplayLink® Certified. The Universal Charging Dock

Specifications

52 specifications in 11 groups

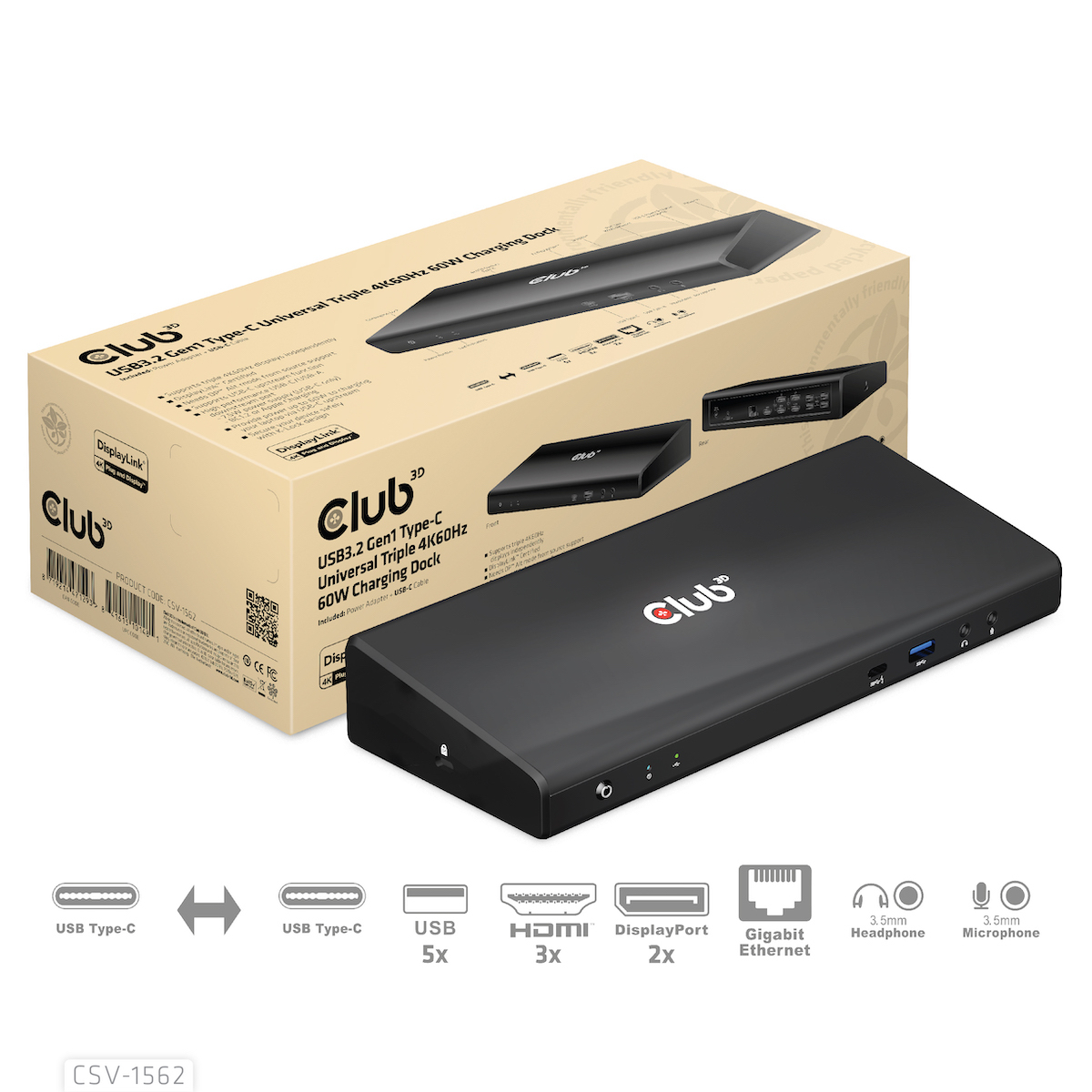

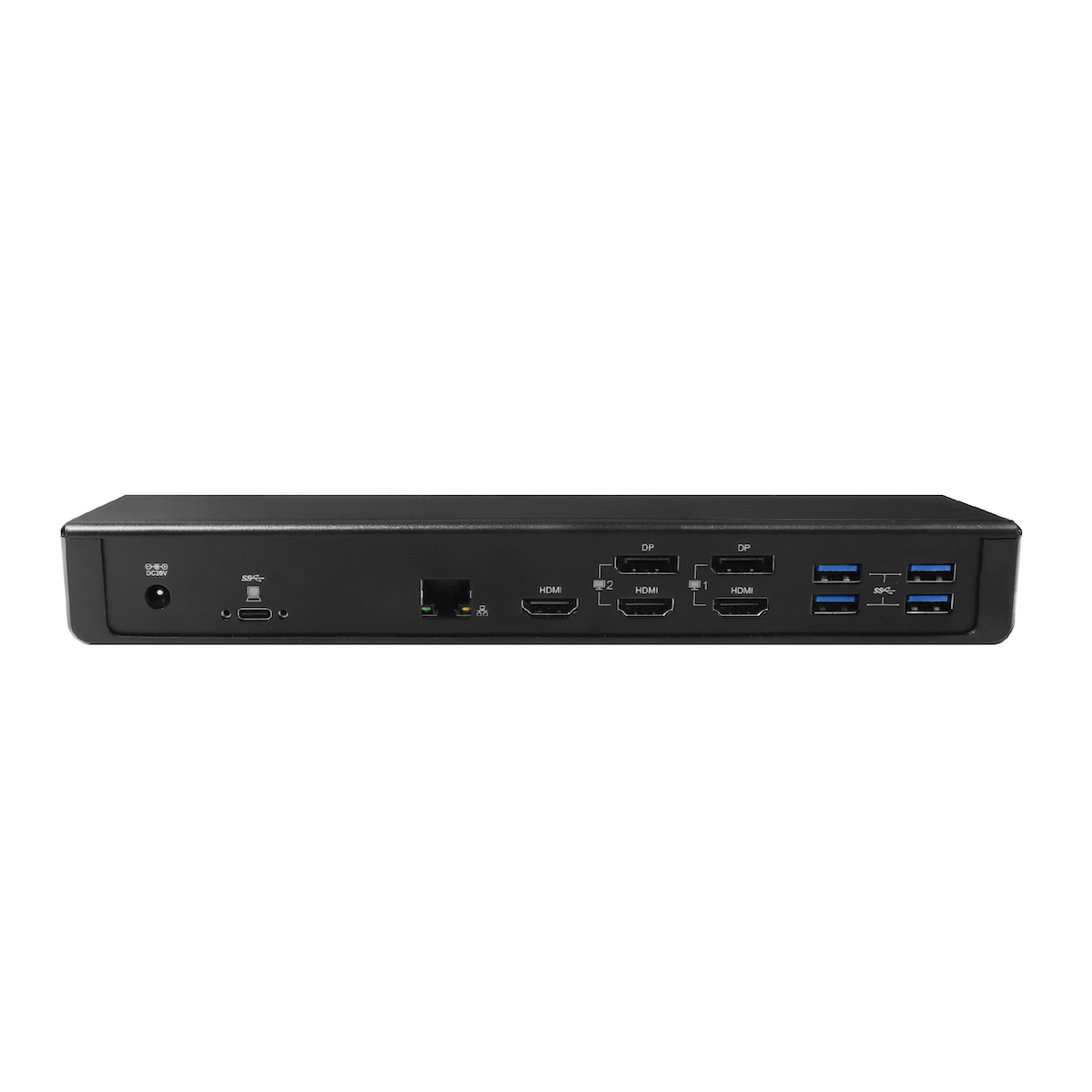

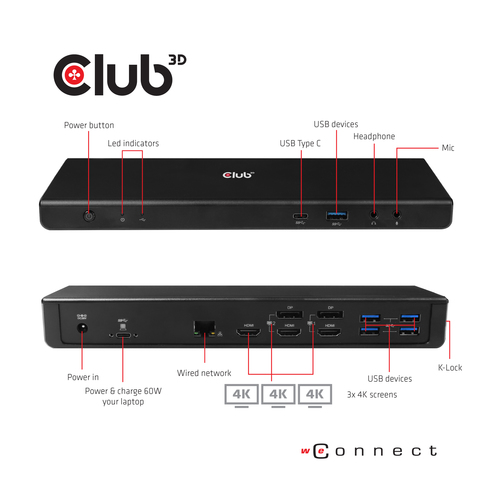

Ports & interfaces

Connectivity technologyDocking
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB Power Delivery (USB PD)Yes
HDMI ports quantity3
HDMI version2.0
DisplayPorts quantity2
Microphone inYes
Combo headphone/mic portNo
Headphone outputs1
Headphone connectivity3.5 mm
Line-inNo
Line-outNo
DC-in jackYes
USB connector typeUSB Type-A, USB Type-C

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Performance

Product colourBlack

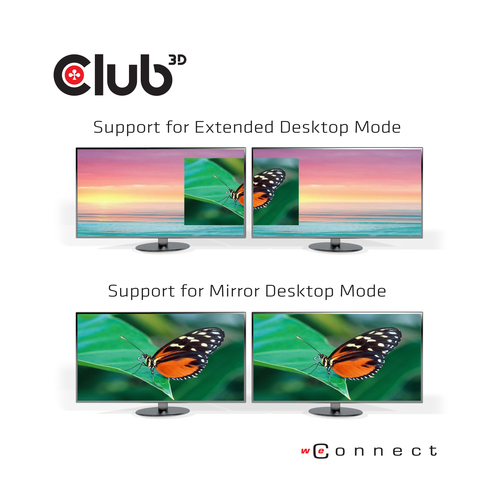

Number of displays supported3
Charging functionYes
LED indicatorsPower
Country of originChina
CompatibilityLenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer
CertificationFCC, CE and EMI

Software

Windows operating systems supportedWindows 10, Windows 11
Mac compatibilityYes

Weight & dimensions

Width250 mm
Depth83 mm
Height43 mm
Weight399 g

Packaging data

Package width298 mm
Package depth92 mm
Package height150 mm
Package weight282 g

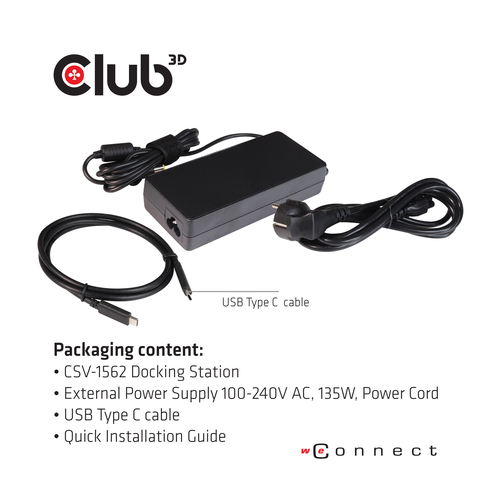

Packaging content

Mounting brackets includedNo
Travel caseNo
AC adapter includedYes
Anti-slip padsNo
Cables includedUSB Type-C to USB Type-C
Drivers includedYes
ManualYes

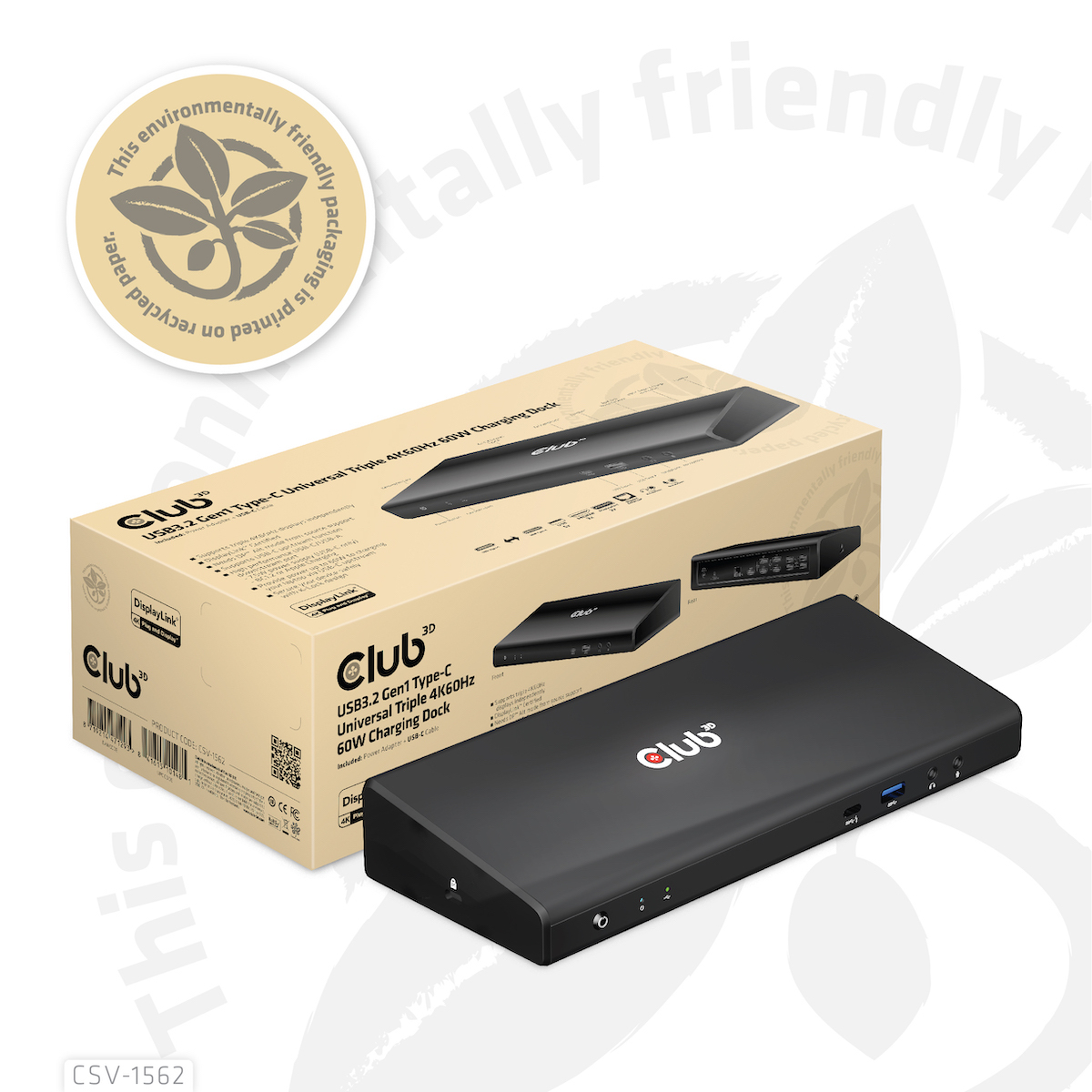

Packaging composition

Paper/cardboard packaging weight229 g
Plastic packaging weight5 g
Total paper/cardboard packaging weight0 g
Total plastic packaging weight0 g

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code8473 3020

Other features

USB data transfer rates5000 Mbit/s
