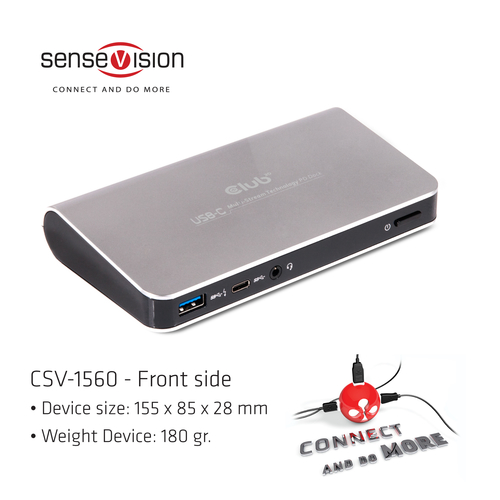

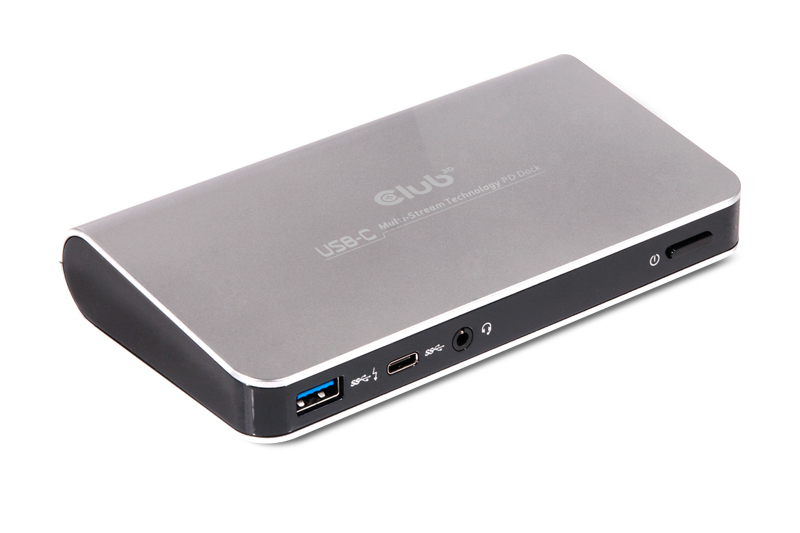

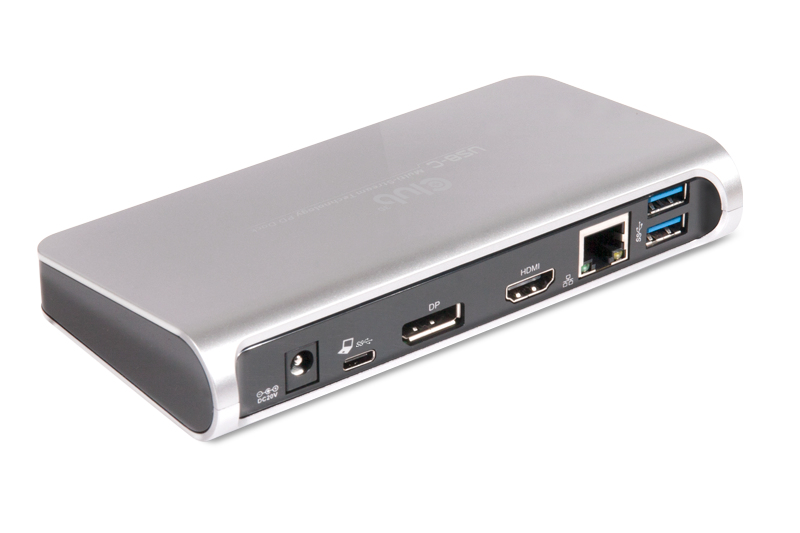

CLUB3D USB Type C MST Charging Dock

CLUB3D USB Type C MST Charging Dock

Model csv-1560Part no. CSV-1560EAN 841615100774

42 specifications
  • ConnectivityWired
  • Weight180 g
  • ColourAluminium, Black, Grey
  • Ethernet LANYes
  • Power source typeAC
  • Width155 mm
See all specifications

Overview

Connectivity
Wired
Weight
180 g
Colour
Aluminium, Black, Grey
Ethernet LAN
Yes
Power source type
AC
Width
155 mm
Brand
CLUB3D
Model
csv-1560
Part number
CSV-1560
EAN / UPC
841615100774, 8719214470593
Also known as
CLUB3D USB Type C MST Charging Dock

Specifications

42 specifications in 10 groups

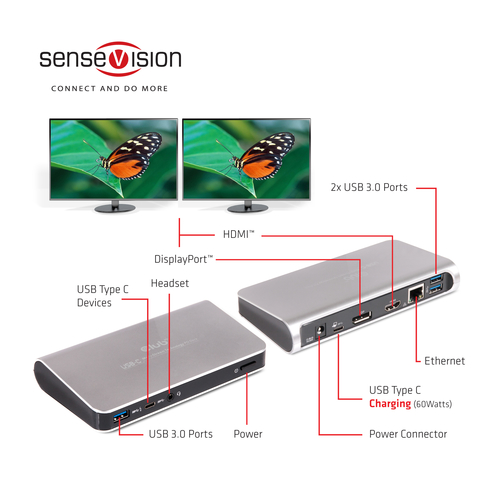

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version1.4a
DisplayPorts quantity1
Microphone inYes
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes

Performance

Product colourAluminium, Black, Grey
Card reader integratedNo
Maximum digital resolution3840 x 2160 pixels

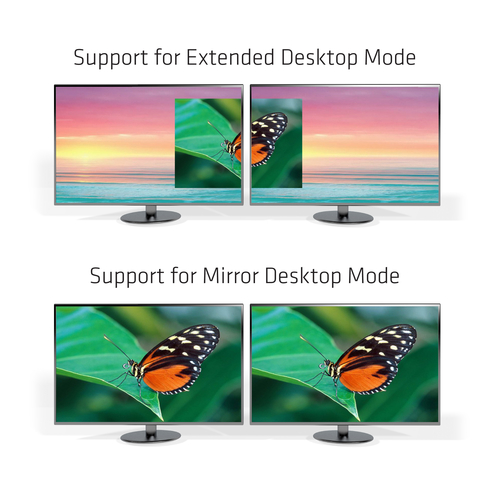

Number of displays supported2
Charging functionYes
Reset buttonYes
CompatibilityUpstream Chargign Power Delivery up to 60 Watts
CertificationFCC, CE ROHS

Power

Power source typeAC

Software

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professi
Mac compatibilityYes

Weight & dimensions

Width155 mm
Depth85 mm
Height (front)2.8 cm
Weight180 g

Packaging data

Package width210 mm
Package depth128 mm
Package height108 mm

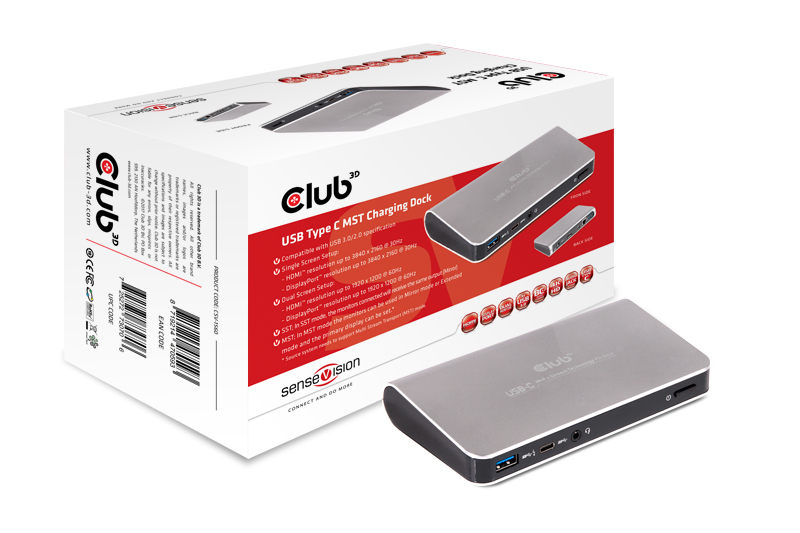

Packaging content

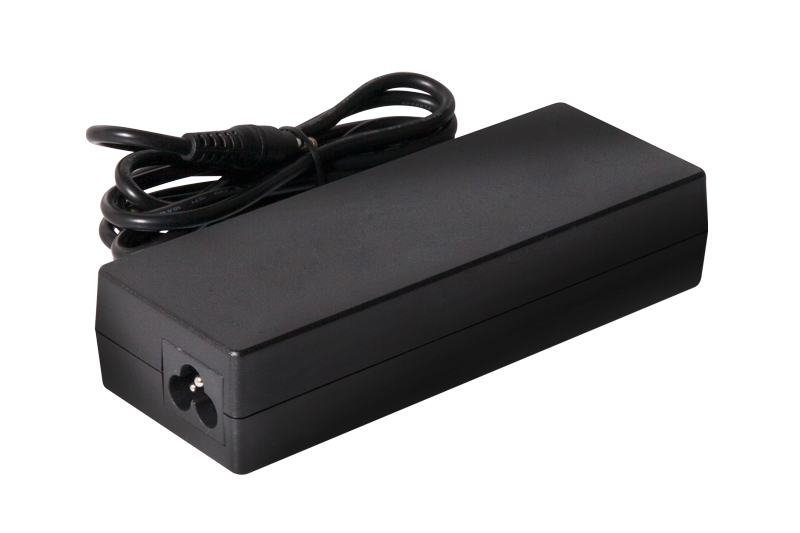

AC adapter includedYes
Cables includedUSB Type-C
Drivers includedYes
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

USB data transfer rates5000 Mbit/s
