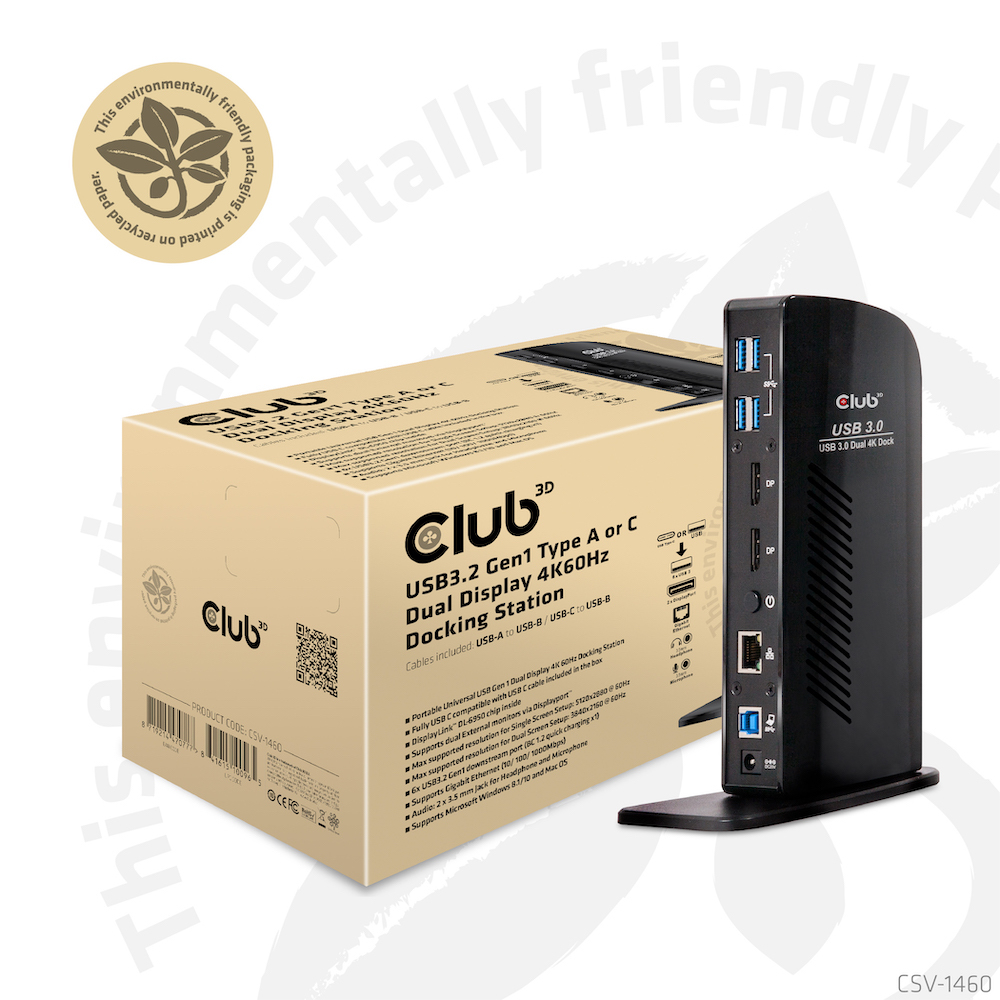

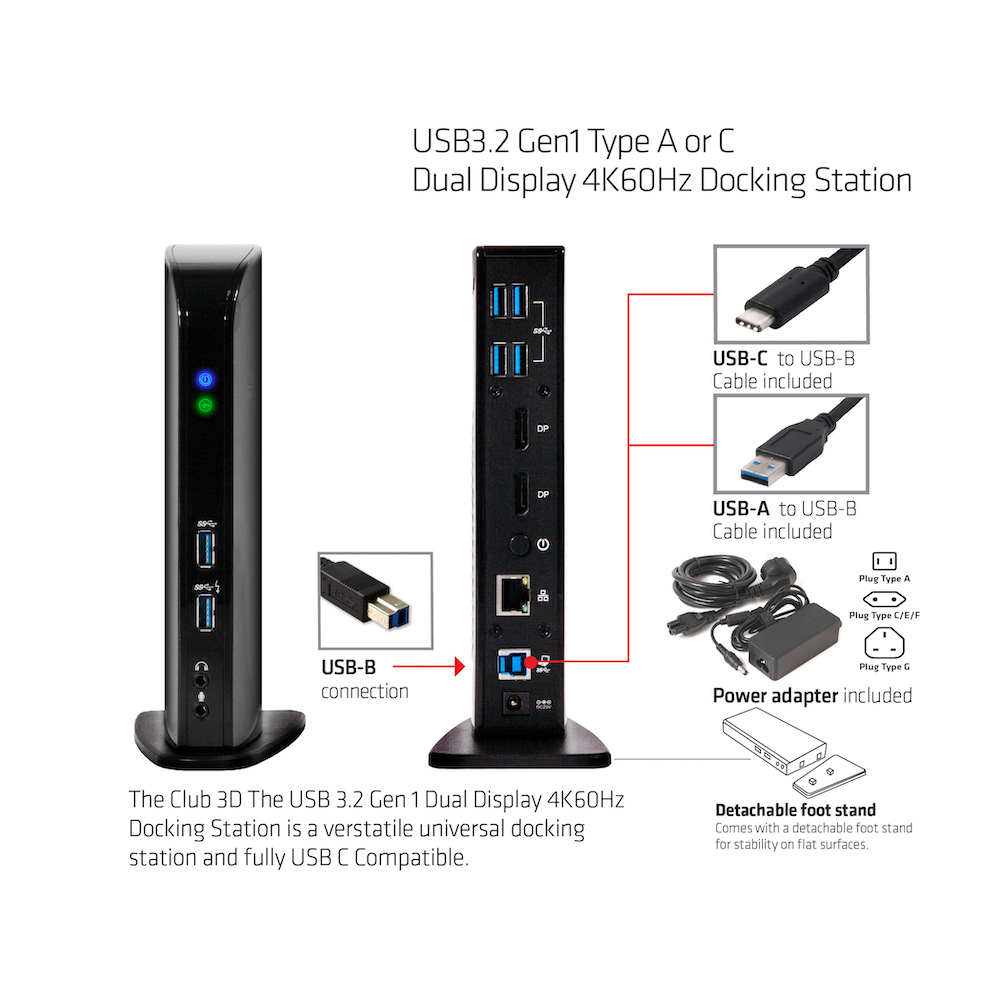

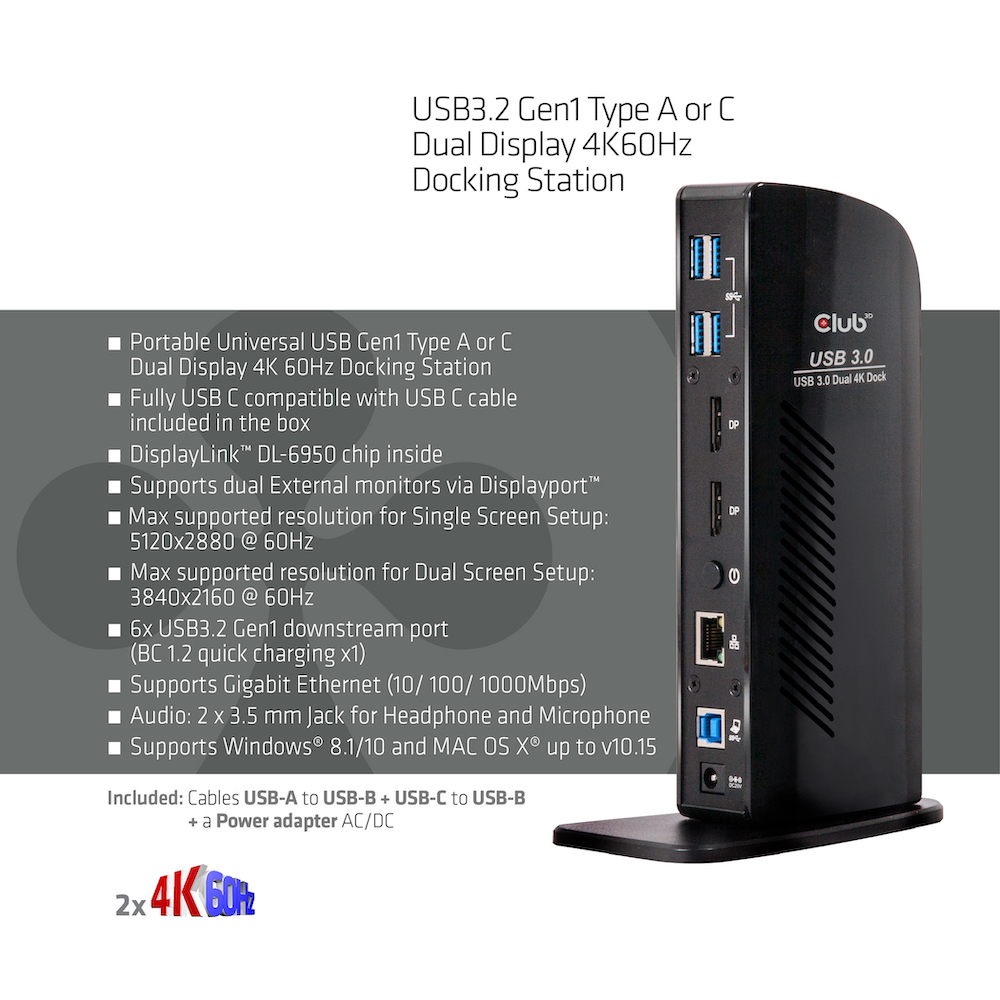

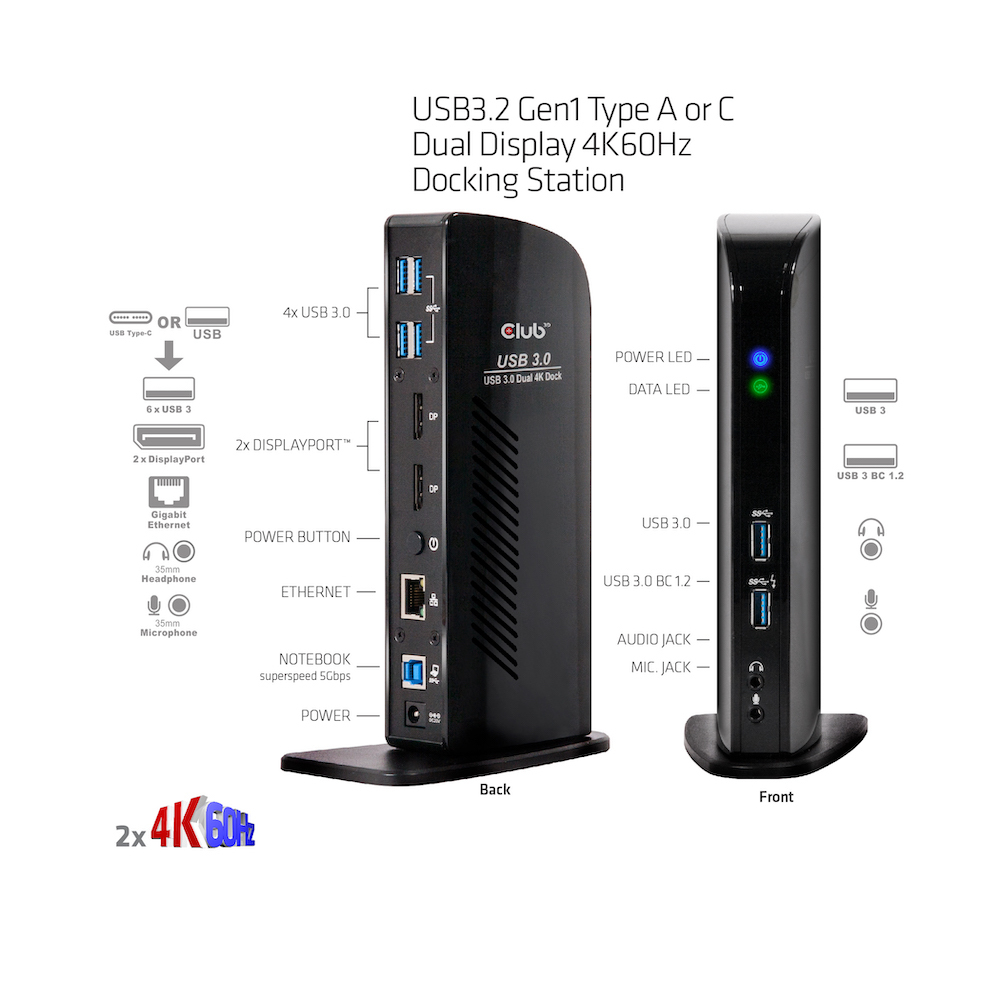

USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station DisplayLink® Certified
Model CSV-1460EAN 841615100965
50 specifications
- ConnectivityDocking
- Weight395 g
- ColourBlack
- Ethernet LANYes
- Power source typeDC
- Windows operating systems supportedWindows 10, Windows 7, Windows 8
Overview
- Connectivity
- Docking
- Weight
- 395 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- DC
- Windows operating systems supported
- Windows 10, Windows 7, Windows 8
- Brand
- CLUB3D
- Category
- Laptop Docks & Port Replicators
- Model
- CSV-1460
- Part number
- CSV-1460
- EAN / UPC
- 841615100965, 8719214470777
- Also known as
- CLUB3D USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station DisplayLink® Certified
Specifications
50 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Maximum digital resolution | 5120 x 2880 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| On/off switch | Yes |
| Charging function | Yes |
| Country of origin | China |
| Compatibility | Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer |
| Certification | FCC, CE, ROHS, WEEE |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 5 V |
| USB cable length | 1 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 35 mm |
| Height | 195 mm |
| Weight | 395 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 130 mm |
| Package depth | 212 mm |
| Package height | 130 mm |
| Package weight | 1.03 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB, USB Type-C |
| Drivers included | Yes |
| Manual | Yes |
| Stand included | Yes |
Packaging composition
| Specification | Value |
|---|---|
| Paper/cardboard packaging weight | 362 g |
| Plastic packaging weight | 5 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8473 3020 |
