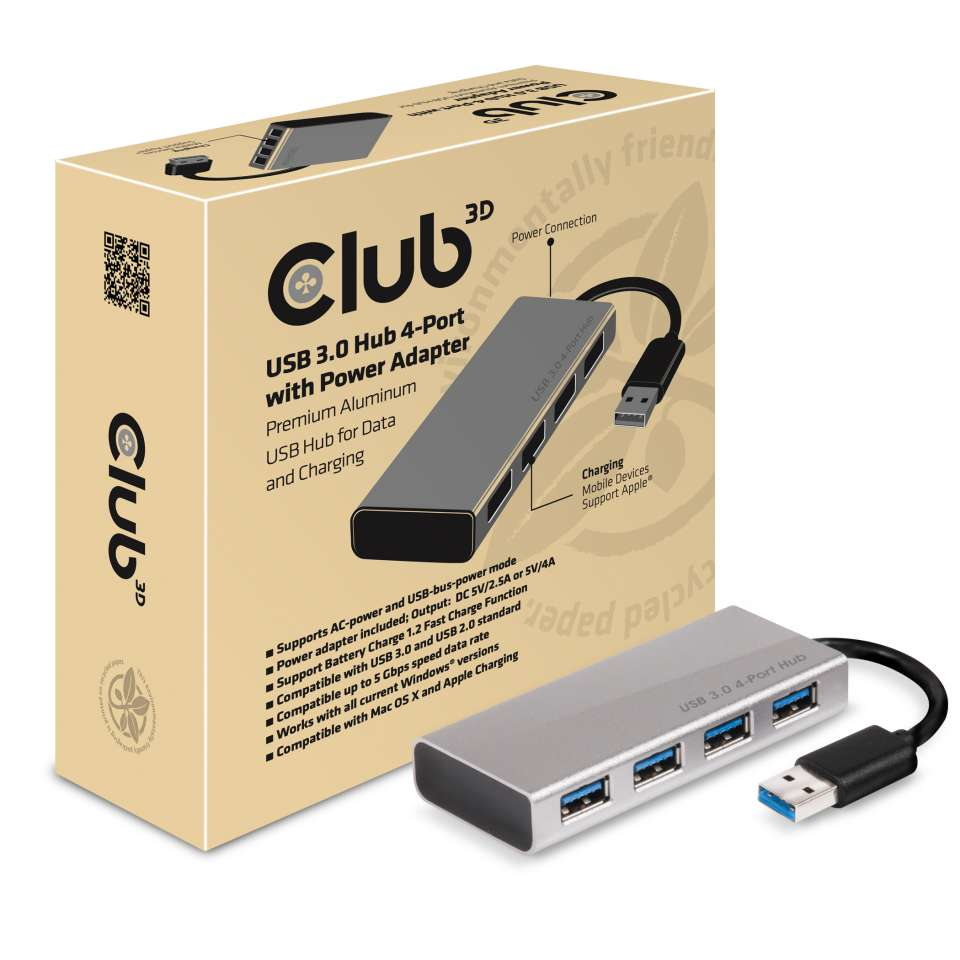

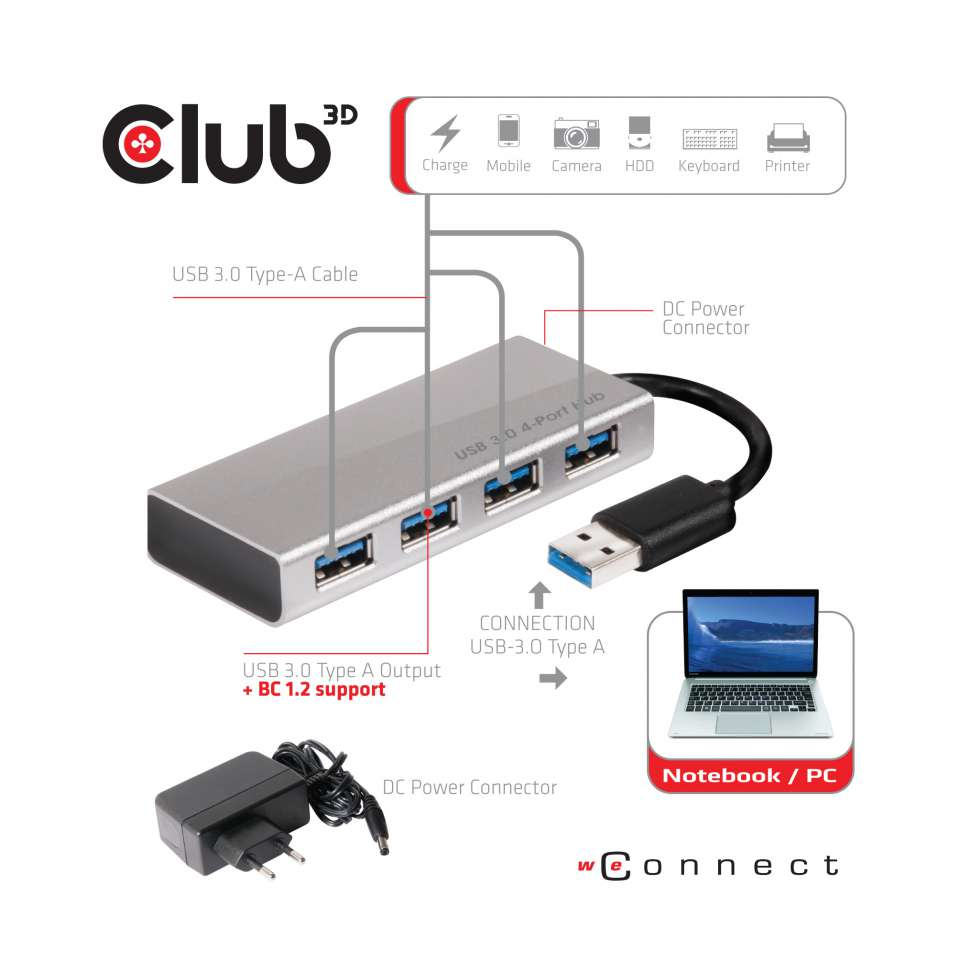

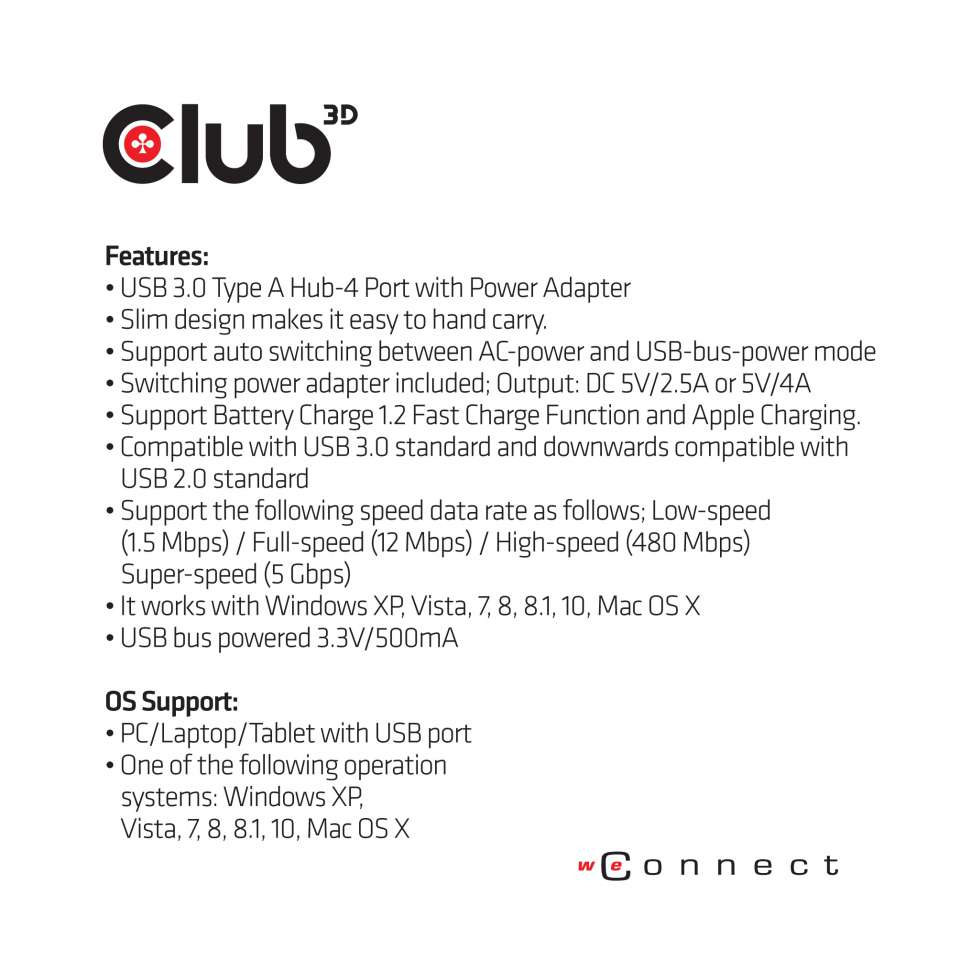

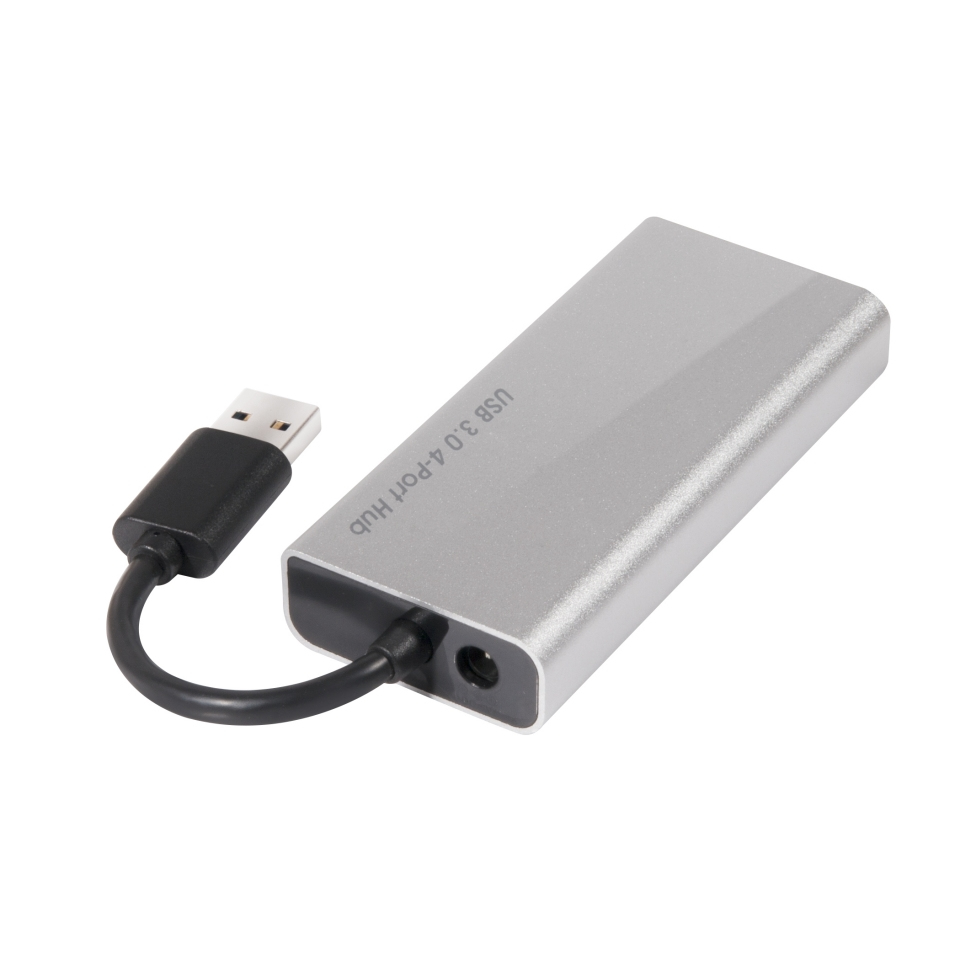

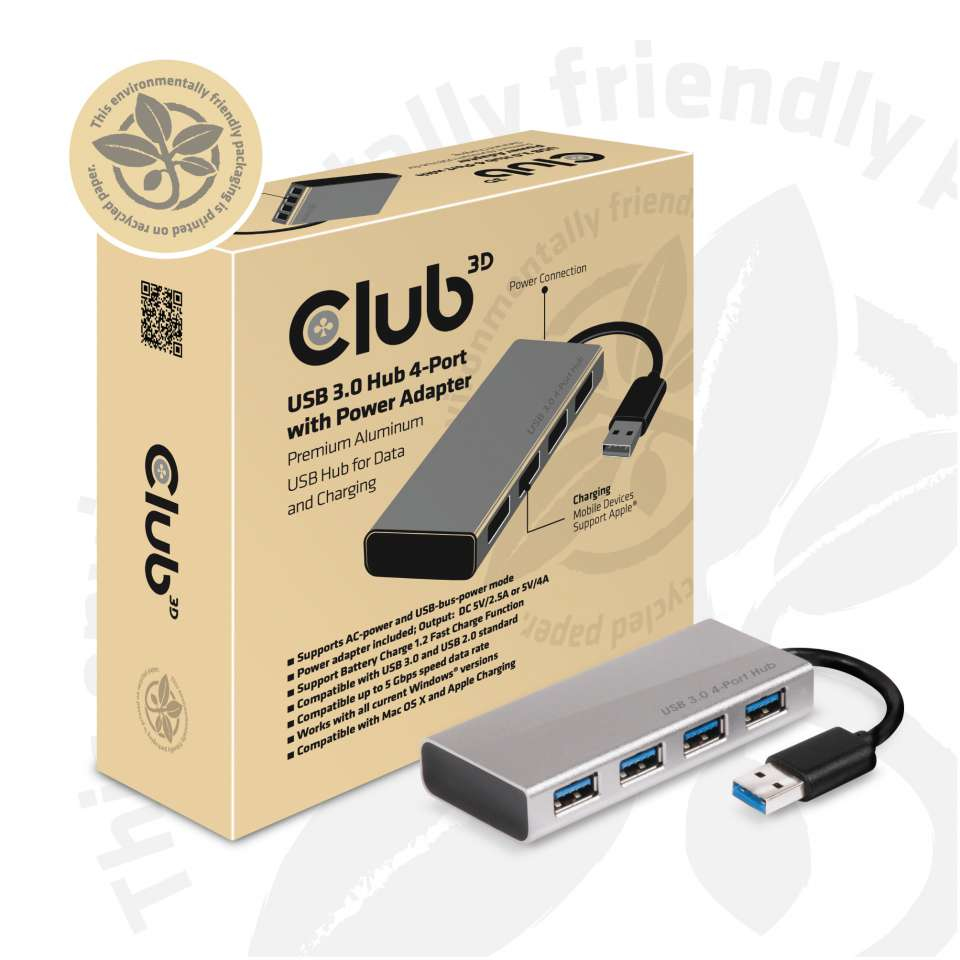

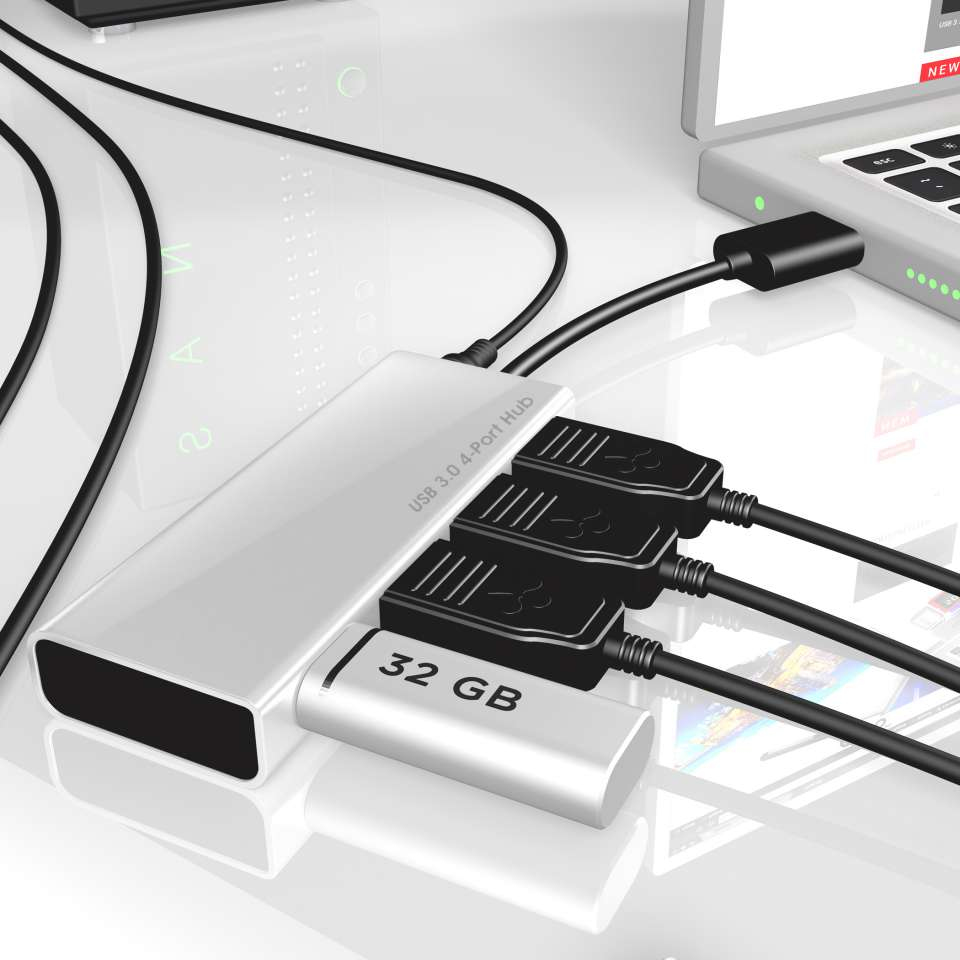

CLUB3D USB 3.0 Hub 4-Port with Power Adapter
Model csv-1431Part no. CSV-1431EAN 841615100224
34 specifications
- ConnectivityDocking
- Weight70 g
- ColourBlack, Silver
- Ethernet LANNo
- Power source typeAC, USB
- Windows operating systems supportedWindows 10
Overview
- Connectivity
- Docking
- Weight
- 70 g
- Colour
- Black, Silver
- Ethernet LAN
- No
- Power source type
- AC, USB
- Windows operating systems supported
- Windows 10
- Brand
- CLUB3D
- Category
- Laptop Docks & Port Replicators
- Model
- csv-1431
- Part number
- CSV-1431
- EAN / UPC
- 841615100224, 5057454452393, 8719214470128
- Also known as
- CLUB3D USB 3.0 Hub 4-Port with Power Adapter
Specifications
34 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 0 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Charging function | Yes |
| Certification | FCC, CE, ROHS |
Power
| Specification | Value |
|---|---|
| Power source type | AC, USB |
| Output current | 4 A |
| Output voltage | 5 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Mac compatibility | Yes |

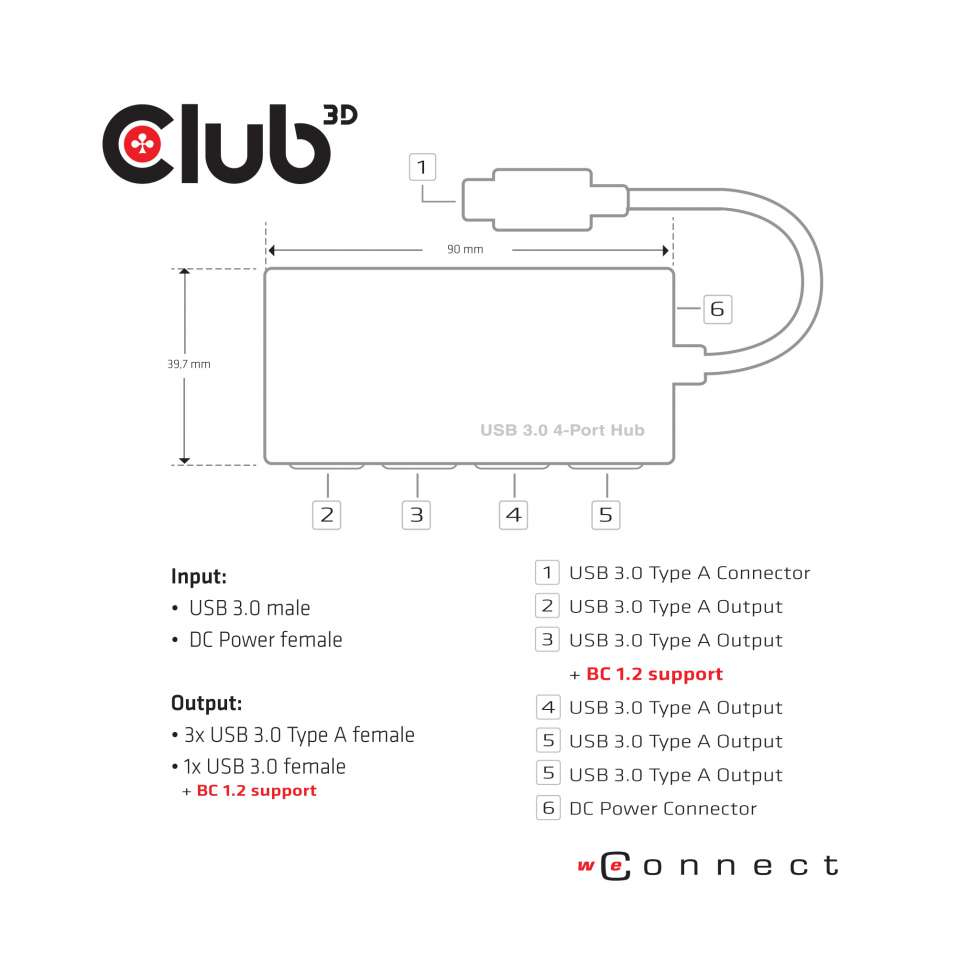

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 91 mm |
| Depth | 16 mm |
| Height | 45 mm |
| Weight | 70 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 135 mm |
| Package depth | 45 mm |
| Package height | 135 mm |
Packaging content
| Specification | Value |
|---|---|

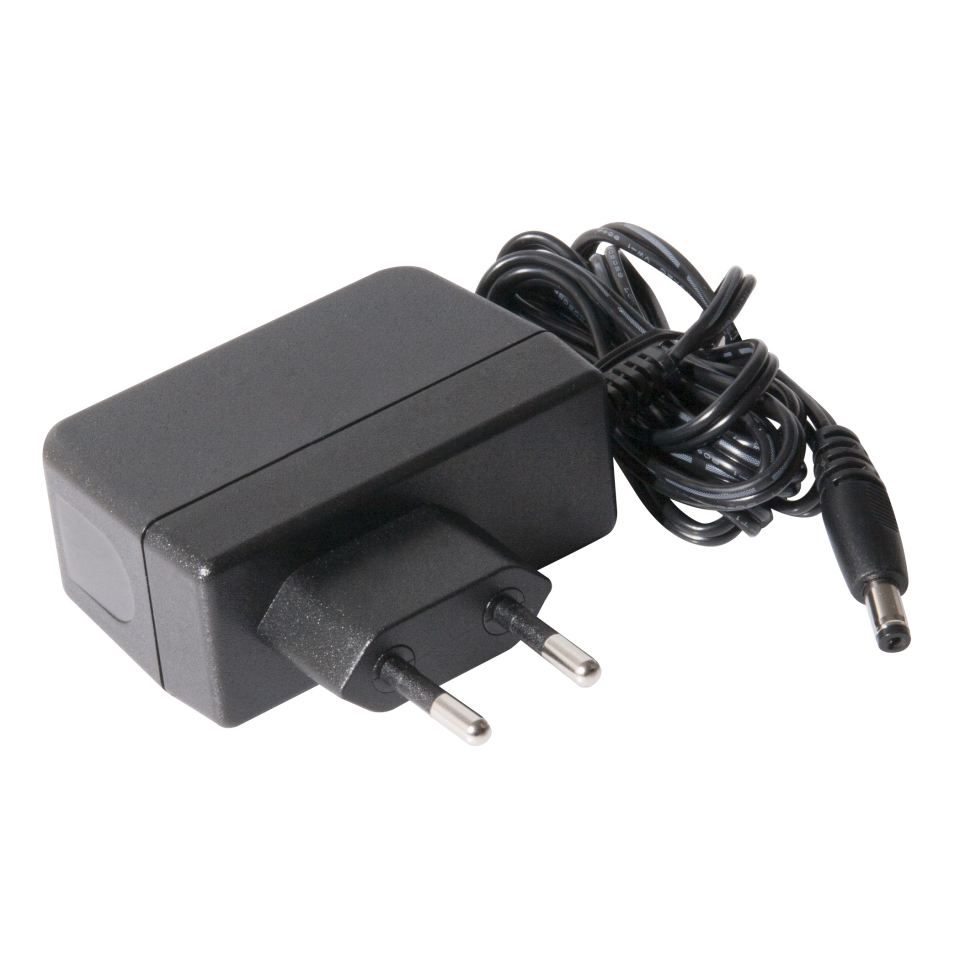

| AC adapter included | Yes |
| Drivers included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| USB data transfer rates | 5000 Mbit/s |
Compare CLUB3D USB 3.0 Hub 4-Port with Power Adapter

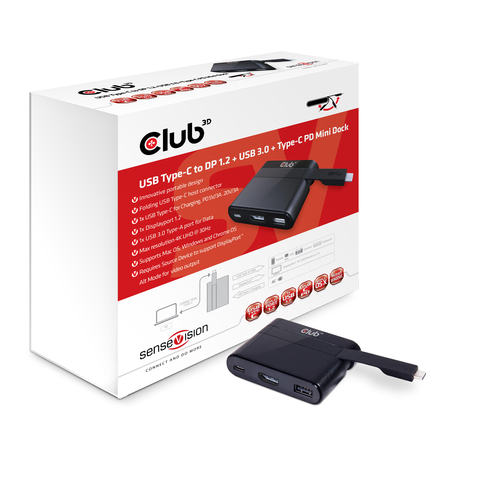

Compare any products- CLUB3D USB 3.0 Hub 4-Port with Power Adapter vsCLUB3D Mini Dock USB Type-C to Displayport1.2 + USB3.0 + USB Type C ChargingCompare specs

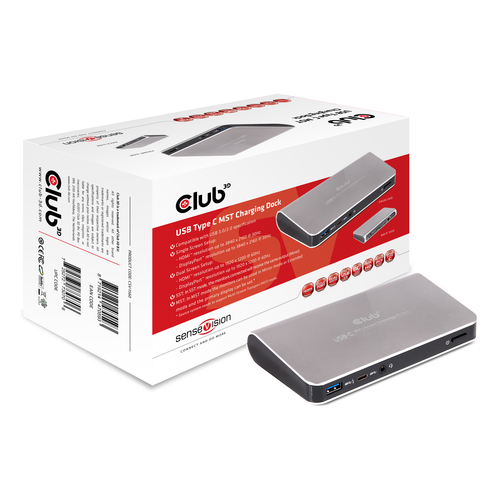

- CLUB3D USB 3.0 Hub 4-Port with Power Adapter vsCLUB3D USB Type C MST Charging DockCompare specs

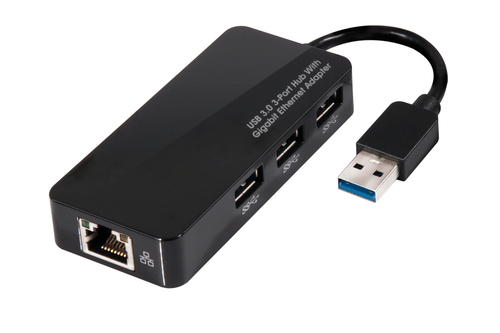

- CLUB3D USB 3.0 Hub 4-Port with Power Adapter vsCLUB3D USB 3.0 Hub 3-Port with Gigabit EthernetCompare specs

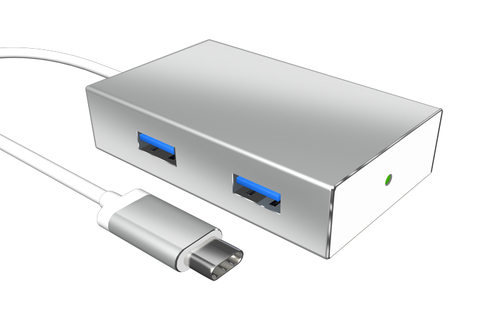

- CLUB3D USB 3.0 Hub 4-Port with Power Adapter vsCLUB3D The Club 3D CSV-1541 USB 3.1 Gen 1 Type-C to 4x USB Type-A Data and Charging HubCompare specs

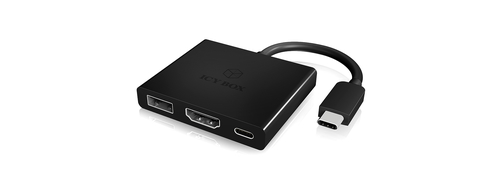

- CLUB3D USB 3.0 Hub 4-Port with Power Adapter vsICY BOX IB-DK4031-CPD USB 3.2 Gen 1 (3.1 Gen 1) Type-C BlackCompare specs

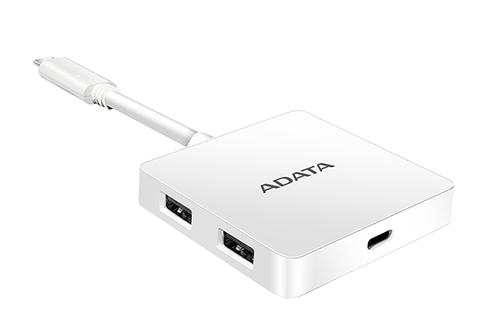

- CLUB3D USB 3.0 Hub 4-Port with Power Adapter vsADATA ACH3PL-HUB-CWH laptop dock/port replicator USB 3.2 Gen 1 (3.1 Gen 1) Type-C WhiteCompare specs

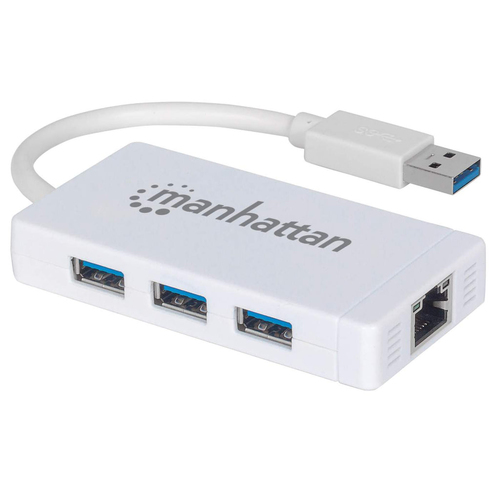

- CLUB3D USB 3.0 Hub 4-Port with Power Adapter vsManhattan USB-A 3-Port Hub with Gigabit Ethernet Adapter, 3x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 1x Ethernet 10/100/1000Mbps network, Equivalent toCompare specs

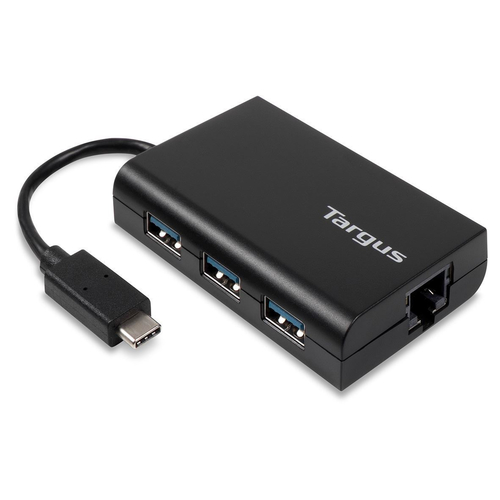

- CLUB3D USB 3.0 Hub 4-Port with Power Adapter vsTargus ACH230EUZ laptop dock/port replicator USB 2.0 BlackCompare specs
