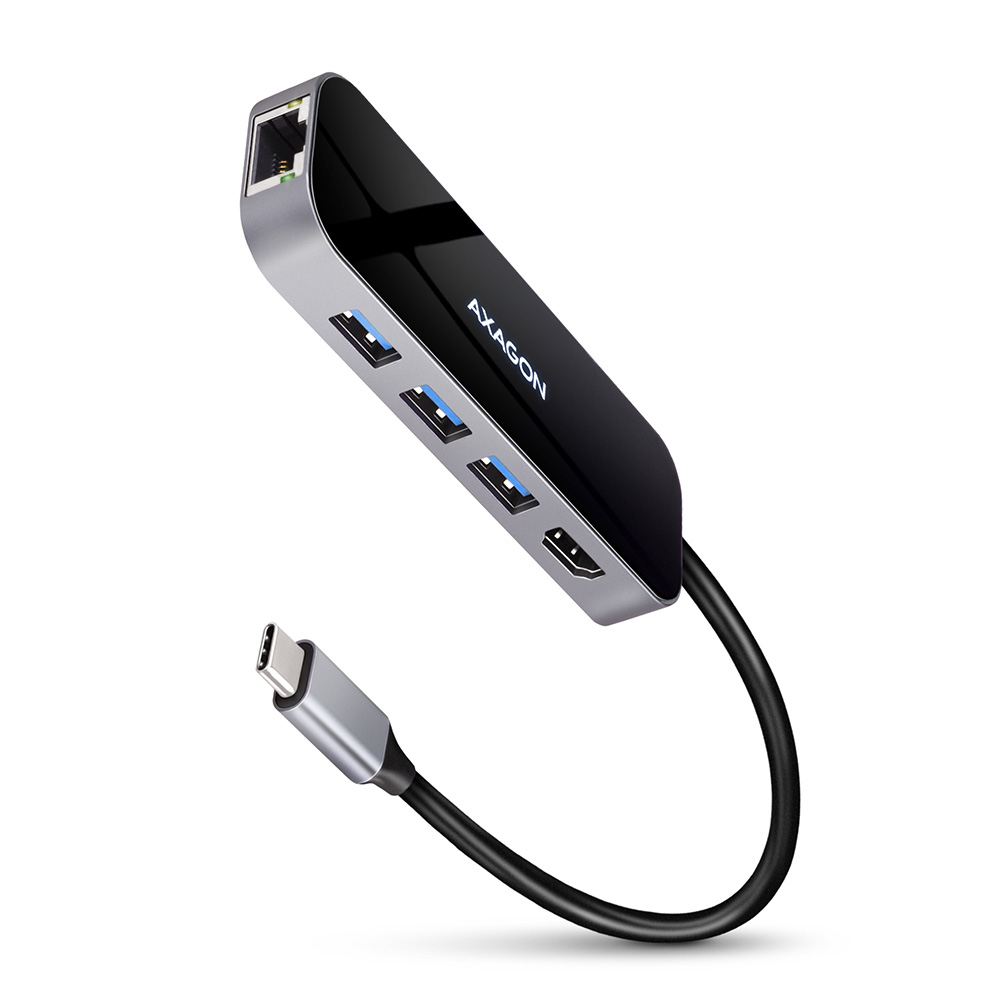

HMC-6GL USB 3.2 Gen 1 hub, 3x USB-A, HDMI 4k/30Hz, RJ-45, PD
100W, 20cm USB-C cable
Model HMC-6GLEAN 8595247906182
63 specifications
- ConnectivityWired
- Weight60 g
- ColourBlack, Grey
- Ethernet LANYes
- Built-in speaker(s)No
- Power source typeUSB
Overview
- Connectivity
- Wired
- Weight
- 60 g
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- Built-in speaker(s)
- No
- Power source type
- USB
- Brand
- Axagon
- Category
- Laptop Docks & Port Replicators
- Model
- HMC-6GL
- Part number
- HMC-6GL
- EAN / UPC
- 8595247906182
- Also known as
- Axagon HMC-6GL USB 3.2 Gen 1 hub, 3x USB-A, HDMI 4k/30Hz, RJ-45, PD 100W, 20cm USB-C cable
Specifications
63 specifications in 11 groups

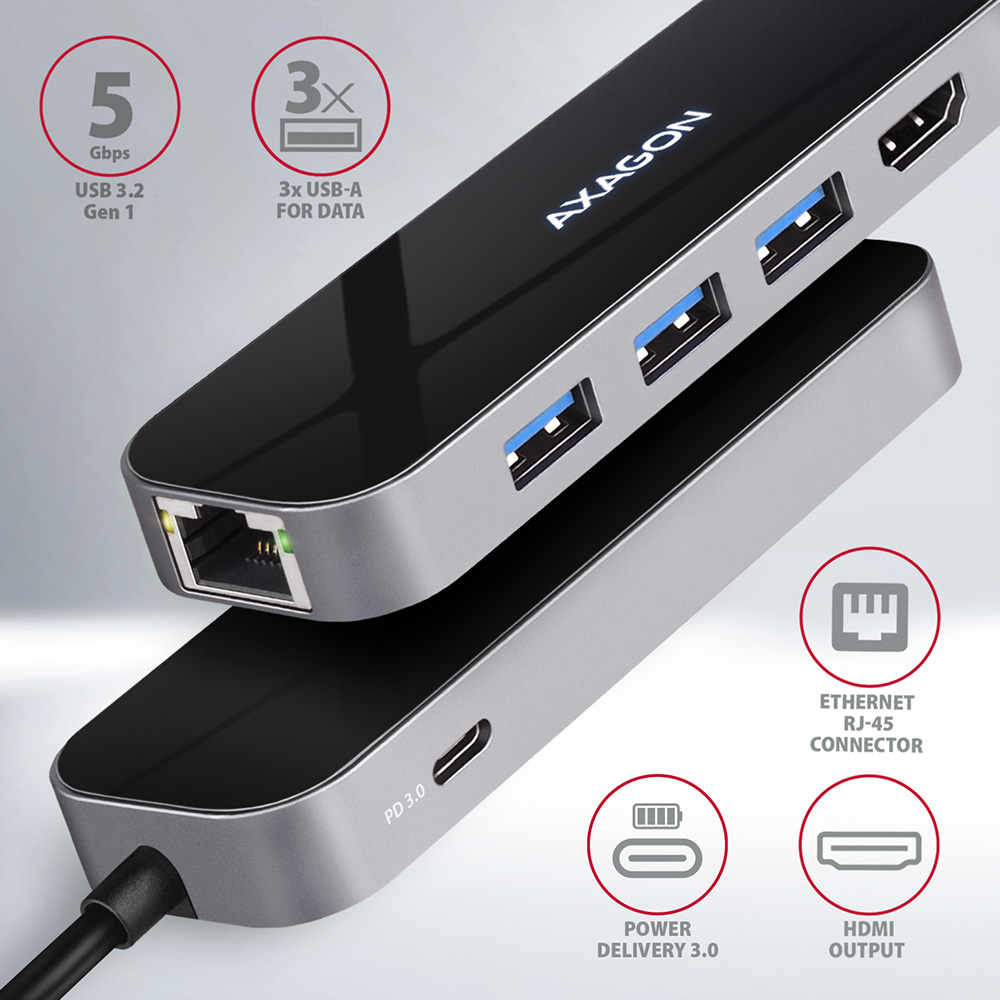

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.3 |
| Microphone in | No |
| Combo headphone/mic port | No |
| DC-in jack | No |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |

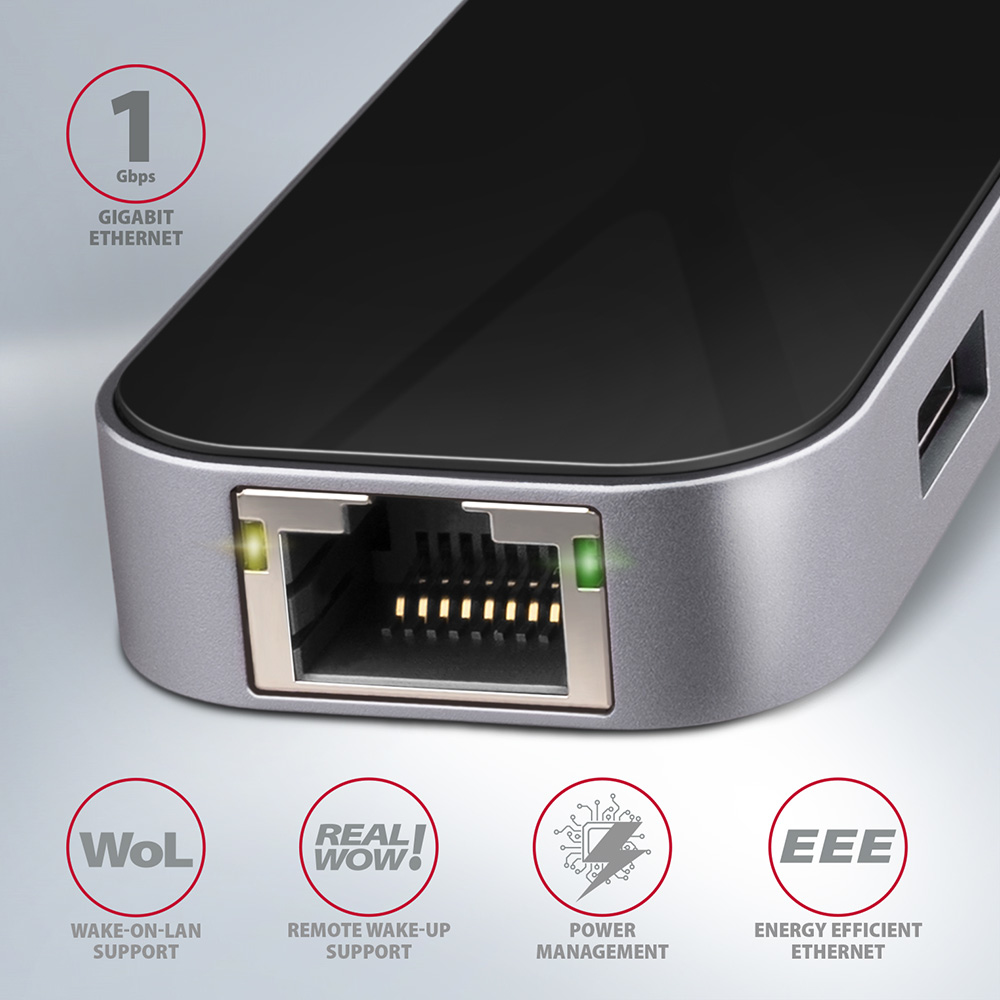

Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 120 Hz |
| Hot-Plug support | Yes |
| Hub interfaces | HDMI, RJ-45, USB 3.1 (3.1 Gen 1) Type-A, USB 3.1 (3.1 Gen 1) Type-C |
| Charging function | Yes |
| Housing material | Aluminium |
| LED indicators | Yes |
| Plug and Play | Yes |
| Country of origin | China |
| Brand compatibility | Universal |
| Certification | CE, RoHS |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in microphone | No |
Cooling
| Specification | Value |
|---|---|
| Built-in fan | No |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| Output current | 5 A |
| USB cable length | 0.2 m |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Yes |
| Server operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 13 mm |
| Height | 35 mm |
| Weight | 60 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 100 mm |
| Package depth | 28 mm |
| Package height | 200 mm |
| Package weight | 90 g |

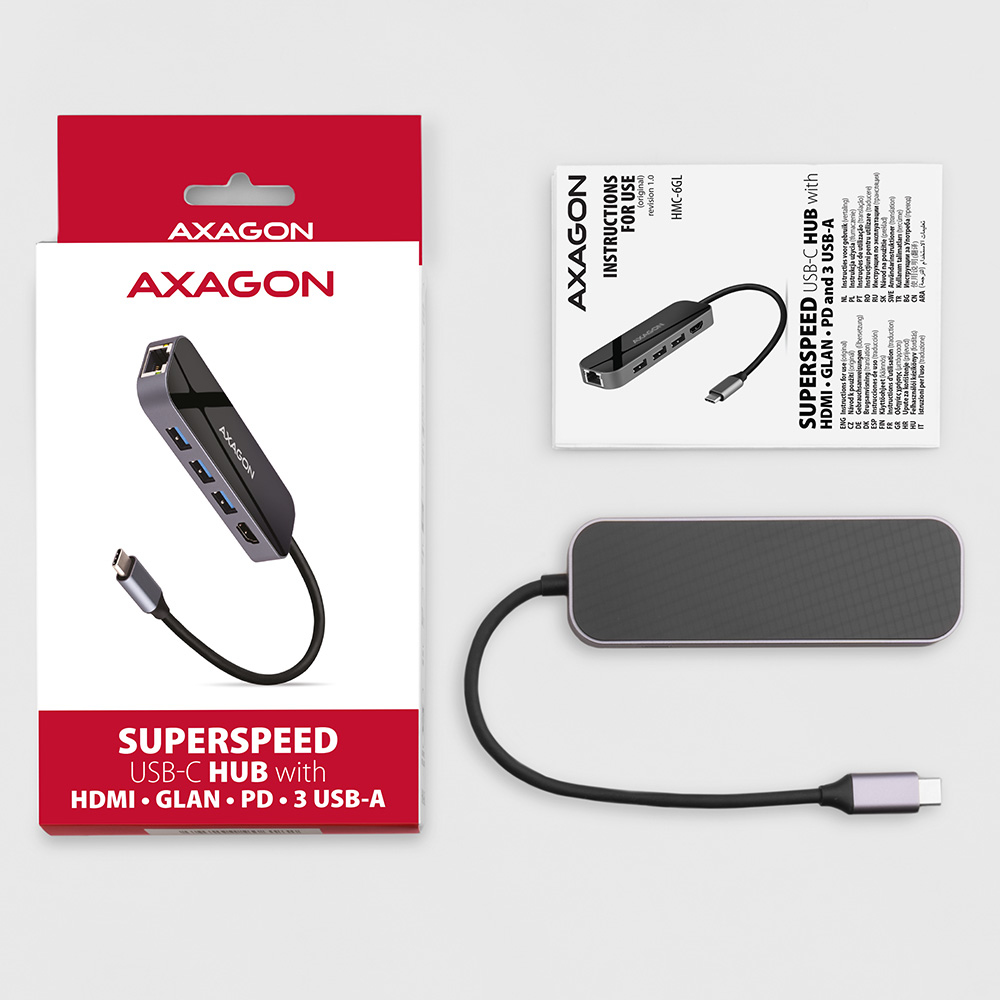

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Warranty period | 3 year(s) |
