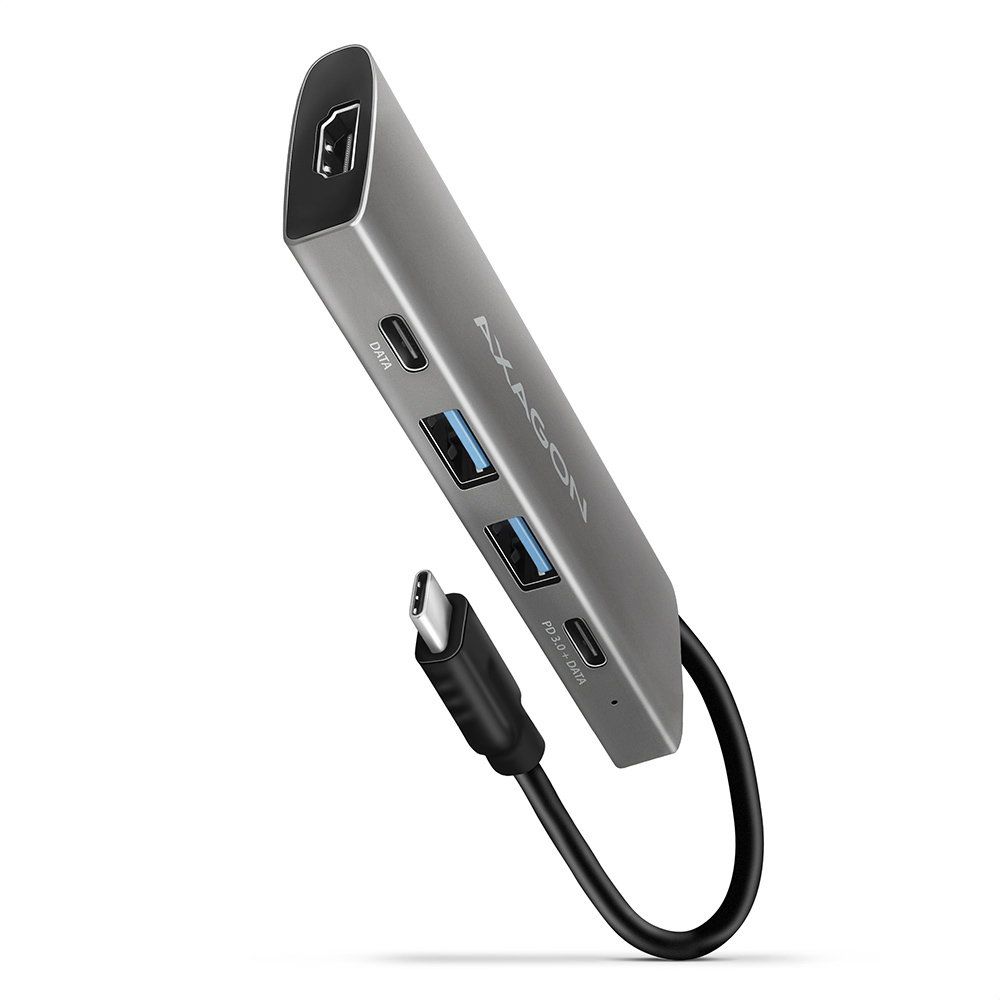

HMC-5G2 USB 10Gbps hub, 2x USB-A, 2x USB-C, HDMI 4k/60Hz, PD
100W, USB-C cable
Model HMC-5G2EAN 8595247905444
63 specifications
- ConnectivityWired
- Weight60 g
- ColourGrey
- Ethernet LANNo
- Power source typeUSB
- Windows operating systems supportedYes
Overview
- Connectivity
- Wired
- Weight
- 60 g
- Colour
- Grey
- Ethernet LAN
- No
- Power source type
- USB
- Windows operating systems supported
- Yes
- Brand
- Axagon
- Category
- Laptop Docks & Port Replicators
- Model
- HMC-5G2
- Part number
- HMC-5G2
- EAN / UPC
- 8595247905444
- Also known as
- Axagon HMC-5G2 USB 10Gbps hub, 2x USB-A, 2x USB-C, HDMI 4k/60Hz, PD 100W, USB-C cable
Specifications
63 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | No |
| DC-in jack | No |
| HDCP | Yes |
| HDCP version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 120 Hz |
| Number of displays supported | 1 |
| Hot-Plug support | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Hub interfaces | HDMI, USB 3.1 (3.1 Gen 2) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Charging function | Yes |
| Housing material | Aluminium |
| LED indicators | Yes |
| Plug and Play | Yes |
| Country of origin | China |
| Brand compatibility | Universal |
| Certification | CE, RoHS |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in microphone | No |
Cooling
| Specification | Value |
|---|---|
| Built-in fan | No |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| Power supply type | USB |
| Output current | 3 A |
| USB cable length | 0.13 m |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Yes |
| Server operating systems supported | Yes |
| Other operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40 mm |
| Depth | 12 mm |
| Height | 105 mm |
| Weight | 60 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 95 mm |
| Package depth | 20 mm |
| Package height | 190 mm |
| Package weight | 95 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Warranty period | 3 year(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.13 m |
| Cable type | Round cable |
| Overload protection | Yes |
